128x64 Backlit Transflective LCD with Breakout Board
Part Number: CFAG12864T3-TFH-E1-1

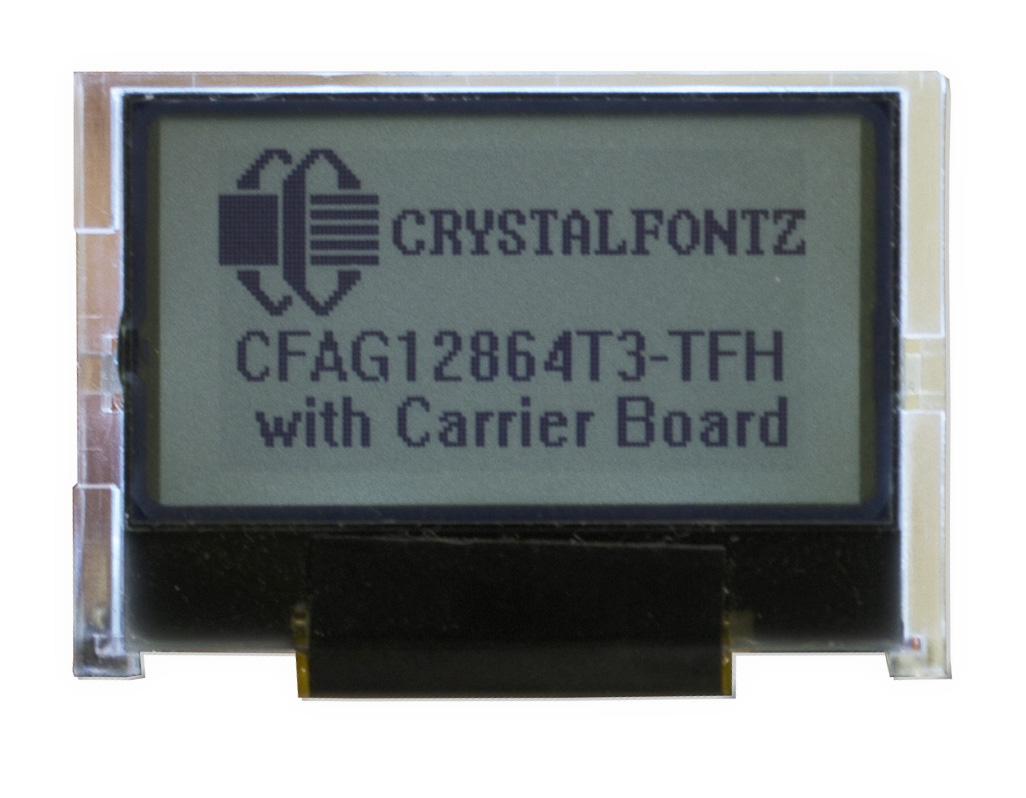

Grab this LCD display module to quickly and easily start using this small monochrome LCD. The included adapter board breaks the display's ZIF tail out into a 16 pin 0.1" header.

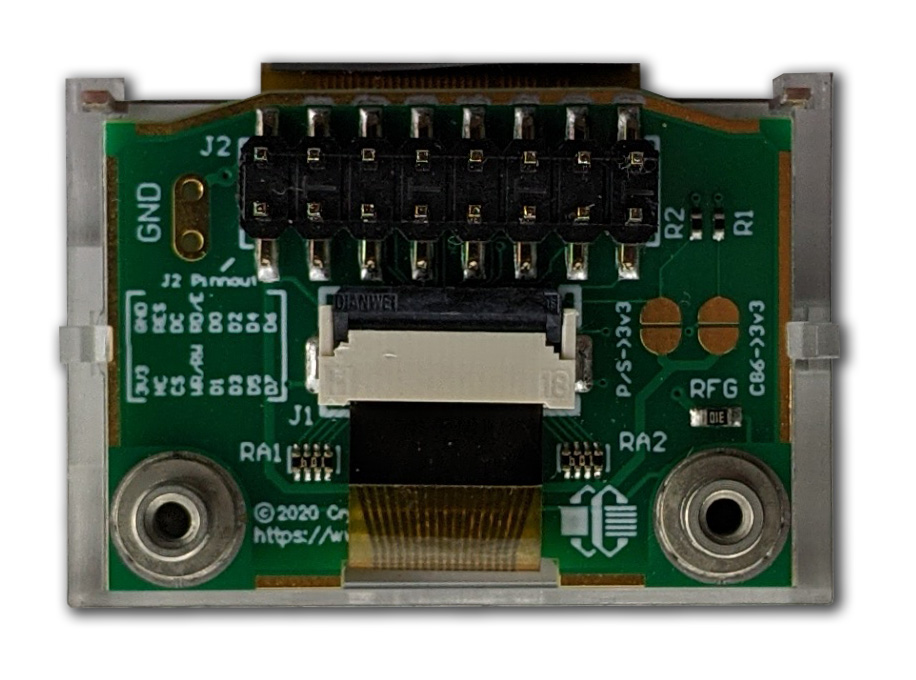

The adapter board fits inside the backlight frame, making this a neat way to handle interfacing with the display. Use this display module to validate the CFAG12864T3-TFH, or integrated it into your final design. The adapter board also includes two 2-56 threaded standoffs to simplify mounting the display module in your final enclosure design.

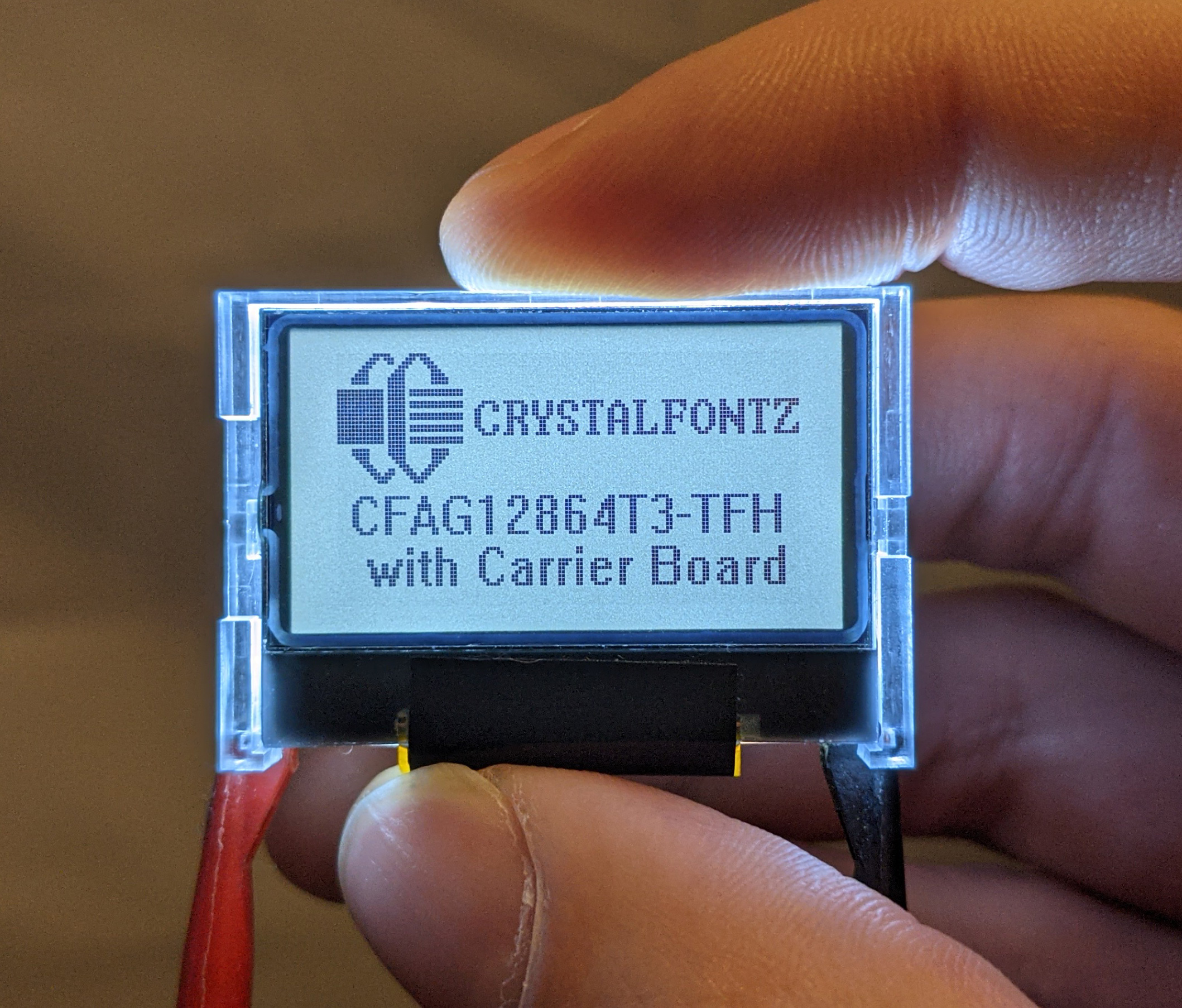

The included CFAG12864T3-TFH thin, light, and low power. The LED backlight only needs to be used when the display needs to be read in dim or dark environments. Because this is an STN display, the graphics clearly readable in sunlight. This display is well suited for compact hand-held devices and other low-power applications.
This transflective monochrome graphic LCD display module is also available in a non-backlit version (CFAG12864T3-NFH-E1-1).
Features of this Display Module
The adapter board fits inside the backlight frame, making this a neat way to handle interfacing with the display. Use this display module to validate the CFAG12864T3-TFH, or integrated it into your final design. The adapter board also includes two 2-56 threaded standoffs to simplify mounting the display module in your final enclosure design.
The included CFAG12864T3-TFH thin, light, and low power. The LED backlight only needs to be used when the display needs to be read in dim or dark environments. Because this is an STN display, the graphics clearly readable in sunlight. This display is well suited for compact hand-held devices and other low-power applications.
This transflective monochrome graphic LCD display module is also available in a non-backlit version (CFAG12864T3-NFH-E1-1).
Features of this Display Module
- Ultra-Low power consumption
- White LED backlight
- 0.1" header (2.54 mm) for easy connections
- 2x 2-56 threaded mounting standoffs
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- Built-in Sitronix ST7565P controller
- Perfect for handheld, battery operated devices
- Simple 4-wire, 8-bit SPI or 8-bit parallel interface
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Datasheet
Compliance Documents
Video Demonstrations
Check out this small, low power transflective LCD display. Available in many options including with and without a backlight, breakout board, or a complete development kit.
TECHNICAL SPECS
Physical Characteristics

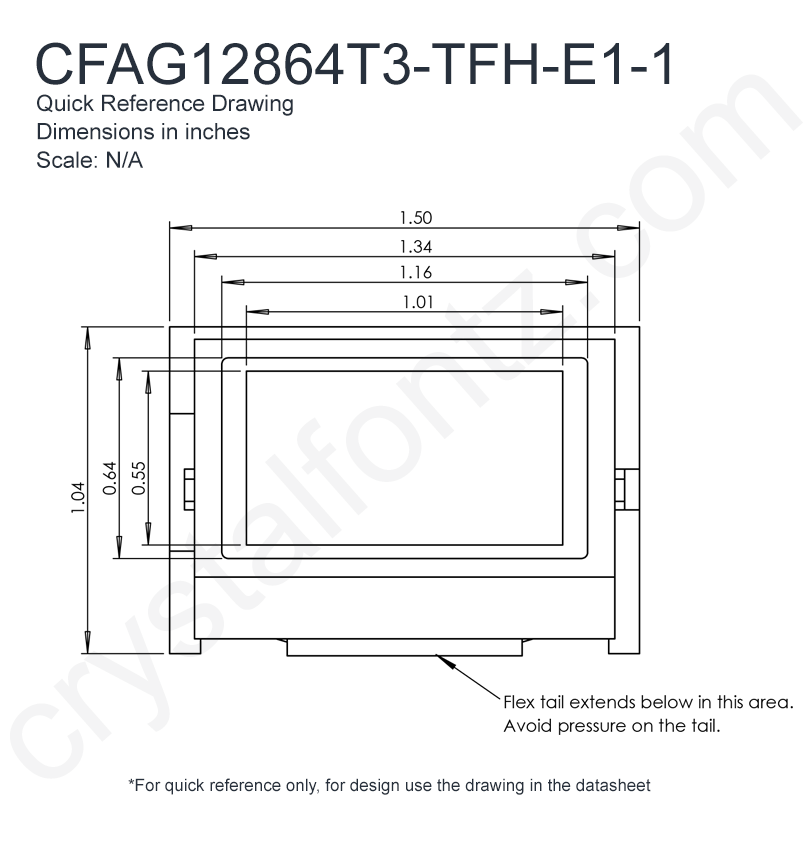

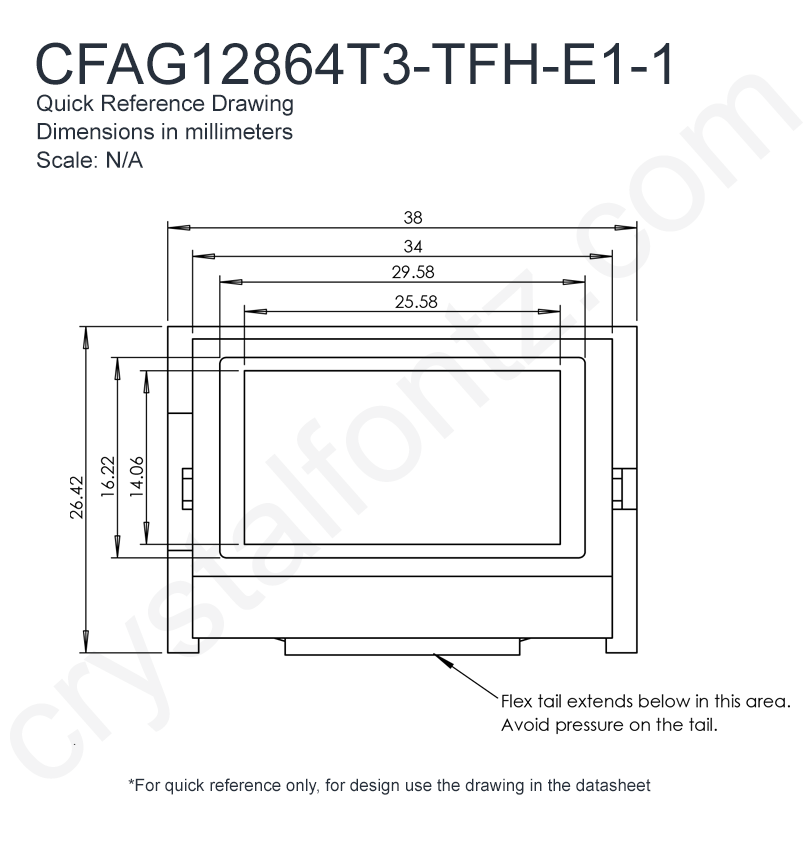

Column Dots x Row Dots | 128 x 64 |
Module Overall | width | height | depth |
---|---|---|---|
millimeters | 34 | 24.22 | 9.05 |
inches | 1.339 | 0.954 | 0.356 |
Viewing Area | width | height |
---|---|---|
millimeters | 29.58 | 16.22 |
inches | 1.165 | 0.639 |
Active Area | width | height |
---|---|---|
millimeters | 25.58 | 14.06 |
inches | 1.007 | 0.554 |
Dot Size | width |
---|---|
millimeters | 0.22 |
inches | 0.009 |
Dot Pitch | height |
---|---|
millimeters | 0.2 |
inches | 0.008 |
Weight | 10g |
Pin Count | 16 |
Optical Characteristics
Glass Type/Glass Color | FSTN/Light Gray |
Polarizer | Transflective |
View Direction | 6 o'clock |
View Angle | 60° |
Sunlight Readable | Yes |
Backlight Color | White |
Backlight Type | LED |
Foreground Color | Dark |
Background Color | Light Gray |
Electrical Specifications
Supply Voltage for Logic Typical | 3.3V |
Supply Current Typical | 32mA |
Backlight Electrical Specifications
Forward Voltage Typical | 3.5V |
Environmental
Operating Temperatures | min | max |
---|---|---|
Celsius | -20° | 70° |
Fahrenheit | -4° | 158° |
Storage Temperatures | min | max |
---|---|---|
Celsius | -30° | 80° |
Fahrenheit | -22° | 176° |
Electronics
Controller Documents | Sitronix ST7565P ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers. |

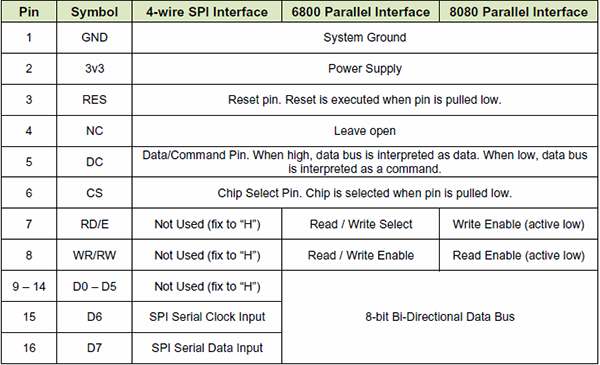

Interface | 8-bit Parallel, SPI |
For reference only. For design purposes, please use the specifications in the datasheet.
