1.1" Transparent LCD Kit with Microcontroller from Crystalfontz

Product

Home » Products » Accessories » Dev Kits

1.1" Transparent LCD Kit with MicrocontrollerPart Number: CFAG12864T4-NFI-KIT
         This LCD development kit includes everything needed to get started with the 1.1" transparent LCD. Simply plug the included Seeeduino into a power source to immediately see the display working. The demonstration code is open source (linked in the resources, below) so modifying the code is easy.

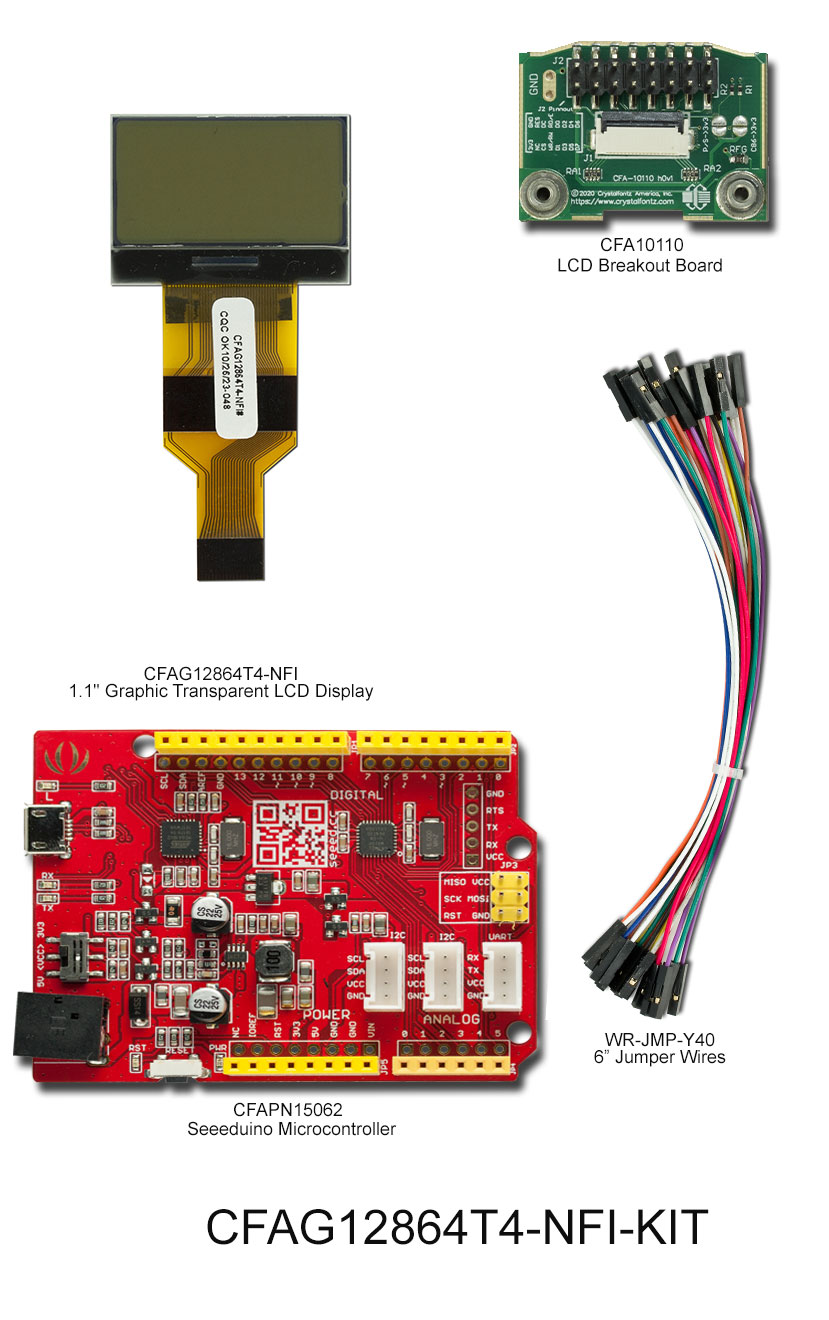

This kit includes:
1.1" Transparent LCD
Seeeduino Microcontroller

LCD breakout board
Connectors, Jumper wires
Code pre-loaded on the Seeeduino

Part Number:
CFA - Crystalfontz America
G - Graphic LCD
12864 - 128x64 pixel resolution
U4 - Display family and revision
N - No backlight
F - FSTN Positive Display
I - Transmissive Polarizer, 6:00 viewing angle
KIT - Full Seeeduino development kit

Product VariationsColorsDark on Transparent
No BacklightDark on Light Gray
White LED BacklightDark on Light Gray
No Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        34
        24.22
        1.75

        inches
        1.34
        0.95
        0.07

*width / height does not include Foldable Tab

        Diagonal Dimension
            1.1"

    Viewing Area        Width
        Height

        millimeters
        29.58
        16.22

        inches
        1.17
        0.64

    Active Area        Width
        Height

        millimeters
        25.58
        14.06

        inches
        1.01
        0.55

    Dot Pitch        Width
        Height

        millimeters
        0.2
        0.22

        inches
        0.008
        0.009

        Weight
            45.5g
Pin Count
            18

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            LCD
View Direction
            6 o'clock

        Foreground Color
            Dark
Background Color
            Transparent

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.3V

        Supply Current Maximum
            2mA
Supply Current Typical
            1mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7565P
ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864T4-NFI Datasheet

 download Files and Downloads
link Demo Code Download on Github on Github
link Demo Code Repository on Github
link Demo Code Repository on Github on Github

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $34.61

77 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						1.1" Graphic Transparent LCD Display
Add another LCD? $7.69 ea.

						LCD Breakout Board
Add another breakout board? $7.00 ea.

						3-inch Female to Female Jumper Wires
Add jumper wires? $2.51 ea.

Colors	Dark on Transparent No Backlight Dark on Light Gray White LED Backlight Dark on Light Gray No Backlight

Module Overall	width	height	depth
millimeters	34	24.22	1.75
inches	1.34	0.95	0.07
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	29.58	16.22
inches	1.17	0.64

Active Area	Width	Height
millimeters	25.58	14.06
inches	1.01	0.55

Dot Pitch	Width	Height
millimeters	0.2	0.22
inches	0.008	0.009

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$34.61
