1.1" Graphic Transparent LCD Display

Part Number: CFAG12864T4-NFI

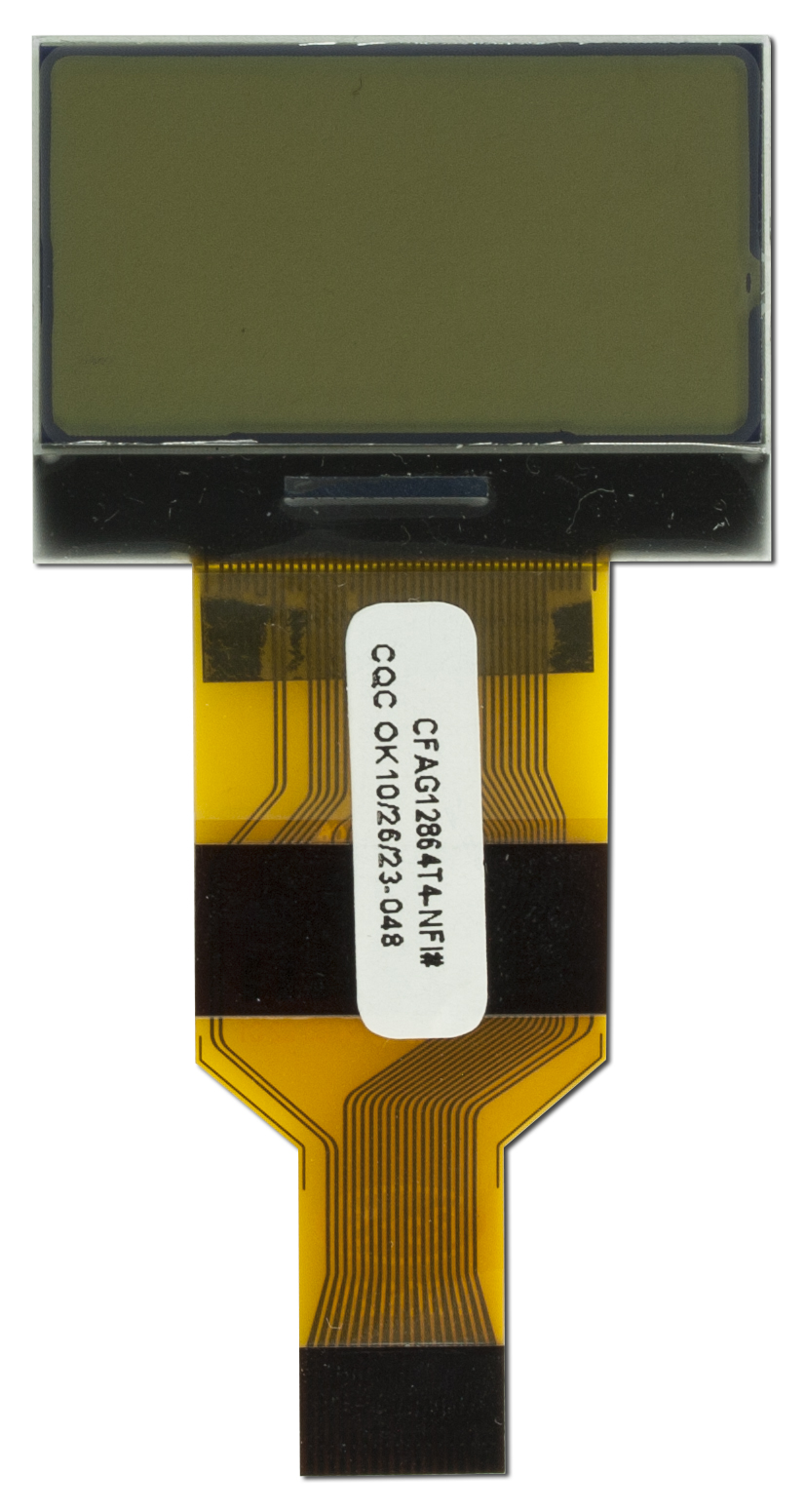

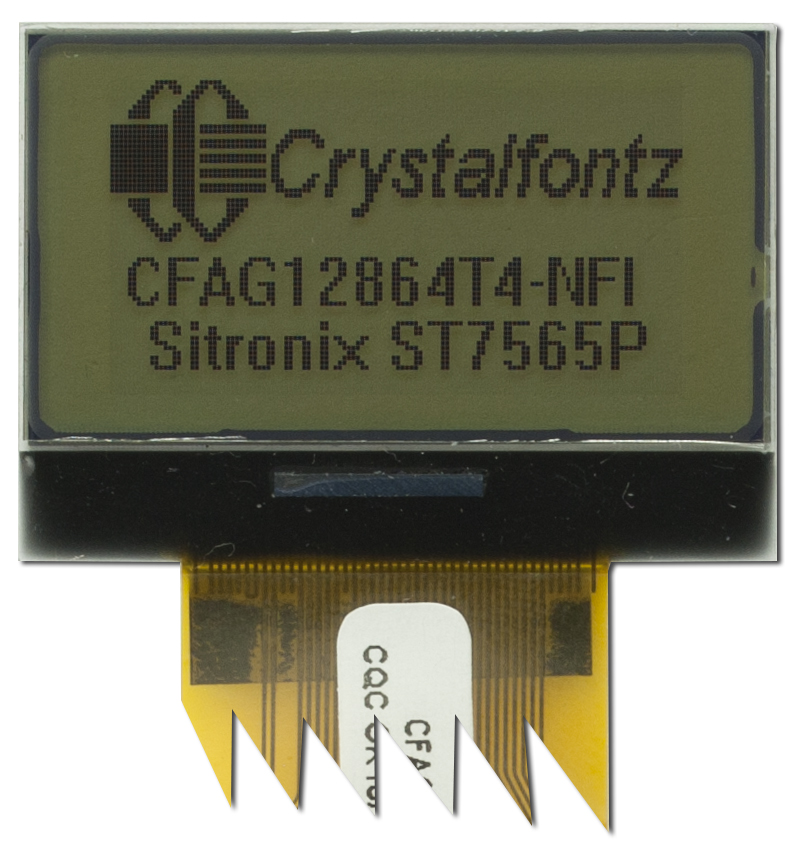

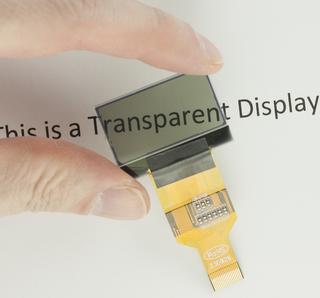

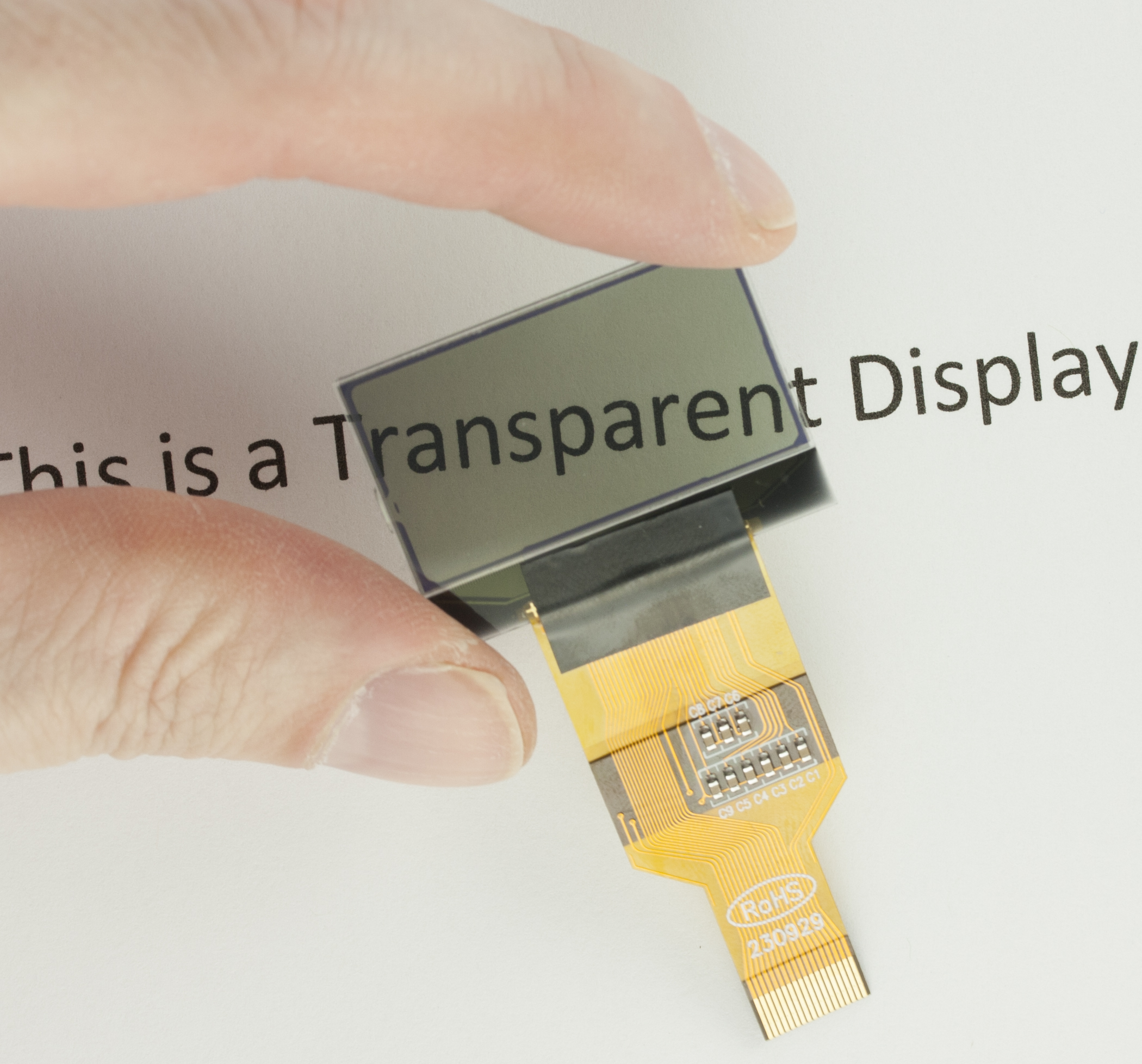

Transparent LCD! You read that right! This little LCD comes without a back panel, making it transparent. If you've seen our DIY transparent LCD and wanted the final product without having to source the polarizer yourself, this display is for you! If you wish our transparent OLED was available with black pixels, this is for you!

This display has the same form factor and pinout as our popular CFAG12864T3-NFH display and can be used with the Graphic LCD breakout board.

A larger transparent LCD is also available.

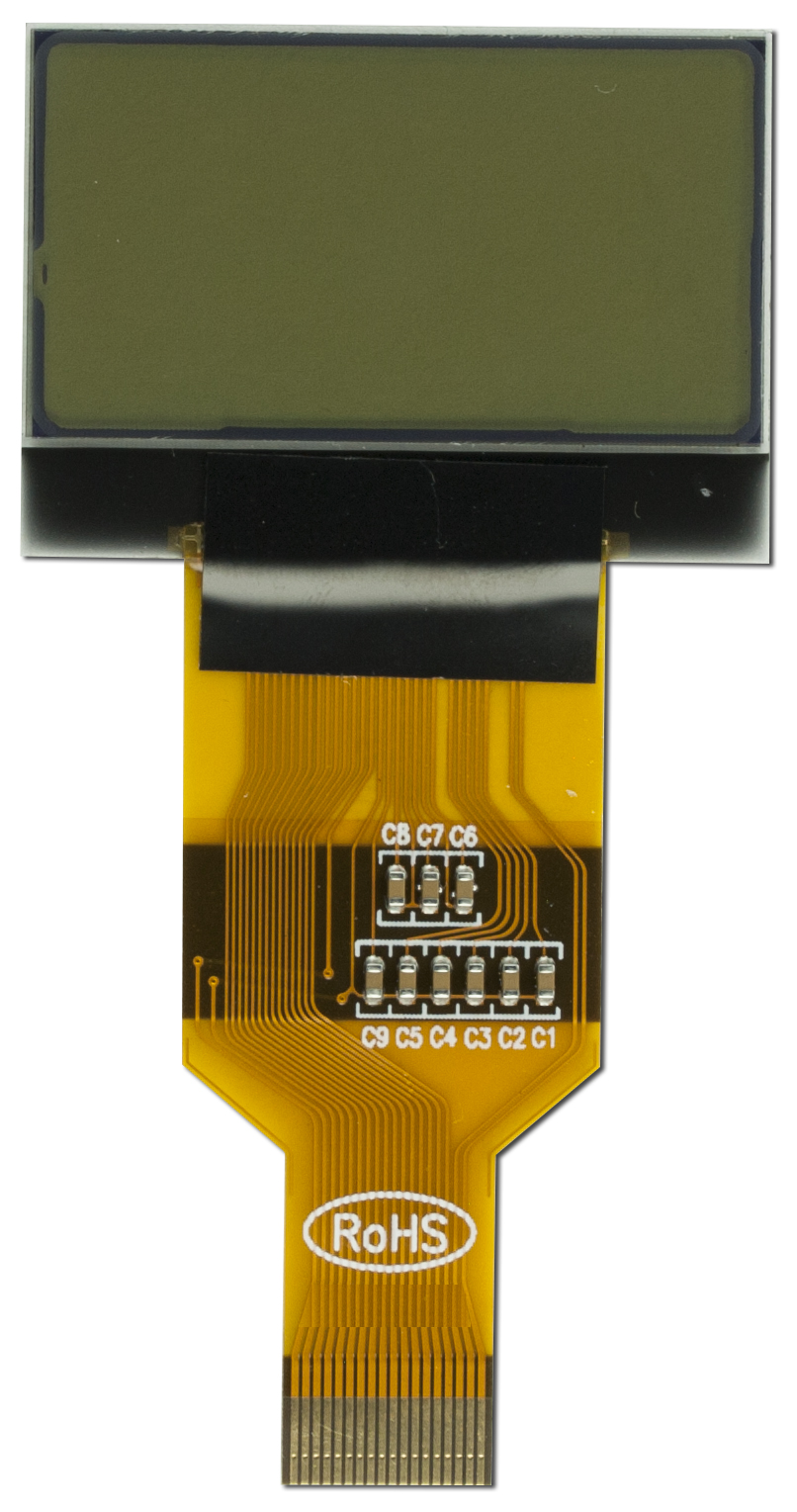

This LCD has an integrated controller and voltage-generating components mounted on the flexible tail. The tail connects to a standard 18-conductor 0.5mm pitch ZIF (Zero Insertion Force) connector. The included controller supports parallel or SPI communication.

Part Number:
CFA - Crystalfontz America
G - Graphic LCD
12864 - 128x64 pixel resolution
T4 - Family and series
N - No backlight
F - FSTN Positive
I - Transmissive Polarizer, 6:00 viewing direction

  • square_foot Physical Characteristics

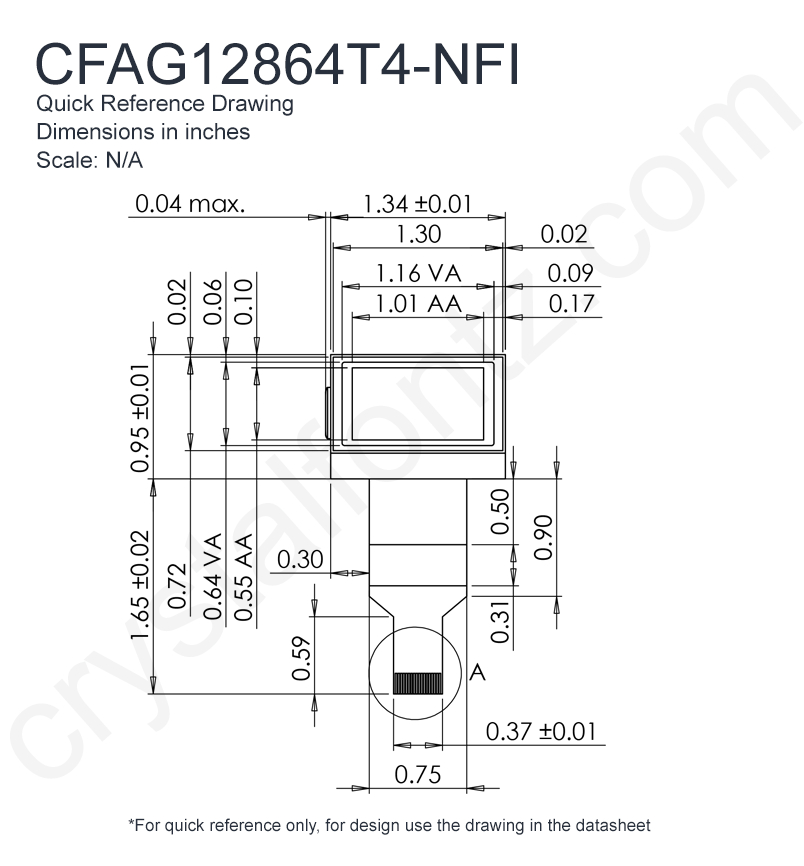

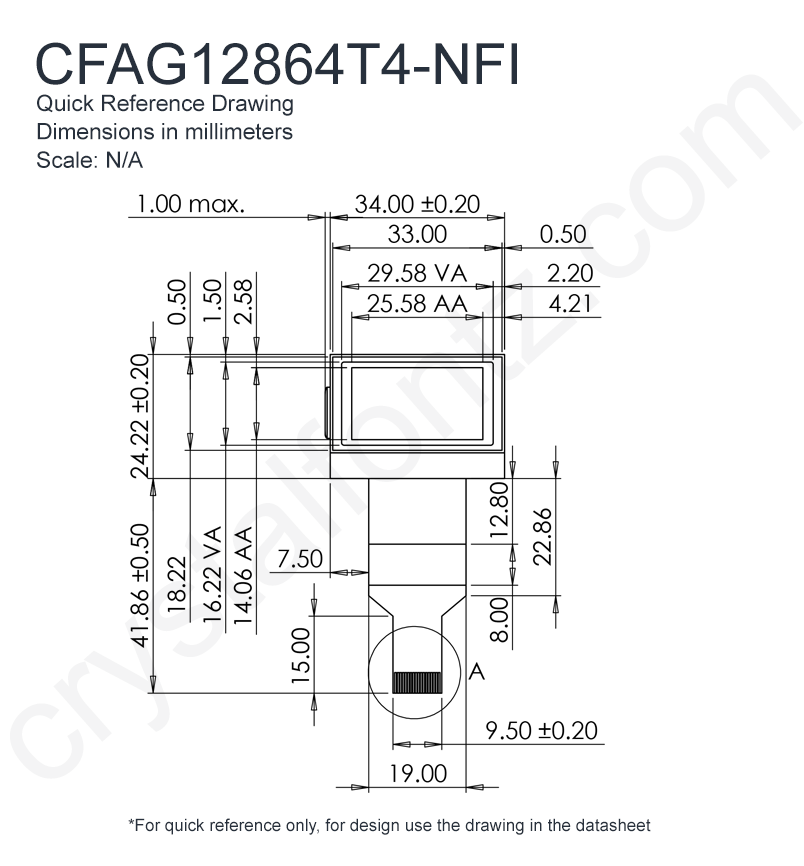

    Physical Characteristics

    Column Dots x Row Dots 128 x 64
    Module Overall width height depth
    millimeters 34 24.22 1.75
    inches 1.34 0.95 0.07
    *width / height does not include Foldable Tab
    Diagonal Dimension 1.1"
    Viewing Area Width Height
    millimeters 29.58 16.22
    inches 1.17 0.64
    Active Area Width Height
    millimeters 25.58 14.06
    inches 1.01 0.55
    Dot Pitch Width Height
    millimeters 0.2 0.22
    inches 0.008 0.009
    Weight 2.7g
    Pin Count 18
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type LCD
    View Direction 6 o'clock
    Foreground Color Dark
    Background Color Transparent
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 3V
    Supply Voltage for Logic Maximum 3.3V
    Supply Current Maximum 2mA
    Supply Current Typical 1mA
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Controller Documents Sitronix ST7565P
    ST7565P
    65 x 132 Dot Matrix LCD Controller/Driver
    Sitronix ST7565P
    ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
    Interface 8-bit Parallel, SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Price
1 $8.34
5 $7.69
10 $6.78
20 $6.58
50 $6.34
100 $6.26
200 $6.22
300 $5.87
500 * $5.83
1000 * $5.40
* Pricing is subject to change. Contact us about potential lead times.

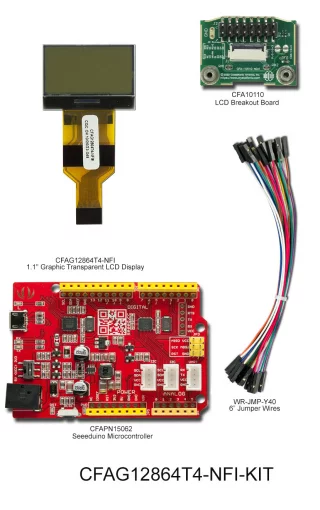

Components worth considering
4690 LCD Breakout Board
Add a Breakout Board? $8.60 ea.
4823 18-Position ZIF Breakout Board
Add 18-Position Breakout Board? $6.15 ea.
4633 18 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Add ZIF Connectors? $0.79 ea.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG12864T4-NFI or RSS RSS feed for changes to CFAG12864T4-NFI
  • text_snippet
    Part Change Notice #11253: 1.1" Graphic Transparent LCD Display is now available
    New Product: CFAG12864T4-NFI
    Date Issued: January 10, 2024
    Summary: 1.1" Graphic Transparent LCD Display is now available
    Description: CFAG12864T4-NFI has been released on our website (https://www.crystalfontz.com/product/cfag12864t4nfi-small-graphic-transparent-lcd-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
