LCD Breakout Board

Part Number: CFA10110

This breakout board helps bring up a family of monochrome graphic LCDs. By breaking the ZIF tail of the compatible displays out to a 16-position 0.1" header connecting the display is a breeze. Simply use 0.1" jumper wires to connect into your project.

The board also includes two 2-56 threaded standoffs for mounting the display and board to your final design.

This LCD breakout board is compatible with our entire family of transflective sunlight readable displays:

1.1" Small transflective graphic LCD (CFAG12864T3-NFH)
1.1" Small backlit sunlight readable LCD (CFAG12864T3-TFH)
2.2" Low power 128x64 graphic LCD (CFAG12864U3-NFH)
128x64 Backlit Low Power LCD (CFAG12864U3-TFH)
240x128 Low Power Graphic LCD Display (CFAG240128U0-TFH)
Low Power 240x128 Graphic LCD Display (CFAG240128U0-NFH)

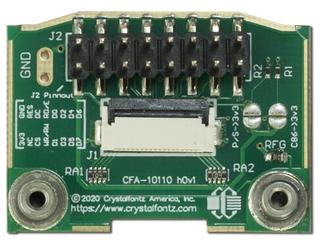

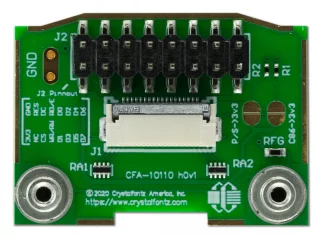

LCD Breakout Board (CFA10110)

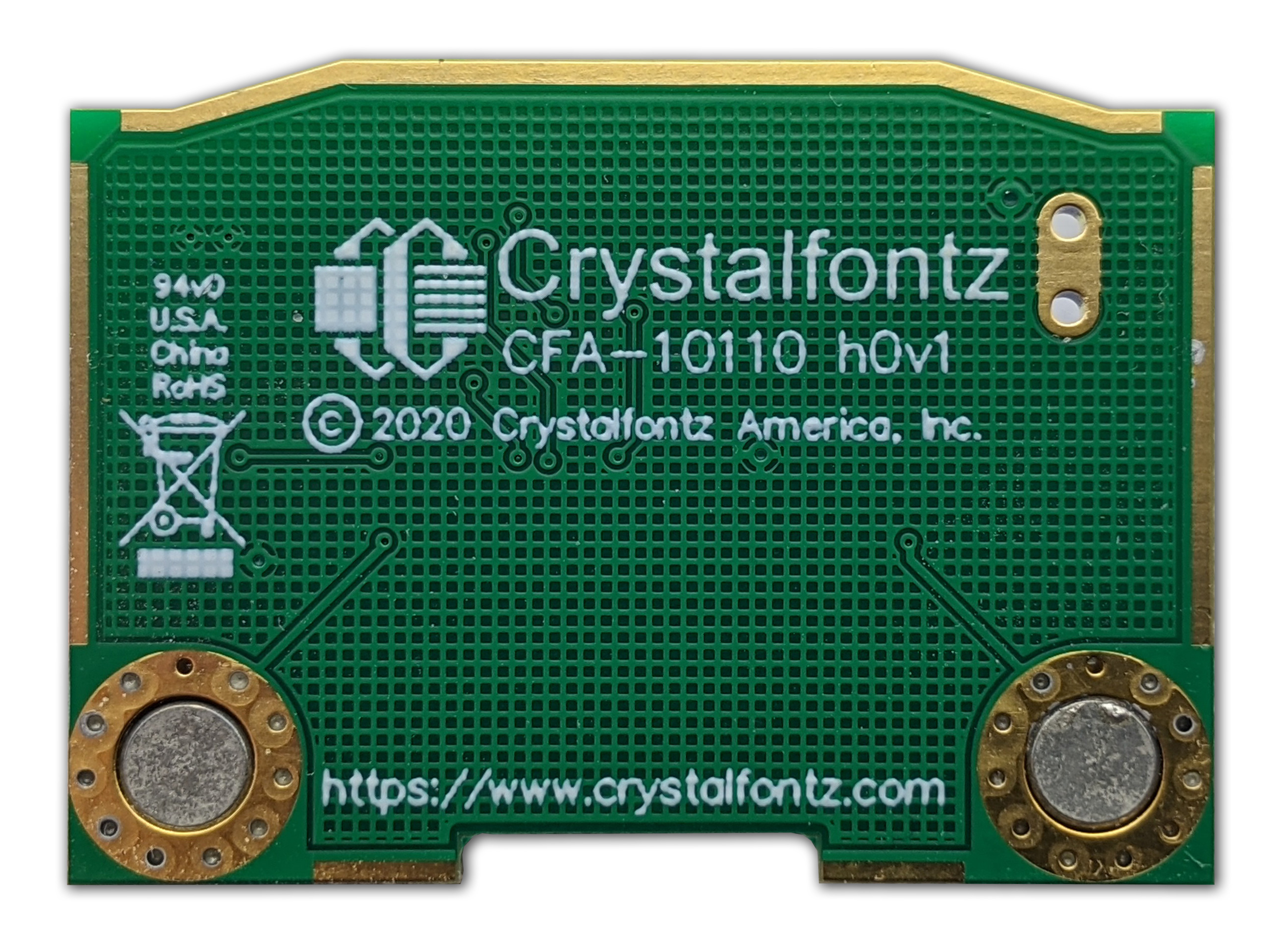

Carrier Board for 128x64 LCD Module, back view.

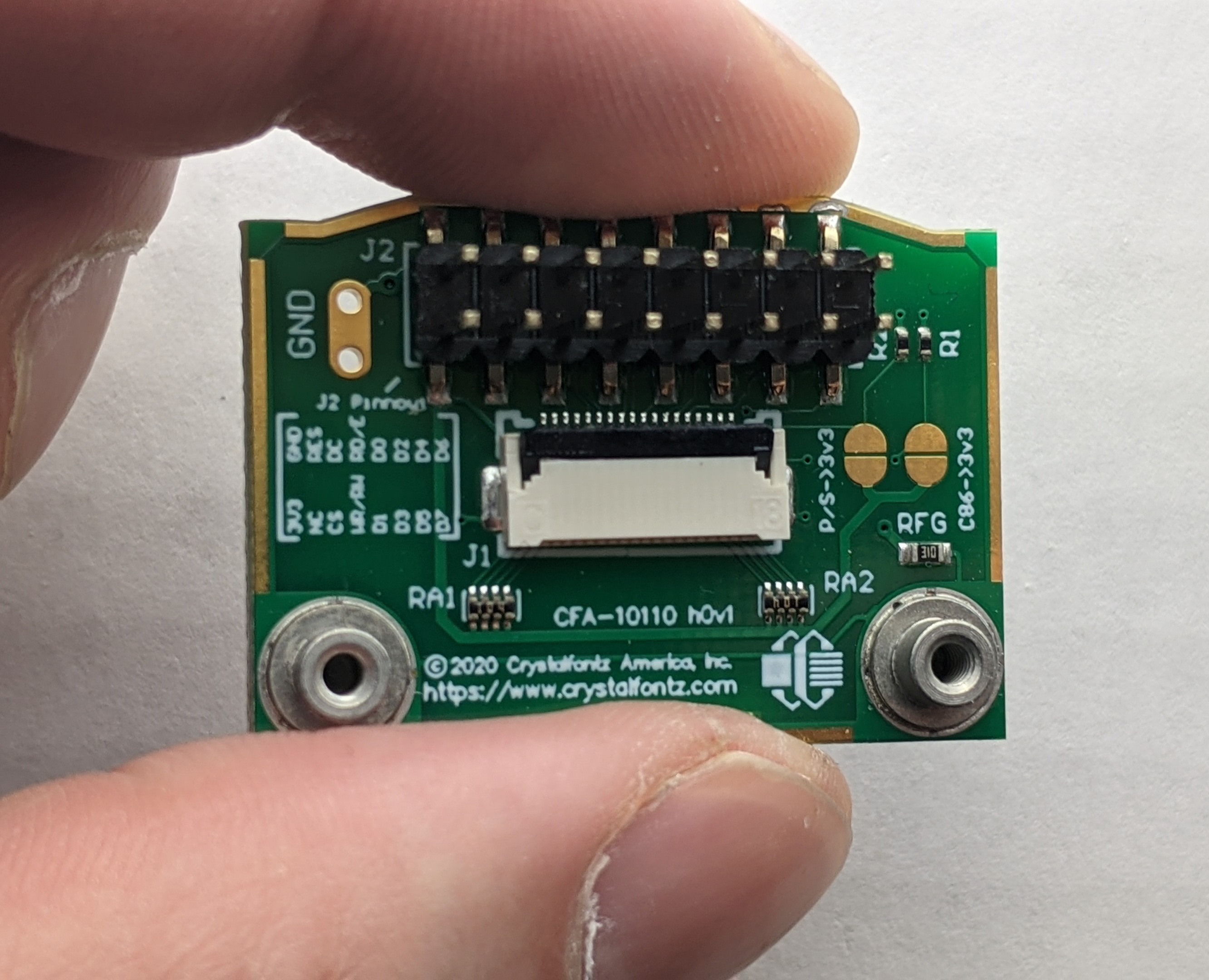

Carrier Board for 128x64 LCD Module, in hand to show size and perspective.

Quantity	Price
1	$8.60
5	$7.00
10	$6.52
20 *	$6.33
50 *	$6.12
100 *	$6.04
200 *	$6.00
300 *	$5.96
500 *	$5.92
1000 *	$5.88

* Pricing is subject to change. Contact us about potential lead times.

Components worth considering

4665

Assorted Imperial Screws
Need mounting screws? $3.08 ea.

1872

3-inch Female to Female Jumper Wires
Add short jumper wires? $3.14 ea.

1871

6-inch Female to Female Jumper Wires
Add long jumper wires? $3.38 ea.

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

CFA10110 Datasheet

Files

Hardware Design - 3D Model

Hardware Design - Hardware Build Package

Hardware Design - Mechanical Drawing

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFA10110

Compliance Documents

Video Demonstrations

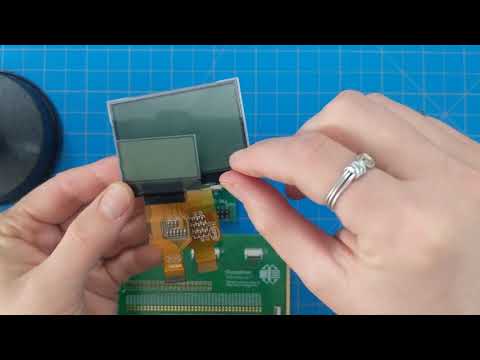

Video showing the different displays available to use with this breakout board

TECHNICAL SPECS

Physical Characteristics

PCB Outline	width	height
millimeters	34	24.7
inches	1.339	0.972

Weight	4.6g
Pin Count	16

Electrical Specifications

Module Connector Pitch

2.54mm

Compatible Products

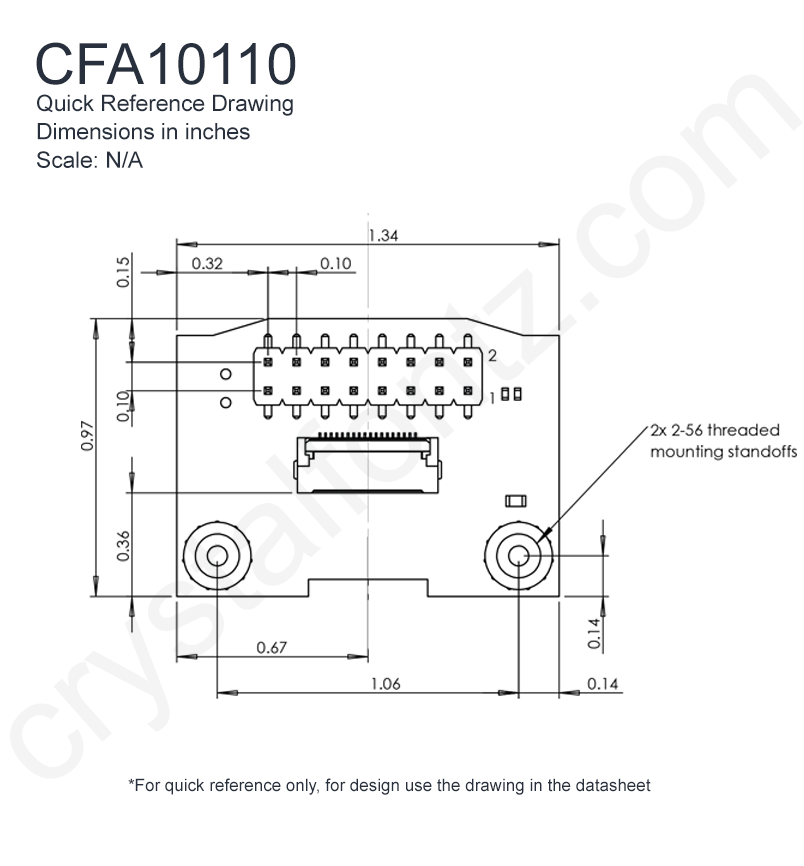

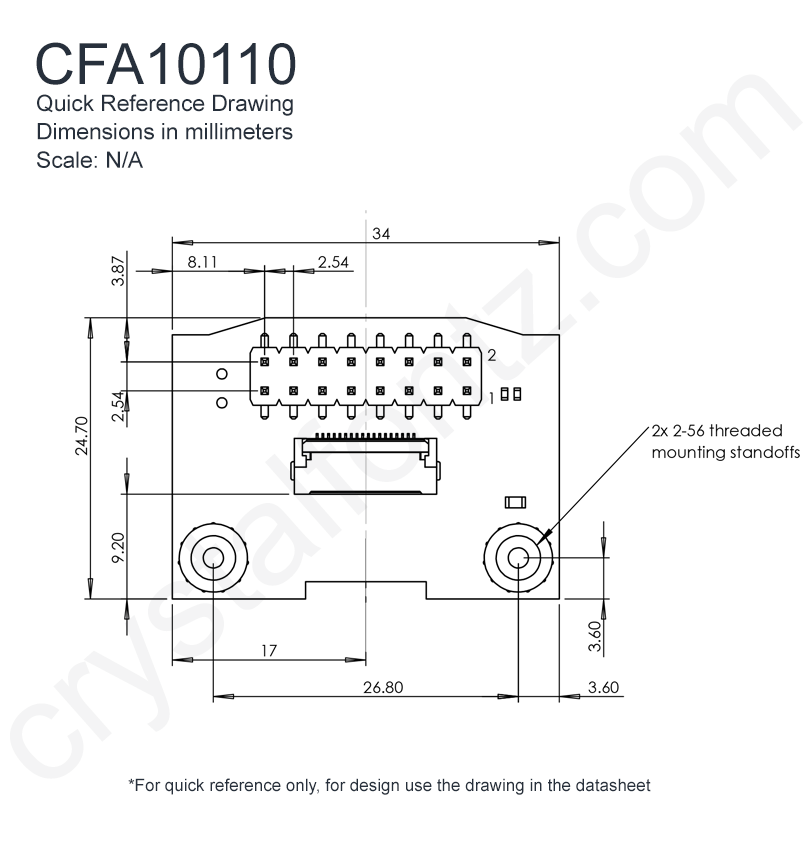

Dimensions

For reference only. For design purposes, please use the specifications in the datasheet.
