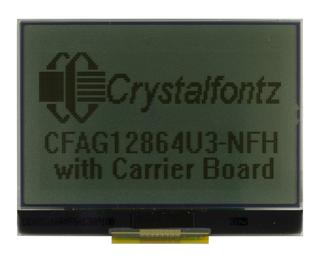

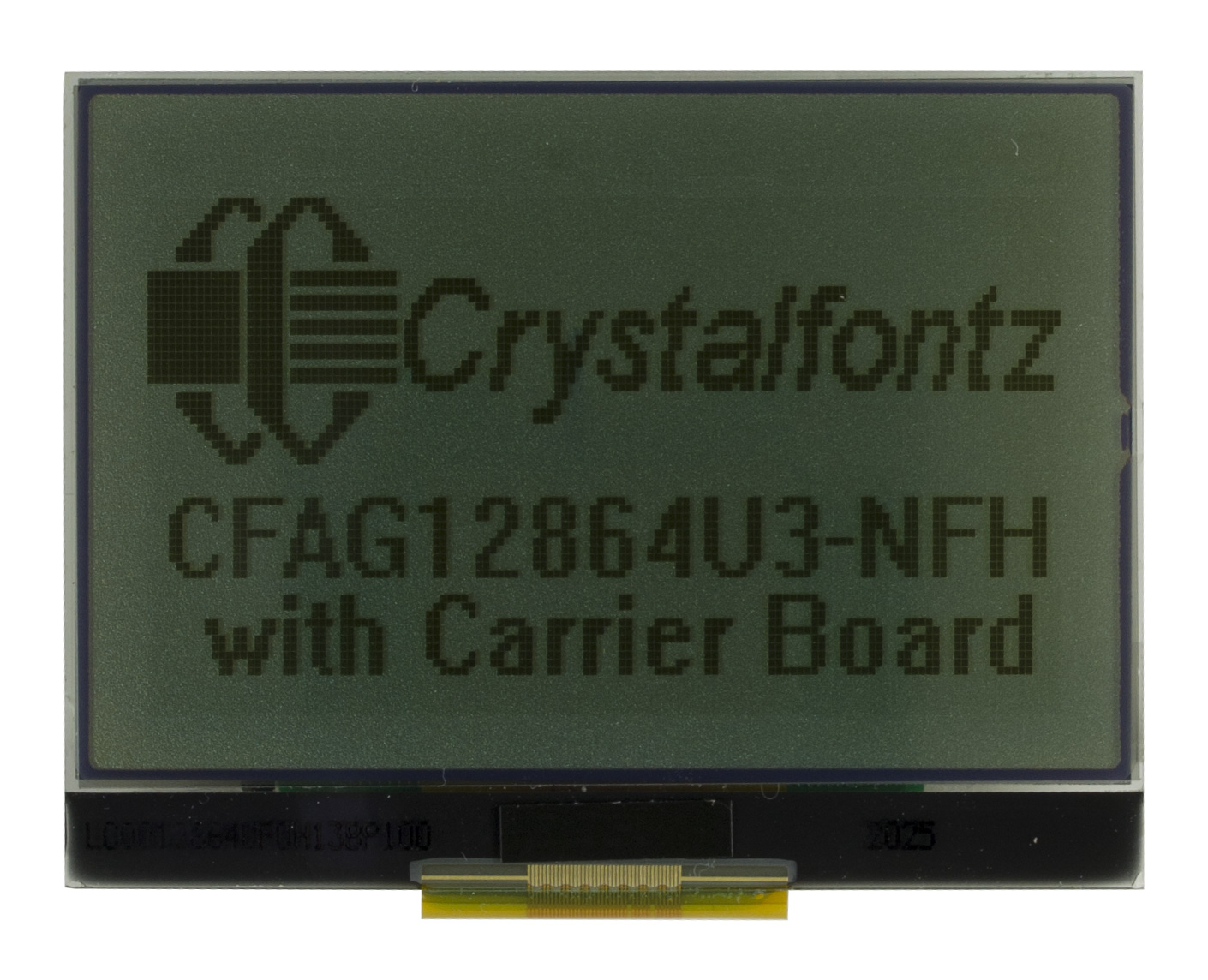

Low Power Transflective LCD Display Module

Part Number: CFAG12864U3-NFH-E1-1

This graphic LCD display module includes a wonderful low power 128x64 graphic LCD on an adapter board.

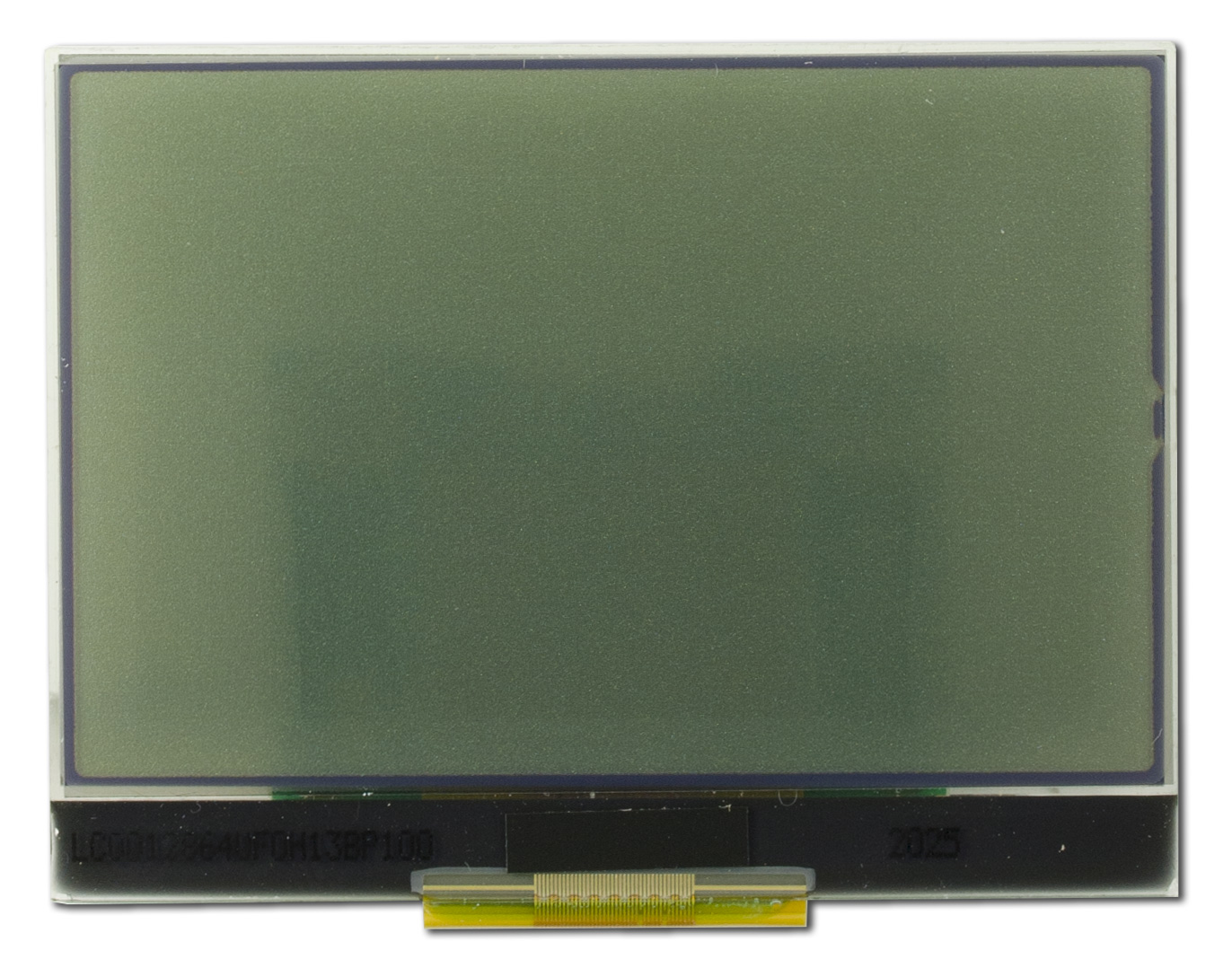

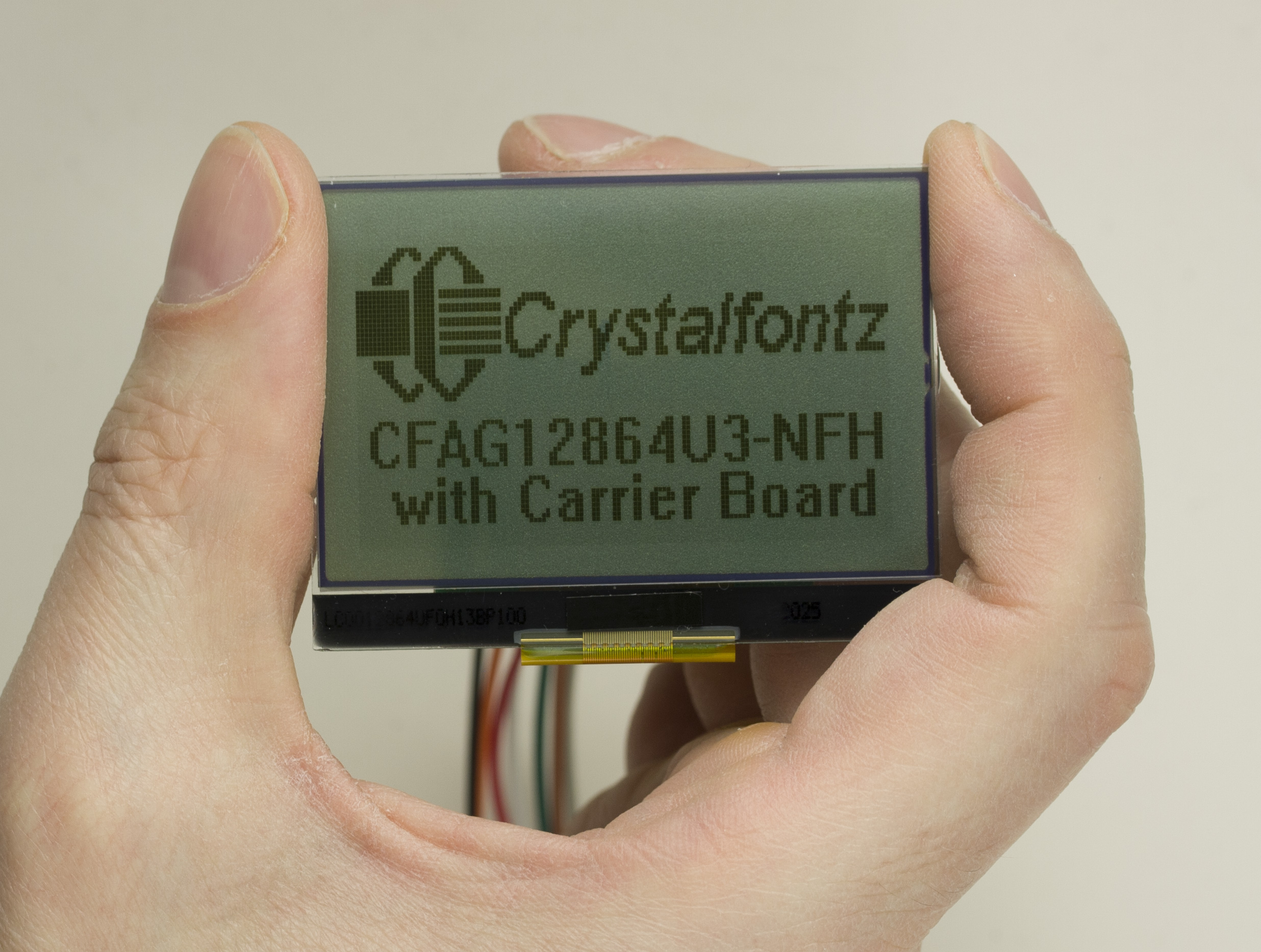

At 2.2" diagonal, this transflective display is big enough to get all the information across. Plus, it's readable in most lighting environments, from indoor light to direct sunlight. If you're looking for a display that can be read in low-light situations, check out the backlight version of this display. This display has a 128x64 monochrome array, plus a row of addressed icons along the top edge of the display.

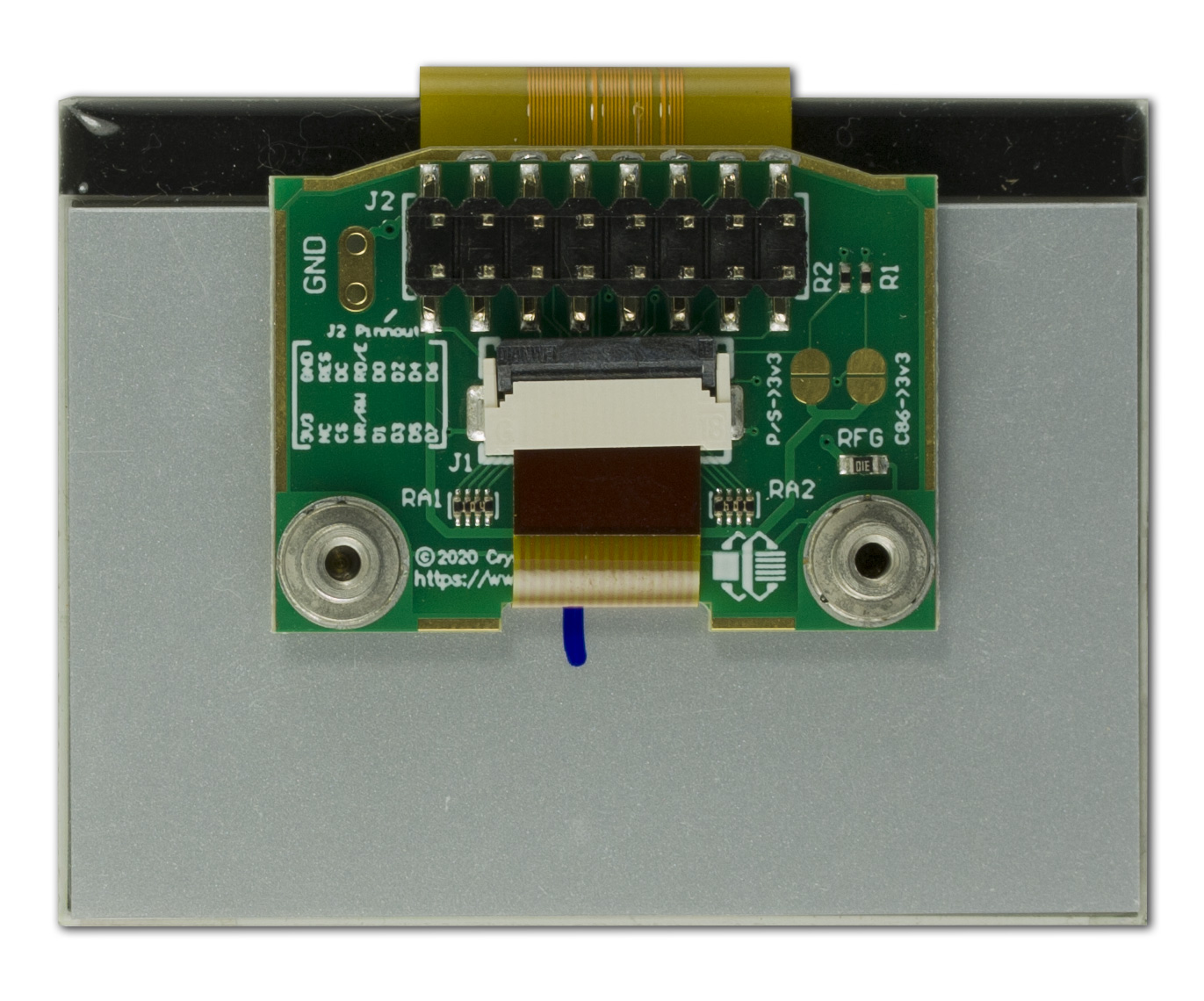

The included adapter board simplifies integrating the display into a product or bringing up a demonstration of the display. The board breaks the ZIF tail out into a 16-position 0.1" header. This makes wiring the display simple and solder-free. The 2x2-56 threaded standoffs on the adapter board enable the entire assembly to be mounted into a final design.

A smaller 1.1" transflective low power graphic LCD module is also available.

Display Module Characteristics:
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Utilizes the popular Sitronix ST7565P controller
  • Low power consumption
  • Transflective & Monochrome for easy readability
  • Great for battery operated devices
  • 4-wire SPI or 8-bit parallel interface (switch using jumpers on the board)
Check out our blog post for help getting started with this small graphic LCD.

Qty:
Quantity Price
1 $22.20
10 $17.58
20 * $17.01
50 * $16.43
100 * $16.20
200 * $16.09
300 * $15.97
500 * $15.86
1000 * $15.74
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4665 Assorted Imperial Screws
Need mounting screws? $3.08 ea.
1872 3-inch Female to Female Jumper Wires
Add short jumper wires? $3.14 ea.
1871 6-inch Female to Female Jumper Wires
Add long jumper wires? $3.38 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG12864U3-NFH-E1-1 or RSS RSS feed for changes to CFAG12864U3-NFH-E1-1 for CFAG12864U3-NFH-E1-1

Video Demonstrations

See the options and features available with this 128x64 Low power transflective LCD module.

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 128 x 64

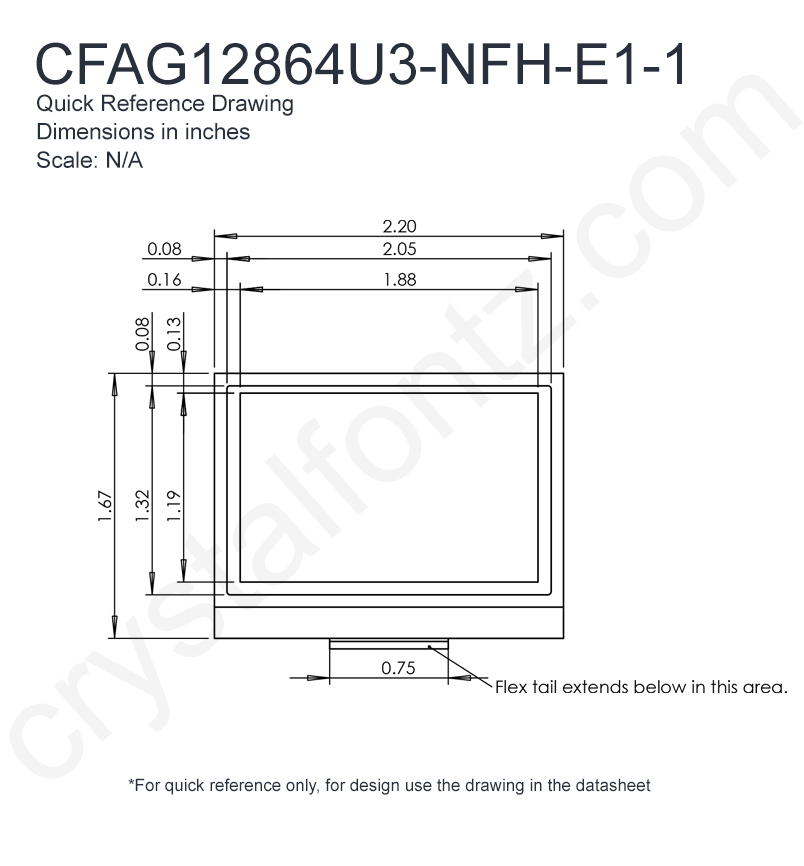

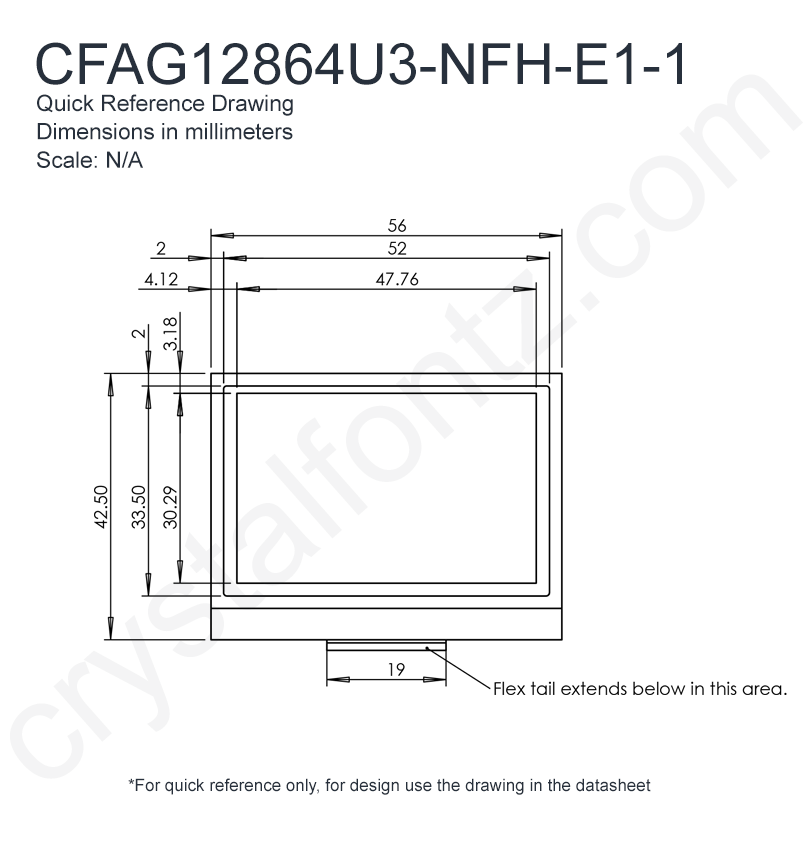

Module Overall width height depth
millimeters 56 42.5 4.7
inches 2.205 1.673 0.185
Diagonal Dimension 2.2"
Viewing Area width height
millimeters 52 33.5
inches 2.047 1.319
Active Area width height
millimeters 47.76 30.29
inches 1.880 1.193
Dot Pitch width height
millimeters 0.42 0.37
inches 0.017 0.015
Weight 15g
Pin Count 16

Optical Characteristics

Glass Type/Glass Color FSTN/Light Gray
Polarizer Transflective
View Direction 6 o'clock
View Angle 60°
Sunlight Readable Yes
Mode Positive
Foreground Color Dark
Background Color Light Gray

Electrical Specifications

Supply Voltage for Logic Minimum 3vV
Supply Voltage for Logic Typical 3.3V
Supply Current Maximum 2mA
Supply Current Typical 1mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Sitronix ST7565P
ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
Interface 8-bit Parallel, SPI

Additional Options

Purchase this display module in a complete development kit and get everything delivered all wired up and running our demo code.

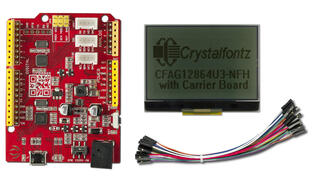

Low Power Monochrome LCD Dev Kit
Part Number: CFAG12864U3-NFH-E1-2

This complete transflective LCD demonstration kit makes evaluating this low power 128x64 graphic LCD or the low power transflective LCD with adapter board super easy. Just plug in the included USB cable to a power source and a demo program will begin.

The CFAG12864U3-NFH (just the display) and the CFAG12864U3-NFH-E1-1 (display with adapter board) are great monochrome LCD displays. They are transflective, so they're readable in just about any lighting condition, only needing supplied light if used in a dark environment. For a display with a built in backlight, check out the family of 128x64 Backlit Low Power LCDs.

Display Characteristics:

  • Integrated Sitronix ST7565P controller
  • Low power consumption
  • Ideal for handheld and/or battery operated devices
  • 4-wire SPI or 8-bit parallel interface
Check out our blog post for help getting started with this small graphic LCD.

Details
Quantity 1
Price $47.58
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
