      Low Power Monochrome LCD Dev Kit
      Part Number: CFAG12864U3-NFH-E1-2

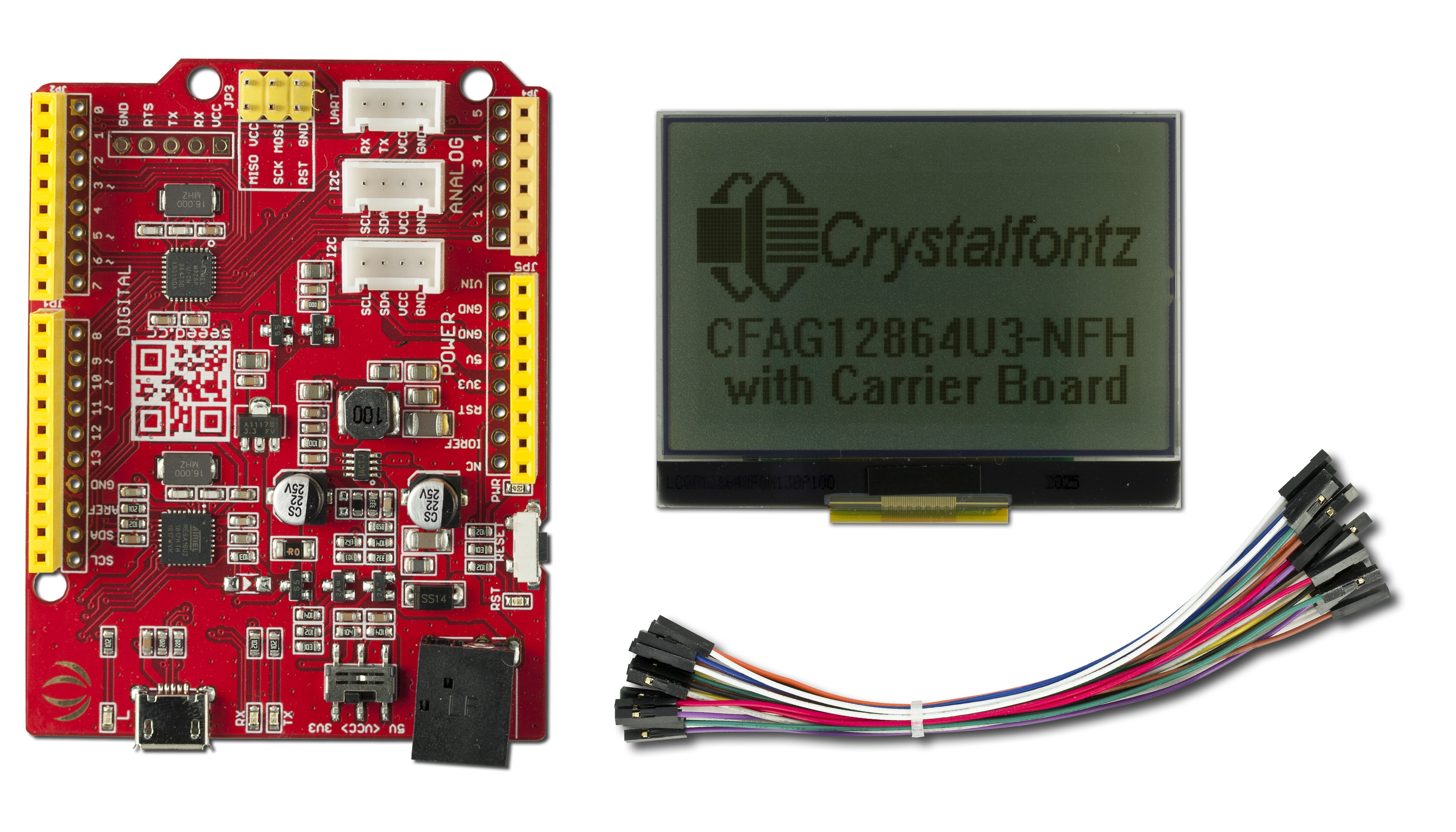

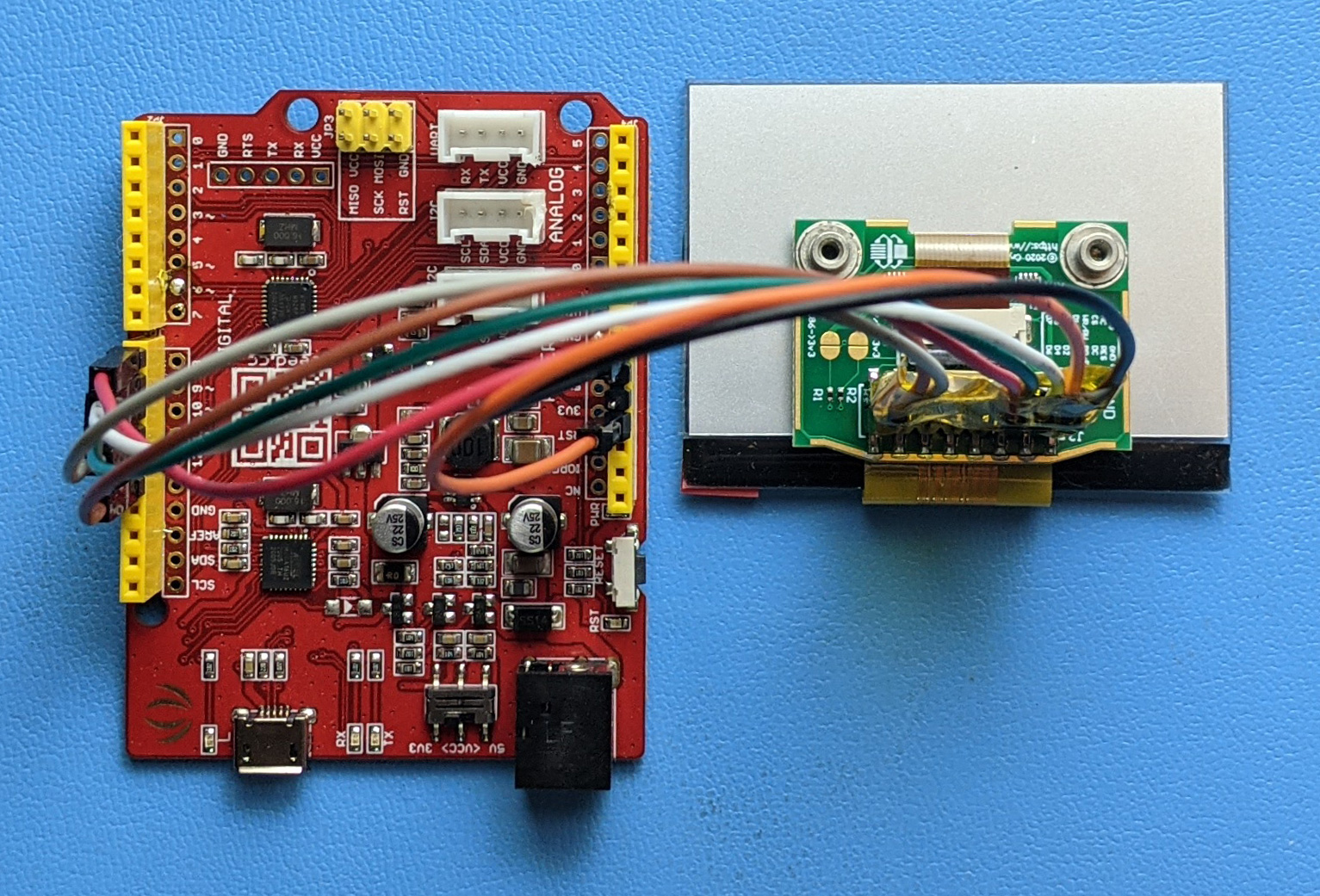

         This complete transflective LCD demonstration kit makes evaluating this low power 128x64 graphic LCD or the low power transflective LCD with adapter board super easy. Just plug in the included USB cable to a power source and a demo program will begin.

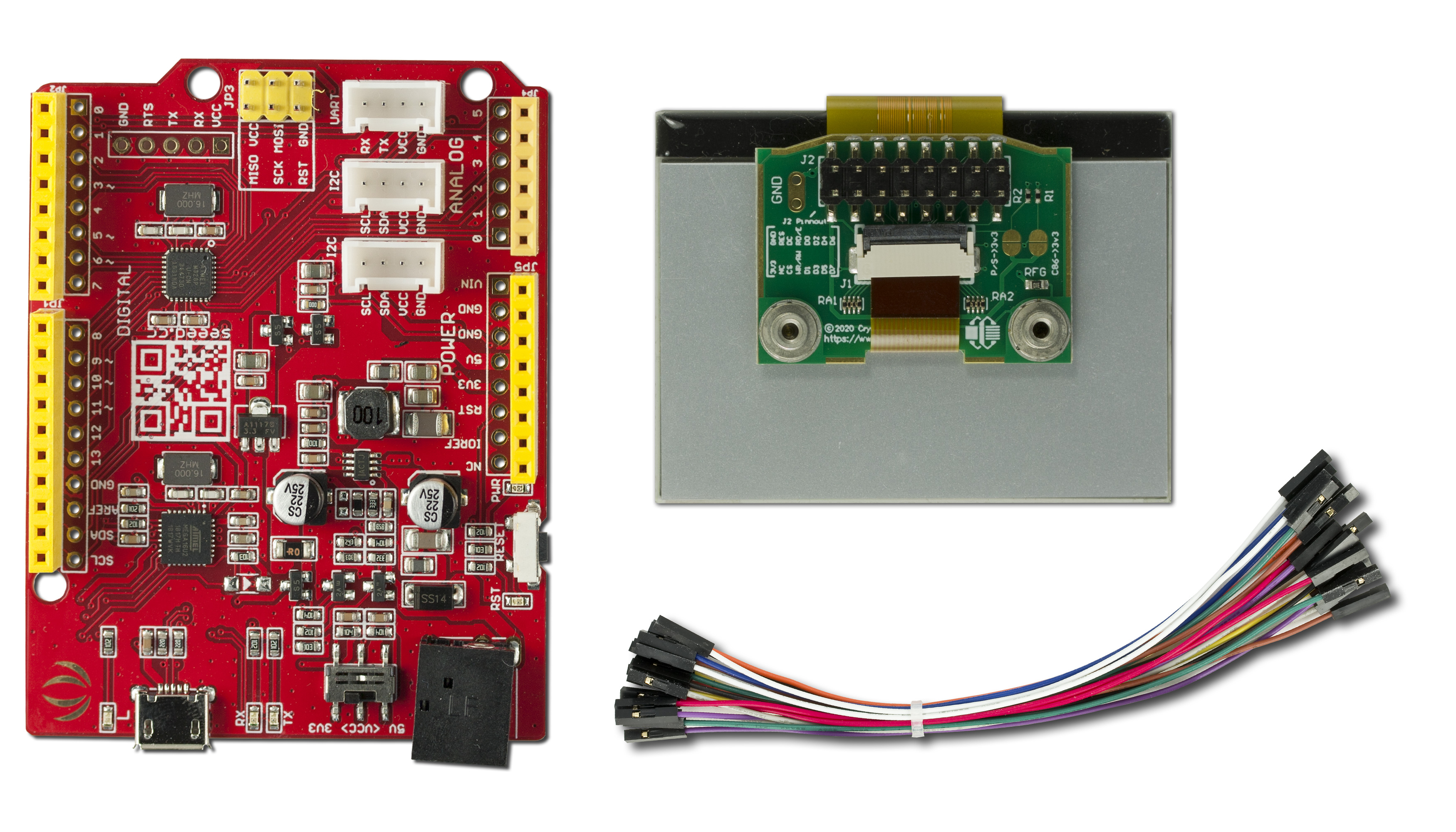

The CFAG12864U3-NFH (just the display) and the CFAG12864U3-NFH-E1-1 (display with adapter board) are great monochrome LCD displays. They are transflective, so they're readable in just about any lighting condition, only needing supplied light if used in a dark environment. For a display with a built in backlight, check out the family of 128x64 Backlit Low Power LCDs.

Display Characteristics:
Integrated Sitronix ST7565P controller
Low power consumption
Ideal for handheld and/or battery operated devices
4-wire SPI or 8-bit parallel interface

Check out our blog post for help getting started with this small graphic LCD.

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        56
        42.5
        4.7

        inches
        2.21
        1.67
        0.19

        Diagonal Dimension
            2.2"

    Viewing Area        Width
        Height

        millimeters
        52
        33.5

        inches
        2.05
        1.32

    Active Area        Width
        Height

        millimeters
        47.76
        30.29

        inches
        1.88
        1.19

    Dot Pitch        Width
        Height

        millimeters
        0.42
        0.37

        inches
        0.017
        0.015

        Weight
            97.2g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
View Angle
            60°
Sunlight Readable
            Yes

        Mode
            Positive
Foreground Color
            Dark
Background Color
            Light Gray

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3vV
Supply Voltage for Logic Typical
            3.3V

        Supply Current Maximum
            2mA
Supply Current Typical
            1mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7565P
ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864U3-NFH-E1 Datasheet

 download Files and Downloads
link Arduino Demo Code Download on Github
link Arduino Demo Code Repository on Github

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $44.95

76 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
