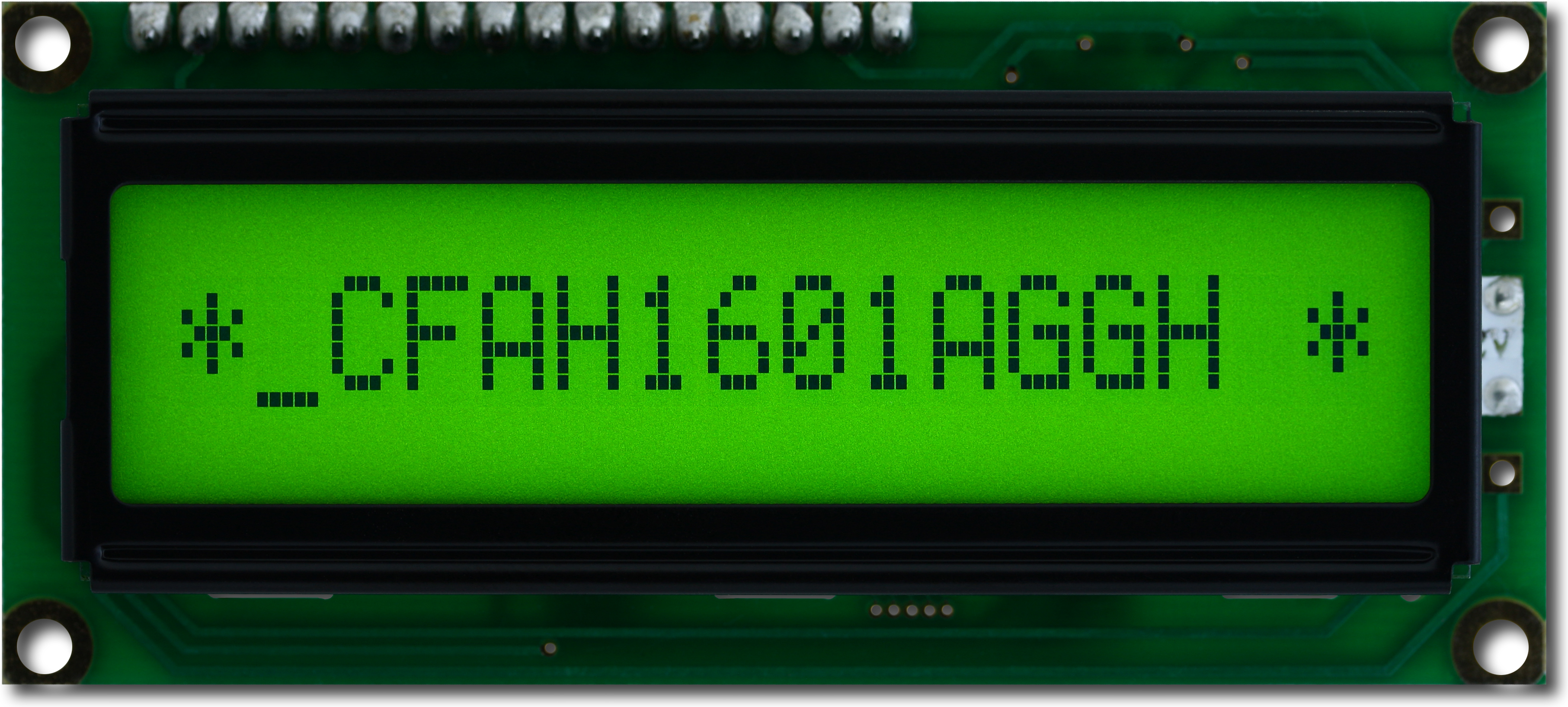

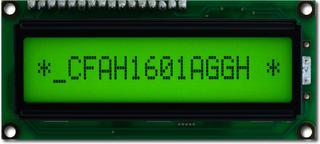

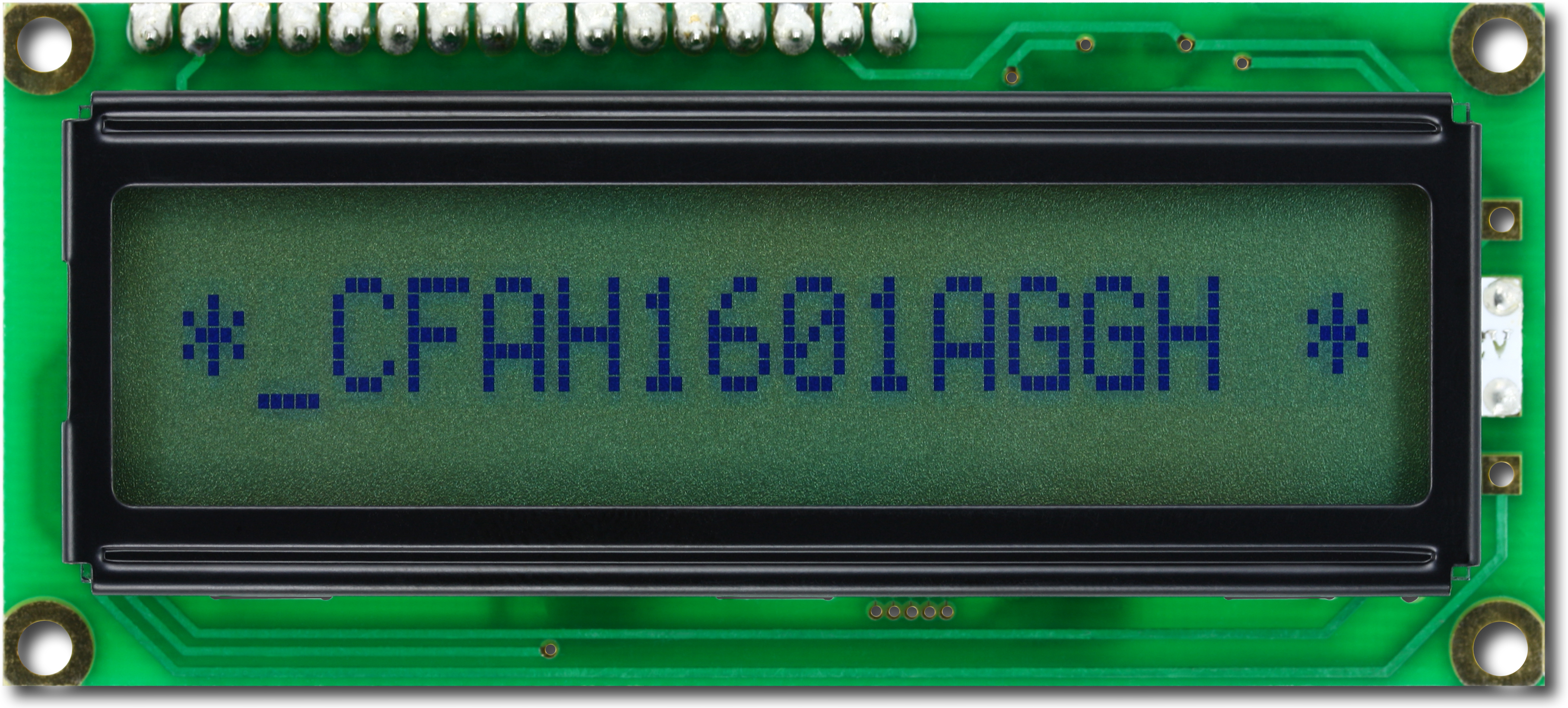

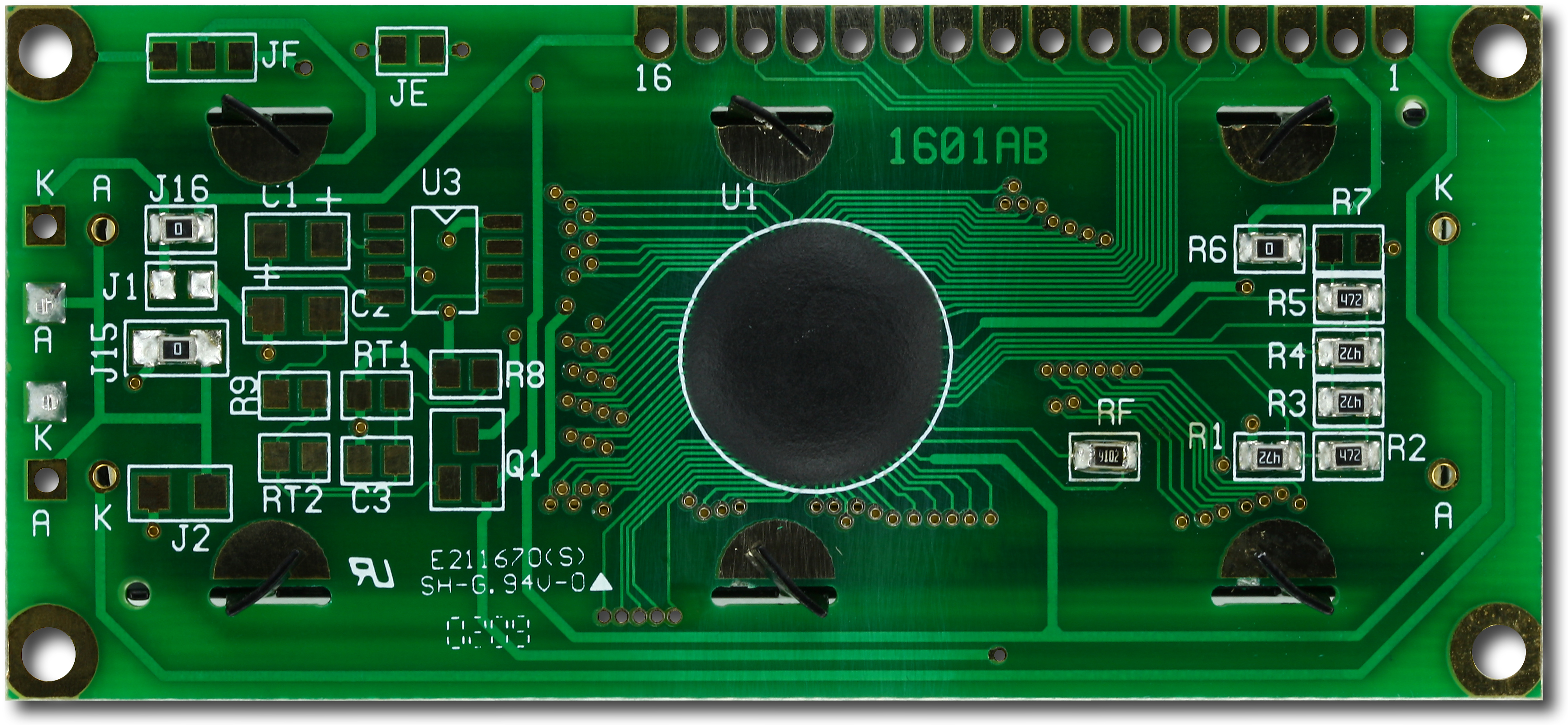

16x1 Character Sunlight Readable LCD

Part Number: CFAH1601A-GGH-JT

Green sunlight readable 16x1 character LCD with LED backlight.

  • Characters / Columns: 16x1
  • Optics: 6:00 viewing direction
  • Backlight: Green LED
  • Glass: STN Positive, Transflective
  • Controller: Sitronix ST7066U (HD44780 compatible)
  • Operating Temp: -20°C to +70°C
  • Interfaces: 4 & 8 bit parallel
  • Compliance: REACH & RoHS Compliant

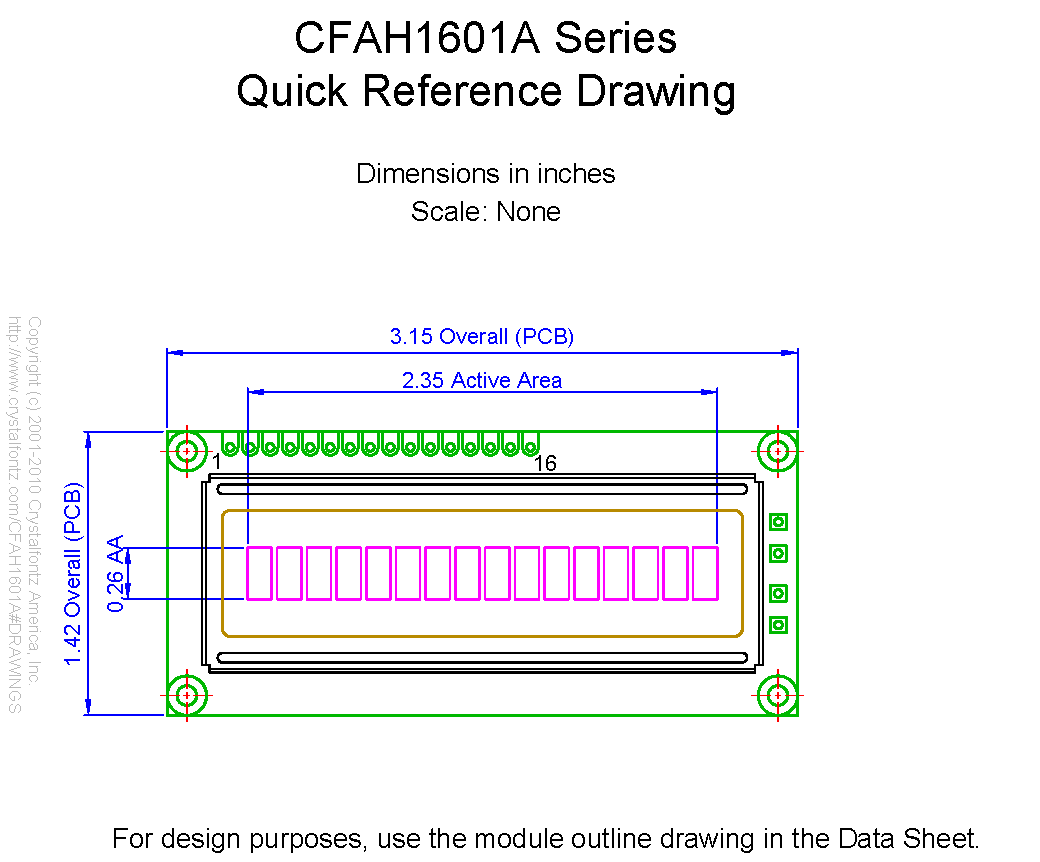

  • square_foot Physical Characteristics

    Physical Characteristics

    Characters x Lines 16 x 1
    Module Overall width height depth
    millimeters 80 36 13.2
    inches 3.15 1.42 0.52
    PCB Outline width height depth
    millimeters 80 36 13.2
    inches 3.15 1.42 0.52
    Diagonal Dimension 2.36"
    Viewing Area Width Height
    millimeters 66 16
    inches 2.60 0.63
    Active Area Width Height
    millimeters 59.62 6.56
    inches 2.35 0.26
    Character Size Width Height
    millimeters 3.07 6.56
    inches 0.121 0.258
    Character Pitch Width Height
    millimeters 3.77 6.56
    inches 0.148 0.258
    Dot Size Width Height
    millimeters 0.55 0.75
    inches 0.022 0.030
    Dot Pitch Width Height
    millimeters 0.63 0.83
    inches 0.025 0.033
    Weight 33g
    Pin Count 16
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color STN/Gray
    Polarizer Transflective
    View Direction 6 o'clock
    Sunlight Readable Yes
    Backlight Color Green
    Backlight Type LED
    Mode Positive
    Foreground Color Dark
    Background Color Green
  • electric_bolt Electrical Specification

    Electrical Specifications

    Module Connector Pitch 0.1mm
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics

    Electronics

    Controller Documents Sitronix ST7066U
    Dot Matrix LCD Controller/Driver
    Interface 4-bit Parallel, 8-bit Parallel
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Unit Price
1 $9.43
10 $8.21
20 $7.91
50 $7.61
100 $7.50
200 * $7.38
500 * $7.00
1000 * $6.36
151 Units In-Stock & Ready To Ship
Pricing is subject to change.
* Contact us about potential lead times.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAH1601A-GGH-JT or RSS RSS feed for changes to CFAH1601A-GGH-JT for CFAH1601A-GGH-JT
