240x128 Low Power Graphic LCD Display

Part Number: CFAG240128U0-TFH

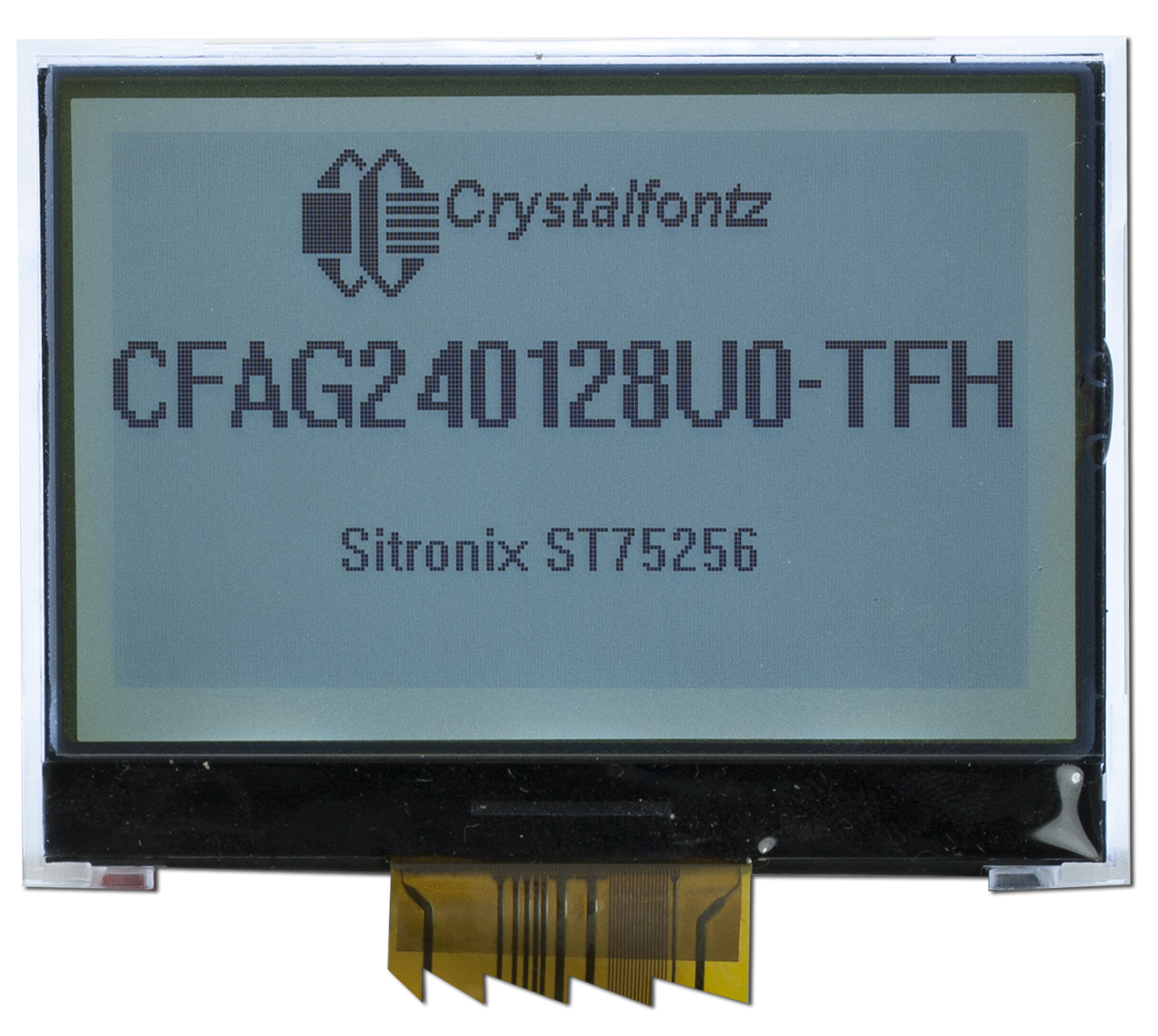

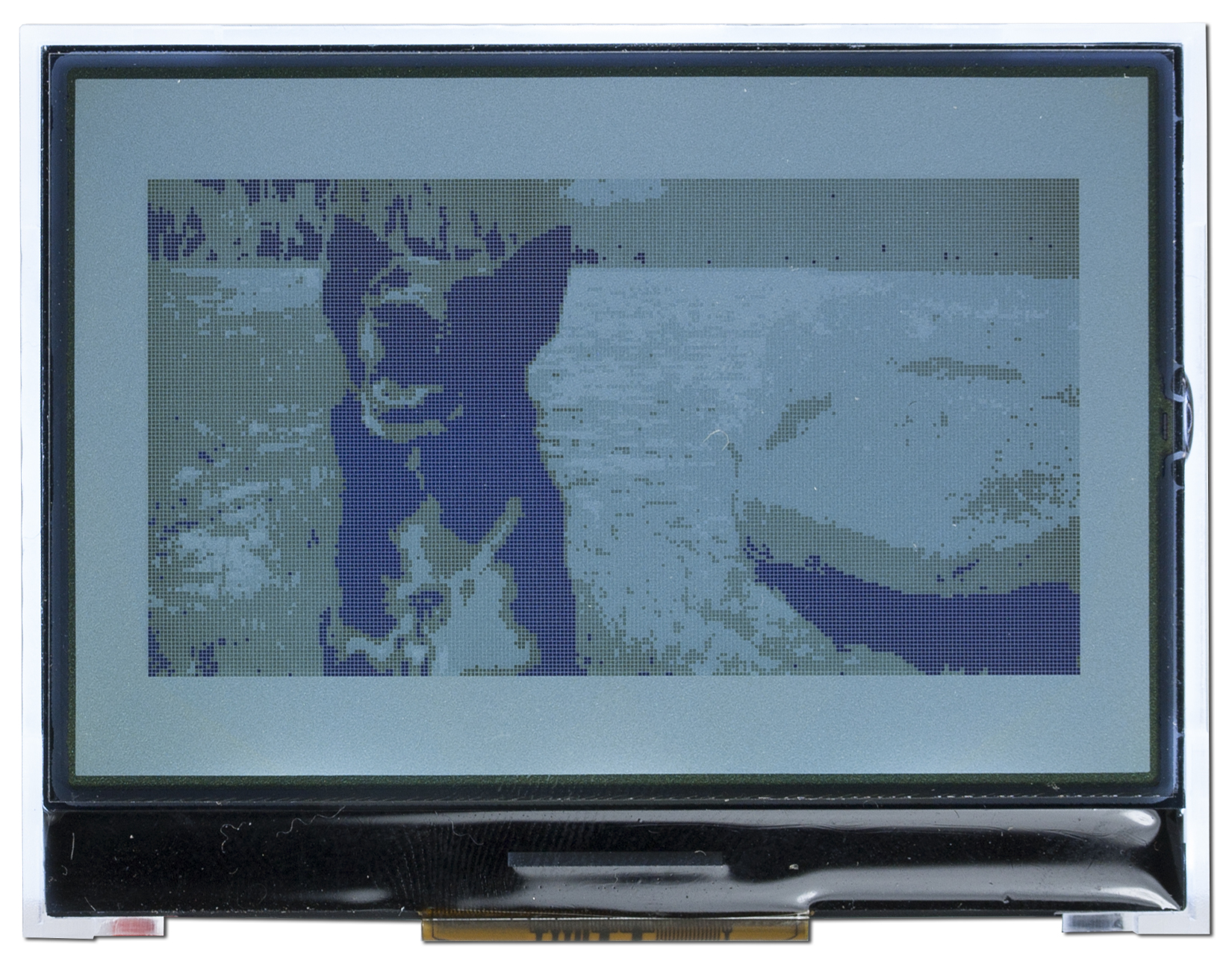

The CFAG240128U0-TFH is a compact, 240x128 graphic LCD display module with four color grayscale. It is thin, light, and low-power. This display includes a frame backlight making it a great choice for handheld or battery-operated applications that will be used in dark environments or that transition between different lighting. To save space and power in products that will be used in lit areas, consider the non-backlit graphic LCD.

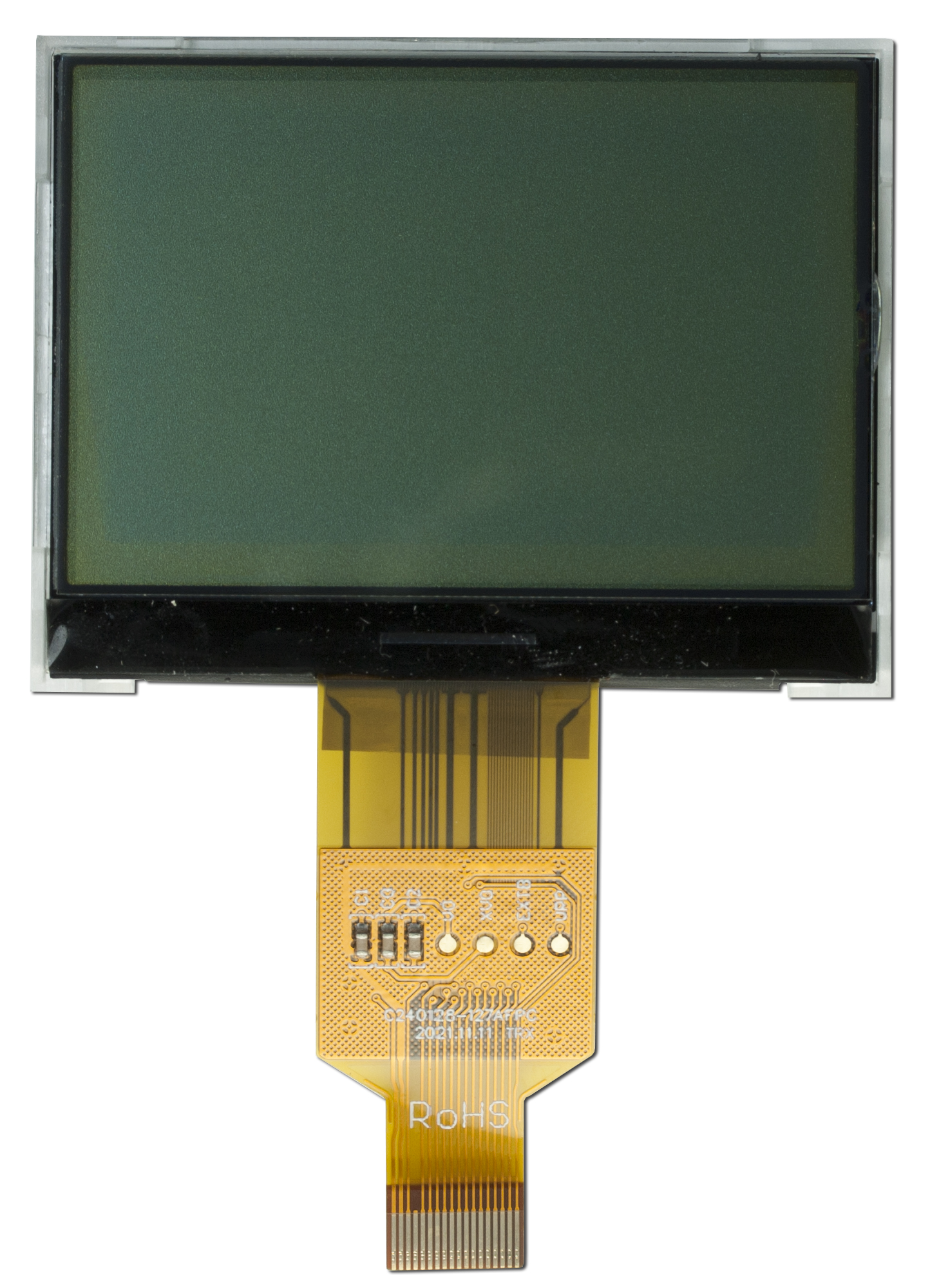

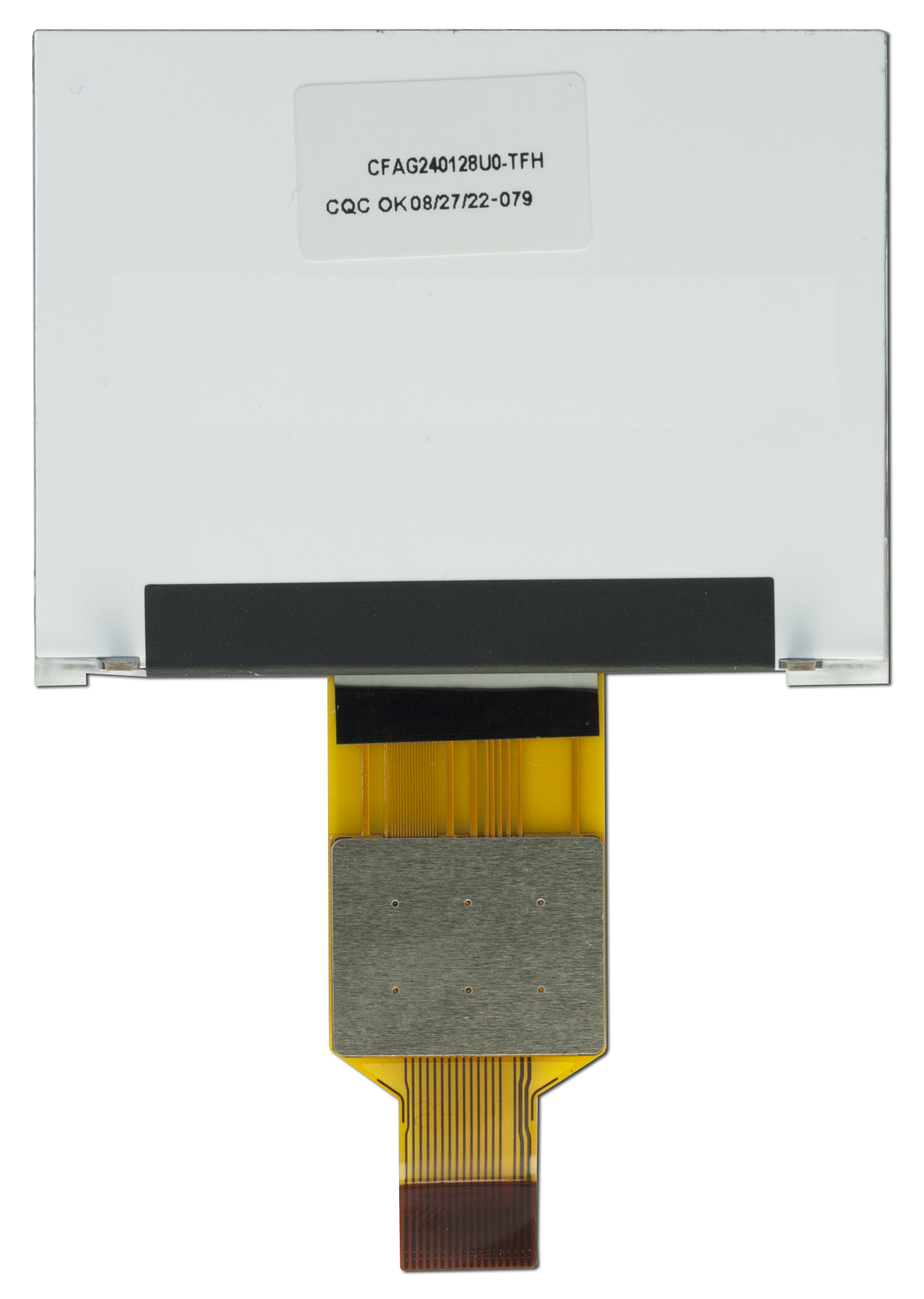

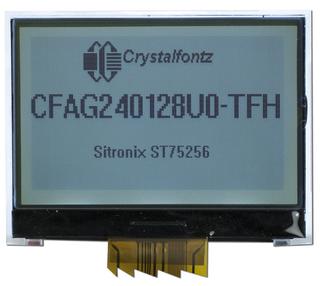

This LCD display has an integrated controller and voltage-generating components mounted on the flexible tail. The tail connects to a standard 18-conductor 0.5mm pitch ZIF (Zero Insertion Force) connector. This module uses a Sitronix ST75256P LCD driver.

Our popular low-power 128x64 graphic LCD has the same outline and similar pinout as this display but does have a different controller. This LCD breakout board will work with this 240x128 display.

CFA- Crystalfontz America
G- Graphic LCD
240128- 240x128 pixels
U0- Family and version number
T- White backlight
F- FSTN Positive
H- Transflective, 6:00 viewing angle

Product Variants

CFAG240128U0-NFHLow Power 240x128 Graphic LCD Display
CFAG240128U0-TFH240x128 Low Power Graphic LCD Display
240x128 Low Power Graphic LCD Display (CFAG240128U0-TFH)
Qty:
Quantity Price
1 $17.71
5 $14.79
10 $14.40
20 $13.92
50 $13.42
100 $13.24
200 $13.13
300 $13.04
500 * $12.94
1000 * $12.85
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Components worth considering
4690 LCD Breakout Board
Add a breakout board? $8.60 ea.
4633 18 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Need ZIF Connectors? $0.79 ea.
4823 18-Position ZIF Breakout Board
Add an 18-pin ZIF Breakout Board? $6.15 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG240128U0-TFH or RSS RSS feed for changes to CFAG240128U0-TFH for CFAG240128U0-TFH

Compliance Documents

Video Demonstrations

Video demonstration of our 2.2-inch, 240x128 high-density graphic LCD display module

TECHNICAL SPECS

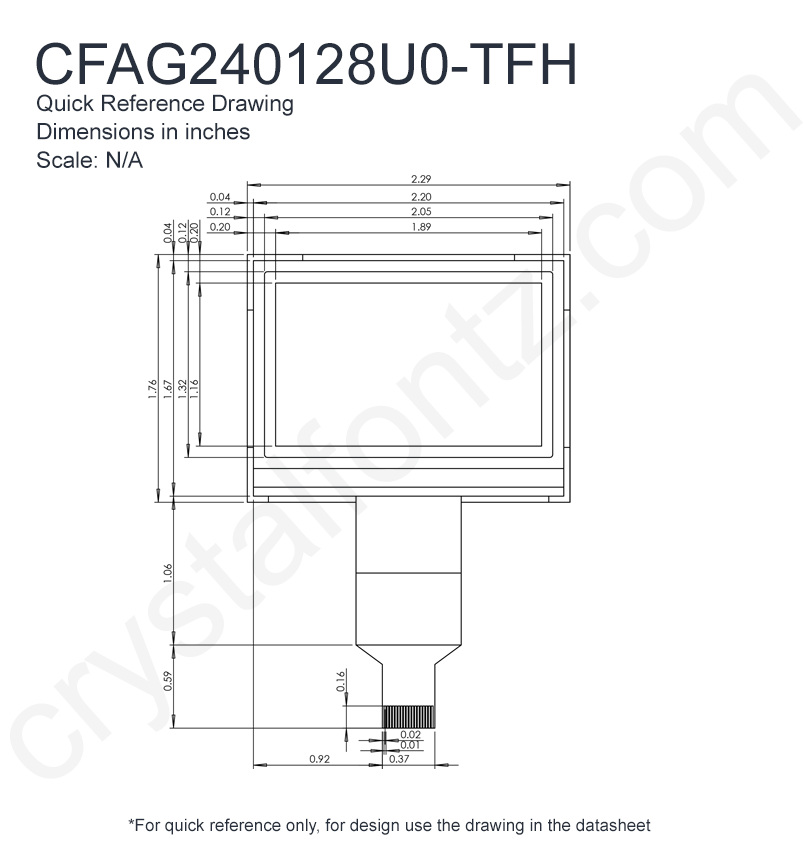

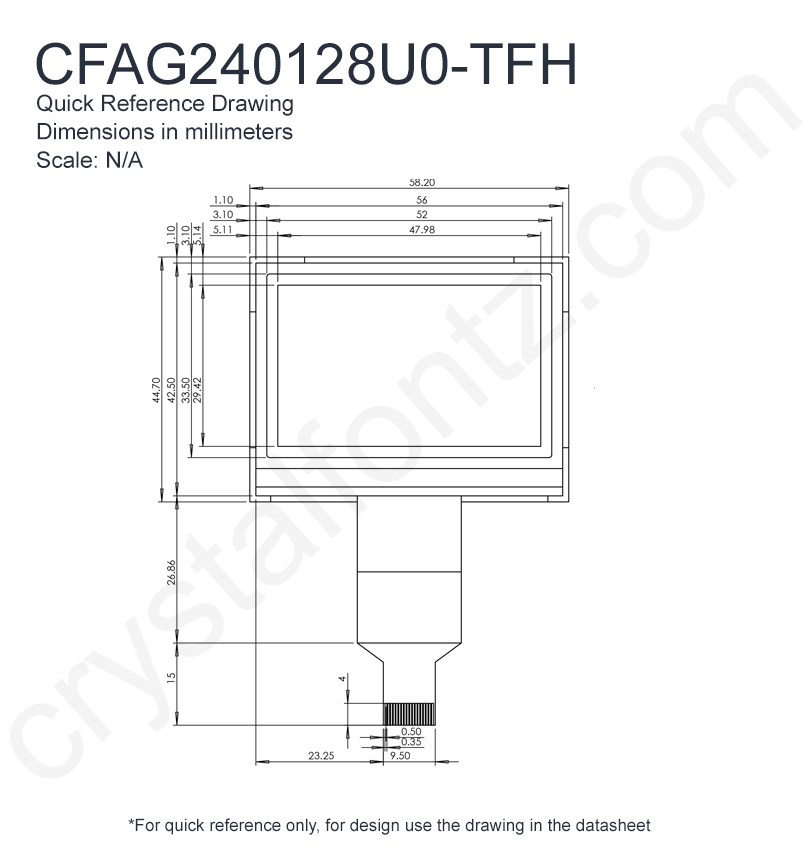

Physical Characteristics

Column Dots x Row Dots 240 x 128
Module Overall width height depth
millimeters 58.2 44.7 3.9
inches 2.291 1.760 0.154
Diagonal Dimension 2.2"
Viewing Area width height
millimeters 52 33.5
inches 2.047 1.319
Active Area width height
millimeters 47.76 29.42
inches 1.880 1.158
Dot Pitch width height
millimeters 0.42 0.37
inches 0.017 0.015
Weight 15.2g
Pin Count 18

Optical Characteristics

Glass Type LCD
Polarizer Transflective
View Direction 6 o'clock
View Angle 35°
Backlight Color White
Backlight Type LED
Foreground Color Dark
Background Color Gray

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V

Backlight Electrical Specifications

Forward Voltage Typical 3.5V
Forward Current Minimum 36mA
Forward Current Maximum 60mA
Forward Current Typical 48mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface 8-bit Parallel, I2C, SPI

Miscellaneous

Nits 860

Additional Options

Purchase this display with a breakout board or in a complete development kit so you can be up in running in no time.

240x128 Grayscale LCD with Breakout Board
Part Number: CFAG240128U0-TFH-E1

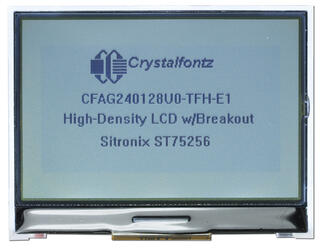

This LCD display module takes our high-density graphic LCD and adds a breakout board with a tenth-inch header. That makes this display module super easy to connect to a microcontroller.

The included display is low power, with a controllable backlight, and 4-shade grayscale. The display boasts high pixel density (240x128 pixels) and a 2.2" diagonal. Thanks to the backlight, this display is a great choice for products that may be used in the dark.

Part Number:
CFA- Crystalfontz America
G- Graphic LCD
240128- 240x128 pixels
U0- Family and version number
T- Includes a L.E.D. Backlight
F- FSTN Positive
H- Transflective, 6:00 viewing angle
E1- Includes a breakout board and board revision

Details
Quantity 1 5 * 10 * 20 * 50 * 100 * 200 * 300 * 500 * 1000 *
Price $29.61 $24.23 $23.60 $22.83 $22.05 $21.74 $21.59 $21.42 $21.26 $21.11
Quantity:

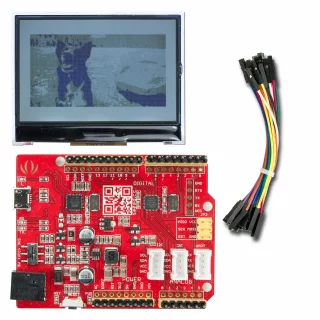

240x128 High-Density Grayscale LCD Development Kit
Part Number: CFAG240128U0-TFH-E1-2

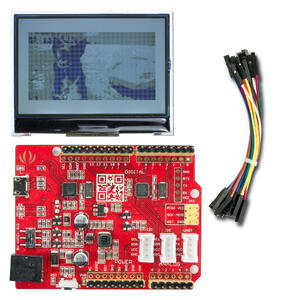

This development kit is for a backlit, low-power, graphic, high-density, 4-shade grayscale LCD. This kit is a great jumping-off point for developing your project and it includes everything needed to quickly develop a working demo.

Kit Includes:


Part Number:
CFA- Crystalfontz America
G- Graphic LCD
240128- 240x128 pixels
U0- Family and version number
T- White Backlight
F- FSTN Positive
H- Transflective, 6:00 viewing angle
E1- Includes a breakout board and board revision
2- Includes Seeeduino, wires, code

Details
Quantity 1
Price $51.41
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG240128U0-TFH or RSS RSS feed for changes to CFAG240128U0-TFH

Product Update #11156: 240x128 Low Power Graphic LCD Display with a backlight is now available.

New Product: CFAG240128U0-TFH
Date Issued: November 7, 2022
Summary: 240x128 Low Power Graphic LCD Display with a backlight is now available.
Description: CFAG240128U0-TFH has been released on our website (https://www.crystalfontz.com/product/cfag240128u0tfh-240x128-low-power-graphic-lcd) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
