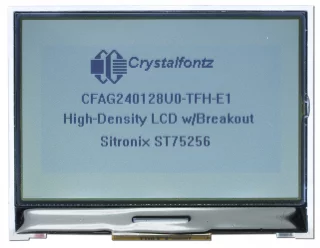

240x128 Grayscale LCD with Breakout Board

Part Number: CFAG240128U0-TFH-E1

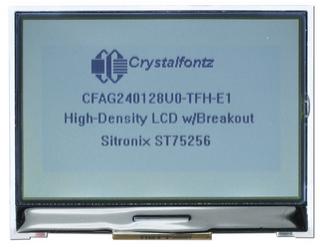

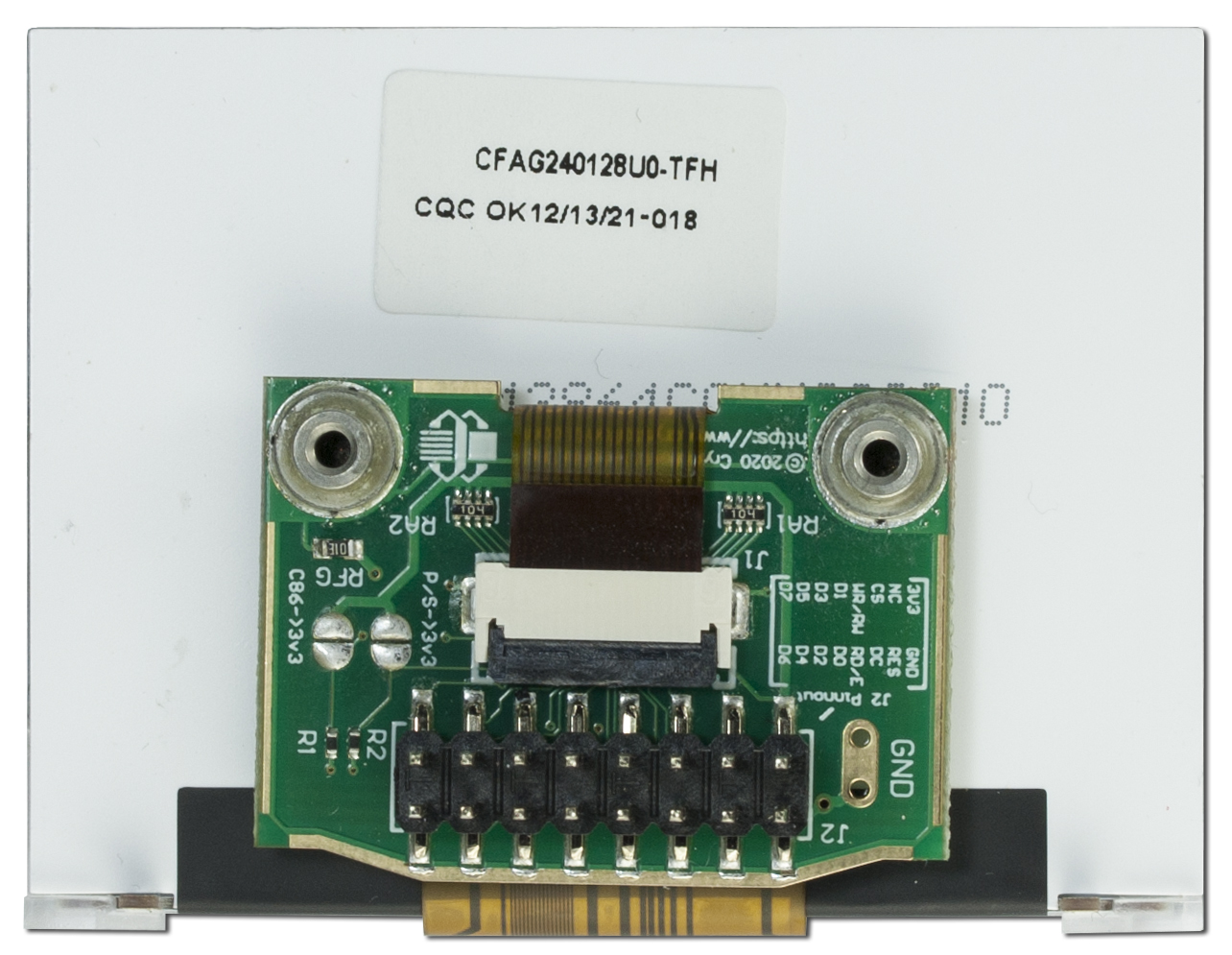

This LCD display module takes our high-density graphic LCD and adds a breakout board with a tenth-inch header. That makes this display module super easy to connect to a microcontroller.

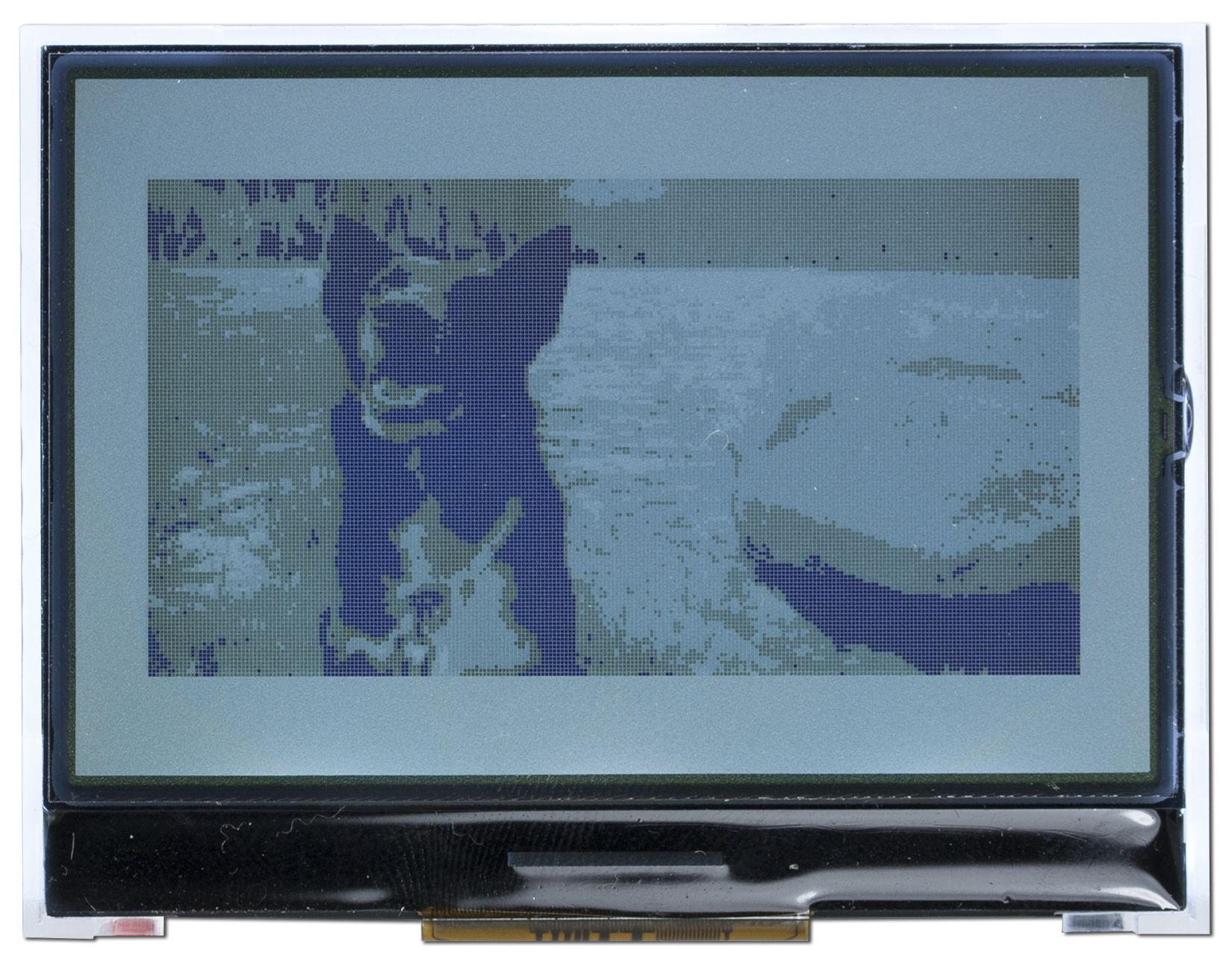

The included display is low power, with a controllable backlight, and 4-shade grayscale. The display boasts high pixel density (240x128 pixels) and a 2.2" diagonal. Thanks to the backlight, this display is a great choice for products that may be used in the dark.

Part Number:
CFA- Crystalfontz America
G- Graphic LCD
240128- 240x128 pixels
U0- Family and version number
T- Includes a L.E.D. Backlight
F- FSTN Positive
H- Transflective, 6:00 viewing angle
E1- Includes a breakout board and board revision

Qty:
Quantity Price
1 $29.61
5 * $24.23
10 * $23.60
20 * $22.83
50 * $22.05
100 * $21.74
200 * $21.59
300 * $21.42
500 * $21.26
1000 * $21.11
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Components worth considering
4583 Seeeduino 4.3
Need a microcontroller? $10.00 ea.
1871 6-inch Female to Female Jumper Wires
Add 6in Jumper Wires? $3.38 ea.
4761 Low Power 240x128 Graphic LCD Display
Need another display? $17.40 ea.
4665 Assorted Imperial Screws
Need mounting screws? $3.08 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG240128U0-TFH-E1 or RSS RSS feed for changes to CFAG240128U0-TFH-E1 for CFAG240128U0-TFH-E1

Video Demonstrations

Video demonstration of our 2.2-inch LCD Development kits.

TECHNICAL SPECS

Physical Characteristics

Weight 20.3g

Additional Options

Purchase this module in a development kit, or as an individual display.

240x128 Low Power Graphic LCD Display
Part Number: CFAG240128U0-TFH

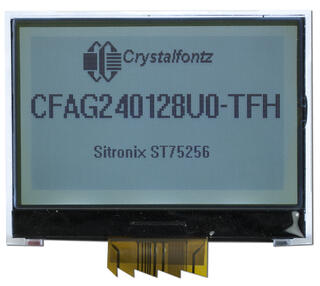

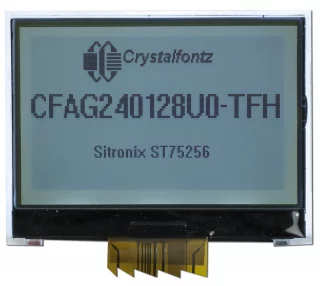

The CFAG240128U0-TFH is a compact, 240x128 graphic LCD display module with four color grayscale. It is thin, light, and low-power. This display includes a frame backlight making it a great choice for handheld or battery-operated applications that will be used in dark environments or that transition between different lighting. To save space and power in products that will be used in lit areas, consider the non-backlit graphic LCD.

This LCD display has an integrated controller and voltage-generating components mounted on the flexible tail. The tail connects to a standard 18-conductor 0.5mm pitch ZIF (Zero Insertion Force) connector. This module uses a Sitronix ST75256P LCD driver.

Our popular low-power 128x64 graphic LCD has the same outline and similar pinout as this display but does have a different controller. This LCD breakout board will work with this 240x128 display.

CFA- Crystalfontz America
G- Graphic LCD
240128- 240x128 pixels
U0- Family and version number
T- White backlight
F- FSTN Positive
H- Transflective, 6:00 viewing angle

Details
Quantity 1 5 10 20 50 100 200 300 500 * 1000 *
Price $17.71 $14.79 $14.40 $13.92 $13.42 $13.24 $13.13 $13.04 $12.94 $12.85
Quantity:
240x128 High-Density Grayscale LCD Development Kit
Part Number: CFAG240128U0-TFH-E1-2

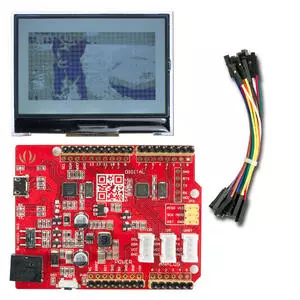

This development kit is for a backlit, low-power, graphic, high-density, 4-shade grayscale LCD. This kit is a great jumping-off point for developing your project and it includes everything needed to quickly develop a working demo.

Kit Includes:


Part Number:
CFA- Crystalfontz America
G- Graphic LCD
240128- 240x128 pixels
U0- Family and version number
T- White Backlight
F- FSTN Positive
H- Transflective, 6:00 viewing angle
E1- Includes a breakout board and board revision
2- Includes Seeeduino, wires, code

Details
Quantity 1
Price $51.41
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG240128U0-TFH-E1 or RSS RSS feed for changes to CFAG240128U0-TFH-E1

Product Update #11168: 240x128 Grayscale LCD with Breakout Board is now available.

New Product: CFAG240128U0-TFH-E1
Date Issued: January 9, 2023
Summary: 240x128 Grayscale LCD with Breakout Board is now available.
Description: CFAG240128U0-TFH-E1 has been released on our website (https://www.crystalfontz.com/product/cfag240128u0tfhe1-240x128-grayscale-graphic-lcd-with-breakout-board) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
