This product is discontinued and has been replaced by CFAH2002A-YMI-JT

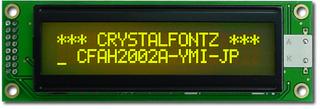

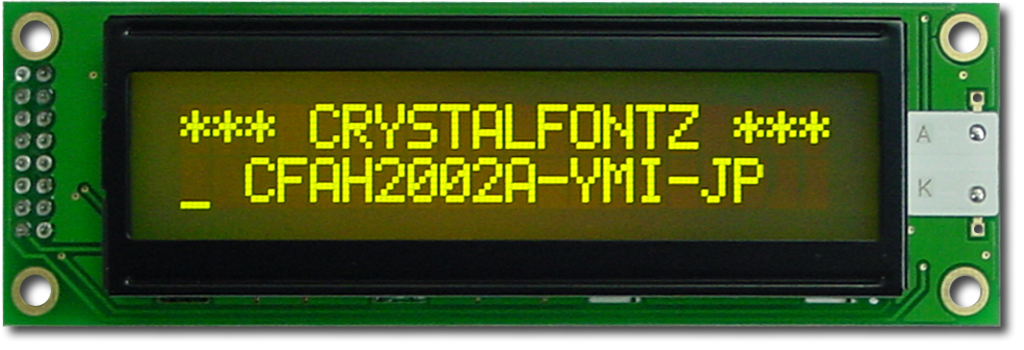

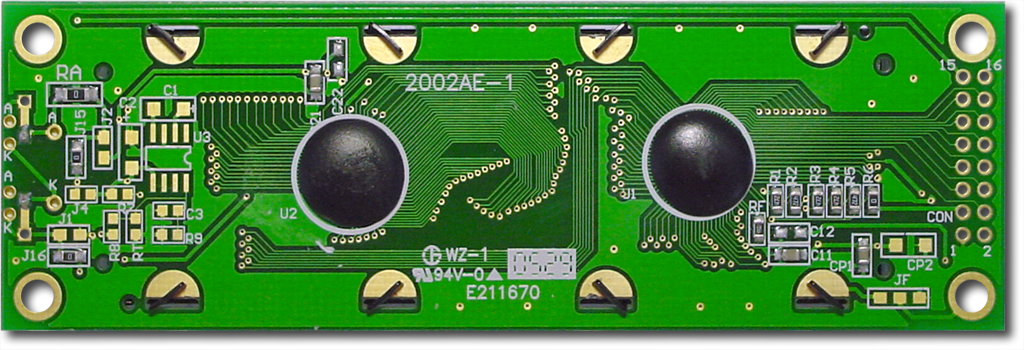

20x2 Parallel Character LCD
Part Number: CFAH2002A-YMI-JP
Parallel Character LCD 20x2(CFAH2002A-YMI-JP), (CFAH2002A-YMI-JT may be substituted), RoHS Compliant, Yellow/Green LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00
- Form compatible with the CFAG19232C Series of Graphic LCD modules. Upgrade your product that uses this CFAH2002A character display by switching to the graphic CFAG19232C, or, lower your costs by replacing that graphic with this character module
- Available in several variations of backlight and polarizer (minimum order may be required)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
Datasheet
TECHNICAL SPECS
Physical Characteristics
| Characters x Lines | 20 x 2 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 116 | 37 | 13.9 |
| inches | 4.567 | 1.457 | 0.547 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 116 | 37 | 13.9 |
| inches | 4.567 | 1.457 | 0.547 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 85 | 18.6 |
| inches | 3.346 | 0.732 |
| Active Area | width | height |
|---|---|---|
| millimeters | 73.5 | 11.5 |
| inches | 2.894 | 0.453 |
| Character Size | width | height |
|---|---|---|
| millimeters | 3.2 | 5.55 |
| inches | 0.126 | 0.219 |
| Character Pitch | width | height |
|---|---|---|
| millimeters | 3.7 | 5.95 |
| inches | 0.146 | 0.234 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.6 | 0.65 |
| inches | 0.024 | 0.026 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.65 | 0.7 |
| inches | 0.026 | 0.028 |
| Weight | 52g |
Optical Characteristics
| Glass Type/Glass Color | STN/Blue |
| Polarizer | Transmissive |
| View Direction | 6 o'clock |
| Backlight Color | Yellow-Green |
| Backlight Type | LED |
| Mode | Negative |
| Foreground Color | Yellow |
| Background Color | Dark |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
Electronics
| Controller Documents | Sunplus SPLC780D 16COM/40SEG Controller/Driver |
| Interface | 4-bit Parallel, 8-bit Parallel |
Compatible Software:
Form compatible with these graphic modules:
