White on Blue 20x2 Character Module from Crystalfontz

Product

Home » Products » Character LCD Displays » Character X Lines » 20x2 Character

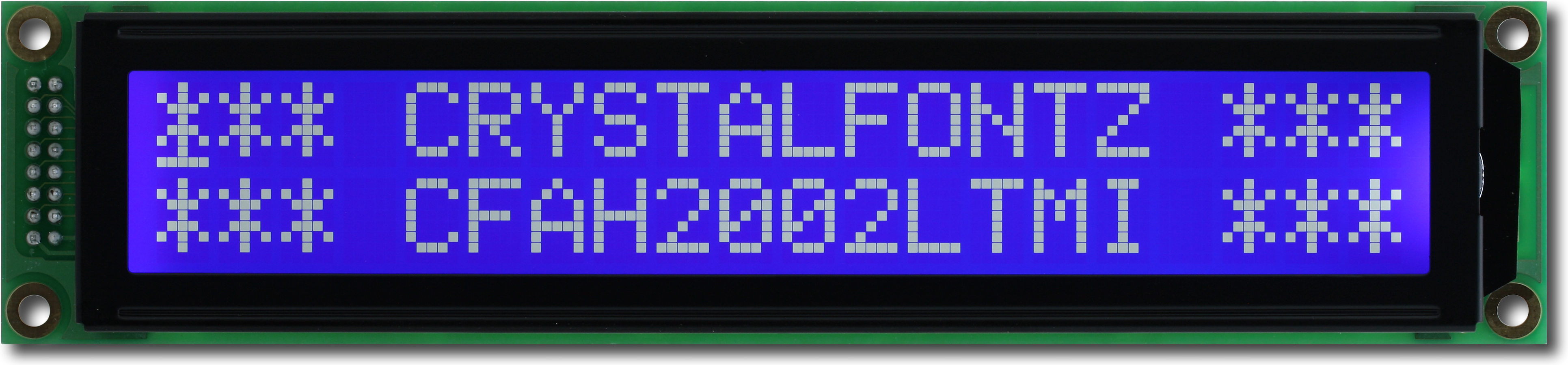

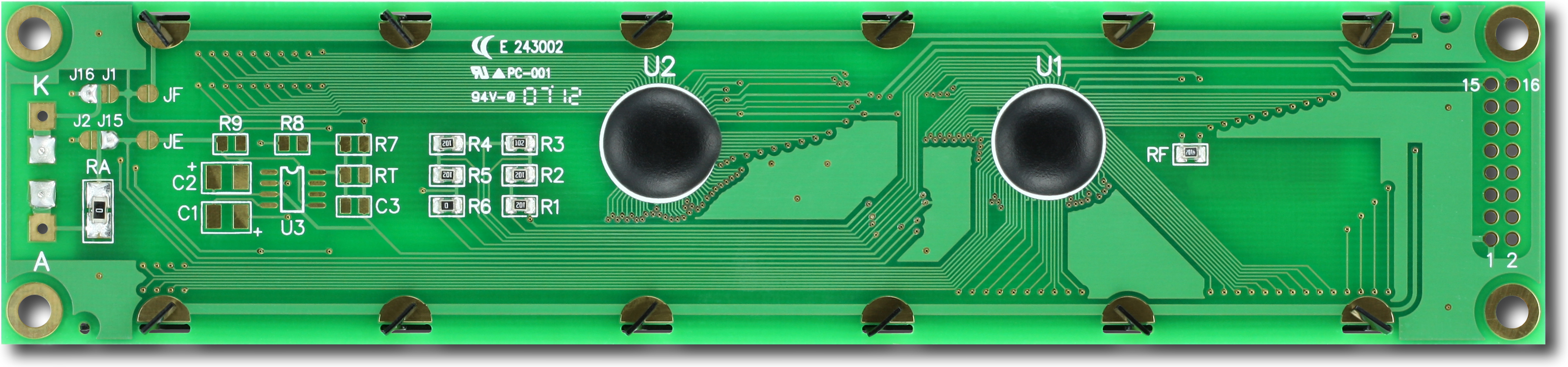

White on Blue 20x2 Character ModulePart Number: CFAH2002L-TMI-ETStandard 20x2 Character LCD - White On BlueDo you need an LCD display module with characters large enough to read from a distance? Using a 5 x 8 character matrix, this 20 x 2 transmissive LCD screen is easy to read in normal office lighting and in a dark location. Our most popular variant (color) in the CFAH2002L series, this STN display has white 6.0 mm (W) x 9.66 mm (H) characters on a beautiful blue background. The built-in character set supports English/European text.
Character LCD display modules are sturdy and reliable and should last through your product's life-cycle. We understand that your projects need displays that will be available for a long time. Crystalfontz is committed to making all of our display modules available for as long as possible. We've sold this classic LCD since 2006. As with most character displays, this one communicates with parallel interface (your choice of 8-bit or 4-bit).
If you have system software written for the common Hitachi HD44780 controller, the integrated Sitronix ST7066U controller is compatible and should work without modification. For command details, see the Sitronix ST7066U datasheet on our website.
No minimum order quantity (MOQ) is required, and every display module comes with a one year warranty. And of course, Crystalfontz is here to help you with bringing up the hardware and software when you integrate this display into your project.
2 lines of 20 characters
Industry standard 20x2 form factor
2 lines of 20 characters
Built-in Sitronix ST7066U or compatible controller.
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightDark on Light Gray
White LED BacklightWhite on Blue
White LED Backlight

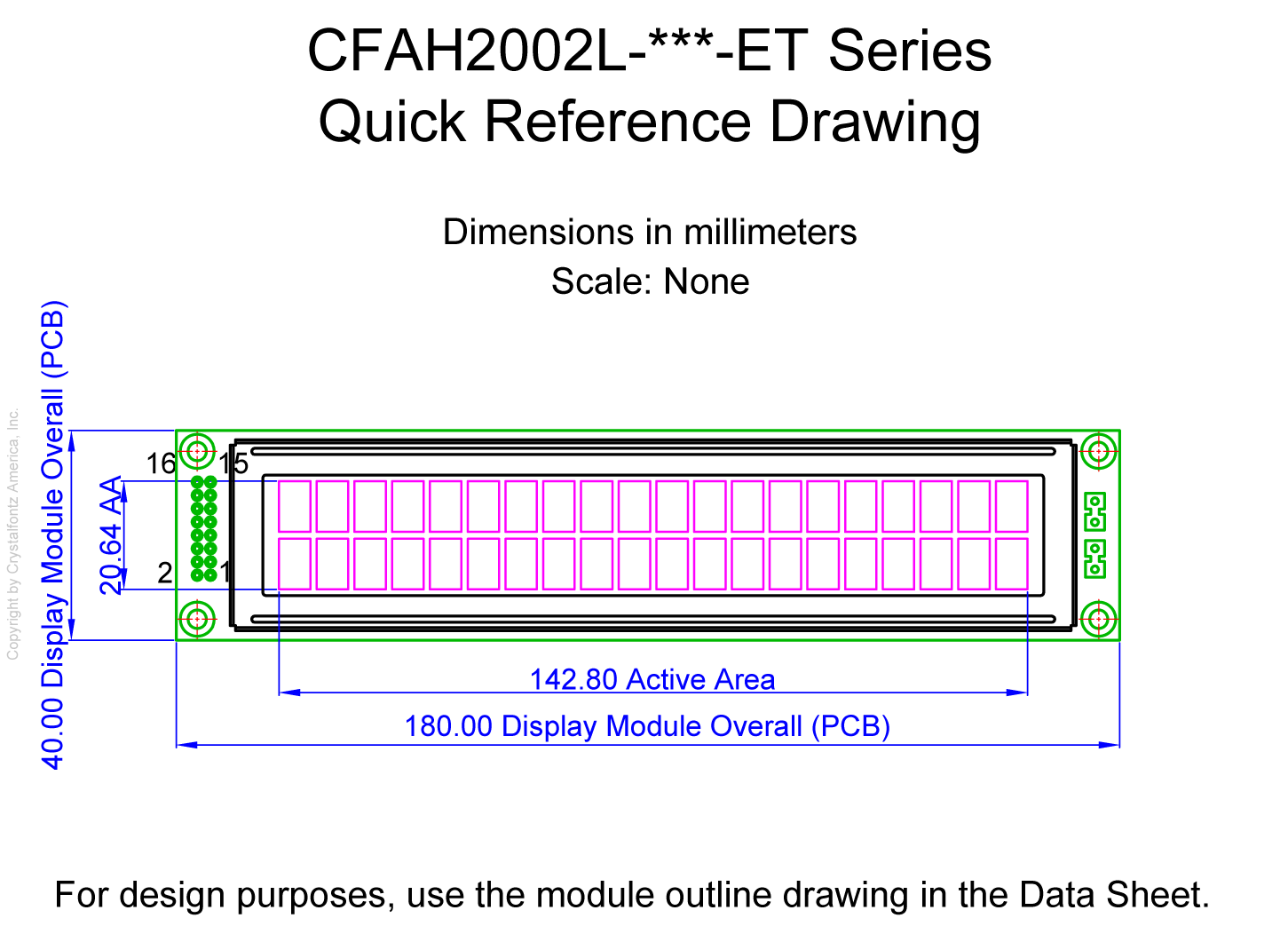

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            20 x 2


    Module Overall        width
        height
        depth


        millimeters
        180
        40
        13.9


        inches
        7.09
        1.58
        0.55



    PCB Outline        width
        height
        depth


        millimeters
        180
        40
        13.9


        inches
        7.09
        1.58
        0.55



        Diagonal Dimension
            5.68"


    Viewing Area        Width
        Height


        millimeters
        149
        23


        inches
        5.87
        0.91



    Active Area        Width
        Height


        millimeters
        142.8
        20.64


        inches
        5.62
        0.81



    Character Size        Width
        Height


        millimeters
        6
        9.66


        inches
        0.236
        0.380



    Character Pitch        Width
        Height


        millimeters
        7.2
        10.98


        inches
        0.283
        0.432



    Dot Size        Width
        Height


        millimeters
        1.12
        1.12


        inches
        0.044
        0.044



    Dot Pitch        Width
        Height


        millimeters
        1.22
        1.22


        inches
        0.048
        0.048



        Weight
            52g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5V
Supply Voltage for Logic Typical
            5.5V
Supply Voltage for Driving Panel Typical
            3.5V


        Supply Current Minimum
            0.3mA
Supply Current Maximum
            3.3mA
Supply Current Typical
            1.6mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            15mA
Forward Current Maximum
            60mA
Forward Current Typical
            48mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH2002LTMIET Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAH2002L-***-ET Series 2D CAD
picture_as_pdf 1 to 1 Template - CFAH2002L-***-ET Series 1 to 1 Module Outline
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $19.32

            10
            $17.08

            20
            $16.50

            50
            $15.93

            100 *
            $15.70

            200 *
            $15.58

            300 *
            $14.77

            500 *
            $14.66

            1000 *
            $13.55

91 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						8x2 Pin Dual Row Header
Add header pins? (5pk) $0.28 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight Dark on Light Gray White LED Backlight White on Blue White LED Backlight

Module Overall	width	height	depth
millimeters	180	40	13.9
inches	7.09	1.58	0.55

PCB Outline	width	height	depth
millimeters	180	40	13.9
inches	7.09	1.58	0.55

Viewing Area	Width	Height
millimeters	149	23
inches	5.87	0.91

Active Area	Width	Height
millimeters	142.8	20.64
inches	5.62	0.81

Character Size	Width	Height
millimeters	6	9.66
inches	0.236	0.380

Character Pitch	Width	Height
millimeters	7.2	10.98
inches	0.283	0.432

Dot Size	Width	Height
millimeters	1.12	1.12
inches	0.044	0.044

Dot Pitch	Width	Height
millimeters	1.22	1.22
inches	0.048	0.048

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$19.32
10	$17.08
20	$16.50
50	$15.93
100 *	$15.70
200 *	$15.58
300 *	$14.77
500 *	$14.66
1000 *	$13.55

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10655: CFAH2002L-***-ET Series Backlight Spec Change

Products Affected:	CFAH2002L-TMI-ET, CFAH2002L-TFH-ET, CFAH2002L-YYH-ET
Date Issued:	May 19, 2015
Summary:	CFAH2002L-***-ET Series Backlight Spec Change
Description:	Alternate LED manufacturer was used to improve product availability for the CFAH2002L-***-ET series. The series has three color variants: https://www.crystalfontz.com/product/CFAH2002LTFHET https://www.crystalfontz.com/product/CFAH2002LTMIET https://www.crystalfontz.com/product/CFAH2002LYYHET
Reason:	Improve product availability.
Impact:	Normally, the change will not be noticeable.
Recommendation:	If your existing product is very sensitive to the backlight color/brightness/current, you may want to evaluate the alternate backlight before ordering additional stock.
Price Change:	None
