                        In order to keep this display in production over the long term, we have revised it to the CFAM1280800A1-101TN.

Please contact sales@crystafontz.com with any questions.

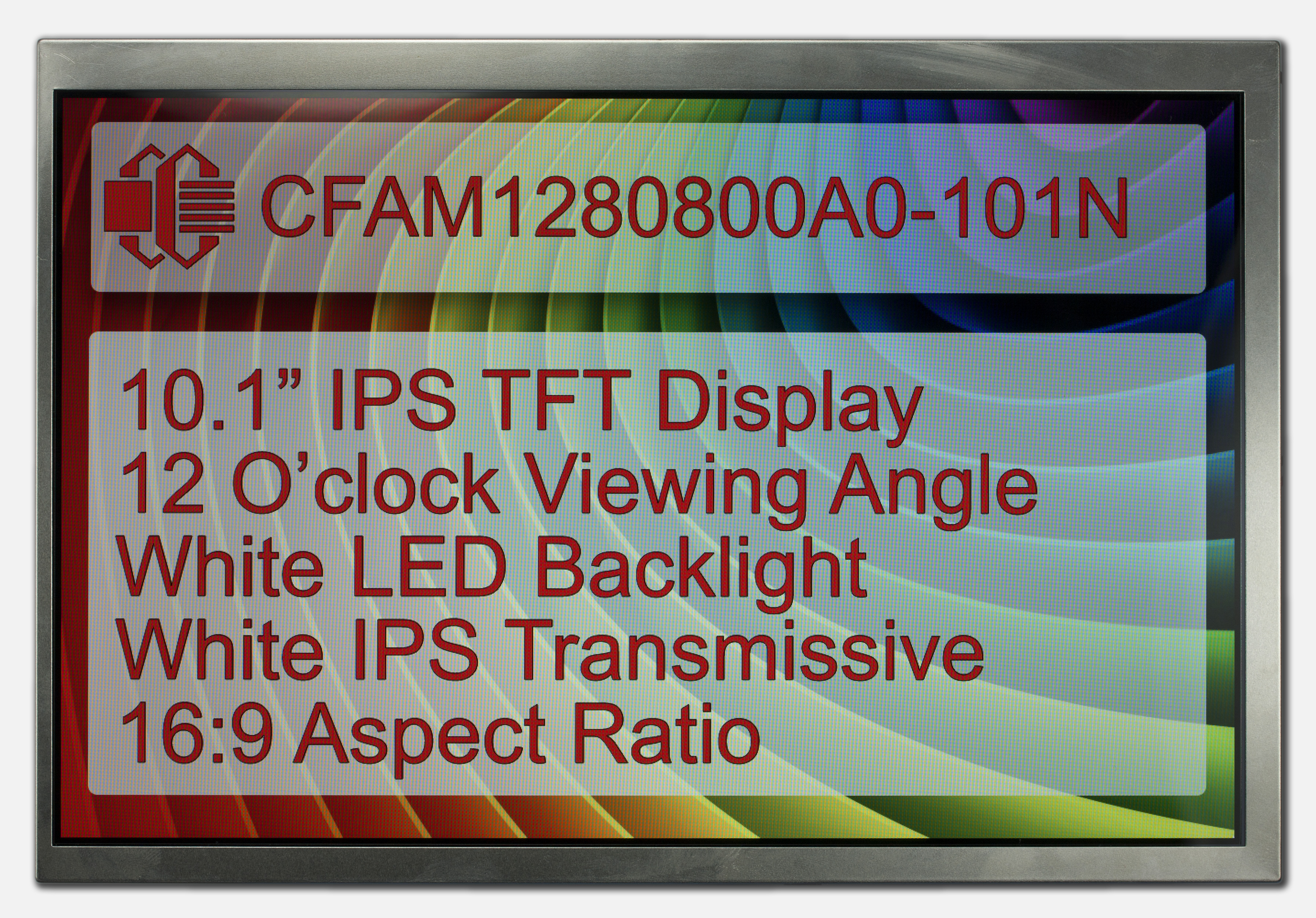

10.1" HDMI TFT LCDPart Number: CFAM1280800A0-101N

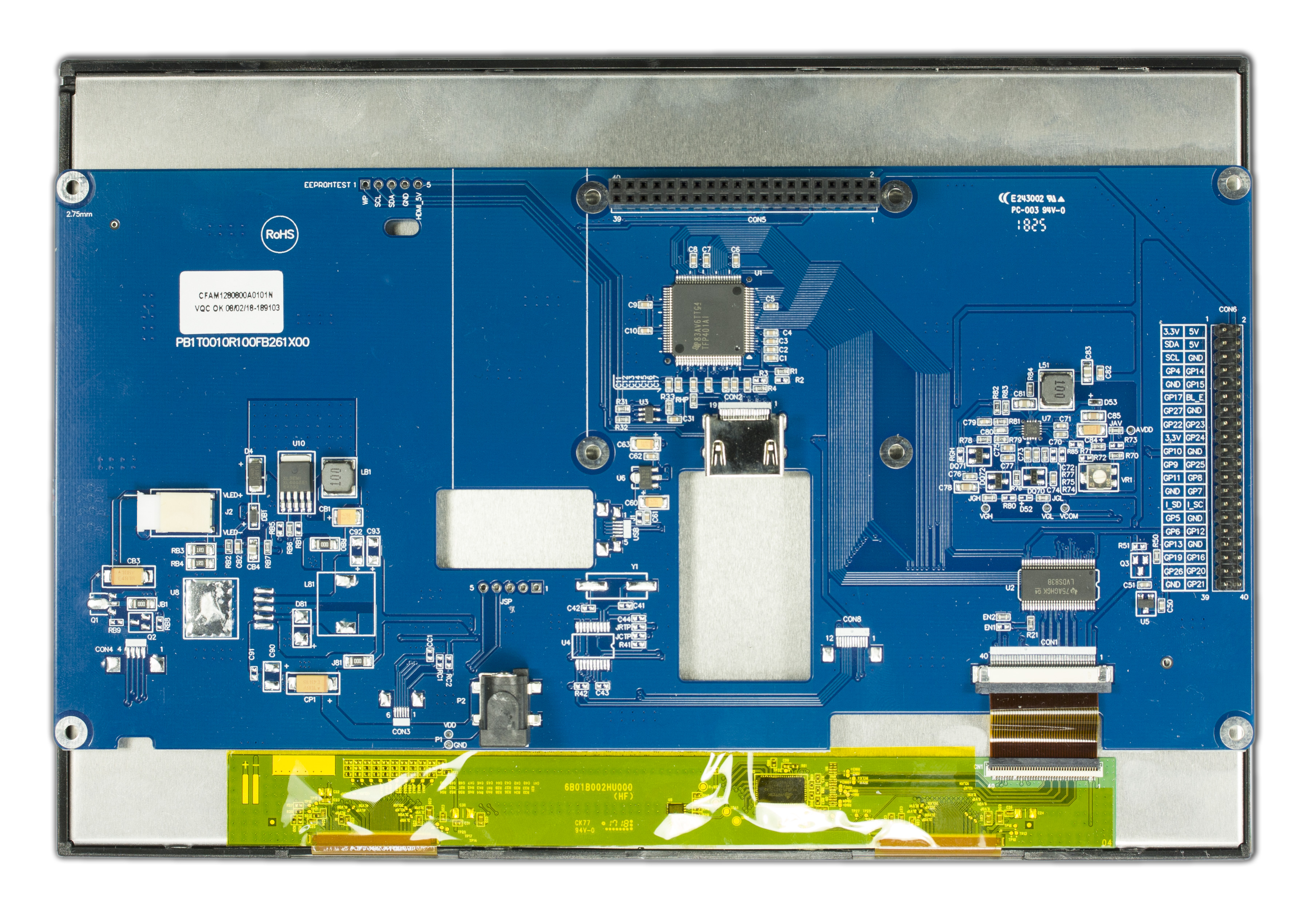

                        10.1" IPSHDMITFTLCD, designed specifically to mount to a Raspberry PI you can mount it and still have access to the GPIOs through the con6 connector.

This full-color TFT display is super-sharp and offers an HDMI input for quick integration into all the latest gadgets, plug in a fire-stick and make this display into your own entertainment console, plug in a compute stick and you've got an inexpensive handheld computer.

If you need a touchscreen version of this display take a look at the 10.1" Touchscreen IPS TFT HDMI Display.

 Add our HDMI to HDMI Converter to quickly attach it to your RPI. square_foot Physical Characteristics

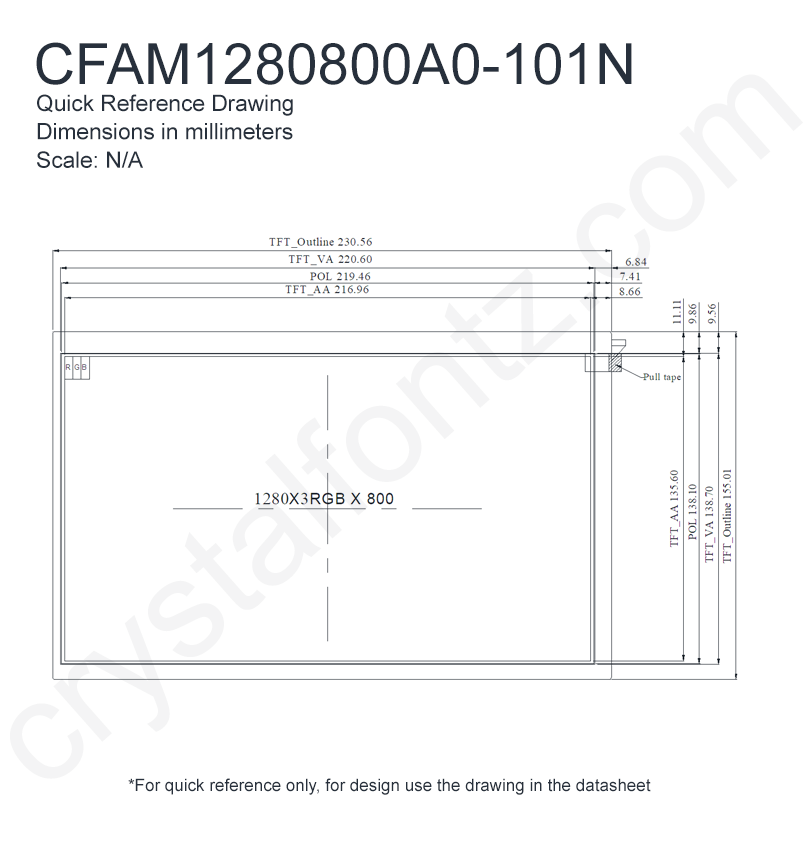

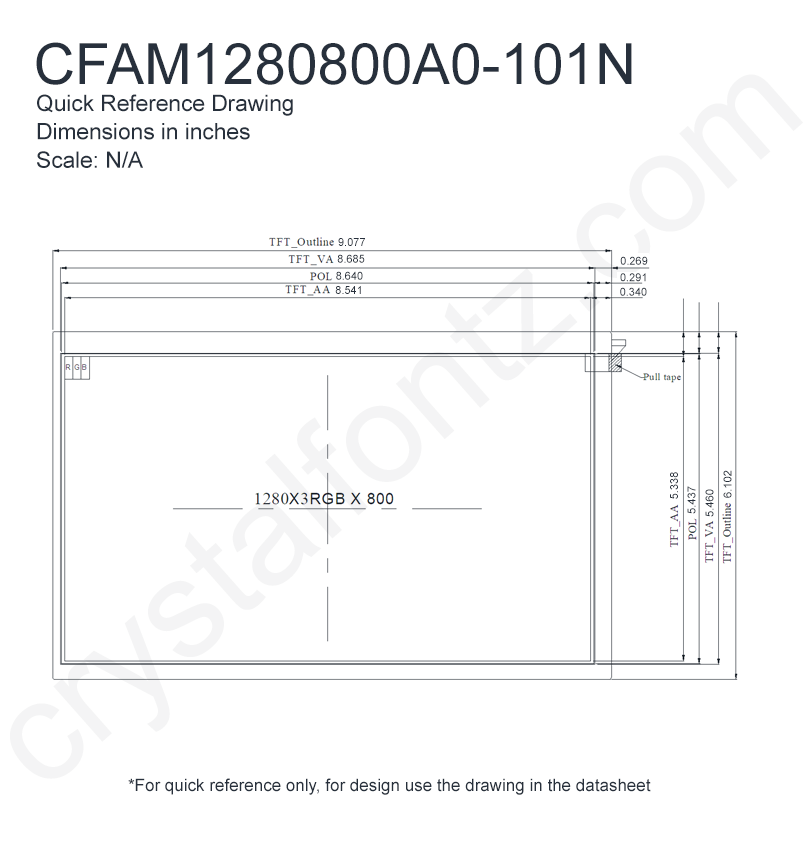

Physical Characteristics

        Column Dots x Row Dots
            1280 x 800

    Module Overall        width
        height
        depth

        millimeters
        230.56
        155.01
        25.6

        inches
        9.08
        6.10
        1.01

        Diagonal Dimension
            10.17"

    Viewing Area        Width
        Height

        millimeters
        220.6
        138.7

        inches
        8.69
        5.46

    Active Area        Width
        Height

        millimeters
        219.96
        135.6

        inches
        8.66
        5.34

    Dot Pitch        Width
        Height

        millimeters
        0.1695
        0.1695

        inches
        0.0067
        0.0067

        Weight
            424g

 visibility Optical Characteristics
Optical Characteristics

        Polarizer
            Transmissive
View Direction
            0.5 o'clock

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.9V
Supply Voltage for Logic Maximum
            5.1V
Supply Voltage for Logic Typical
            5V

        Supply Current Maximum
            2700mA
Supply Current Typical
            1900mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

 cable Electronics
Electronics

        Interface
            HDMI

picture_as_pdf Datasheets
picture_as_pdfCFAM1280800A0-101N Datasheet

download Files and Downloads
picture_as_pdf Other Document - CFAM rPi Compatibility Modification

Module Overall	width	height	depth
millimeters	230.56	155.01	25.6
inches	9.08	6.10	1.01

Viewing Area	Width	Height
millimeters	220.6	138.7
inches	8.69	5.46

Active Area	Width	Height
millimeters	219.96	135.6
inches	8.66	5.34

Dot Pitch	Width	Height
millimeters	0.1695	0.1695
inches	0.0067	0.0067

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11306: 1280x800 10.1" HDMI TFT LCD is now available.

Product Affected:	CFAM1280800A0-101N
Date Issued:	October 30, 2024
Summary:	1280x800 10.1" HDMI TFT LCD is now available.
Description:	We are now releasing products as stated in PCN #11093.

Part Change Notice #11093: End-Of-Life Notification

Products Affected:	CFAM1280800A0-101C, CFAM1280800A0-101N, CFAM1280800B0-101R
Date Issued:	July 27, 2021
Summary:	End-Of-Life Notification
Description:	The 10.1" family of HDMI displays are going EOL and will be replaced by a new version. The parts will be replaced by the following part numbers. CFAM1280800A0-101C -> CFAM1280800A1-101TC CFAM1280800A0-101N -> CFAM1280800A1-101TN CFAM1280800B0-101R -> CFAM1280800B1-101TR The new parts will also be compatible with 3B+ and newer versions of the Raspberry Pi.
Reason:	The TFT panel used on these products is going EOL and will be replaced by a new TFT panel.
