5" 800x480 RPi Compatible Display
Part Number: CFAM800480A0-050R

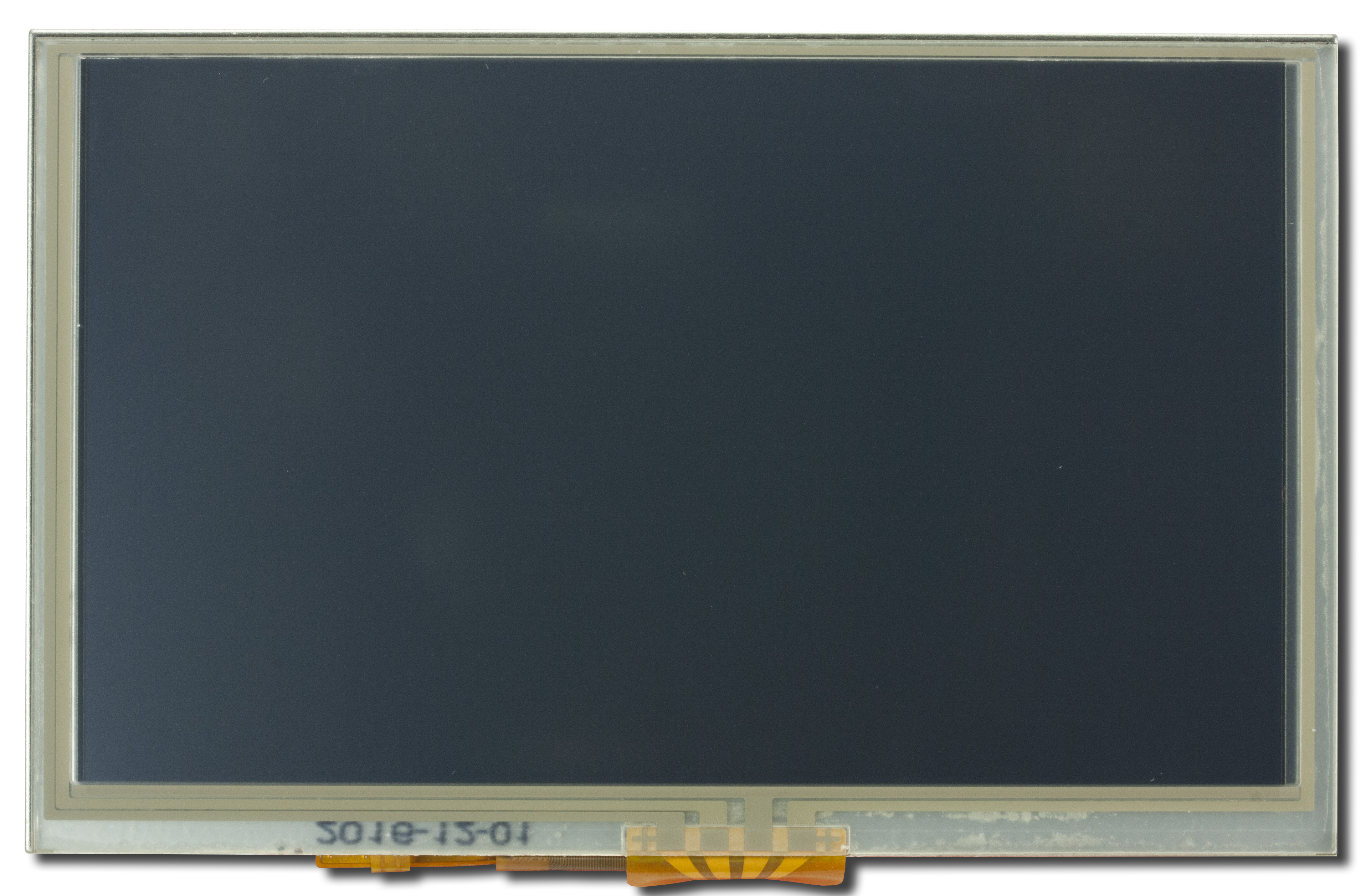

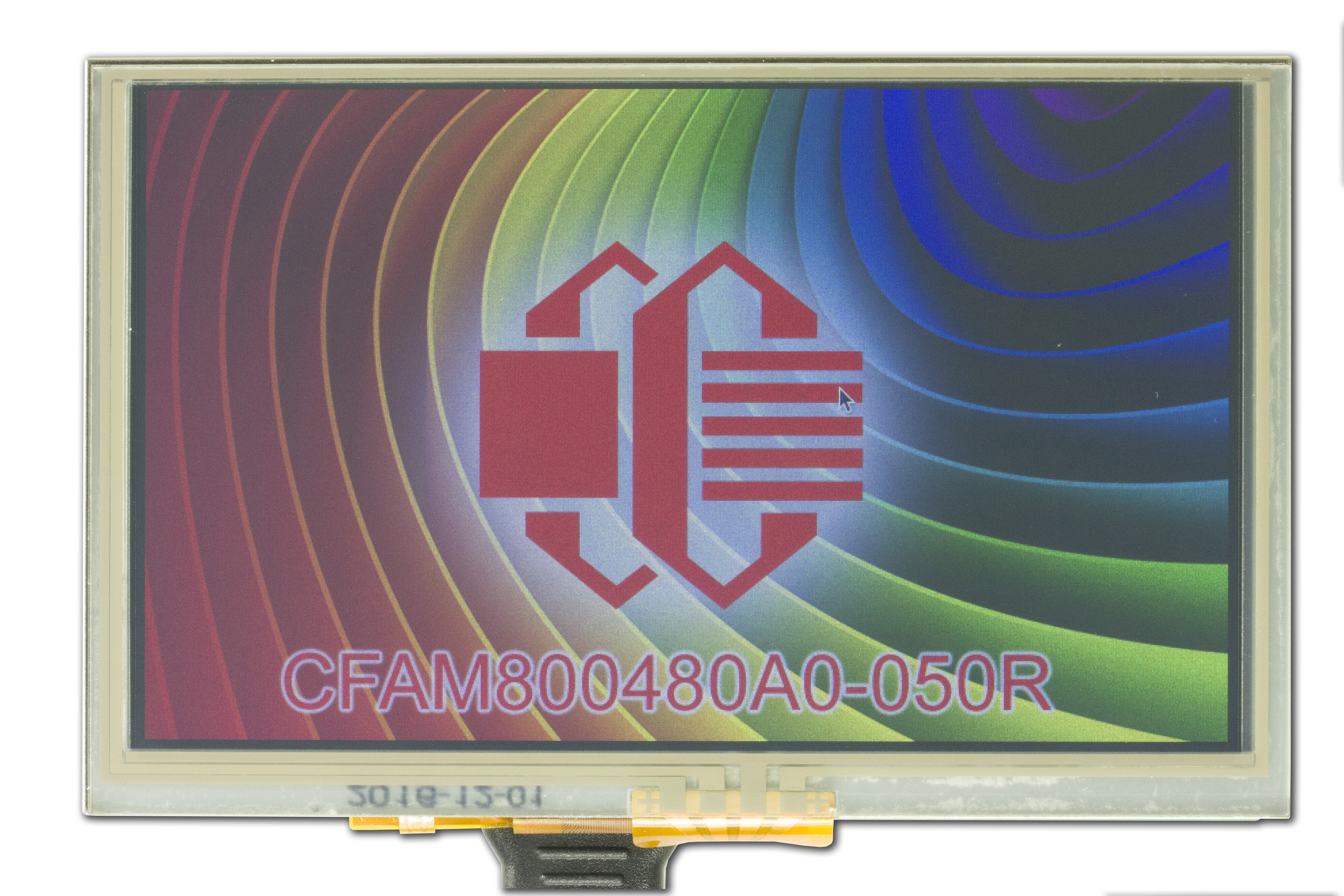

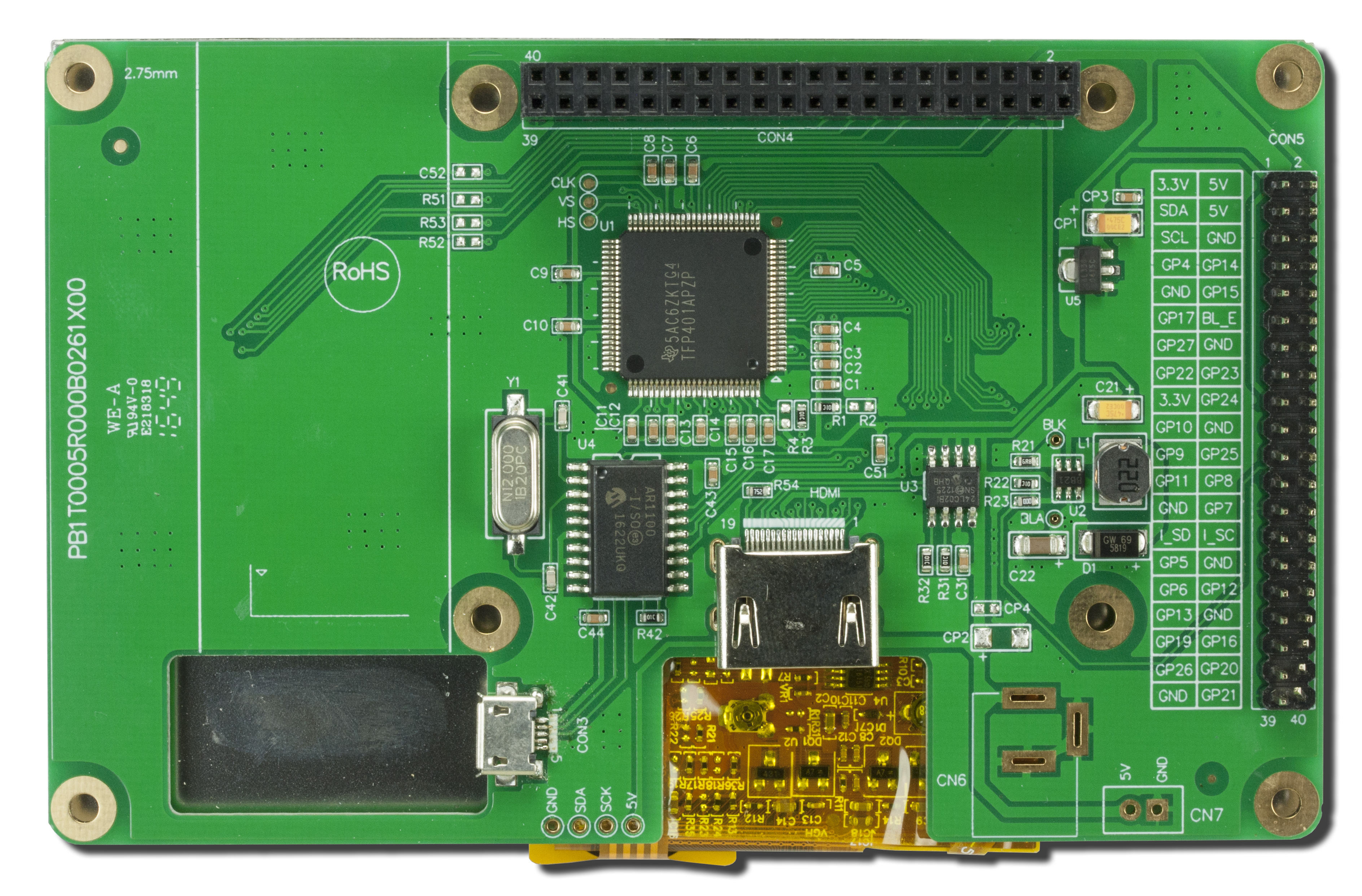

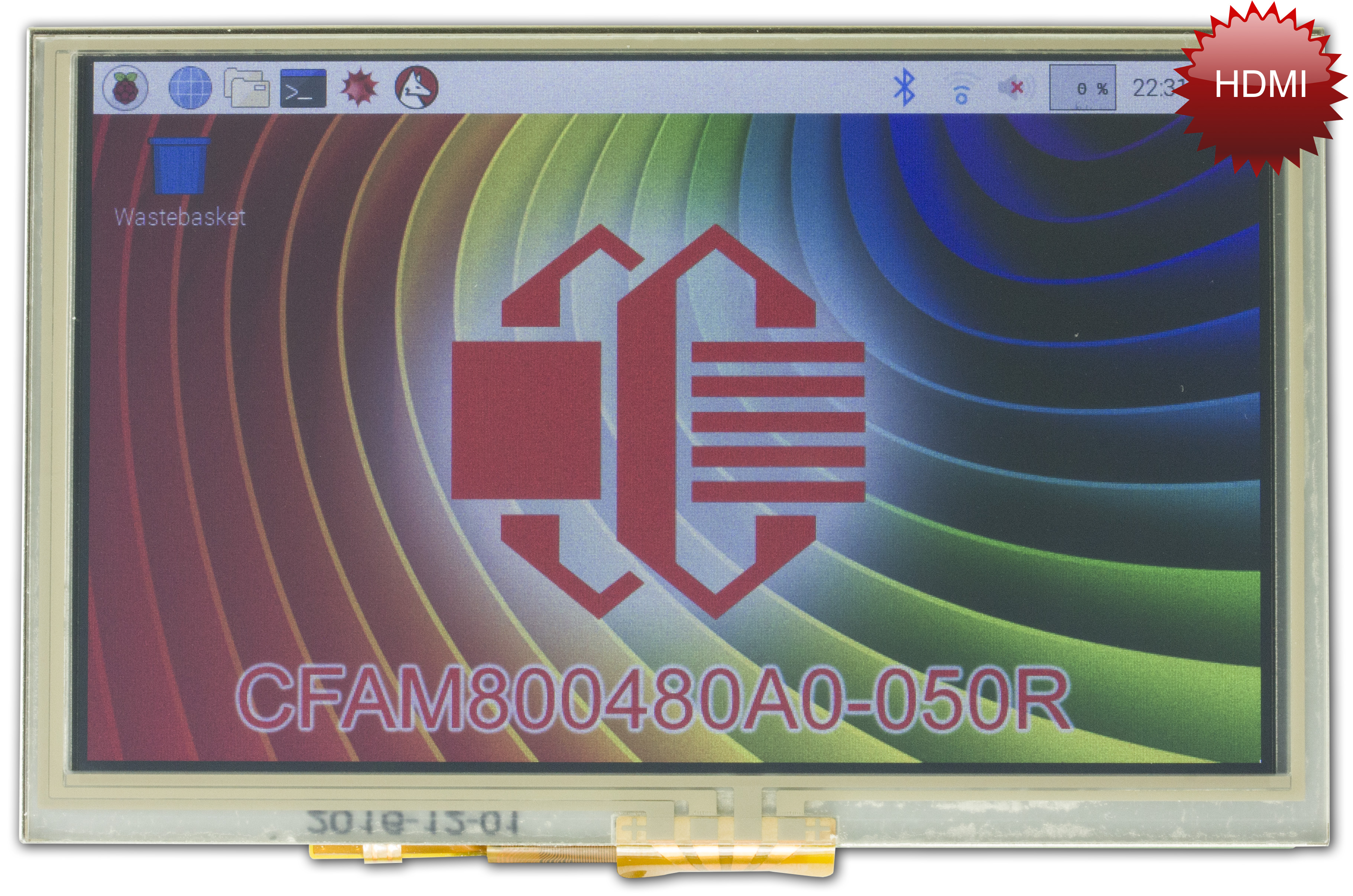

This is a 5-inch, 800x480 HDMI TFT LCD display with a resistive touch screen and control board with HDMI interface. This display has a 40-pin connector on board (CON4), that is a pass-through of the RPi's 40-pin connector – so that you don't lose any of the RPi's functionality. This display is small and compact and is easy to use with a Raspberry Pi, a Mini-Computer or an embedded system that has HDMI output.
* Please note, you can add the HDMI and USB cables when "configuring" this item during checkout.
This device's touch-screen drivers are not supported by the Android OS
* Please note, you can add the HDMI and USB cables when "configuring" this item during checkout.
This device's touch-screen drivers are not supported by the Android OS
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Datasheet
Compliance Documents
TECHNICAL SPECS

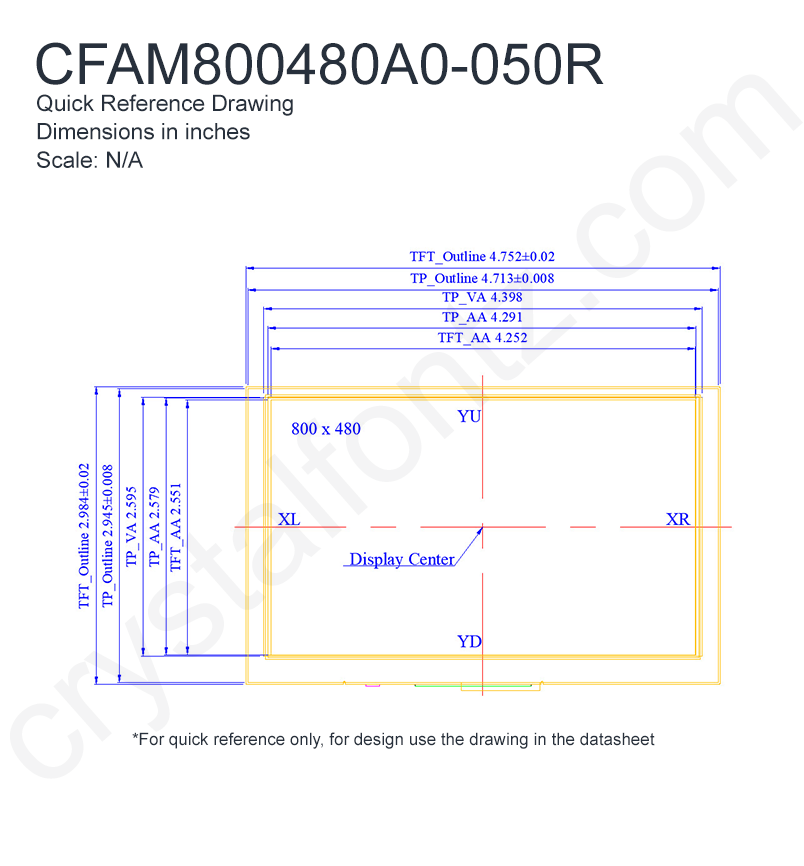

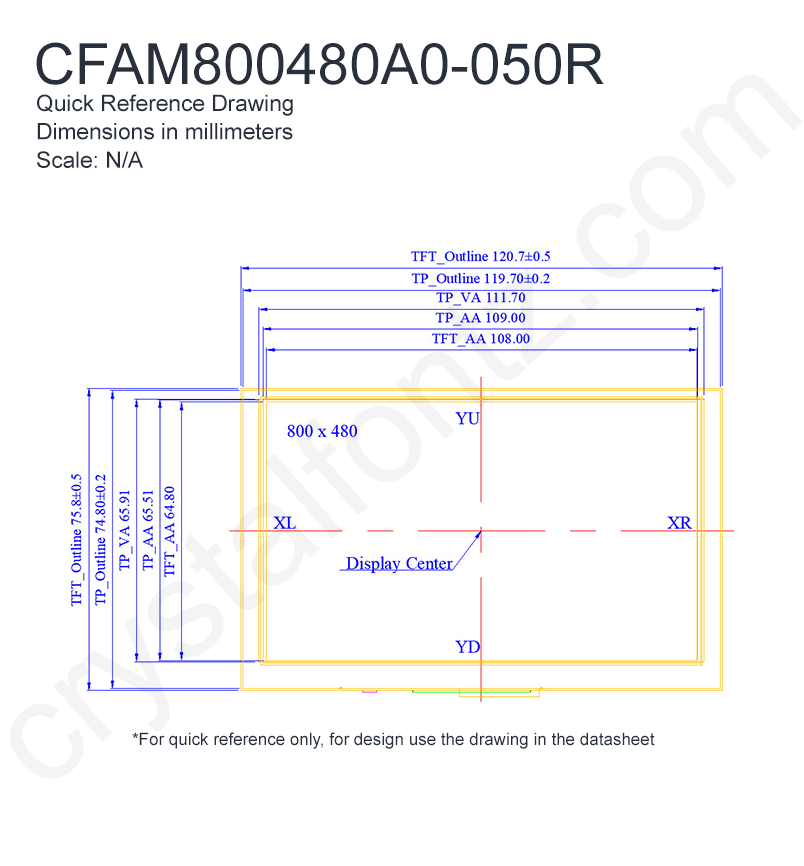

Physical Characteristics
| Column Dots x Row Dots | 800 x 480 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 120.7 | 75.8 | 23 |
| inches | 4.752 | 2.984 | 0.906 |
| Diagonal Dimension | 5" |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 111.7 | 65.91 |
| inches | 4.398 | 2.595 |
| Active Area | width | height |
|---|---|---|
| millimeters | 108 | 64.8 |
| inches | 4.252 | 2.551 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.045 | 0.135 |
| inches | 0.0018 | 0.0053 |
| Weight | 123.6g |
Optical Characteristics
| Glass Type/Glass Color | TFT/Dark |
| Polarizer | Transmissive |
| View Direction | 12 o'clock |
| Backlight Color | White |
| Backlight Type | LED |
| Foreground Color | RGB |
| Background Color | Dark |
Electrical Specifications
| Supply Voltage for Logic Minimum | 4.9V |
| Supply Voltage for Logic Maximum | 5.1V |
| Supply Voltage for Logic Typical | 5V |
| Supply Current Maximum | 680mA |
| Supply Current Typical | 450mA |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | 0° | 70° |
| Fahrenheit | 32° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | 0° | 80° |
| Fahrenheit | 32° | 176° |
Electronics
| Interface | HDMI |
Miscellaneous
| Touch Screen | Resistive |
Part Change Notice
Subscribe to Part Change Notices by email
or RSS
Product Update #11069: The display has gone EOL and has been replaced with an equivalent display with a slight color variance.
| Product Affected: | CFAM800480A0-050R |
| Date Issued: | October 27, 2020 |
| Summary: | The display has gone EOL and has been replaced with an equivalent display with a slight color variance. |
| Description: | The old display had a controller by Innolux and has been replaced with a new controller. The new controller causes slight chromaticity changes but is not noticeable by the human eye. |
| Reason: | The controller went EOL |
| Impact: | CFAM800480A0-050R |
| Recommendation: | No changes necessary |
| Availability: | Immediate |
| Price Change: | None |
For reference only. For design purposes, please use the specifications in the datasheet.
