800x480 RPi Compatible Display

Part Number: CFAM800480A0-050R

Pricing

Quantity Price
1 * $59.97
100 * $57.75
* Contact us about potential lead times.
Add to cart without customizations
Qty:


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet


800x480 RPi Compatible Display (CFAM800480A0-050R)

Description

This is a 5-inch, 800x480 HDMI TFT LCD display with a resistive touch screen and control board with HDMI interface. This display has a 40-pin connector on board (CON4), that is a pass-through of the RPi's 40-pin connector – so that you don't lose any of the RPi's functionality. This display is small and compact and is easy to use with a Raspberry Pi, a Mini-Computer or an embedded system that has HDMI output.

* Please note, you can add the HDMI and USB cables when "configuring" this item during checkout.

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

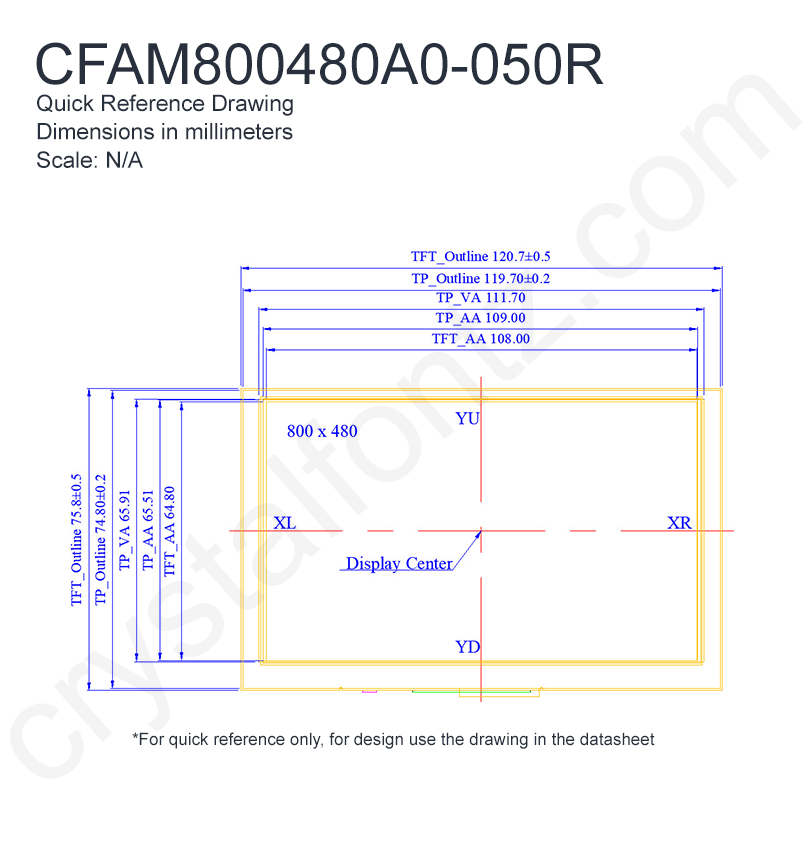

Physical Characteristics

Column Dots x Row Dots 800 x 480
Module Overall width height depth
millimeters 120.7 75.8 23
inches 4.752 2.984 0.906
Diagonal Dimension 5.000"
Viewing Area width height
millimeters 111.7 65.91
inches 4.398 2.595
Active Area width height
millimeters 108 64.8
inches 4.252 2.551
Dot Pitch width height
millimeters 0.045 0.135
inches 0.0018 0.0053
Weight 123.6g

Optical Characteristics

Glass Type/Glass Color TFT/Black
Polarizer Transmissive
View Direction 12 o'clock
Backlight Color White
Backlight Type LED
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 4.9V
Supply Voltage for Logic Maximum 5.1V
Supply Voltage for Logic Typical 5V
Supply Current Maximum 380mA
Supply Current Typical 350mA

Environmental

Operating Temperatures min max
Celsius 70°
Fahrenheit 32° 158°
Storage Temperatures min max
Celsius 80°
Fahrenheit 32° 176°

Electronics

Interface HDMI

Miscellaneous

Touch Screen Yes

*Suggest a Correction
For reference only. For design purposes, please use the specifications in the datasheet.
