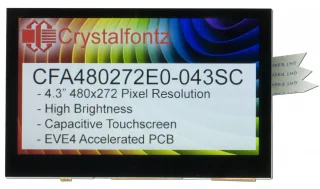

480x272 4.3" Capacitive-Touch EVE Accelerated TFT Module
Part Number: CFA480272E0-043SC
Deliver a premium user experience with this capacitive touch-enabled 4.3" IPS TFT module. Powered by Bridgetek's BT817 EVE graphics controller, this display brings smartphone-level interaction to embedded applications supporting multi-touch gestures, pinch-to-zoom, and fluid swiping motions that modern users expect.
The capacitive touch technology provides exceptional optical clarity since there's no resistive overlay to diminish brightness or color accuracy. Combined with the IPS panel's 850 nit brightness and superior color reproduction, this creates a stunning visual presentation that stands out in retail environments, consumer products, and high-end industrial equipment.

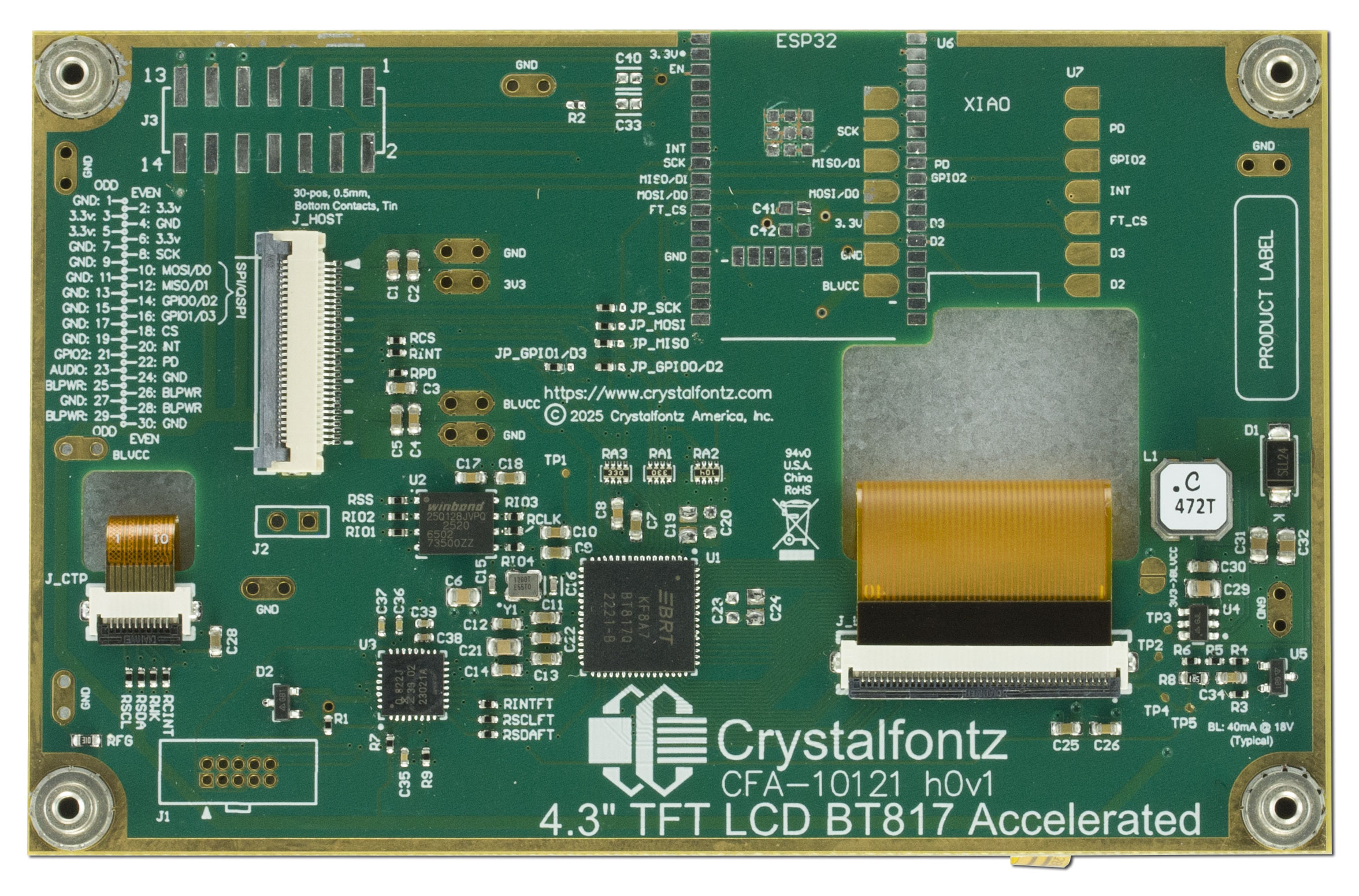

Design integration is simplified through intelligent engineering. One 30-pin ZIF connector provides all display, touch, and backlight connections. The BT817 handles the heavy lifting of graphics rendering and multi-touch processing, freeing your microcontroller to focus on application logic.
Ideal Applications:
- Smart home control panels and thermostats
- Retail kiosks and interactive product displays
- Consumer appliance interfaces (coffee machines, ovens, climate control)
- Medical devices with intuitive gesture-based navigation
- Automotive cabin controls and entertainment systems
- Wearable device charging docks with UI
- Conference room booking systems
Key Features:
- 4.3" diagonal IPS TFT with crystal-clear optics
- Capacitive touch with multi-touch support
- Sunlight readable: 850 nit brightness
- 16M colors with excellent color gamut
- Bridgetek BT817 EVE processor
- SPI/Quad SPI interface for easy integration
- Low-power operation with intelligent backlight control

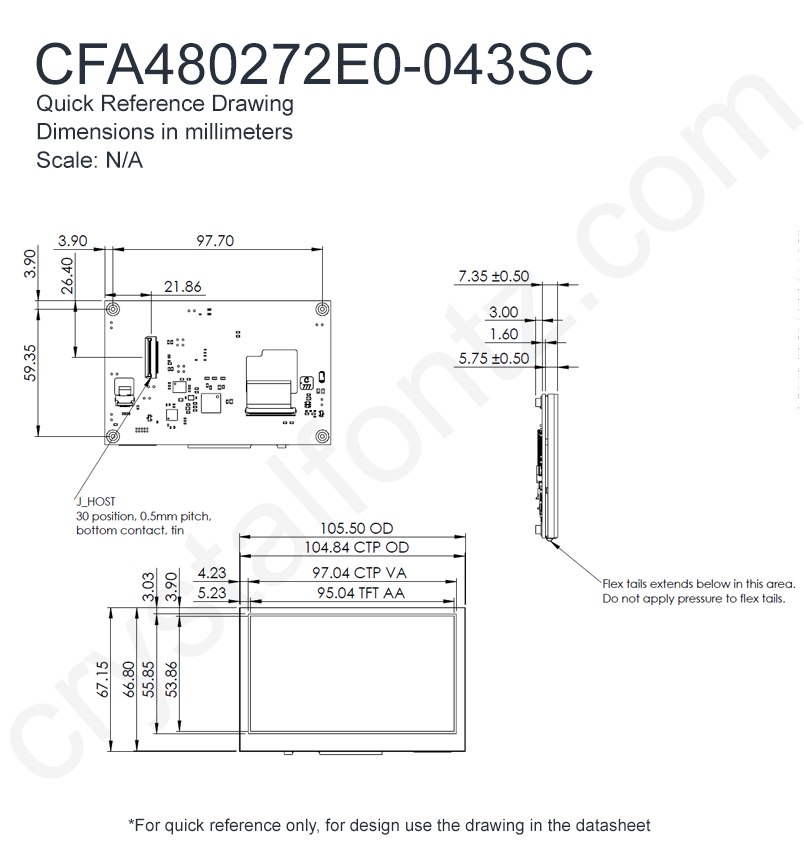

- Four precision mounting points
- This module is available in a complete 4.3" EVE development kit
Part Number: CFA480272E0043SC
- CFA - Crystalfontz America
- 480272 - 480x272 pixel resolution
- E0 - EVE part, Family and revision
- 043 - 4.3" diagonal dimension
- S - Sunlight readable
- C - Capacitive touch panel

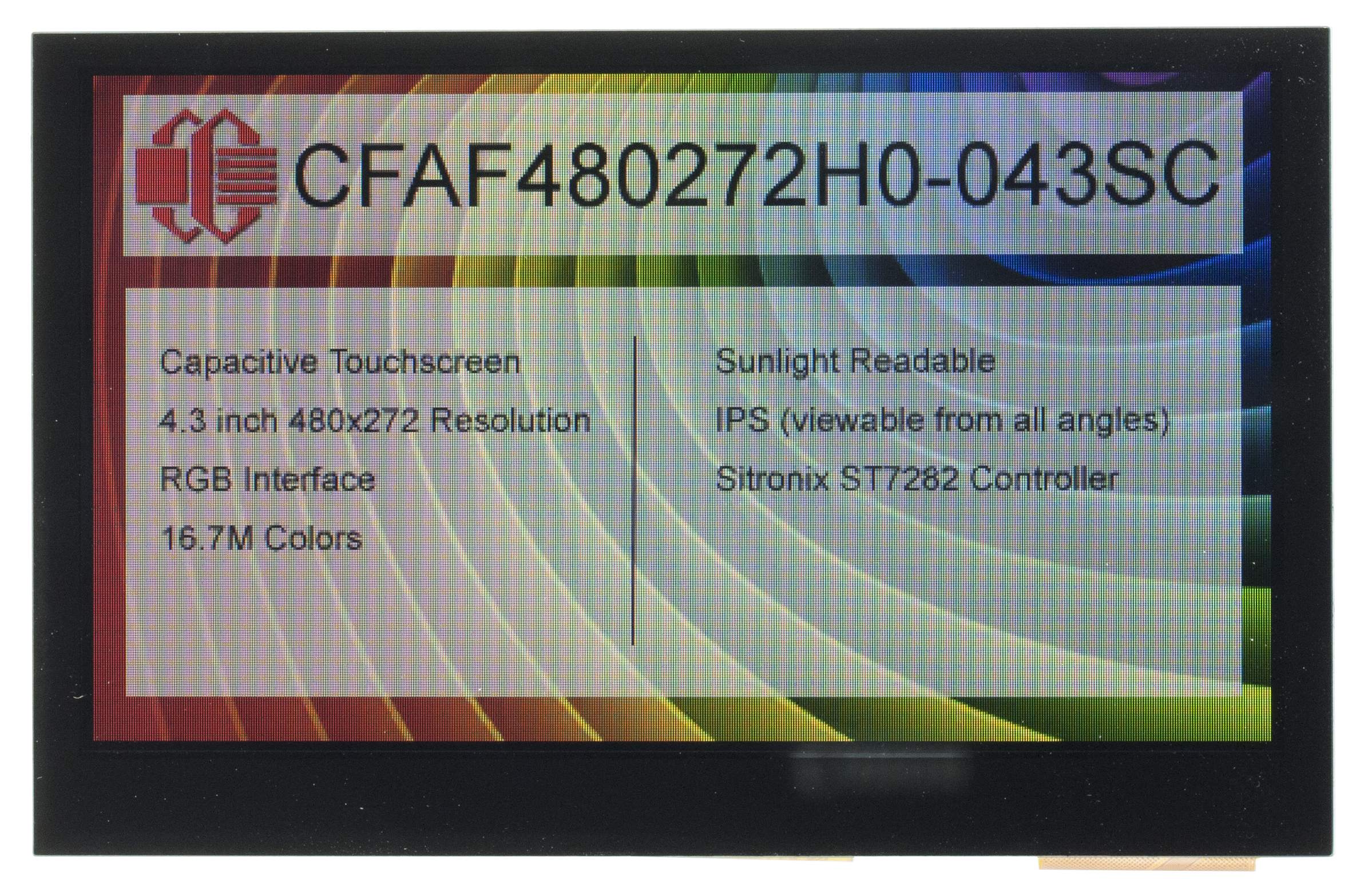

Product Variations
Touchscreen
Additional Options

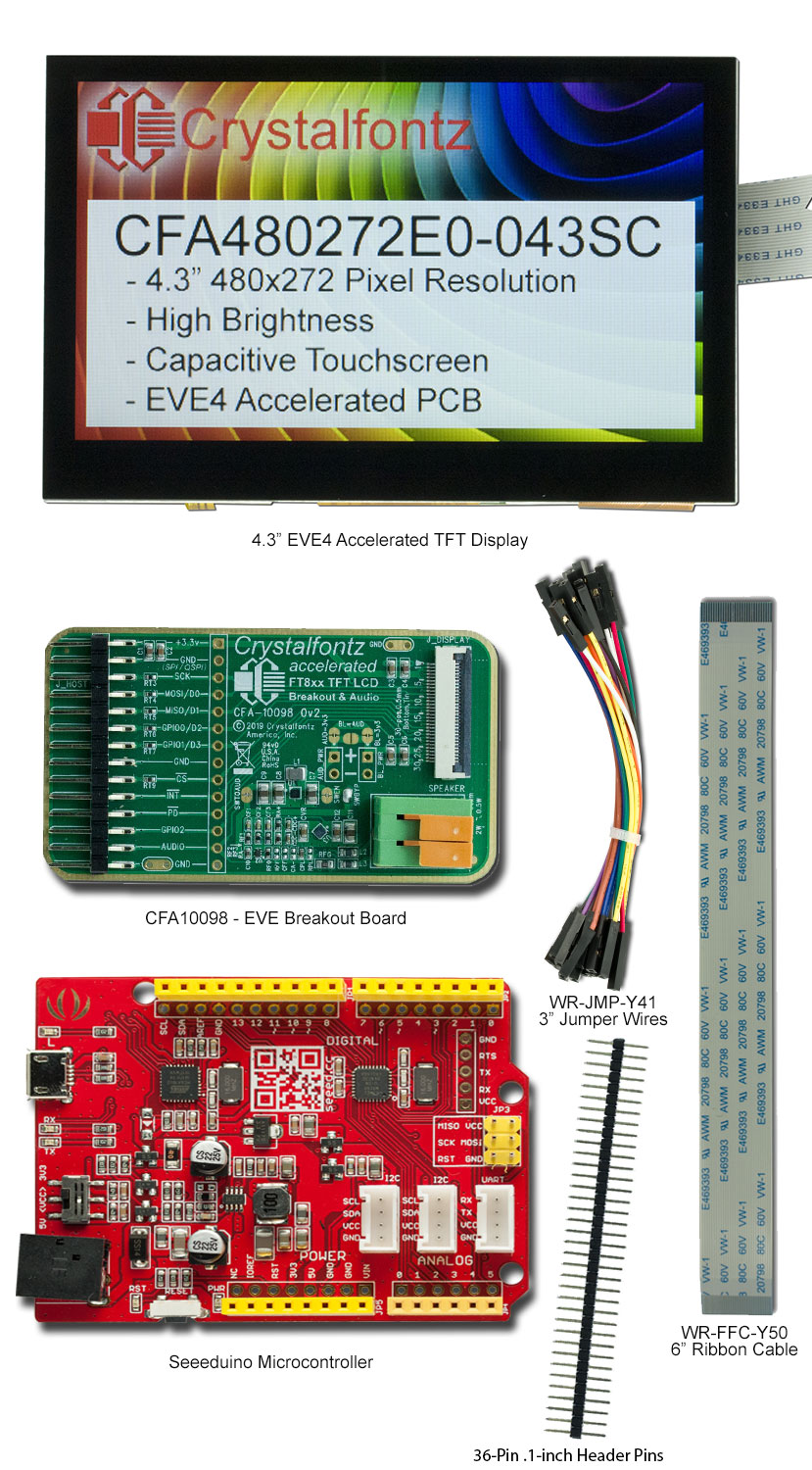

Purchase this display as an EVE development kit to speed up your prototyping.
