Red 16x2 RS232 Character LCD from Crystalfontz

Product

Home » Products » Serial LCD Displays » Character

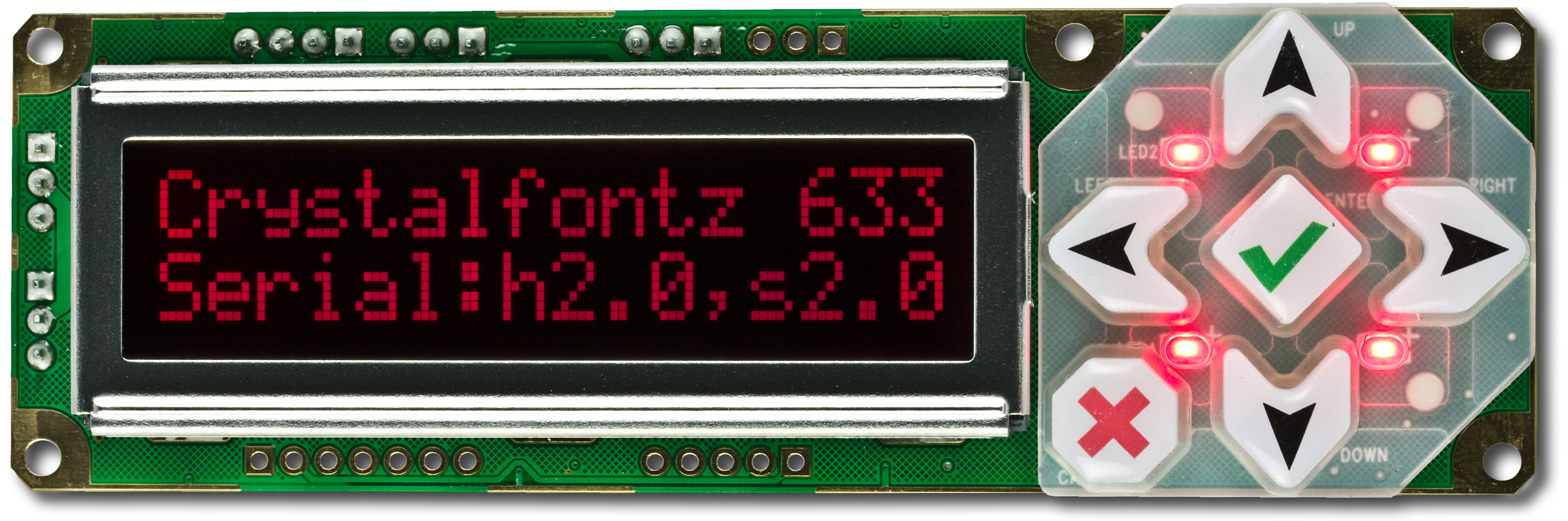

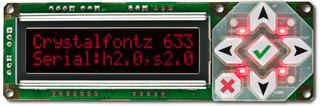

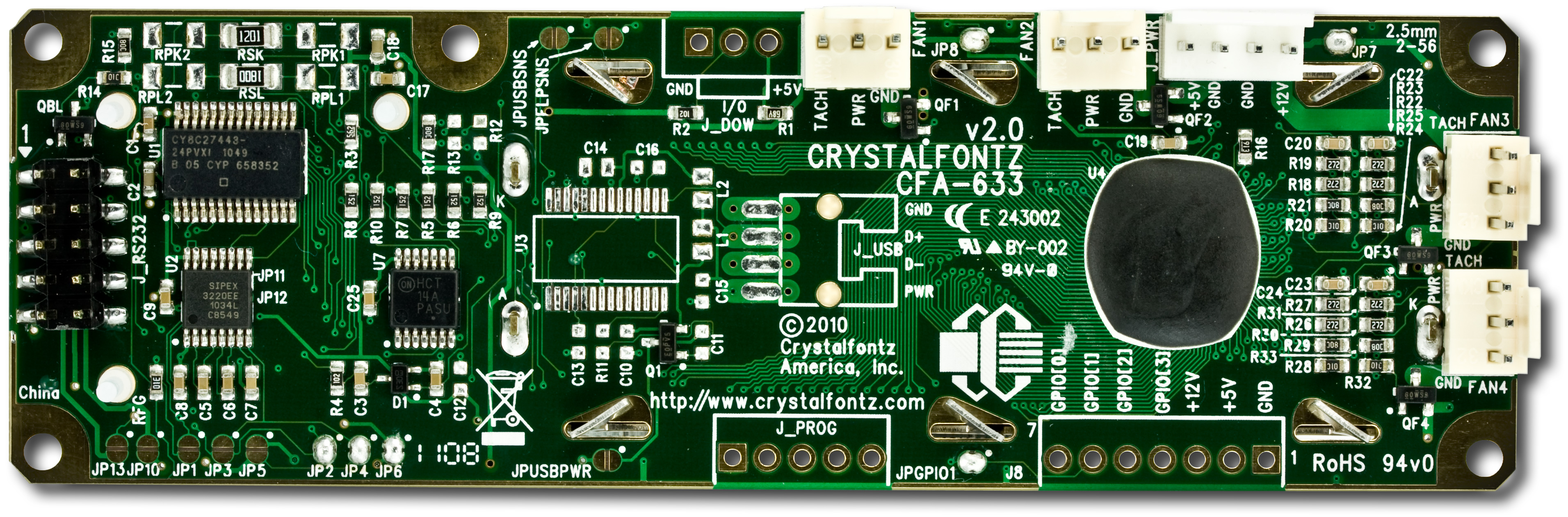

Red 16x2 RS232 Character LCDPart Number: CFA633-RDI-KSRed 16x2 Full-swing RS-232 serial LCD, Fan support, Keypad, RoHS / REACH Compliant, Red LED Backlight, FFSTN Negative, Transmissive, -20°C ~ +70°C operation, 6:00 viewing angle.
	Robust packet based communications protocol with 16-bit CRC.
	Compact size: fits in a 1U rack mount case (35 mm overall height).
	Advanced digital GPIO control with PWM output.
	Four fan connectors with RPM monitoring or variable PWM fan power control
NOTE: Not recommended for use with 4-Wire fans.
	Available in a 5.25" half-height LCD drive bay kit
	ATX power supply control functionality allows the buttons on the CFA-633 to replace the "power" and "reset" buttons on your system, simplifying your front panel design.
	Temperature monitoring: up to 32 channels at up to 0.5 deg C absolute accuracy. Ready-to-use WRDOWY17 Dallas Semiconductor 1-Wire temperature sensors are optional. Alternatively, you can create your own sensors using DS1822 or DS18B20 parts and the tutorial on creating temperature sensors.
	Integrated LED backlit 6-button translucent silicon keypad with screened legend.
	"Fail-Safe" fan power setting allows safe host fan control based on temperature.
	Non-volatile memory ("EEPROM") capability: Customize the "power-on" display settings plus a 16-byte "scratch" register for storing IP, netmask, system serial number, etc.

Not sure which RS232 display module to choose? Compare all of our intelligent display modules.

Currently Shipping: HW Version 2.0, Firmware Version: S2v1

Product VariationsInterfacesRS232USB
ColorsDark on Light Gray
White LED BacklightRed on Dark
Red LED BacklightWhite on Blue
White LED BacklightDark on Yellow-Green
Yellow-Green LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        110.5
        35
        25.6


        inches
        4.35
        1.38
        1.01

*depth doesn't include Keypad


    PCB Outline        width
        height


        millimeters
        110.5
        35


        inches
        4.35
        1.38



        Diagonal Dimension
            2.26"


    Viewing Area        Width
        Height


        millimeters
        61
        15.8


        inches
        2.40
        0.62



    Active Area        Width
        Height


        millimeters
        56.2
        11.5


        inches
        2.21
        0.45



    Character Size        Width
        Height


        millimeters
        2.95
        5.55


        inches
        0.116
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.95


        inches
        0.140
        0.234



    Dot Size        Width
        Height


        millimeters
        0.55
        0.65


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            45g


        Keystroke Travel
            2.4mm

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FFSTN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            Red
Backlight Type
            LED
Mode
            Negative
Foreground Color
            Red
Background Color
            Dark

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Interface
            RS232

 picture_as_pdf Datasheets
picture_as_pdfCFA633-RDI-KS Data Sheet Release Date 2012-02-21.pdf
(Hardware 2.0, Firmware s2v1)
Previous Versions of Datasheetpicture_as_pdfCFA633-RDI-KS Data Sheet v3.2.pdf
(Datasheet V 3.2, Hardware 2.0, Firmware s2.0)
 download Files and Downloads
folder_zip Hardware Design - 3D Model
folder_zip CAD Export - CFA633-XXX-KS v2.0 2D CAD
picture_as_pdf 1 to 1 Template - CFA633-XXX-KS v2.0 1 TO 1.PDF
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $68.66

427 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Interfaces	RS232 USB

Colors	Dark on Light Gray White LED Backlight Red on Dark Red LED Backlight White on Blue White LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight

Module Overall	width	height	depth
millimeters	110.5	35	25.6
inches	4.35	1.38	1.01
*depth doesn't include Keypad

PCB Outline	width	height
millimeters	110.5	35
inches	4.35	1.38

Viewing Area	Width	Height
millimeters	61	15.8
inches	2.40	0.62

Active Area	Width	Height
millimeters	56.2	11.5
inches	2.21	0.45

Character Size	Width	Height
millimeters	2.95	5.55
inches	0.116	0.219

Character Pitch	Width	Height
millimeters	3.55	5.95
inches	0.140	0.234

Dot Size	Width	Height
millimeters	0.55	0.65
inches	0.022	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.7
inches	0.024	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$68.66
