800x480 5 Inch EVE Touchscreen TFT Display

Part Number: CFA800480E3-050SW

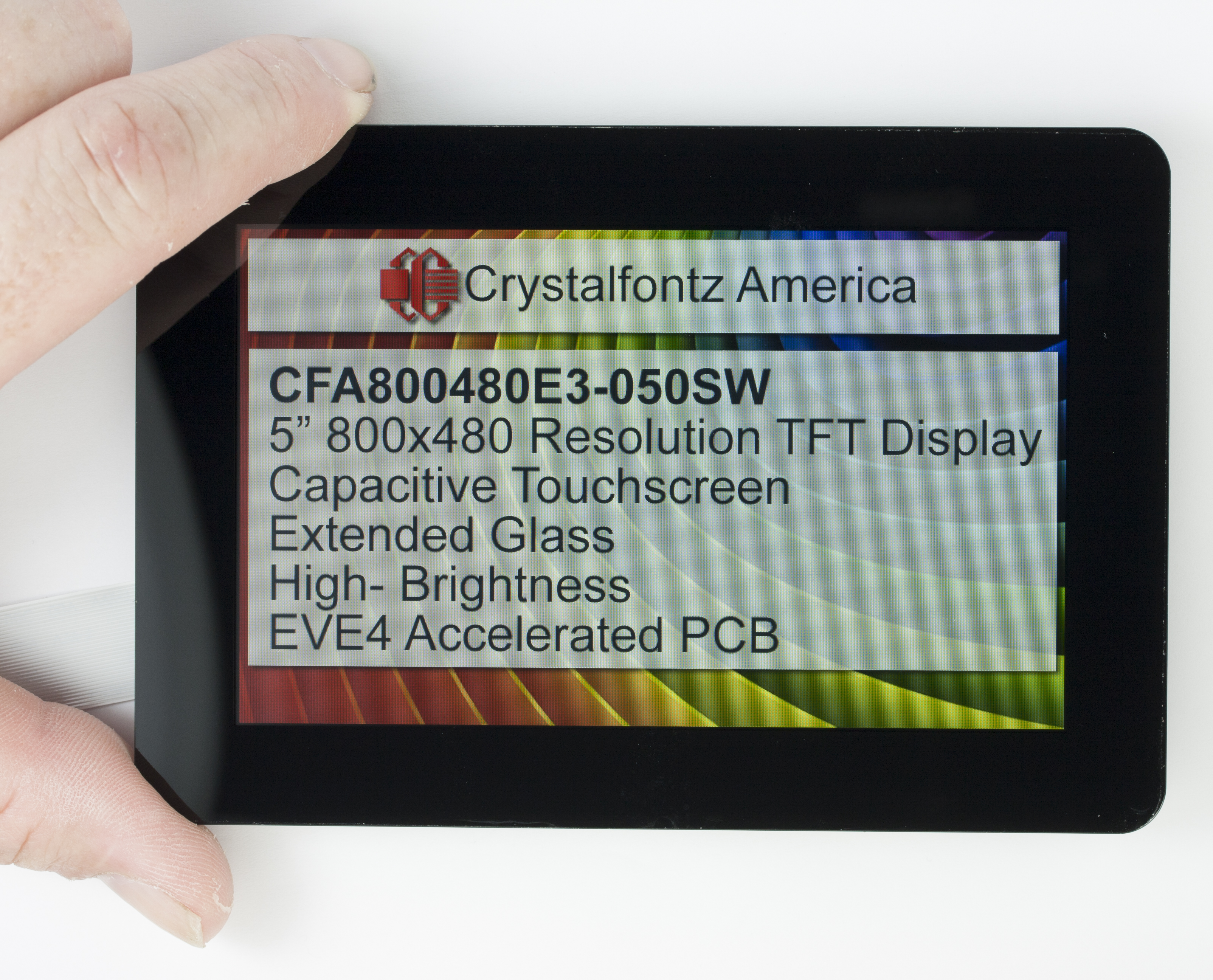

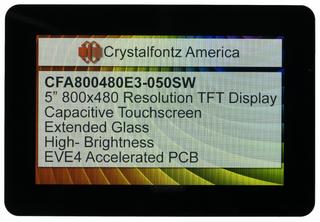

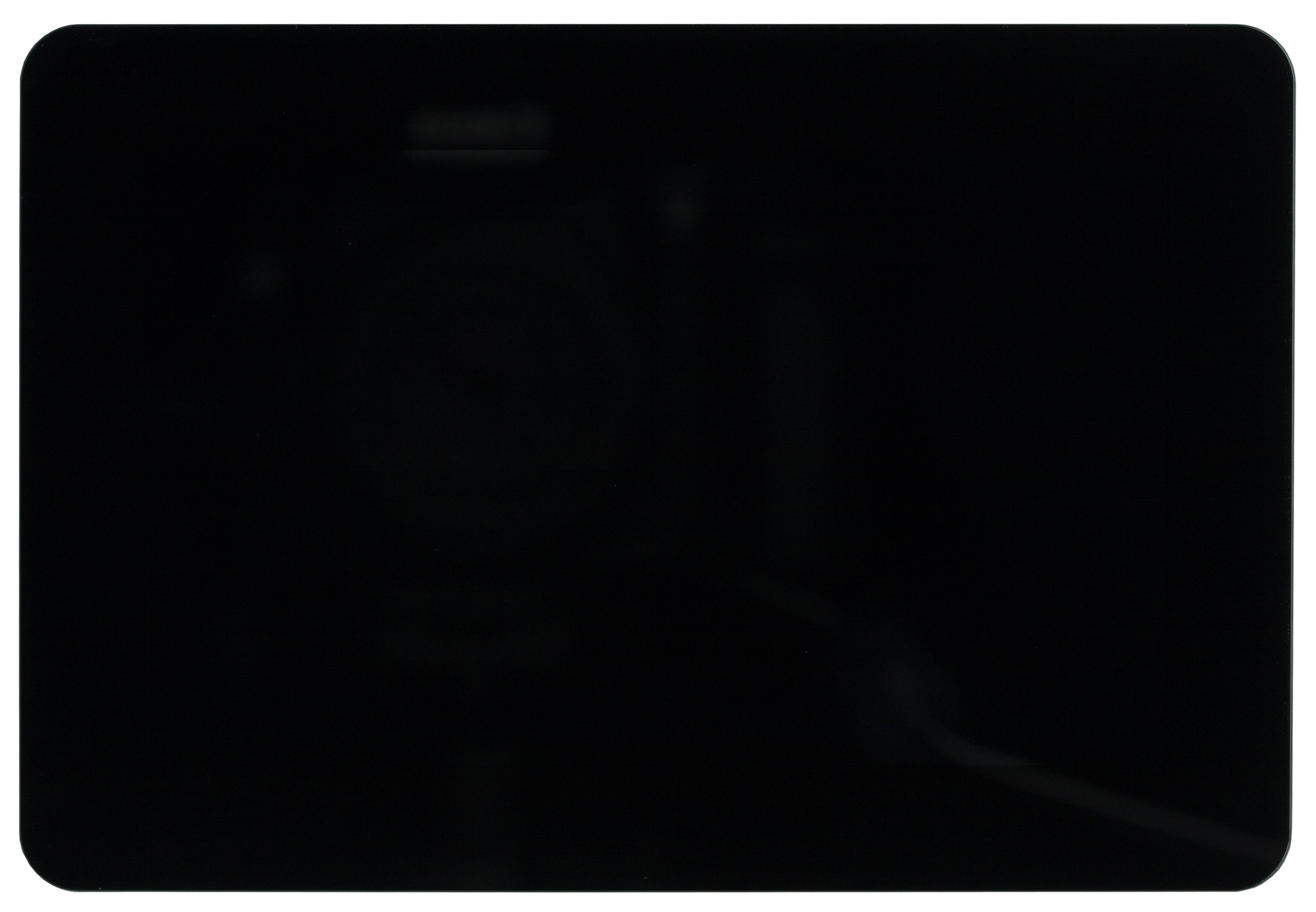

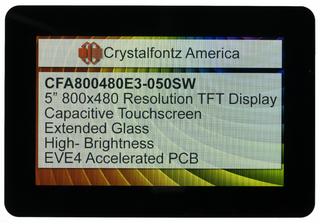

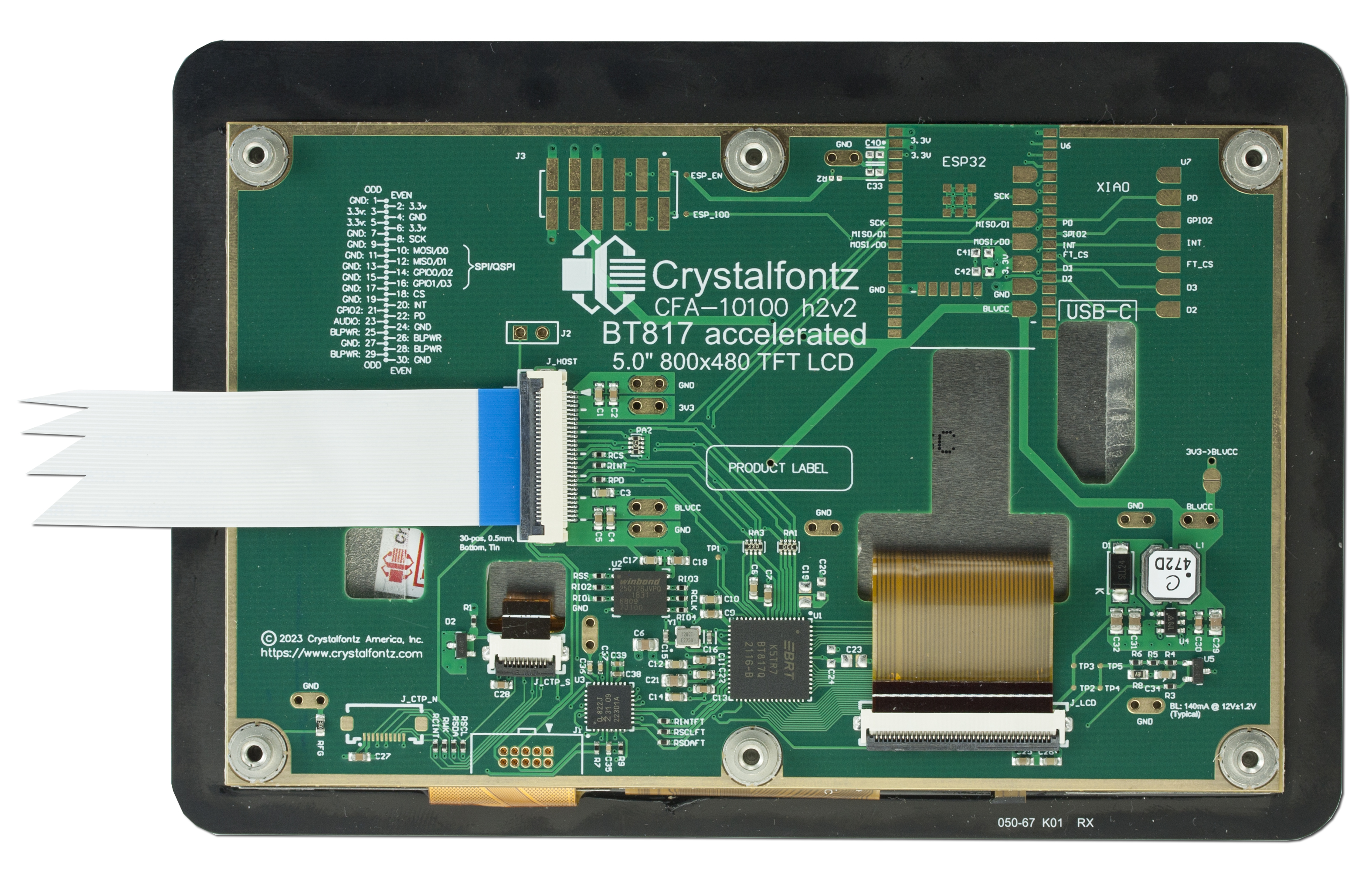

This TFT display module includes a beautiful capacitive touchscreen with an overhanging glass bezel mounted on a graphics acceleration PCB. This display module leverages the Bridgetek/FTDI EVE chip to simplify complex graphics.

The included 5" capacitive touch TFT display is top of the line. It's sunlight-readable, IPS, and has a 16M color depth. With the EVE accelerated board attached, this display module is ready for your most complex graphic.

If you like this display but are looking for a more traditional mounting style, We also offer a similar 800x480 Capacitive Touchscreen EVE TFT Module with a touchscreen that does not extend past the edge of the TFT.

Key features:
  • Overhanging capacitive touchscreen bezel
  • 5" Diagonal Display Area
  • Five-point touch
  • Graphics accelerating BT817 chip for easy graphics control
  • Sunlight Readable
  • SPI/Quad SPI interface
  • Free Viewing Angle (IPS)
  • Full-color TFT
  • Can be powered off of a single voltage source
EVE Graphics Accelerator Features:
  • Supports multiple widgets for simplified design implementation
  • User interface design software (PC) simplifies the design process
  • Hardware engine can recognize touch tags and track touch movement
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects for higher-quality graphics
  • Assorted graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
  • Programmable interrupt controller provides interrupts to host MCU
  • Support playback of motion-JPEG encoded AVI videos
  • Mono audio channel output with wave playback and built-in sound synthesizer
  • PWM output for display backlight dimming control
Looking for accessories for your EVE TFT display module? We have 2 sizes of FFC cables 6-inch 30-pin FFC cables and 12-inch 30-pin FFC cables, plus a EVE breakout board.

Currently Shipping: HW Version 2v2, Firmware Version: 1v0


  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 800 x 480

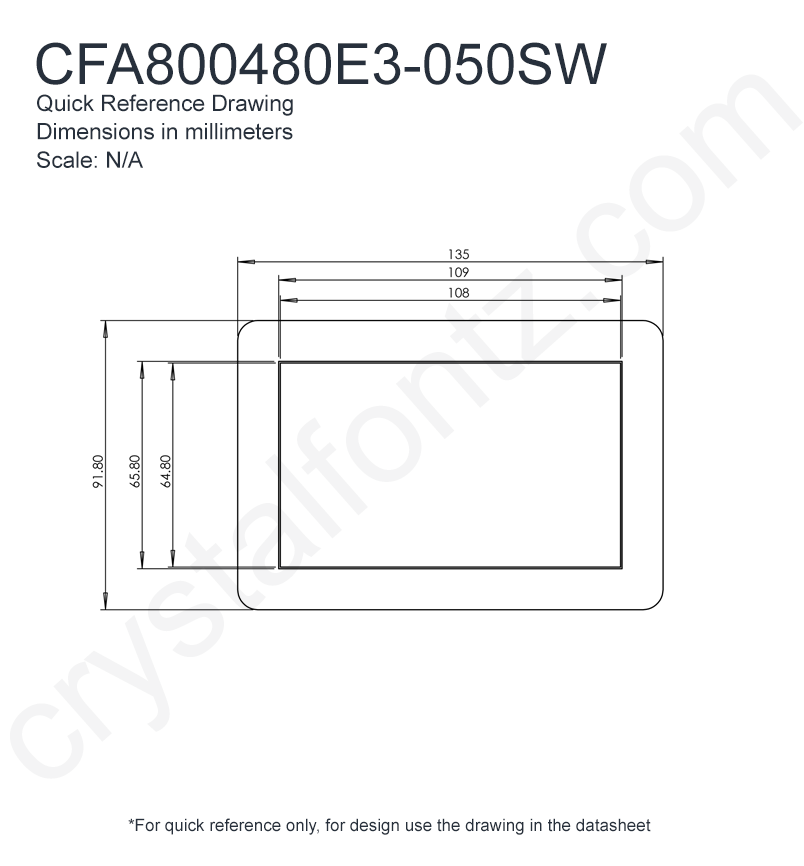

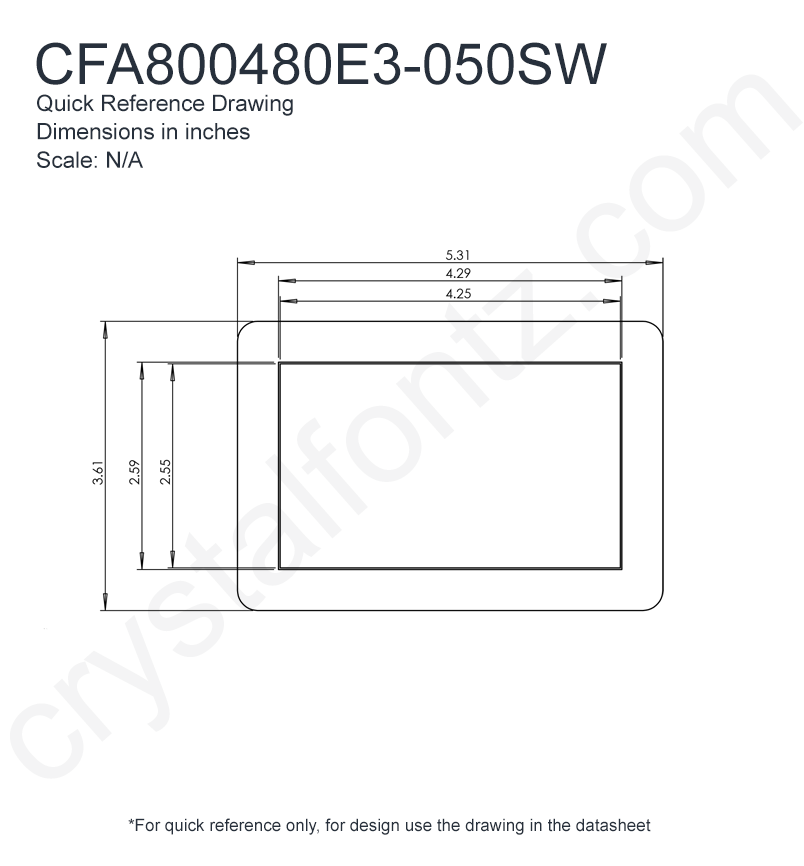

    Module Overall width height depth
    millimeters 135 91.8 10.75
    inches 5.32 3.61 0.42
    Diagonal Dimension 5"
    Viewing Area Width Height
    millimeters 109 65.8
    inches 4.29 2.59
    Active Area Width Height
    millimeters 108 64.8
    inches 4.25 2.55
    Dot Pitch Width Height
    millimeters 0.135 0.135
    inches 0.0053 0.0053
    Weight 134g
    Pin Count 30
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type TFT
    Polarizer IPS
    View Angle 160°
    Sunlight Readable Yes
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 3V
    Supply Voltage for Logic Maximum 3.6V
    Supply Voltage for Logic Typical 3.3V
    Supply Current Typical 20mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 2.7V
    Forward Voltage Maximum 5.5V
    Forward Voltage Typical 5V
    Forward Current Typical 70mA
  • nature Environmental

    Environmental

    Operating Temperatures min
    Celsius -20°
    Fahrenheit -4°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Interface SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Unit Price
1 * $105.92
5 * $88.23
10 * $85.71
20 * $83.18
50 * $80.16
100 * $79.15
200 * $78.65
300 * $77.64
500 * $77.13
1000 * $76.63
0 Units In-Stock & Ready To Ship
Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering
4595 EVE Breakout Board
Add an EVE Breakout Board? $24.63 ea.
4665 Assorted Imperial Screws
Need mounting screws? $3.08 ea.
4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Add ZIF connectors? $0.61 ea.
4607 12-inch 30-pin FFC
Need a ribbon cable? $2.30 ea.

Additional Options

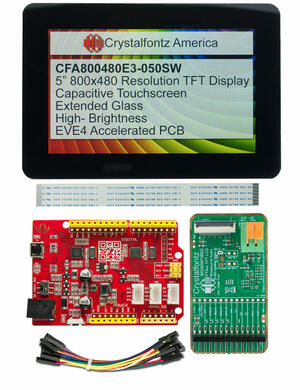

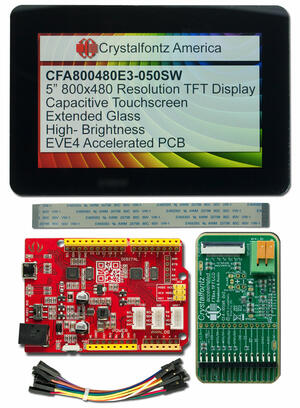

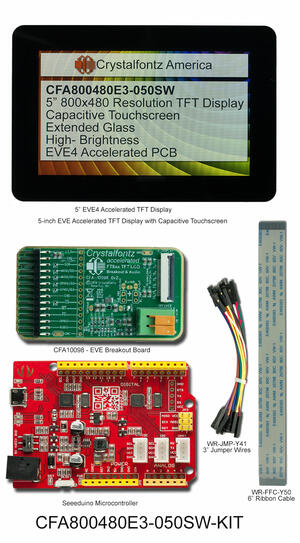

Buy this EVE display module in a development kit to get to prototypes faster and easier than ever.
5" Touchscreen EVE Development Kit
Part Number: CFA800480E3-050SW-KIT
Details
Quantity 1 *
Unit Price $131.43
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA800480E3-050SW or RSS RSS feed for changes to CFA800480E3-050SW
  • text_snippet
    Part Change Notice #11271: Manufacturing Location Changing
    Products Affected: CFA800480E3-050SN, CFA800480E3-050SN-KIT, CFA800480E3-050SW, CFA800480E3-050SW-KIT
    Date Issued: June 6, 2024
    Summary: Manufacturing Location Changing
    Description: The manufacturing location is changing for the displays. The new materials used cause the metal bezel to appear slightly different and the TFT color tones to appear warmer.
    Reason: The manufacturing location is changing for the displays.
    Impact: Warmer tones when displaying images.
    Metal Bezel is slightly darker
    Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
