800x480 5 Inch EVE Touchscreen TFT Display

Part Number: CFAF800480E2-050SC-A2

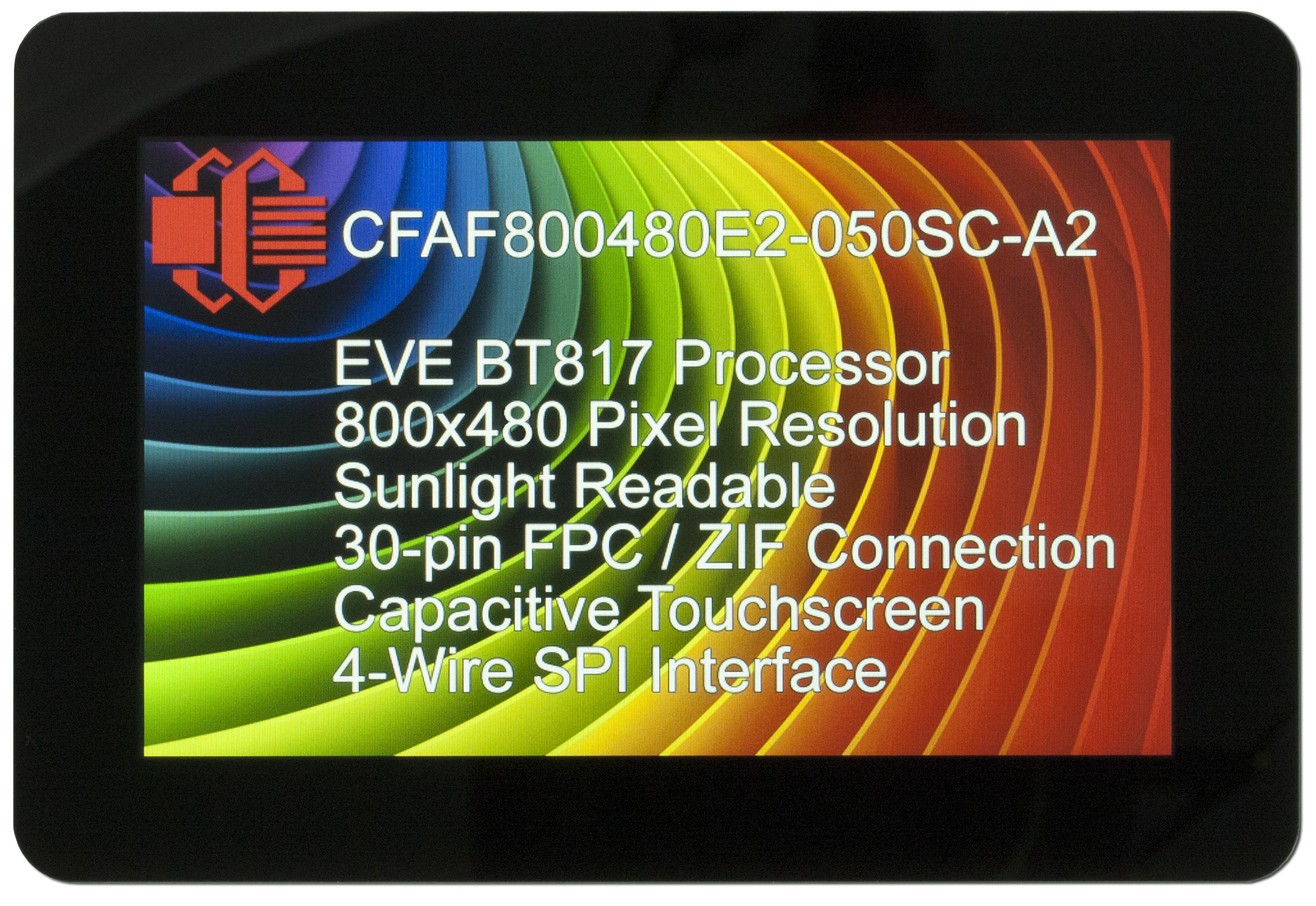

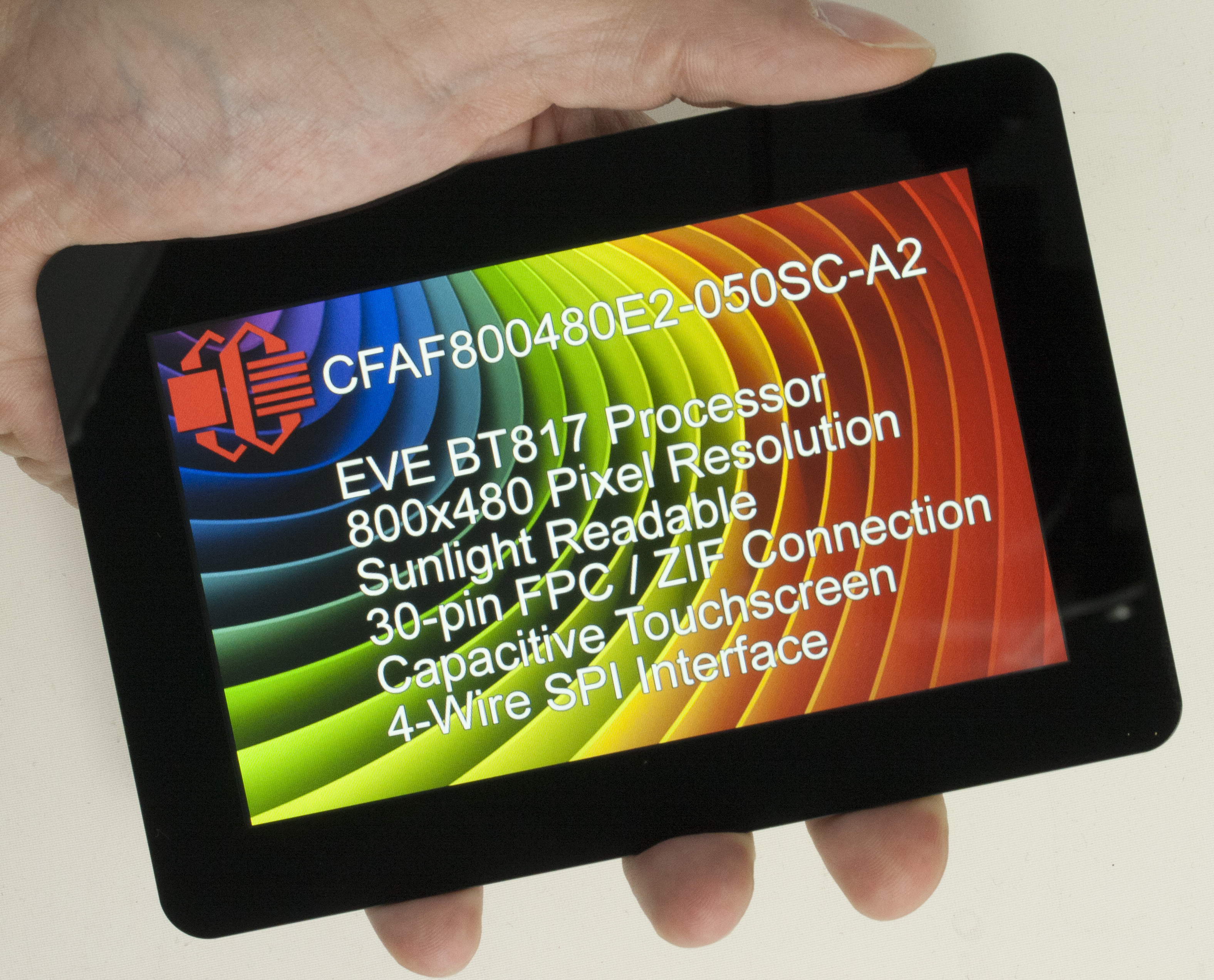

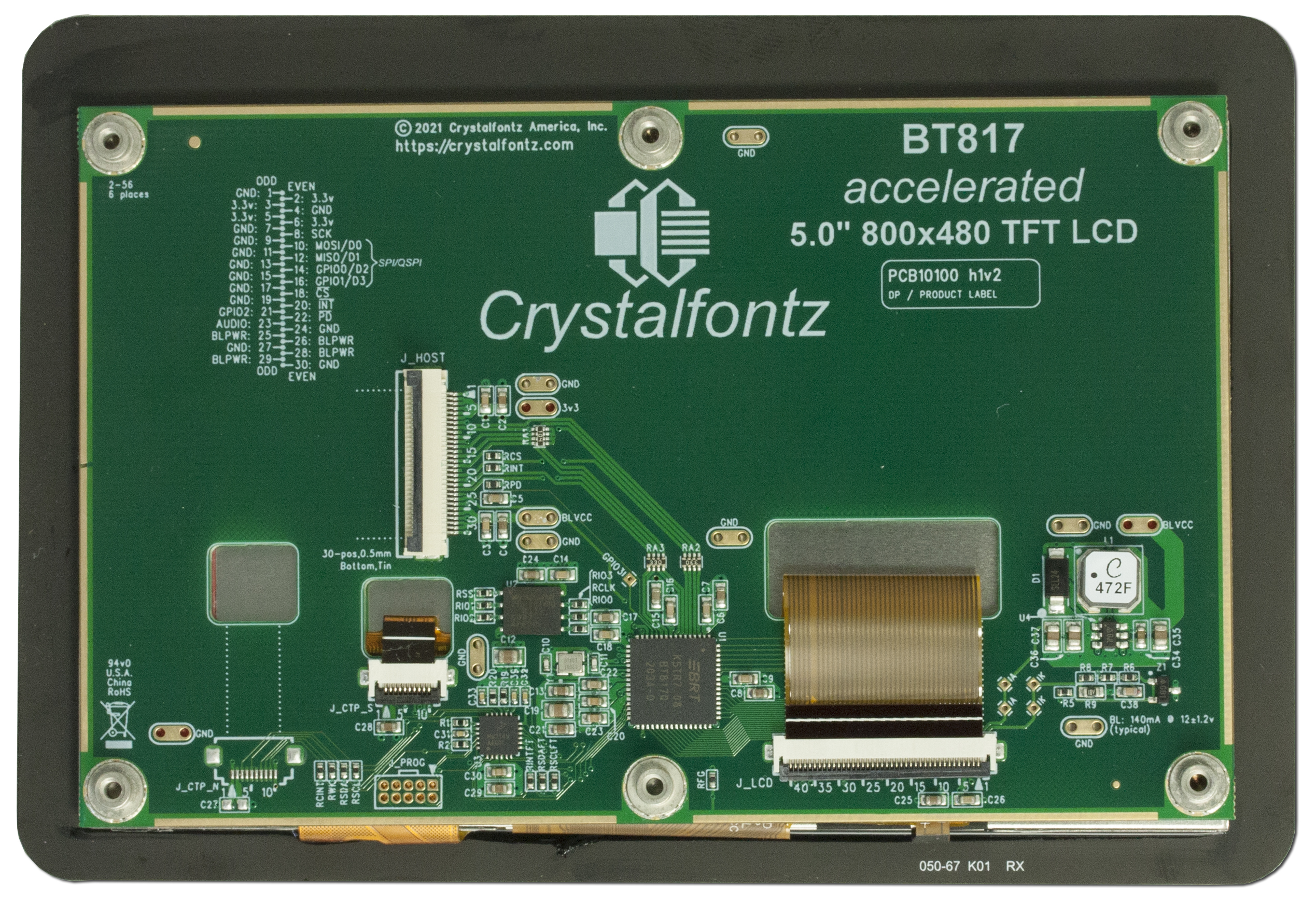

This TFT display module includes a beautiful capacitive touchscreen with an overhanging glass bezel mounted on a graphics acceleration PCB. This display module leverages the Bridgetek/FTDI EVE chip to simplify complex graphics.

The included 5" capacitive touch TFT display is top of the line. It's sunlight-readable, IPS, and has a 16M color depth. With the EVE accelerated board attached, this display module is ready for your most complex graphic.

If you like this display but are looking for a more traditional mounting style, We also offer a similar 800x480 Capacitive Touchscreen EVE TFT Module with a touchscreen that does not extend past the edge of the TFT.

Key features:
  • Overhanging capacitive touchscreen bezel
  • 5" Diagonal Display Area
  • Five-point touch
  • Graphics accelerating BT817 chip for easy graphics control
  • Sunlight Readable
  • SPI/Quad SPI interface
  • Free Viewing Angle (IPS)
  • Full-color TFT
  • Can be powered off of a single voltage source
EVE Graphics Accelerator Features:
  • Supports multiple widgets for simplified design implementation
  • User interface design software (PC) simplifies the design process
  • Hardware engine can recognize touch tags and track touch movement
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects for higher-quality graphics
  • Assorted graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
  • Programmable interrupt controller provides interrupts to host MCU
  • Support playback of motion-JPEG encoded AVI videos
  • Mono audio channel output with wave playback and built-in sound synthesizer
  • PWM output for display backlight dimming control
Looking for accessories for your EVE TFT display module? We have 2 sizes of FFC cables 6-inch 30-pin FFC cables and 12-inch 30-pin FFC cables, plus a EVE breakout board.

Currently Shipping: HW Version 1v2, Firmware Version: 1v0

Product Variations


  • square_foot Physical Characteristics

    Physical Characteristics

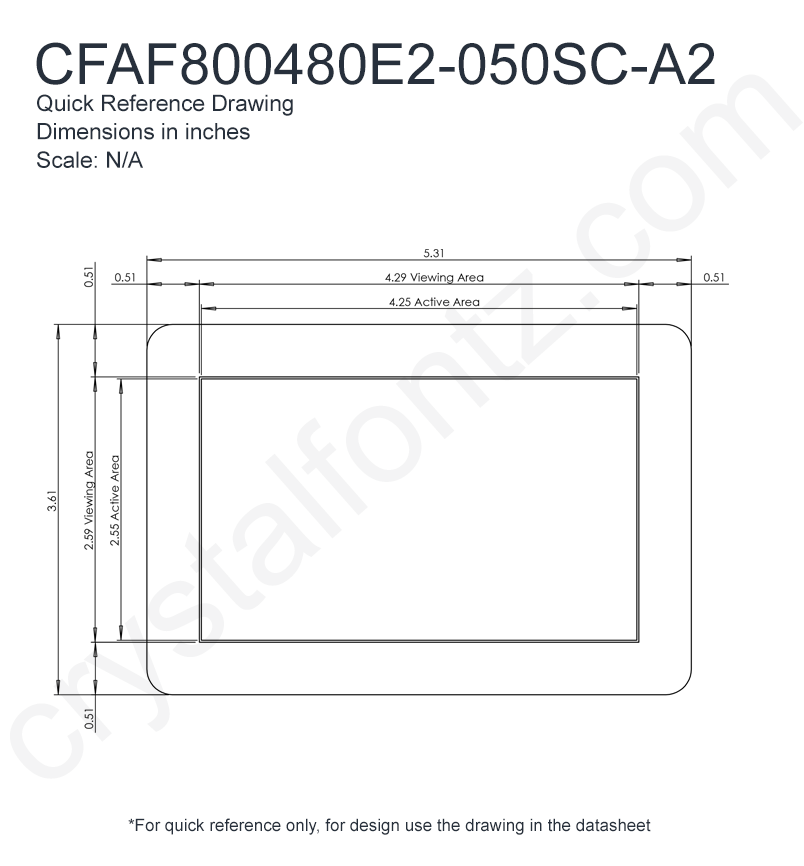

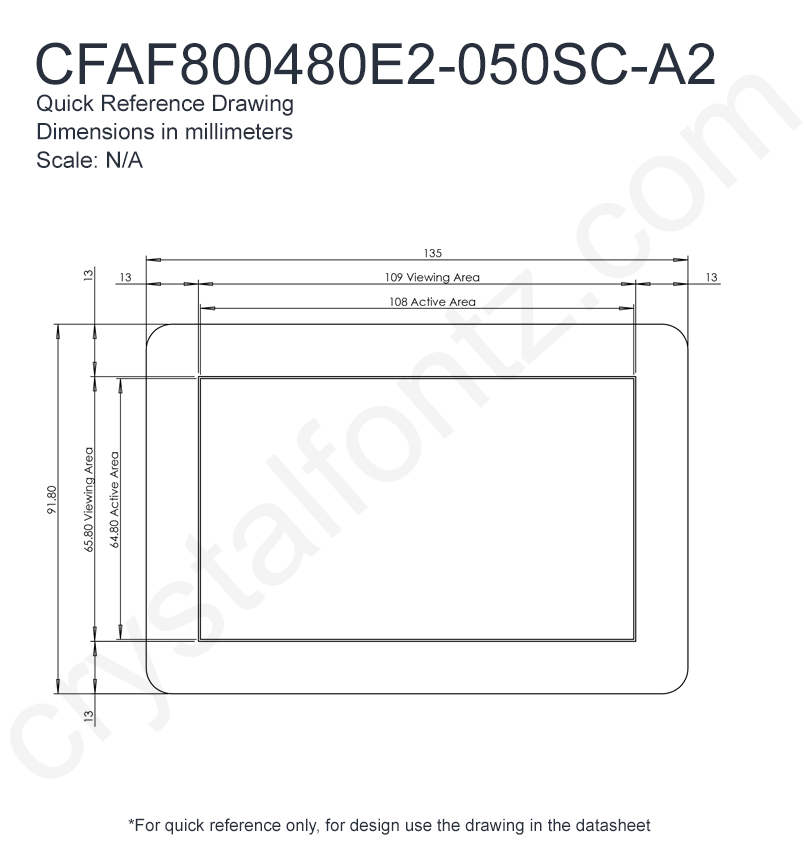

    Column Dots x Row Dots 800 x 480
    Module Overall width height depth
    millimeters 135 91.8 10.75
    inches 5.32 3.61 0.42
    Diagonal Dimension 5"
    Viewing Area Width Height
    millimeters 109 65.8
    inches 4.29 2.59
    Active Area Width Height
    millimeters 108 64.8
    inches 4.25 2.55
    Dot Pitch Width Height
    millimeters 0.135 0.135
    inches 0.0053 0.0053
    Weight 134g
    Pin Count 30
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type TFT
    Polarizer IPS
    View Angle 160°
    Sunlight Readable Yes
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Dark
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 3V
    Supply Voltage for Logic Maximum 3.6V
    Supply Voltage for Logic Typical 3.3V
    Supply Current Typical 20mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 2.7V
    Forward Voltage Maximum 5.5V
    Forward Voltage Typical 5V
    Forward Current Typical 70mA
  • nature Environmental

    Environmental

    Operating Temperatures min
    Celsius -20°
    Fahrenheit -4°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Interface SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads
Other components worth considering
4595 EVE Breakout Board
Add an EVE Breakout board? $24.63 ea.
4701 MicroSD Card Reader
Need a MicroSD Reader? $9.89 ea.
4607 12-inch 30-pin FFC
Add a 12-inch FFC? $2.30 ea.

Additional Options

Purchase the complete development kit and get up and running even faster.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF800480E2-050SC-A2 or RSS RSS feed for changes to CFAF800480E2-050SC-A2
  • text_snippet
    End-Of-Life #11178: PCB Change
    Products Affected: CFAF800480E1-050SN-A2-2, CFAF800480E1-050SN-A2, CFAF800480E1-050SR-A2-2, CFAF800480E1-050SR-A2, CFAF800480E1-050SC-A2, CFAF800480E1-050SC-A2-2, CFAF800480E2-050SC-A2, CFAF800480E2-050SC-A2-2
    Date Issued: March 2, 2023
    Summary: PCB Change
    Description: The PCB is changing due to a critical component going EOL. The new PCB design will not affect the functionality of the product and it will continue to use the same BT817Q graphical processor. Additional hardware features are added to the new design including land patterns for an ESP32 or XIAO to remove the need for an external processor to drive the EVE4 chip.

    The part numbers will be updated as follows to reflect this change.
    CFAF800480E1-050SC-A2 -> CFA800480E3-050SC
    CFAF800480E1-050SC-A2-2 -> CFA800480E3-050SC-KIT
    CFAF800480E1-050SN-A2 -> CFA800480E3-050SN
    CFAF800480E1-050SN-A2-2 -> CFA800480E3-050SN-KIT
    CFAF800480E1-050SR-A2 -> CFA800480E3-050SR
    CFAF800480E1-050SR-A2-2 -> CFA800480E3-050SR-KIT
    CFAF800480E2-050SC-A2 -> CFA800480E3-050SW
    CFAF800480E2-050SC-A2-2 -> CFA800480E3-050SW-KIT
    Reason: The helper processor on this display has gone EOL and needed to be replaced.
    Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
