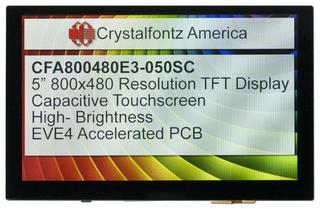

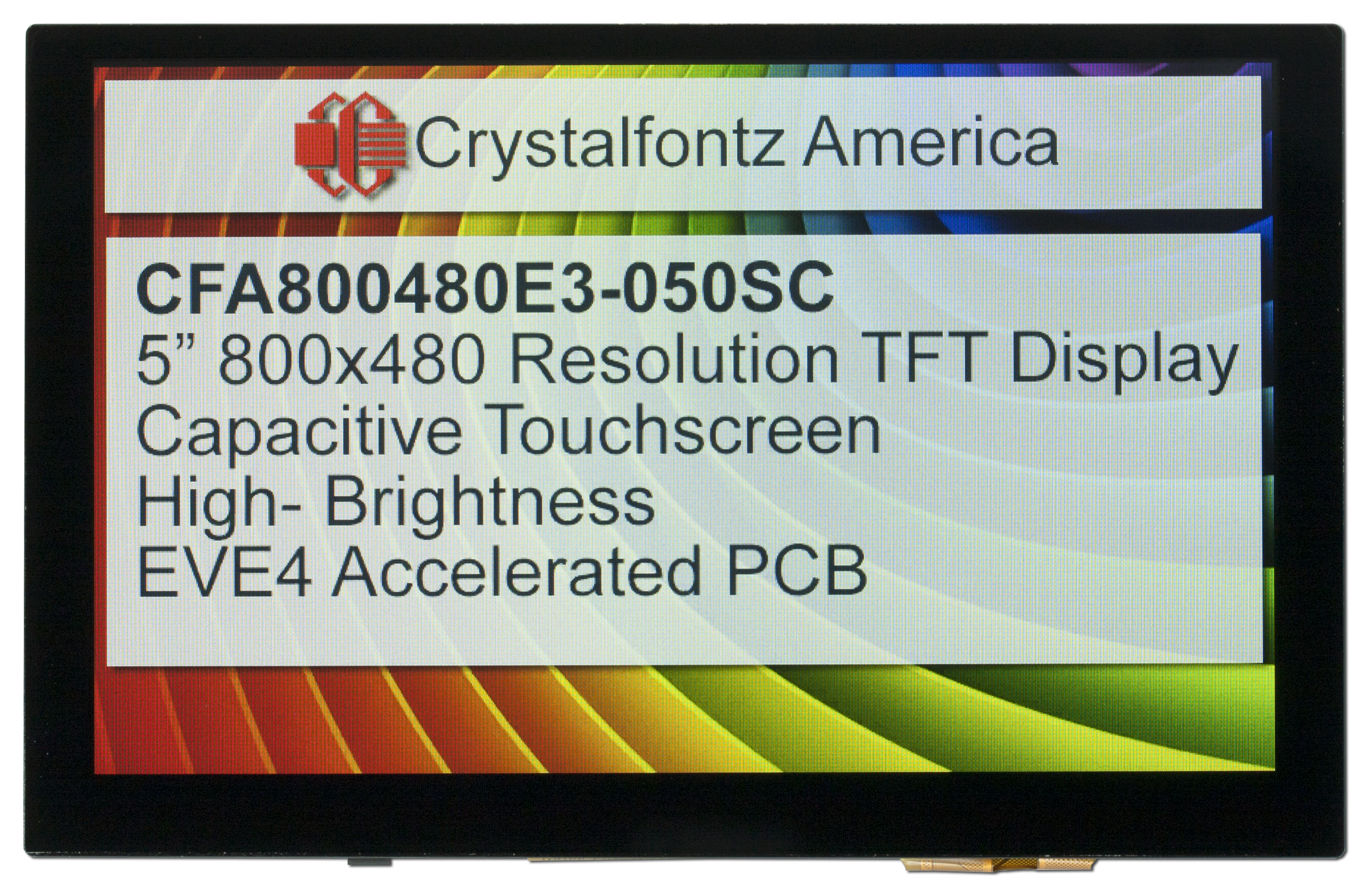

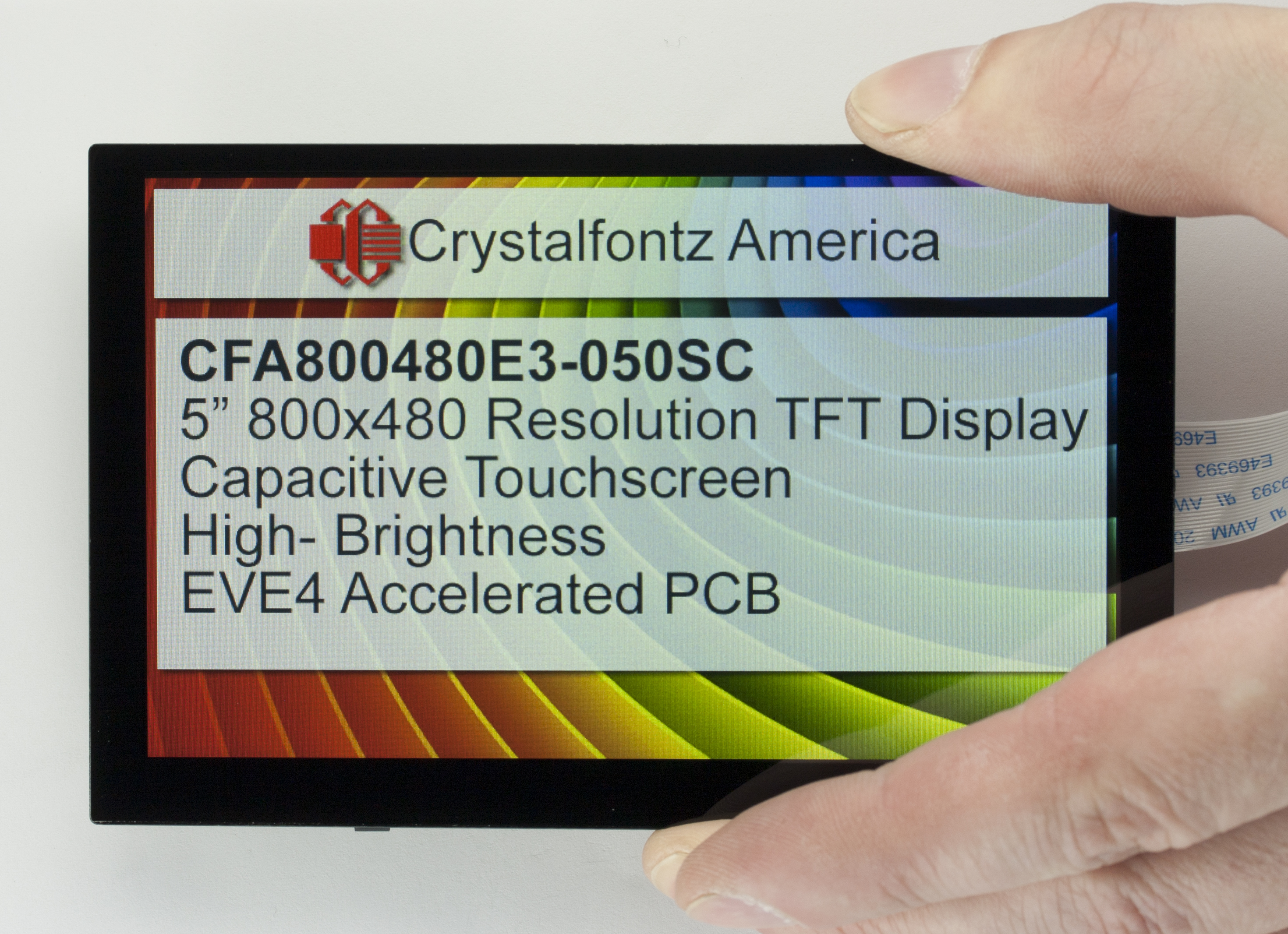

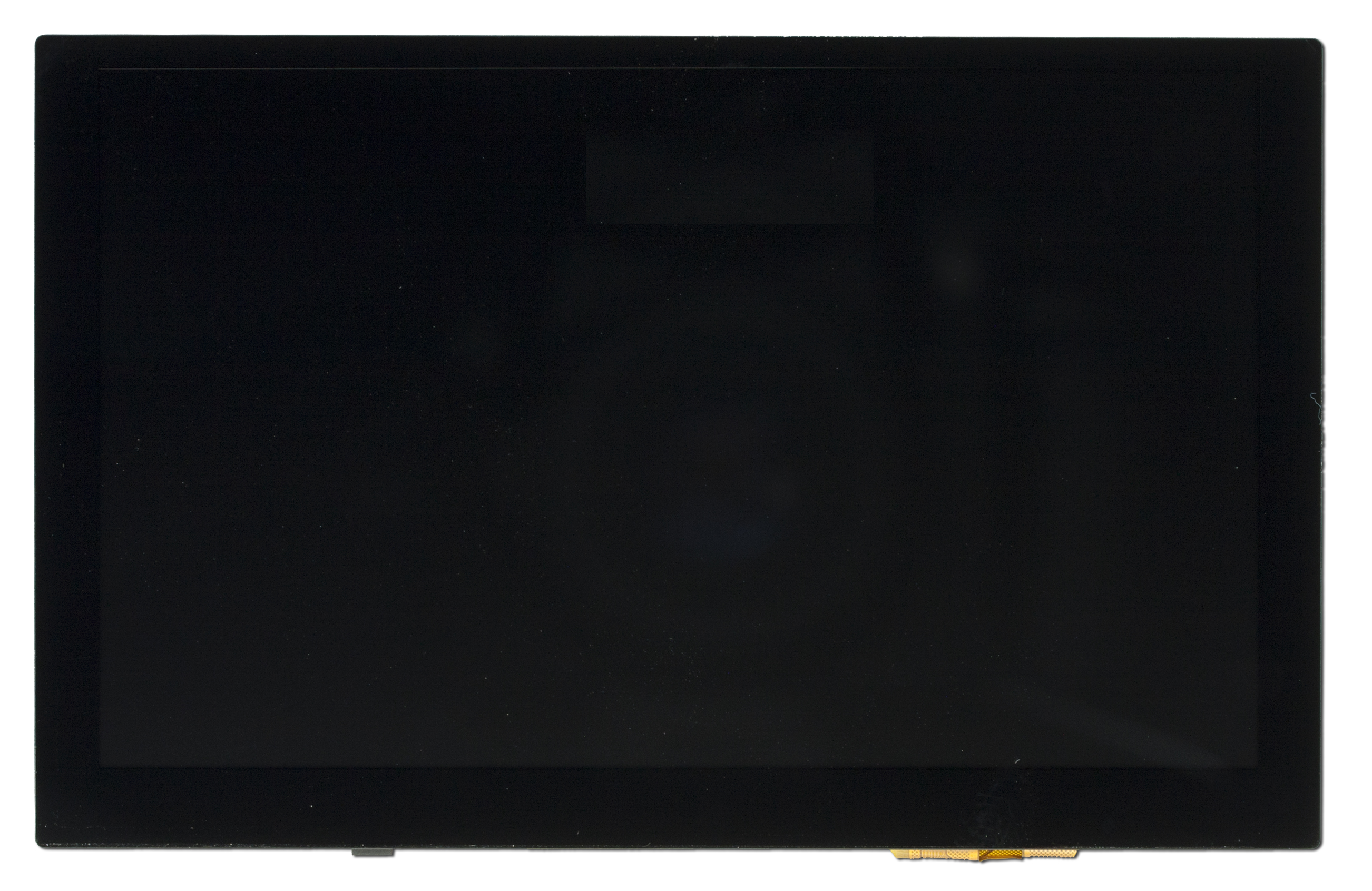

800x480 5-Inch EVE Capacitive Touchscreen TFT Display

Part Number: CFA800480E3-050SC

If you're looking for a powerful display module, you've come to the right place. This 5" display has extremely wide viewing angles, is sunlight-readable, and supports 5-point capacitive touch. Not only is the TFT display wonderful, it is powered by the BT817 EVE chip. The EVE chip enables exceptional graphics control, backlight control, touch sensing, and audio - all mapped as SPI devices making communications with this module a breeze.

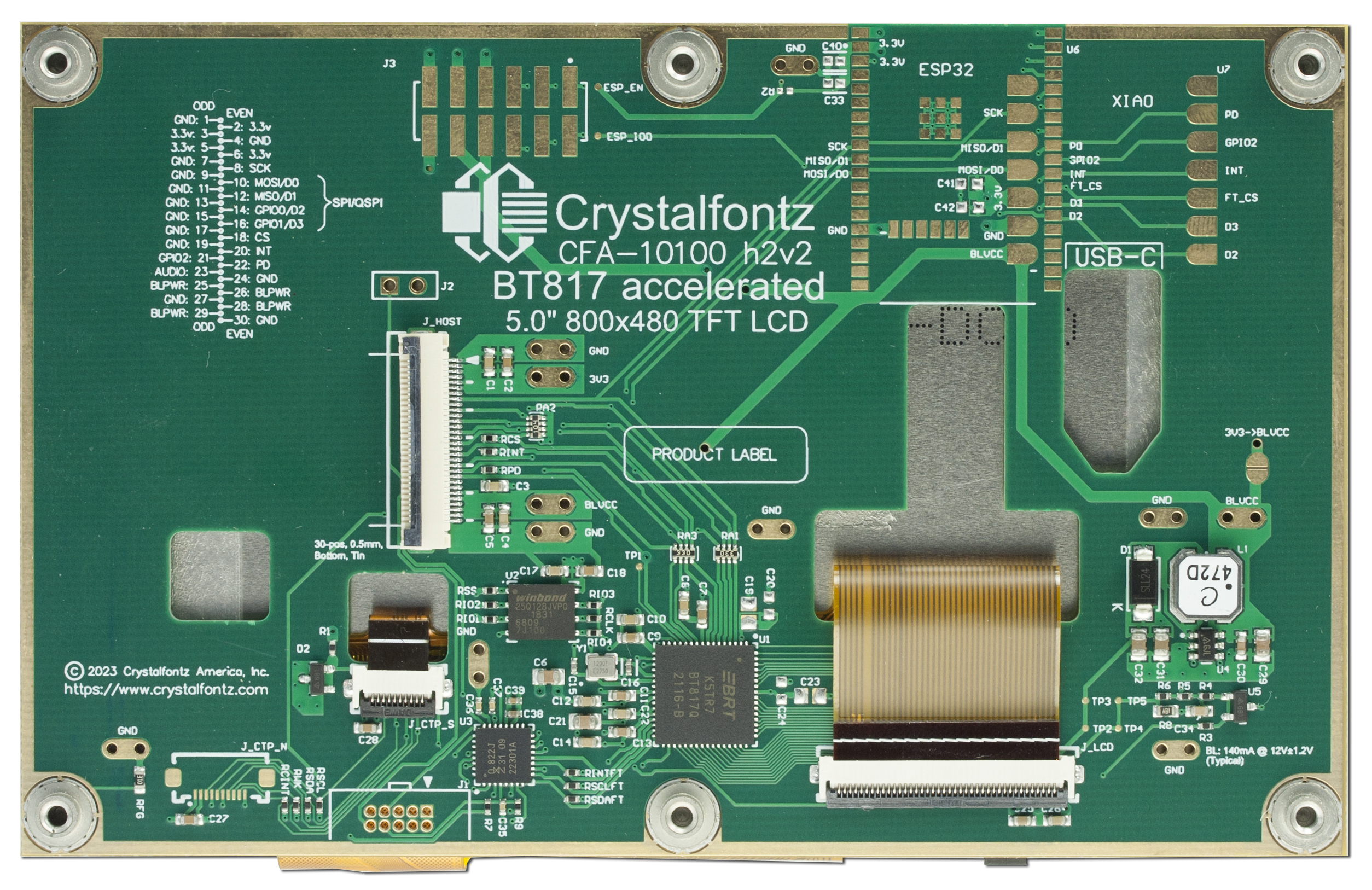

This module comprises the 5" TFT display (CFAF800480E1-050SC), mounted on an EVE accelerator PCB (CFA10100).

Key Features:

5" Diagonal Display Area
Sunlight Readable - 800nits
Free Viewing Angle (IPS)
TFT
Capacitive Touch
16 million colors
Bridgetek's BT817 EVE
4-wire SPI / Quad SPI
Can be powered off of a single voltage source

EVE Graphics Accelerator Features

Support multiple widgets for simplified design implementation
User interface design software (PC) simplifies the design process
Hardware engine can recognize touch tags and track touch movement
Enhanced sketch processing
Anti-aliasing of primitive displayed objects for higher-quality graphics
Assorted graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
Programmable interrupt controller provides interrupts to host MCU
Support playback of motion-JPEG encoded AVI videos
Mono audio channel output with wave playback and built-in sound synthesizer
PWM output for display backlight dimming control

Looking for accessories for your EVE TFT display module? We have 2 sizes of FFC cables 6-inch 30-pin FFC cables and 12-inch 30-pin FFC cables, plus a EVE breakout board. Or get everything you need in the 5" EVE Development Kit.

Currently Shipping: HW Version 2v2, Firmware Version: 1v0

Product Variants

SPI

800x480 5-Inch EVE Capacitive Touchscreen TFT Display

800x480 5" EVE TFT Display

5" 800x480 Resistive Touchscreen TFT with EVE

800x480 5 Inch EVE Touchscreen TFT Display

800x480 5-Inch EVE Capacitive Touchscreen TFT Display (CFA800480E3-050SC)

Quantity	Price
1	$107.55
5	$89.59
10	$87.03
20	$84.47
50 *	$81.40
100 *	$80.38
200 *	$79.86
300 *	$78.84
500 *	$78.33
1000 *	$77.82

* For quantites over this amount the lead time may be up to 90 Days. Contact us about potential lead times.

Components worth considering

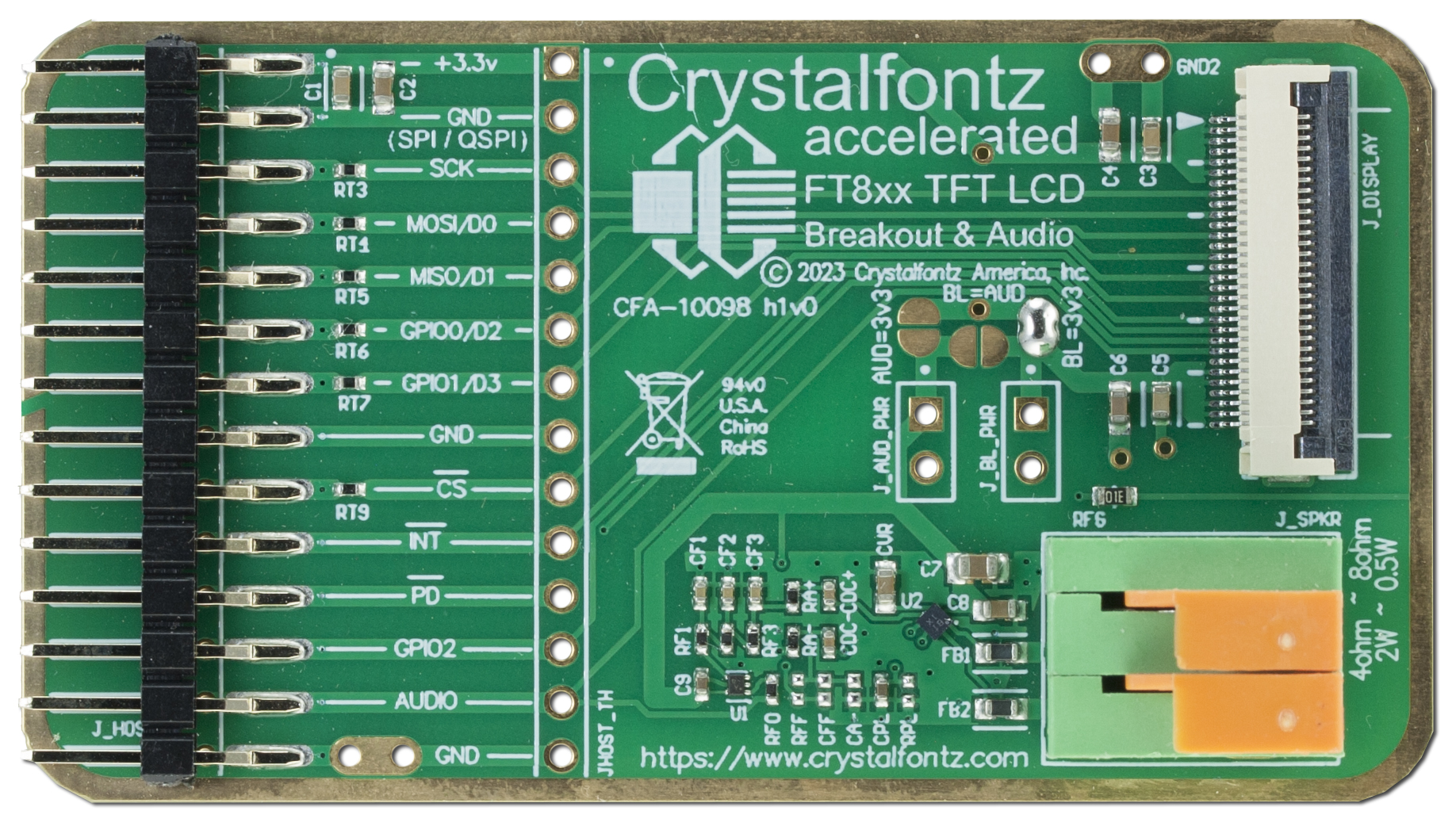

EVE Breakout Board
Need an EVE Breakout Board? $24.63 ea.

Assorted Imperial Screws
Mounting screws? $3.08 ea.

30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
ZIF Connectors? $0.61 ea.

6-inch 30-pin FFC Cable
Add a ribbon cable? $2.30 ea.

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

CFA800480E3-050Sx Series Datasheet

Files

Hardware Design - 3D Model

Other Document - ESP32 and XIAO App Note for CFA10100 boards

Demo Code Repository on Github

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFA800480E3-050SC

Compliance Documents

Video Demonstrations

See all 4 versions of this 5-inch EVE powered TFT LCD display module in action.

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots

800 x 480

Module Overall	width	height	depth
millimeters	120.7	76.3	10.65
inches	4.752	3.004	0.419

Diagonal Dimension

Viewing Area	width	height
millimeters	109	65.8
inches	4.291	2.591

Active Area	width	height
millimeters	108	64.8
inches	4.252	2.551

Dot Pitch	width	height
millimeters	0.135	0.135
inches	0.0053	0.0053

Weight	211.4g
Pin Count	30

Optical Characteristics

Polarizer	IPS Transmissive
View Angle	>160°
Sunlight Readable	Yes

Backlight Color	White
Backlight Type	LED
Foreground Color	RGB
Background Color	Dark

Electrical Specifications

Supply Voltage for Logic Minimum	3.0V
Supply Voltage for Logic Maximum	3.6V

Supply Voltage for Logic Typical	3.3V
Supply Current Typical	20mA

Backlight Electrical Specifications

Forward Voltage Minimum	2.7V
Forward Voltage Maximum	5.5V

Forward Voltage Typical

5.0V

Environmental

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Electronics

Interface

SPI

Miscellaneous

Touch Screen

Capacitive

Additional Options
Compatible Products

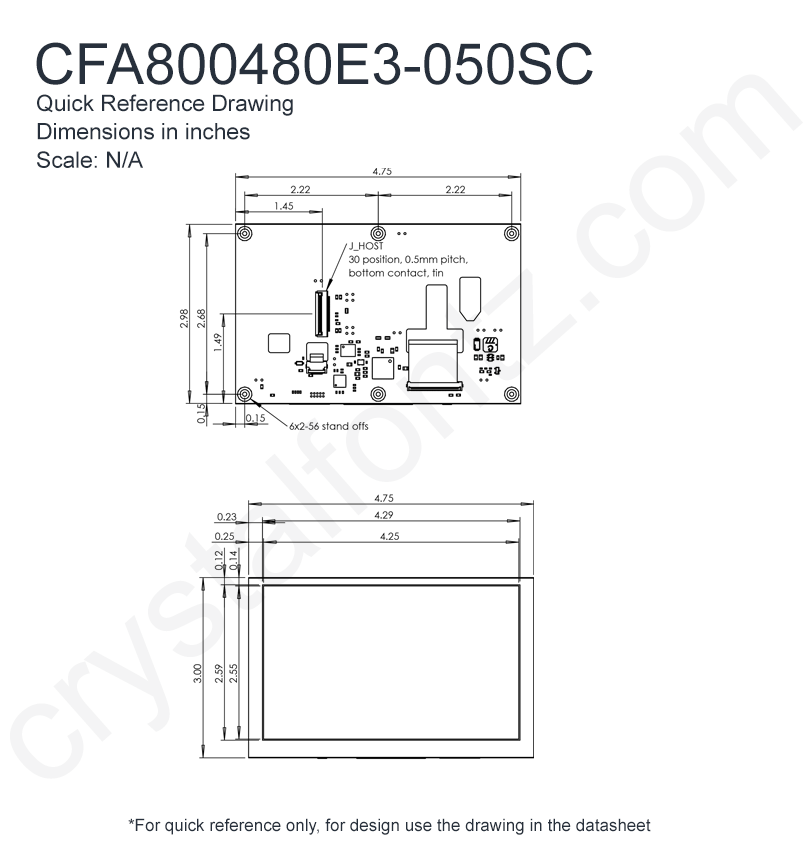

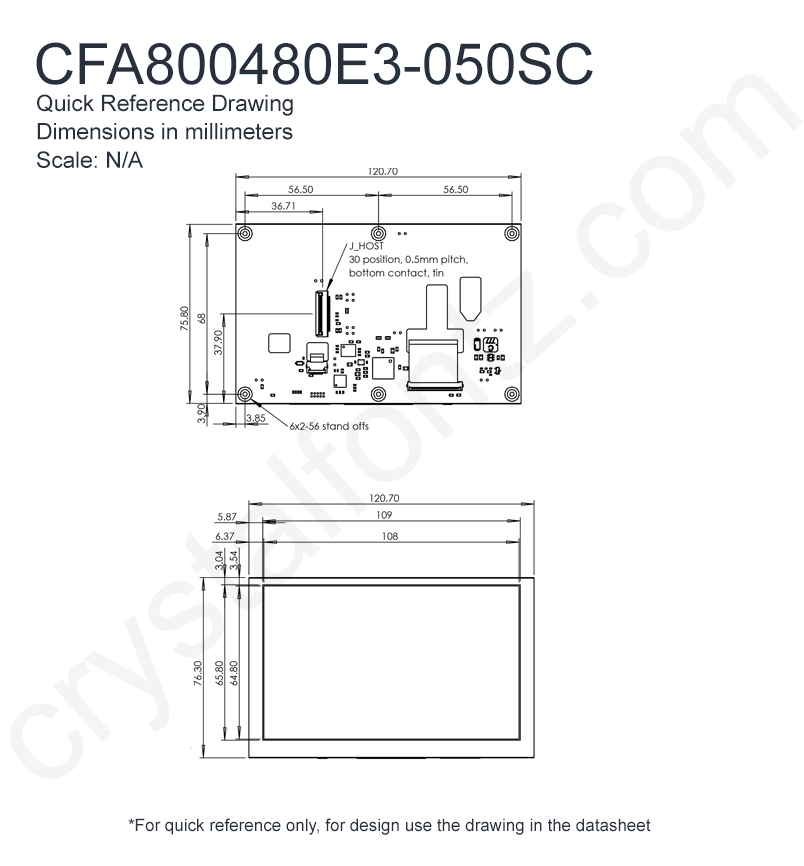

Dimensions
Product Notices

Additional Options

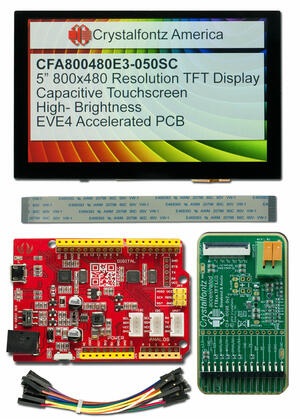

Purchase this EVE Display Module in a completely assembled development kit, and speed up your prototyping.

5" Capacitive Touchscreen EVE Development Kit
Part Number: CFA800480E3-050SC-KIT

This kit demonstrates a 5" EVE display module with a capacitive touchscreen. The TFT module uses the BT817 EVE chip for accelerated graphics, touch interpretation, and audio control.

Simply check the connections and plug this kit in to see this display module working.

Key Features:

5" Diagonal Display Area
Sunlight readable at 800nits
IPS (in-plane switching) for wider viewing angles
TFT
Capacitive Touch Screen
Capable of 16 million colors
Bridgetek's BT817 EVE integrated
4-wire SPI / Quad SPI interface
Needs only an external 5V supply to function out of the box
This full demonstration EVE kit replaces the previous A2-2 version.

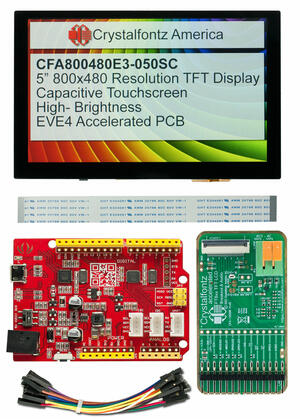

Included in this kit:

5" Cap touch display (CFA800480E3-050SC)
EVE breakout board
Seeeduino with demo code
All the necessary wires and cables.

Details

Quantity	1
Price	$136.25

Quantity:

Part Change Notice

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11210: 800x480 5-Inch EVE Capacitive Touchscreen TFT Display is now available

New Product:	CFA800480E3-050SC
Date Issued:	June 28, 2023
Summary:	800x480 5-Inch EVE Capacitive Touchscreen TFT Display is now available
Description:	CFA800480E3-050SC has been released on our website (https://www.crystalfontz.com/product/cfa800480e3050sc-800x480-5-inch-capacitive-touchscreen-eve-tft-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
