This product has been replaced by this 3" 240x400 EVE TFT Display.

3" 240x400 EVE TFT Display

Part Number: CFAF240400E0-030TN-A1-1

This display module combines a 3" display with an embedded video engine (EVE) PCB for a powerful display module. The EVE PCB, powered by an FTDI/Bridgetek FT81x, accepts high-level commands, simplifying the creation of beautiful interfaces.

EVE Graphics Accelerator features include:
  • User interface design software by FTDI/Bridgetek to simplify the design process
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects
  • PWM output for display backlight dimming control
  • Support playback of motion-JPEG encoded AVI videos
  • 30-pin FPC / ZIF Connection
Find out more about the powerful EVE chip on our blog.

The TFT display included in this module is a 3" TFT with a resolution of 240x400.

We have everything you need to develop with the FTDI EVE platform including 12-inch 30-pin FPC cables, 6-inch 30-pin FPC cables and an EVE breakout board and any product support you may need.

The complete 3" 240x400 Full-Color EVE development kit for this module is also available. The development kit includes everything needed to get this display module working.

This model does not have a touch screen. For a 3" EVE module with touch, check out the 240x400 Touchscreen EVE TFT.

Product Variants

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 240 x 400
    Module Overall width height depth
    millimeters 45 77 7.3
    inches 1.772 3.031 0.287
    Diagonal Dimension 2.98"
    Active Area Width Height
    millimeters 38.88 64.8
    inches 1.531 2.551
    Dot Pitch Width Height
    millimeters 0.162 0.162
    inches 0.0064 0.0064
    Optional Connectors CS050Y30TB0
    Weight 29.7g

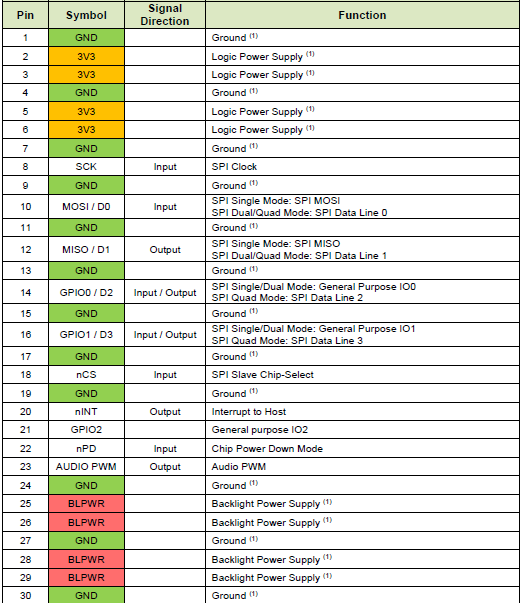

    Pin Count 30
  • visibility Optical Characteristics

    Optical Characteristics

    Polarizer IPS
    View Direction 0.5 o'clock
    View Angle 75°
    Backlight Color White
    Backlight Type LED
    Foreground Color RGB
    Background Color Black
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 2V
    Supply Voltage for Logic Maximum 3.3V
    Supply Voltage for Driving Panel Typical 3.3V
    Supply Current Maximum 70mA
    Supply Current Typical 54mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 2.7V
    Forward Voltage Maximum 5.5V
    Forward Voltage Typical 3.3V
    Forward Current Maximum 166mA
    Forward Current Typical 106mA
  • nature Enviromental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Interface SPI
  • picture_as_pdf Datasheets
    picture_as_pdf
  • download Files and Downloads


Additional Options

Purchase with a Seeeduino and all the connectors you need to start development quickly.

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240400E0-030TN-A1-1 or RSS RSS feed for changes to CFAF240400E0-030TN-A1-1
  • text_snippet
    End-Of-Life #11130: End-Of-Life Notification
    Products Affected: CFAF240400C0-030SC-A1-1, CFAF240400C0-030SC-A1-2, CFAF240400E0-030TN-A1-2, CFAF240400E0-030TN-A1-1
    Date Issued: June 9, 2022
    Summary: End-Of-Life Notification
    Description: Some modifications are being made to the PCB design to improve reliability and manufacturability. The board cutout for the capacitive touch screen is being moved and the reset line to the EVE chip is being routed to the reset pin for the helper processor onboard.

    The parts are being replaced as follows:
    CFAF240400C0-030SC-A1-1 -> EOL and replace with CFA240400E1-030TC
    CFAF240400C0-030SC-A1-2 -> EOL and replace with CFA240400E1-030TC-KIT
    CFAF240400E0-030TN-A1-1 -> EOL and replace with CFA240400E1-030TN
    CFAF240400E0-030TN-A1-2 -> EOL and replace with CFA240400E1-030TN-KIT
    Reason: The current PCB design requires the capacitive touch screen FPC tail to be stretched and needs to be given more slack.

    The reset line is not brought out to the helper processor on the current PCB revision so a reset toggle does not truly reset the whole system.

    Current PCB revision: 10097 h0v3
    Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
  • text_snippet
    Part Change Notice #11080: Firmware Change
    Products Affected: CFAF240400C0-030SC-A1-1, CFAF240400C0-030SC-A1-2, CFAF240400E0-030TN-A1-2, CFAF240400E0-030TN-A1-1
    Date Issued: March 15, 2021
    Summary: Firmware Change
    Description: The firmware is being updated to better manage the power down sequence.
    Reason: If the power down was very short, it could cause the microcontroller to go into a weird state resulting in abnormal display operation.
    Availability: Will be available in the next couple of weeks. We will release a notice when the cutover occurs.
