This 5" Resistive Touchscreen EVE Development Kit is End-Of-Life and has been replaced with the CFA800480E3050SRKIT Contact support@crystalfotnz.com with any questions.

5" Resistive Touchscreen EVE Development Kit [EOL]

Part Number: CFAF800480E1-050SR-A2-2

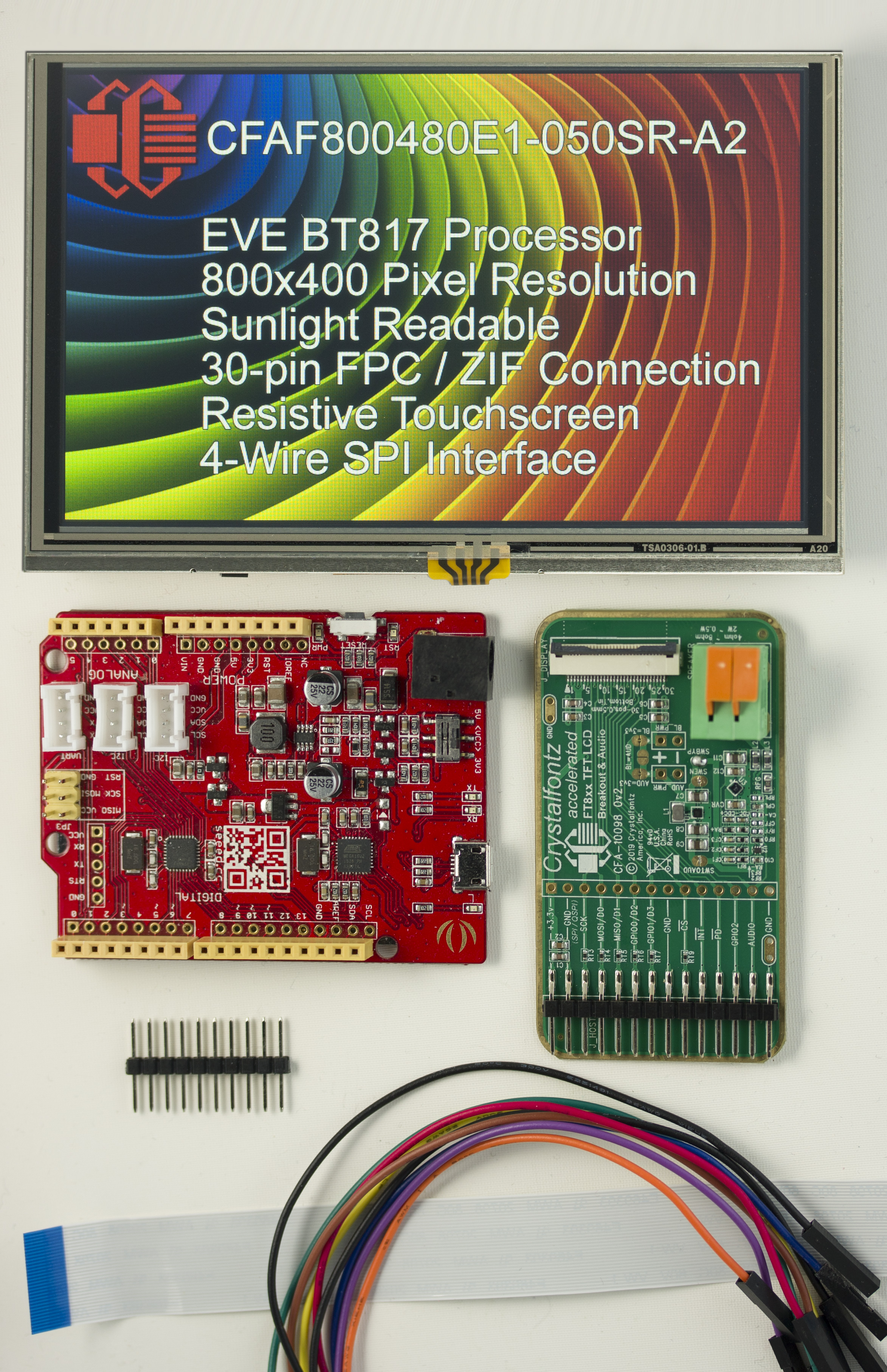

This full Seeeduino development kit for the 5" resistive touch EVE display module makes it easy to start developing or tinkering with the EVE module. It includes the display wired up and a Seeeduino loaded with a demo sketch, so once power is applied, you can see the display in action.

Key features:

Seeeduino demo kit including an EVE breakout board, all wires/headers required, the Seeeduino, and display module
Graphics accelerating BT817 chip for easy graphics control
Sunlight Readable
SPI interface
IPS
Full color TFT
Resistive Touchscreen

Physical Characteristics
Physical Characteristics

Weight 193.2g
Datasheets

picture_as_pdf
CFAF800480E1-050SR-A2 Datasheet
Files and Downloads

link Demo Code Download on Github
link Demo Code Repository on Github

5" Resistive Touchscreen EVE Development Kit [EOL] (CFAF800480E1-050SR-A2-2)

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11178: PCB Change

Products Affected:	CFAF800480E1-050SN-A2-2, CFAF800480E1-050SN-A2, CFAF800480E1-050SR-A2-2, CFAF800480E1-050SR-A2, CFAF800480E1-050SC-A2, CFAF800480E1-050SC-A2-2, CFAF800480E2-050SC-A2, CFAF800480E2-050SC-A2-2
Date Issued:	March 2, 2023
Summary:	PCB Change
Description:	The PCB is changing due to a critical component going EOL. The new PCB design will not affect the functionality of the product and it will continue to use the same BT817Q graphical processor. Additional hardware features are added to the new design including land patterns for an ESP32 or XIAO to remove the need for an external processor to drive the EVE4 chip. The part numbers will be updated as follows to reflect this change. CFAF800480E1-050SC-A2 -> CFA800480E3-050SC CFAF800480E1-050SC-A2-2 -> CFA800480E3-050SC-KIT CFAF800480E1-050SN-A2 -> CFA800480E3-050SN CFAF800480E1-050SN-A2-2 -> CFA800480E3-050SN-KIT CFAF800480E1-050SR-A2 -> CFA800480E3-050SR CFAF800480E1-050SR-A2-2 -> CFA800480E3-050SR-KIT CFAF800480E2-050SC-A2 -> CFA800480E3-050SW CFAF800480E2-050SC-A2-2 -> CFA800480E3-050SW-KIT
Reason:	The helper processor on this display has gone EOL and needed to be replaced.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
