5" Touchscreen EVE Development Kit [EOL]

Part Number: CFAF800480E2-050SC-A2-2

This Bridgetek/FTDI EVE development kit includes a 5" EVE display module with a large bezel. This kit is perfect for demonstrating the EVE module (CFAF800480E2-050SC-A2) or the base display (CFAF800480E2-050SC), simply plug the included Seeeduino to a 5v power source! The included display is sunlight-readable, has extremely wide viewing angles, large color depth, and the touchscreen glass extends past the edge of the display for smooth mounting.

Included in this kit:

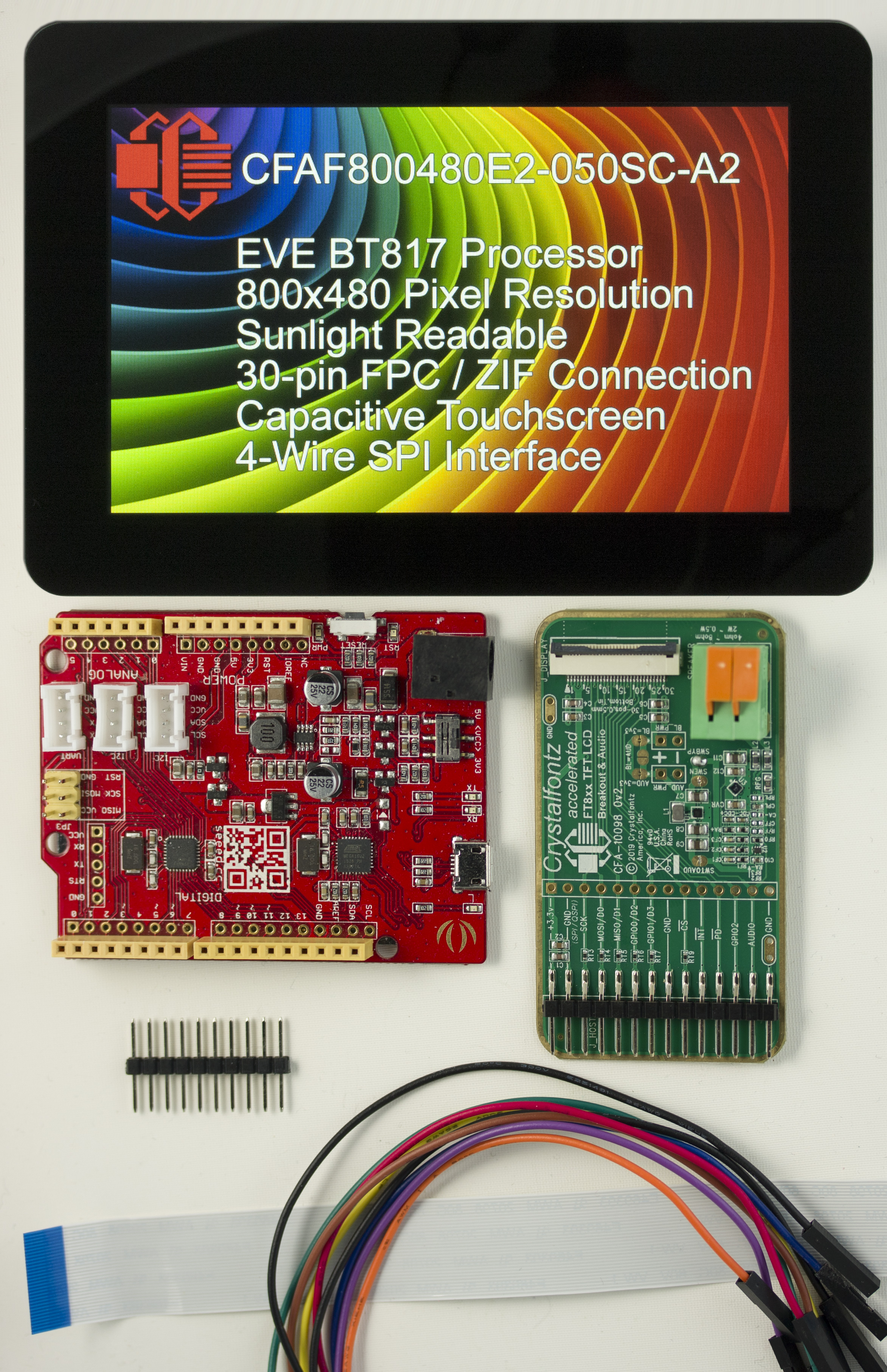

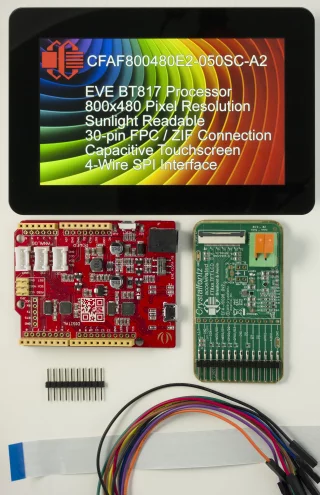

5" EVE display module with overhanging bezel
EVE Breakout Board
30-pin flat flex cable
Seeeduino with pre-loaded demo code
Necessary cables, wires, etc.

Key Features:

Overhanging capacitive touchscreen
Graphics accelerating BT817 chip for easy graphics control
Sunlight Readable
SPI interface
IPS
Full color TFT
Seeeduino demo kit including a CFA10098 and all wires/headers required

Physical Characteristics

Column Dots x Row Dots

800 x 480

Module Overall	width	height	depth
millimeters	120.7	76.3	10.75
inches	4.752	3.004	0.423

Diagonal Dimension

Viewing Area	Width	Height
millimeters	109	65.8
inches	4.291	2.591

Active Area	Width	Height
millimeters	108	64.8
inches	4.252	2.551

Dot Pitch	Width	Height
millimeters	0.135	0.135
inches	0.0053	0.0053

Weight	223g
Pin Count	30

Optical Characteristics
Optical Characteristics

Glass Type TFT

Polarizer IPS

View Angle 160°

Sunlight Readable Yes

Backlight Color White

Backlight Type LED

Foreground Color RGB

Background Color Dark
Electrical Specification
Electrical Specifications

Supply Voltage for Logic Minimum 3V

Supply Voltage for Logic Maximum 3.6V

Supply Voltage for Logic Typical 3.3V

Supply Current Typical 20mA
Backlight Specification
Backlight Electrical Specifications

Forward Voltage Minimum 2.7V

Forward Voltage Maximum 5.5V

Forward Voltage Typical 5V

Forward Current Typical 70mA
Enviromental
Environmental

Operating Temperatures min max

Celsius -20° 70°

Fahrenheit -4° 158°

Storage Temperatures min max

Celsius -30° 80°

Fahrenheit -22° 176°
Electronics
Electronics

Interface SPI
Files and Downloads

picture_as_pdf Other Document - Getting Started Guide
link EVE Demo Code Download on Github
link EVE Demo Code Repository on Github

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

5" Touchscreen EVE Development Kit [EOL] (CFAF800480E2-050SC-A2-2)

Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11178: PCB Change

Products Affected:	CFAF800480E1-050SN-A2-2, CFAF800480E1-050SN-A2, CFAF800480E1-050SR-A2-2, CFAF800480E1-050SR-A2, CFAF800480E1-050SC-A2, CFAF800480E1-050SC-A2-2, CFAF800480E2-050SC-A2, CFAF800480E2-050SC-A2-2
Date Issued:	March 2, 2023
Summary:	PCB Change
Description:	The PCB is changing due to a critical component going EOL. The new PCB design will not affect the functionality of the product and it will continue to use the same BT817Q graphical processor. Additional hardware features are added to the new design including land patterns for an ESP32 or XIAO to remove the need for an external processor to drive the EVE4 chip. The part numbers will be updated as follows to reflect this change. CFAF800480E1-050SC-A2 -> CFA800480E3-050SC CFAF800480E1-050SC-A2-2 -> CFA800480E3-050SC-KIT CFAF800480E1-050SN-A2 -> CFA800480E3-050SN CFAF800480E1-050SN-A2-2 -> CFA800480E3-050SN-KIT CFAF800480E1-050SR-A2 -> CFA800480E3-050SR CFAF800480E1-050SR-A2-2 -> CFA800480E3-050SR-KIT CFAF800480E2-050SC-A2 -> CFA800480E3-050SW CFAF800480E2-050SC-A2-2 -> CFA800480E3-050SW-KIT
Reason:	The helper processor on this display has gone EOL and needed to be replaced.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
