This 800x480 5" EVE Display Dev Kit is End-Of-Life and has been replaced with the CFA800480E3050SNKIT. Contact support@crystalfontz.com with any questions.

800x480 5" EVE Display Dev Kit

Part Number: CFAF800480E1-050SN-A2-2

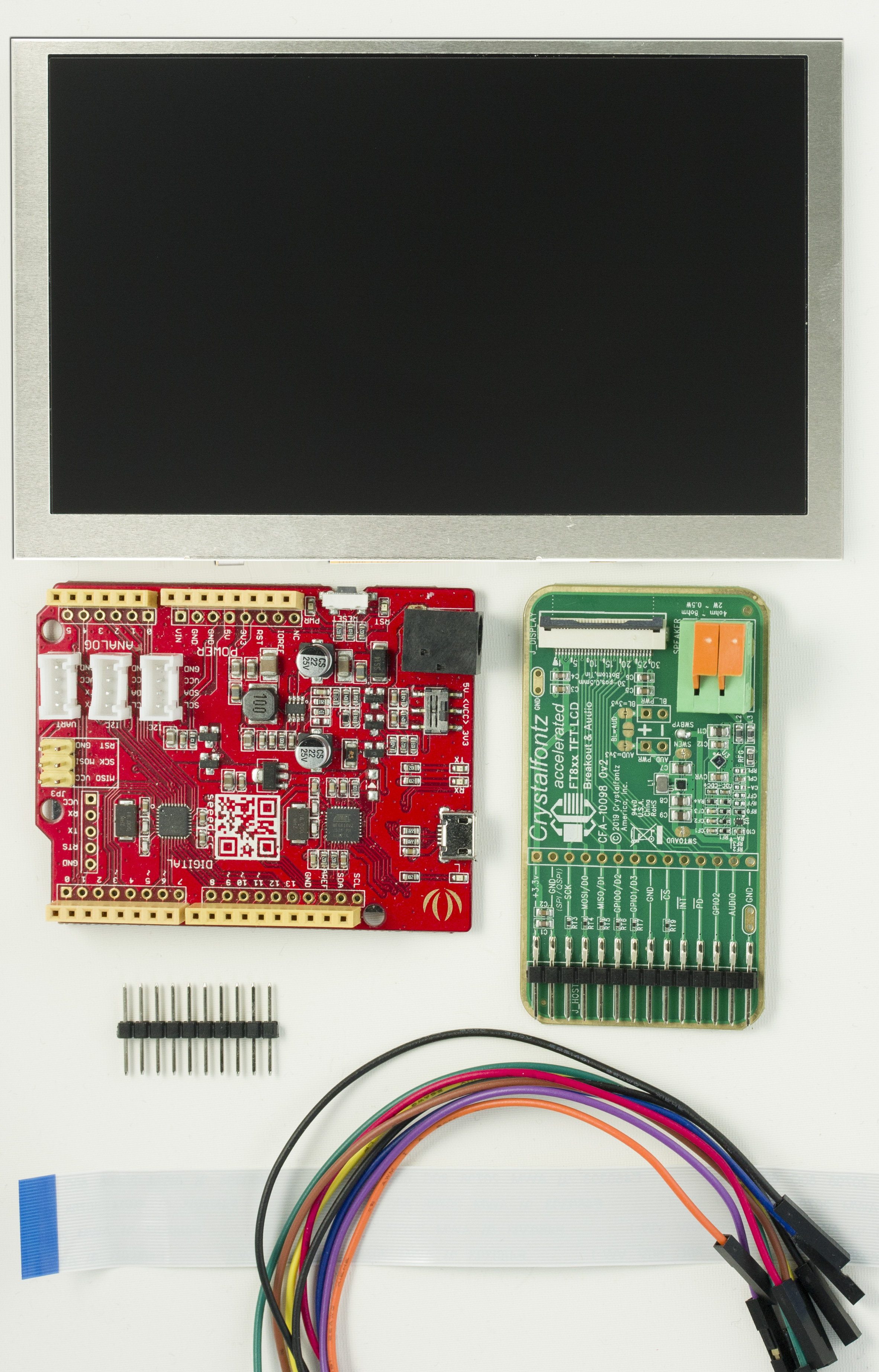

This development kit makes getting started with the 5" EVE module as easy as can be. The kit includes the fantastic 5" TFT EVE display module, an EVE breakout board, and a Seeeduino wired together and running a demonstration for the display. This display is sunlight readable and requires more current for the backlight than the Seeeduino can supply, so the demonstration requires that you supply power to the breakout board to power the display backlight.

In addition to being sunlight-readable, the included display is IPS, so it has extremely wide viewing angles. Additionally, the module includes the BT817 EVE chip. Read more about the benefits of EVE displays on our blog.

This part is a replacement for the CFAF800480E1-050SN-A1-2. The for more information, please see the PCN that describes the change.

Features to note:
  • 5" Display
  • Sunlight readable (1000 nits)
  • IPS
  • TFT
  • 16M colors
  • Bridgetek's BT817 EVE integrated
  • 4-wire SPI / Quad SPI
  • Needs only an external 5V supply to function out of the box

TECHNICAL SPECS

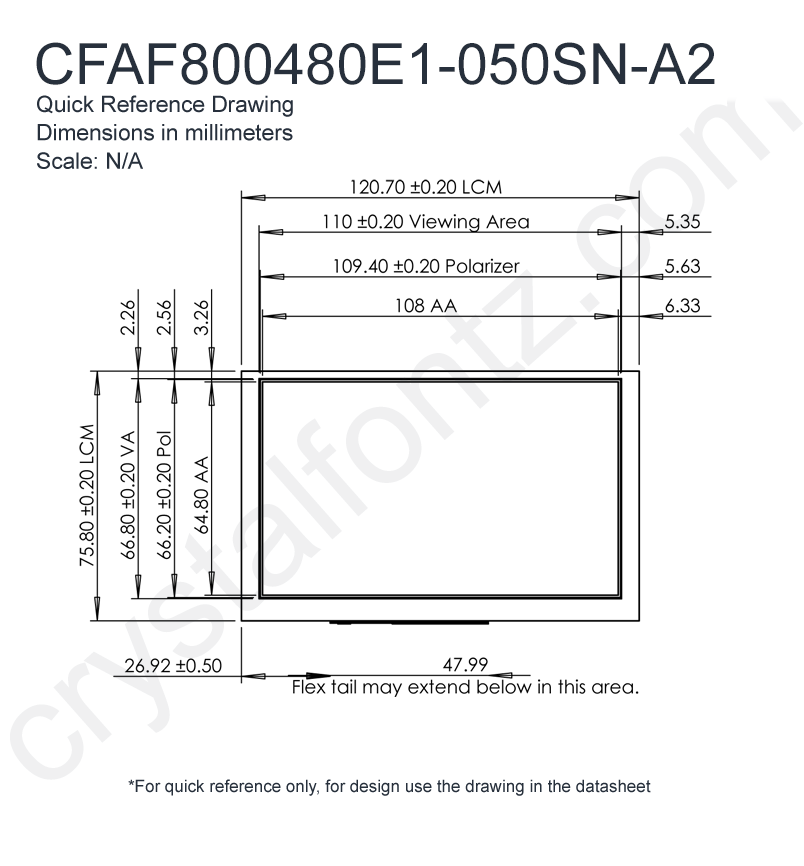

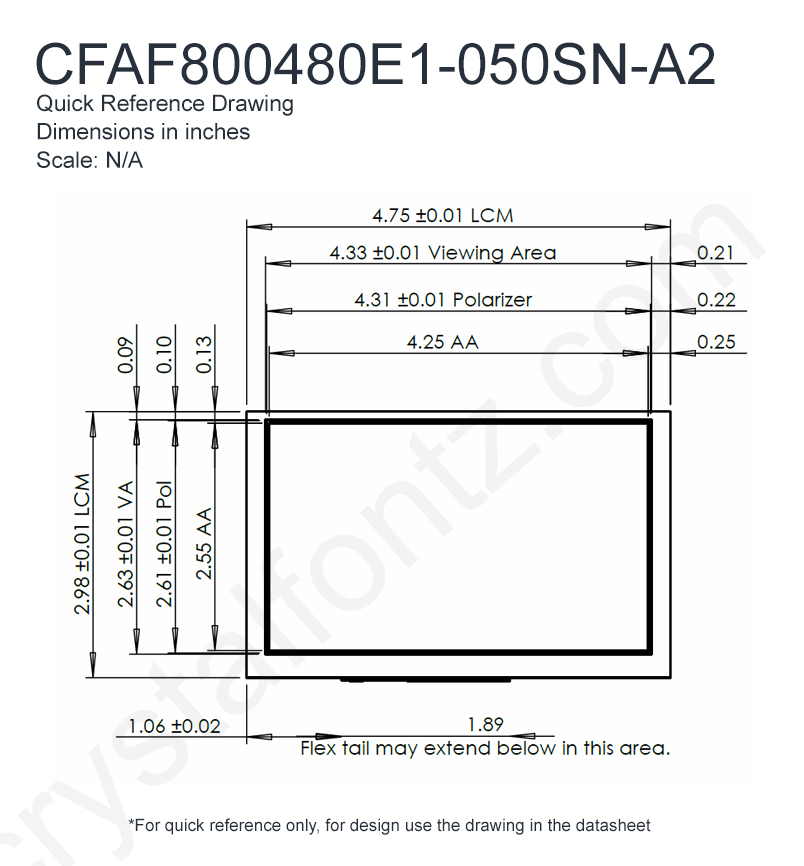

Physical Characteristics

Column Dots x Row Dots 800 x 480
Module Overall width height depth
millimeters 120.7 78.8 8.75
inches 4.752 3.102 0.344
Diagonal Dimension 5"
Viewing Area width height
millimeters 110 66.8
inches 4.331 2.630
Active Area width height
millimeters 108 64.8
inches 4.252 2.551
Dot Pitch width height
millimeters 0.135 0.135
inches 0.0053 0.0053
Weight 179.4g

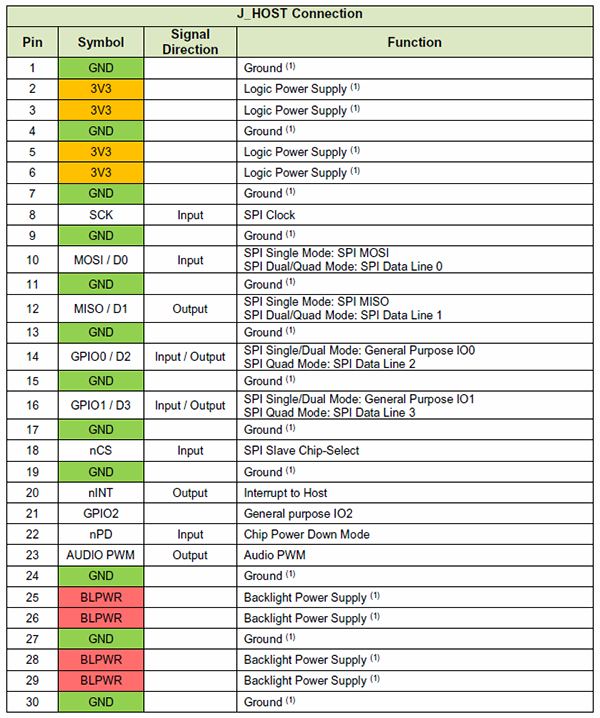

Pin Count 30

Optical Characteristics

Glass Type TFT
Polarizer Transmissive
View Direction 12 o'clock
View Angle 160°
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Supply Current Typical 20mA

Backlight Electrical Specifications

Forward Voltage Minimum 2.7V
Forward Voltage Maximum 5.5V
Forward Voltage Typical 5V

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface SPI

Miscellaneous

Nits 1000

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF800480E1-050SN-A2-2 or RSS RSS feed for changes to CFAF800480E1-050SN-A2-2

End-Of-Life #11178: PCB Change

Products Affected: CFAF800480E1-050SN-A2-2, CFAF800480E1-050SN-A2, CFAF800480E1-050SR-A2-2, CFAF800480E1-050SR-A2, CFAF800480E1-050SC-A2, CFAF800480E1-050SC-A2-2, CFAF800480E2-050SC-A2, CFAF800480E2-050SC-A2-2
Date Issued: March 2, 2023
Summary: PCB Change
Description: The PCB is changing due to a critical component going EOL. The new PCB design will not affect the functionality of the product and it will continue to use the same BT817Q graphical processor. Additional hardware features are added to the new design including land patterns for an ESP32 or XIAO to remove the need for an external processor to drive the EVE4 chip.

The part numbers will be updated as follows to reflect this change.
CFAF800480E1-050SC-A2 -> CFA800480E3-050SC
CFAF800480E1-050SC-A2-2 -> CFA800480E3-050SC-KIT
CFAF800480E1-050SN-A2 -> CFA800480E3-050SN
CFAF800480E1-050SN-A2-2 -> CFA800480E3-050SN-KIT
CFAF800480E1-050SR-A2 -> CFA800480E3-050SR
CFAF800480E1-050SR-A2-2 -> CFA800480E3-050SR-KIT
CFAF800480E2-050SC-A2 -> CFA800480E3-050SW
CFAF800480E2-050SC-A2-2 -> CFA800480E3-050SW-KIT
Reason: The helper processor on this display has gone EOL and needed to be replaced.
Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
For reference only. For design purposes, please use the specifications in the datasheet.
