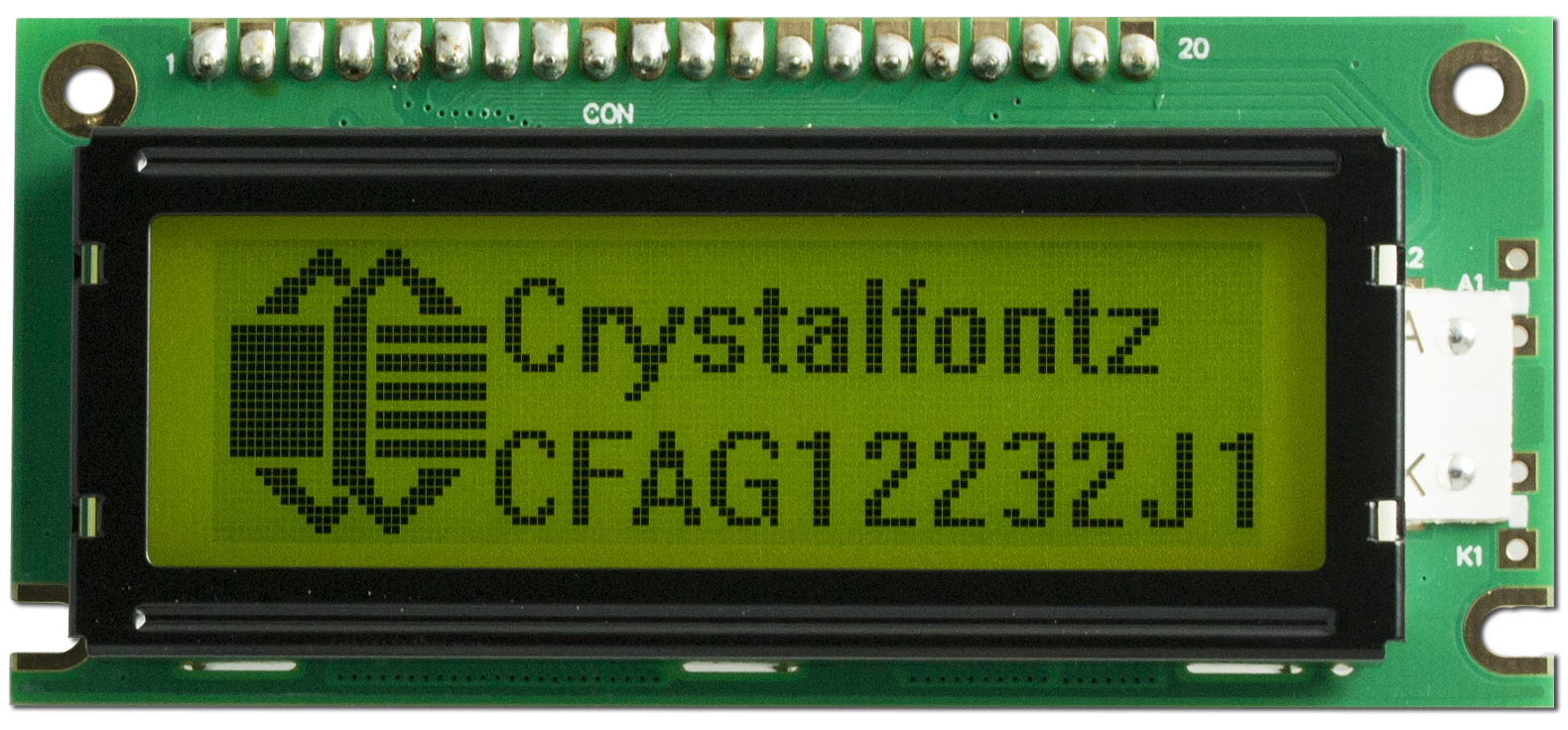

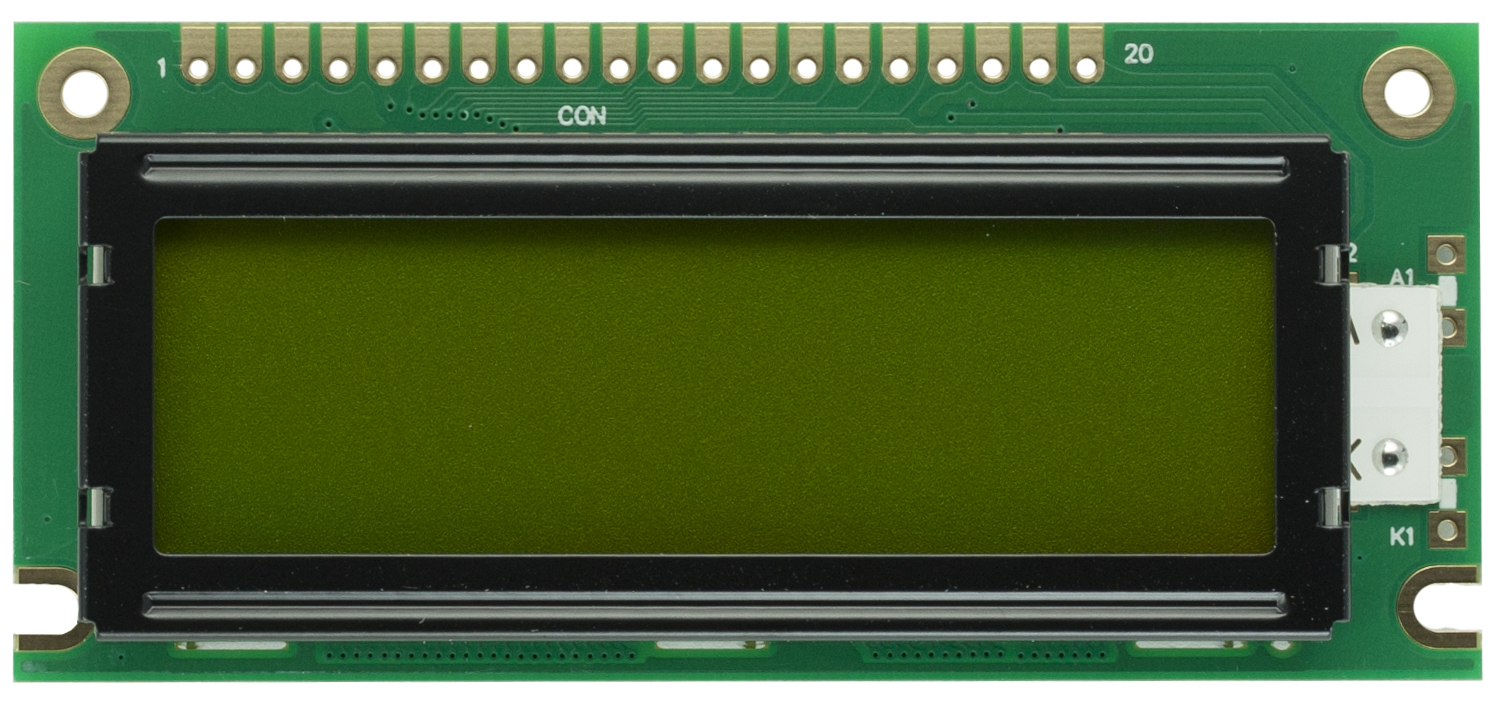

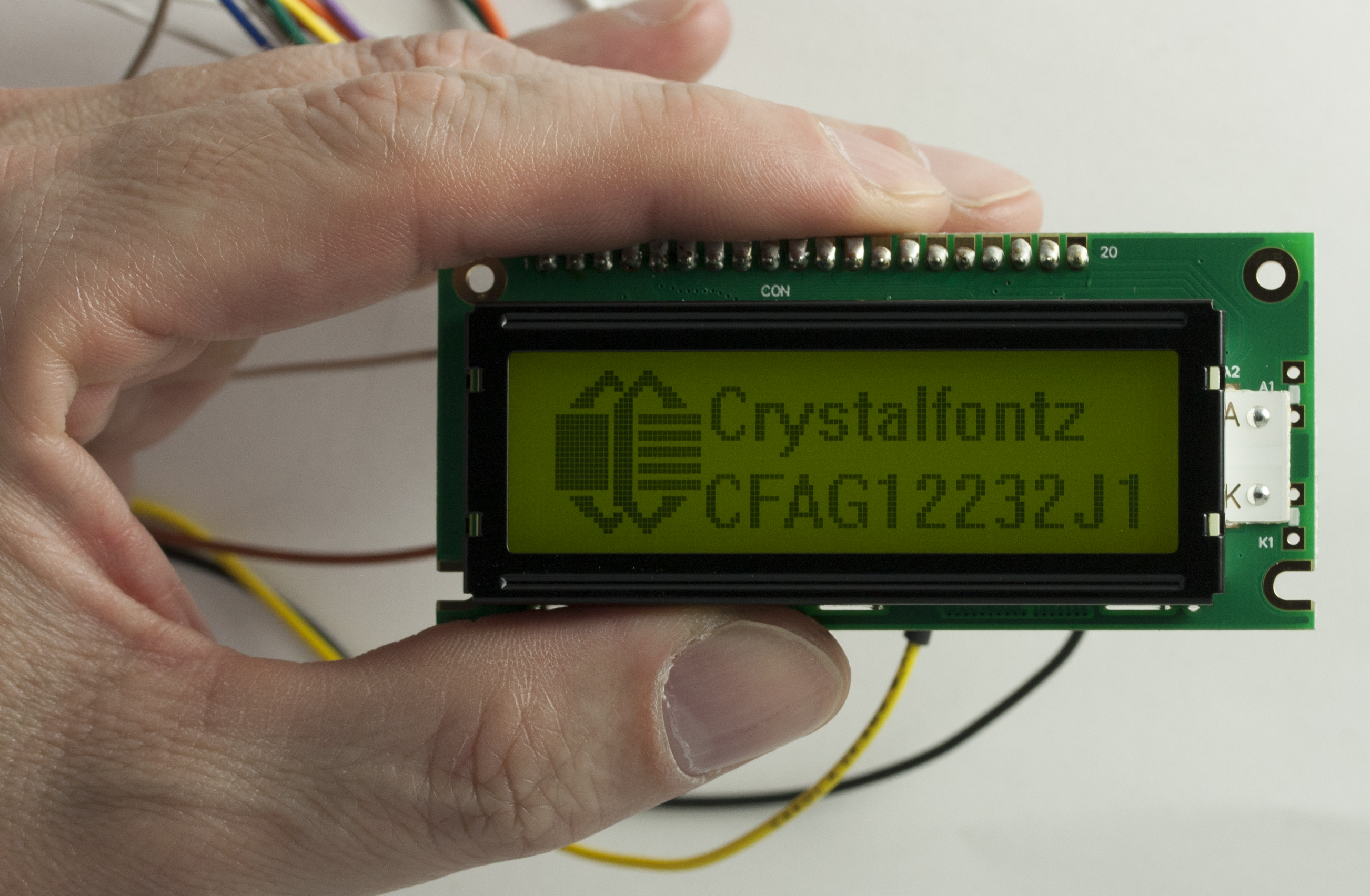

122x32 Graphic LCD Display

Part Number: CFAG12232J1-YYH-TJ

This 122x32 Graphic LCD has Yellow/Green LED Backlight. The graphics dark pixels on a yellow/green background.
  • 122x32 graphic LCD module
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • Built-in I-CORE AiP31520 or compatible controller (SED1520, Avant SBN1661G compatible)
  • 8-bit parallel interface
  • -20°C to +70°C operating temperature

This LCD module is ideal for a wide range of devices due to its clear visibility and energy efficiency. In industrial settings, it enhances control panels and measuring instruments with easy-to-read status information. Consumer electronics, like home appliances and audio equipment, benefit from its ability to display settings and timers clearly. Medical devices, such as portable monitors and hospital equipment could also use it for critical data display. It's also perfect for communication devices, automotive applications, retail systems, portable gadgets, environmental monitors, data loggers, and educational kits, making it a versatile choice for diverse applications.

Part Number:
CFA - Crystalfontz America
G - Graphic LCD
12232 - 122x32
J1 - Family and revision (replaces the CFAG12232J-YYH-TA)
Y - Yellow LED backlight
Y - STN Positive
H - Transflective, 6:00 viewing angle
T - Built-in negative voltage and temperature compensation
J - I-CORE AiP31520 or compatible controller

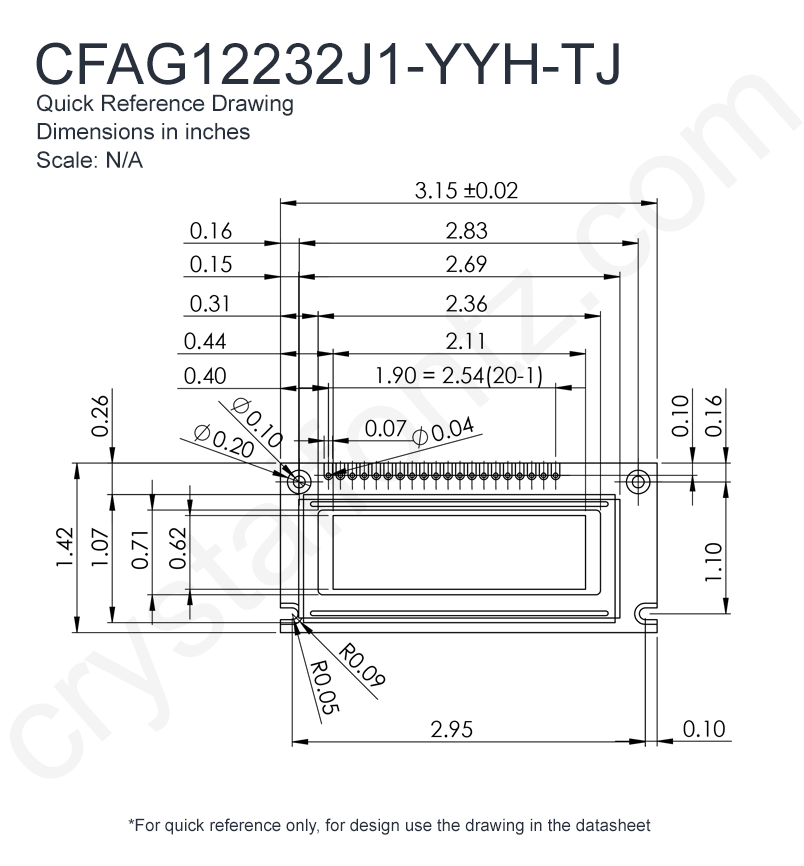

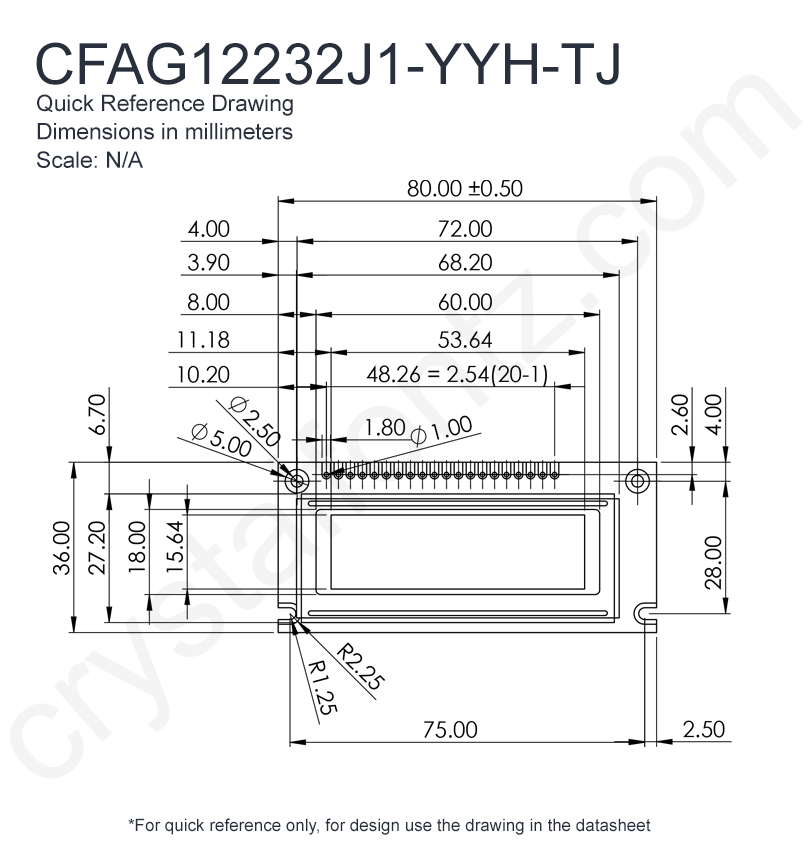

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 122 x 32
    Module Overall width height depth
    millimeters 80 36 13.7
    inches 3.15 1.42 0.54
    Viewing Area Width Height
    millimeters 60 18
    inches 2.36 0.71
    Active Area Width Height
    millimeters 53.64 15.64
    inches 2.11 0.62
    Dot Size Width Height
    millimeters 0.4 0.45
    inches 0.016 0.018
    Dot Pitch Width Height
    millimeters 0.44 0.49
    inches 0.017 0.019
    Weight 36g
    Pin Count 20
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type STN
    Polarizer Transflective
    View Direction 12 o'clock
    View Angle 30°
    Sunlight Readable Yes
    Backlight Color Yellow-Green
    Backlight Type LED
    Mode Positive
    Foreground Color Dark
    Background Color Yellow-Green
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 2.7V
    Supply Voltage for Logic Maximum 3.6V
    Supply Voltage for Logic Typical 3.3V
    Supply Voltage for Driving Panel Typical 4.35V
    Supply Current Minimum 0.9mA
    Supply Current Maximum 3.6mA
    Supply Current Typical 1.8mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 4V
    Forward Voltage Maximum 4.5V
    Forward Voltage Typical 4.2V
    Forward Current Minimum 96mA
    Forward Current Maximum 144mA
    Forward Current Typical 120mA
  • nature Enviromental


    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics


    Controller Documents Wuxi AiP31520
    61 SEG / 16 COM Driver for Dot Matrix LCD
    Interface 8-bit Parallel
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity Price
1 $17.50
5 $16.09
10 $14.23
20 * $13.81
50 * $13.31
100 * $13.14
200 * $13.06
300 * $12.34
500 * $12.26
1000 * $11.65
* Pricing is subject to change.
Contact us about potential lead times.
