128x64 Monochrome Transflective Backlit LCD Module

Part Number: CFAG12864U3-TFH-E1-1

Use this LCD display module to easily embed this 128x64 Low Power Backlit LCD into your project or to begin developing with the display. The included adapter board breaks the display's ZIF tail out into a 16 pin 0.1" header.

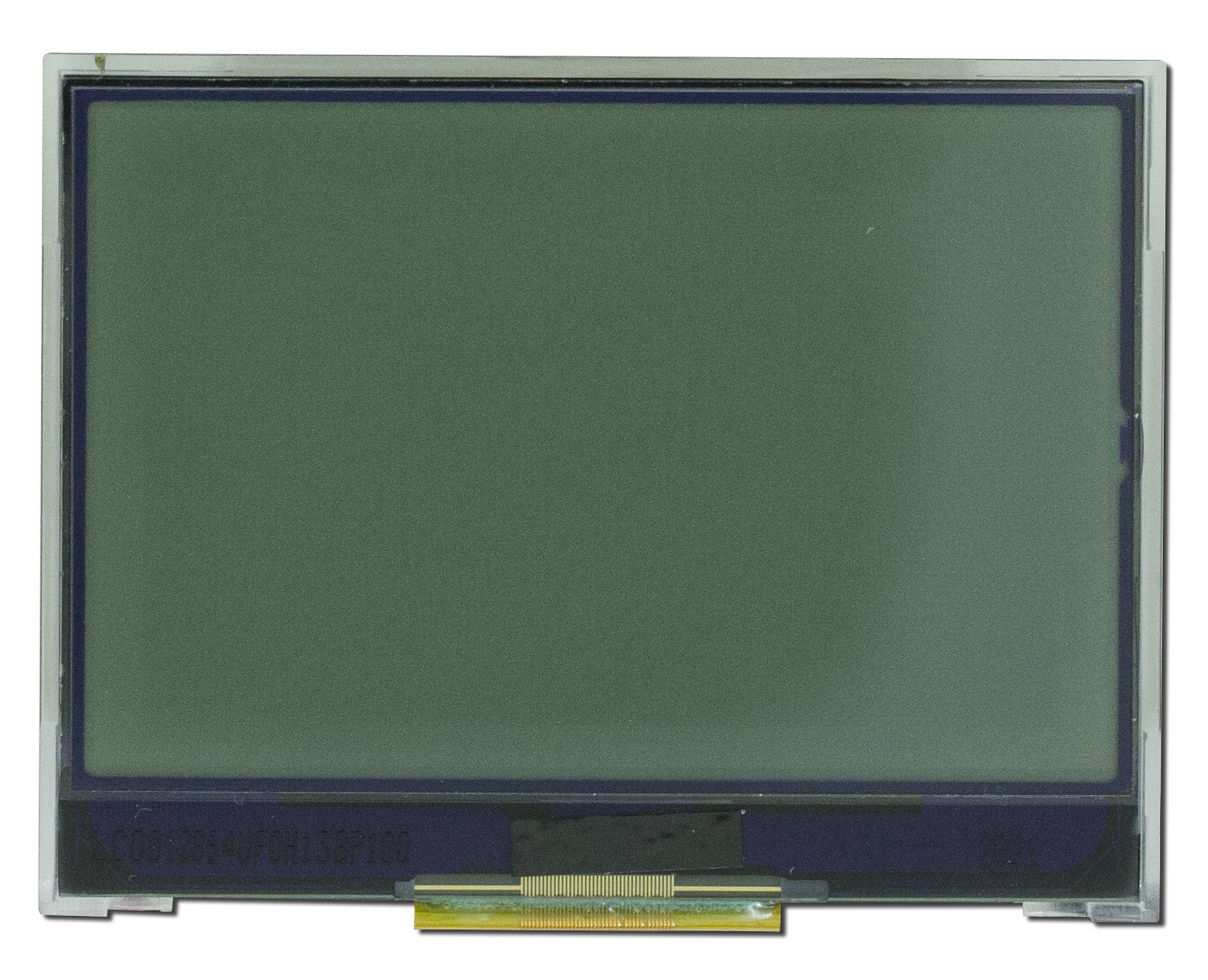

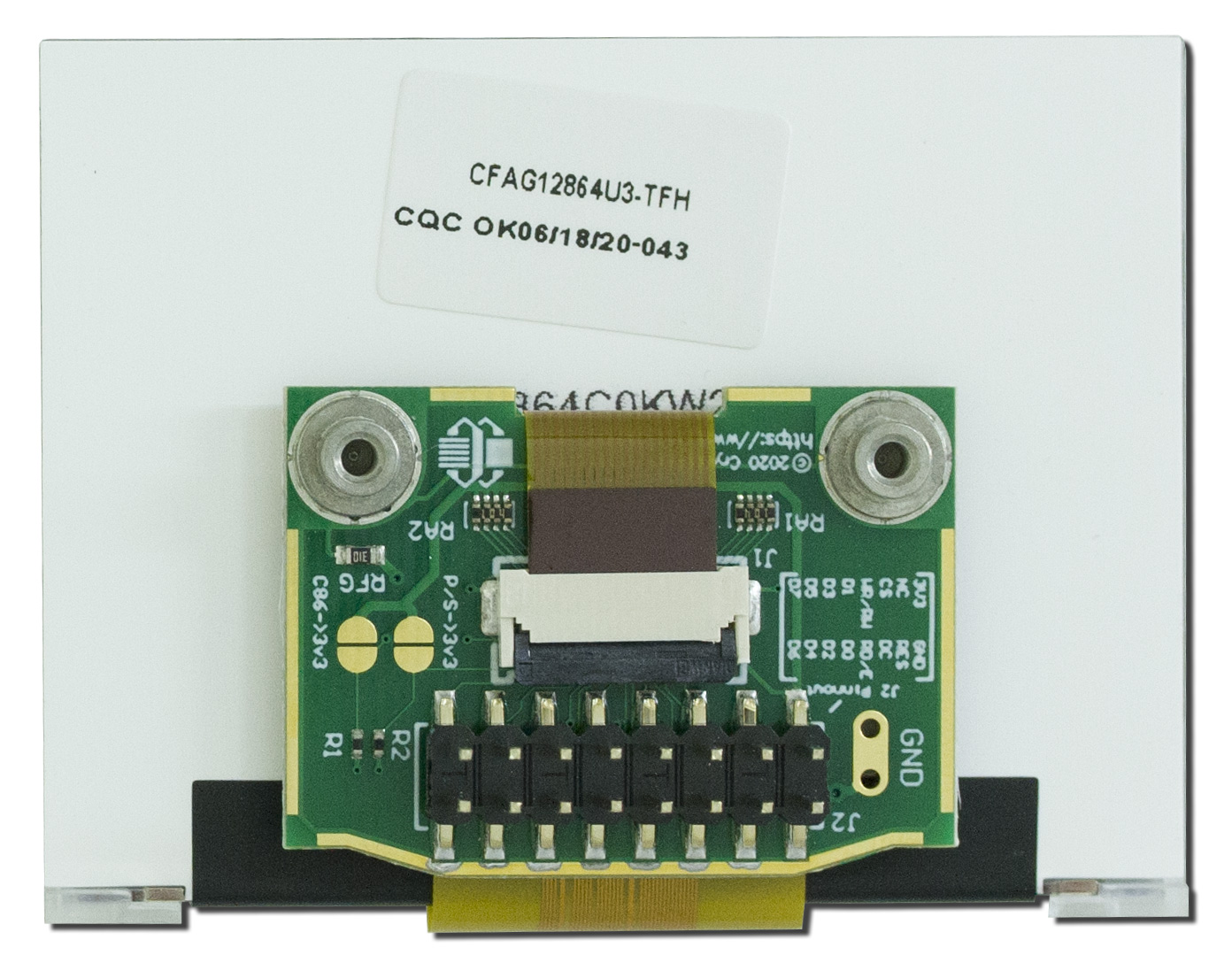

The adapter board folds behind the backlight frame, and includes two mounting standoffs, making this a clean way to both connect to the display and mount it into your design. Use this display module to validate the CFAG12864U3-TFH, or integrated it into your final design.

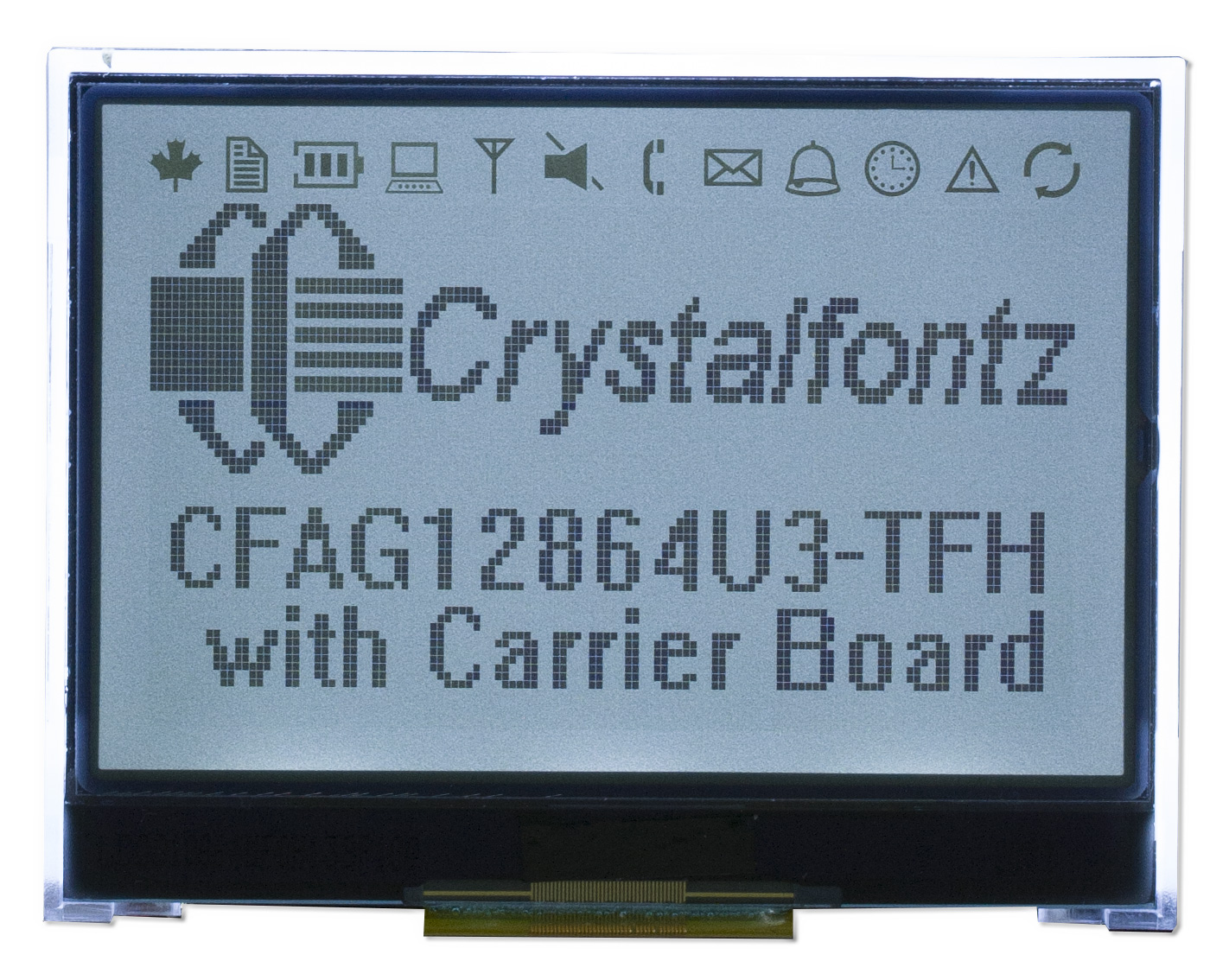

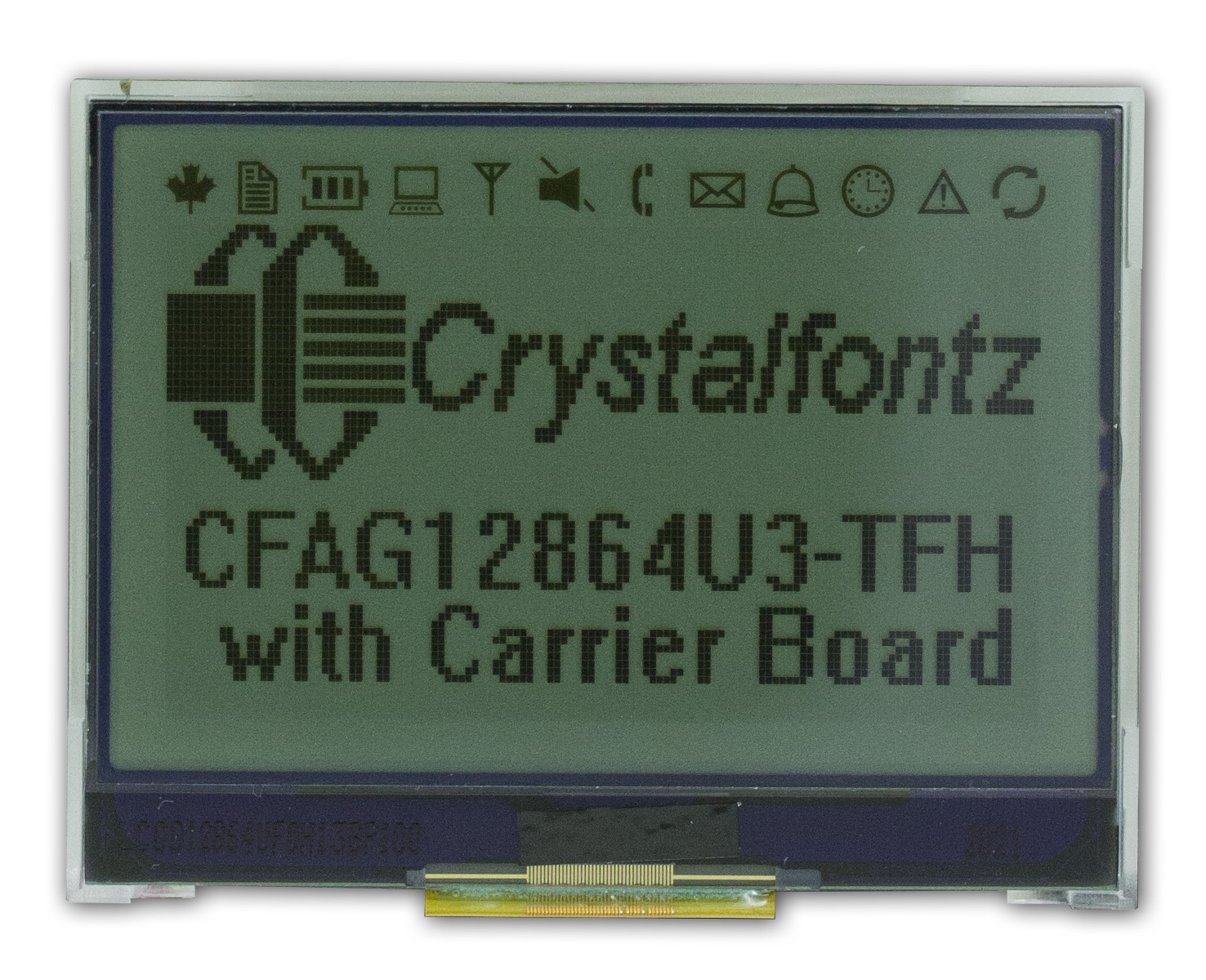

This transflective graphic LCD display is thin, light, and low power. The LED backlight only needs to be used to read the display in dim or dark environments. Because this is an FSTN display, the graphics are clearly legible in sunlight. This display is well suited for compact hand-held devices and other low-power applications.

A pin compatible low power transflective LCD display module without a backlight is also available.

Features of this Display Module

Ultra-Low power consumption
White LED backlight
0.1" header (2.54 mm) for easy connections
2x 2-56 threaded mounting standoffs
Built-in Sitronix ST7565P controller
Perfect for handheld, battery operated devices
Simple 4-wire SPI or 8-bit parallel interface

Check out our blog post for help getting started with this small graphic LCD.

Product Variants

Low Power Transflective LCD Display Module

128x64 Monochrome Transflective Backlit LCD Module

Quantity	Price
1	$24.21
5 *	$19.71
10 *	$19.22
20 *	$18.58
50 *	$17.95
100 *	$17.70
200 *	$17.57
300 *	$17.45
500 *	$17.32
1000 *	$17.19

* Pricing is subject to change. Contact us about potential lead times.

Components worth considering

Assorted Imperial Screws
Add mounting screws? $3.08 ea.

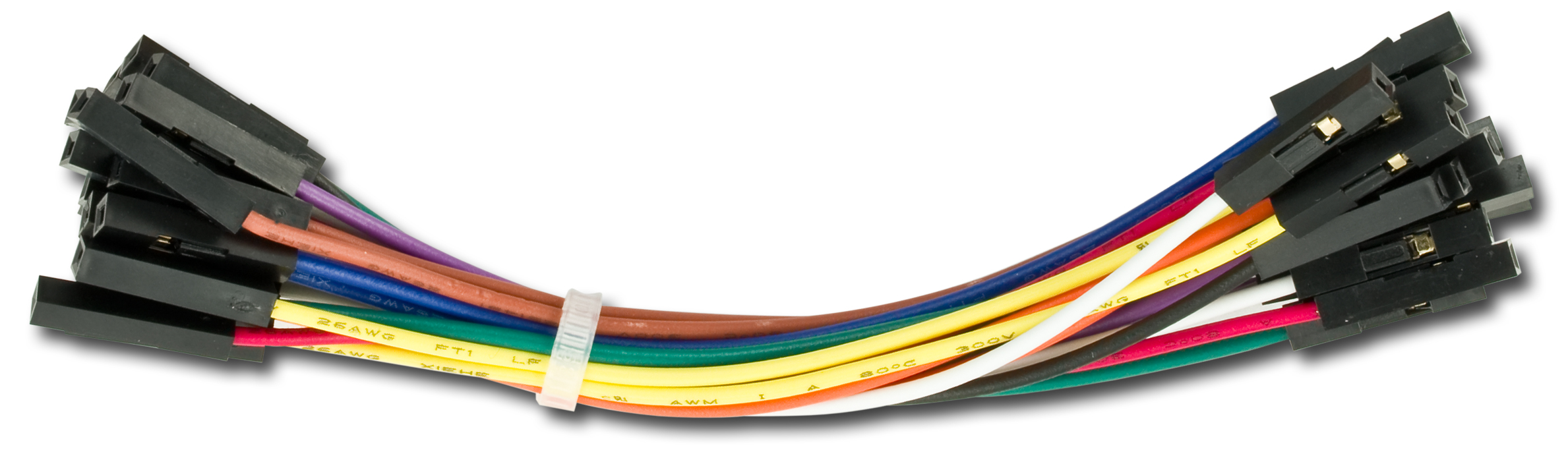

3-inch Female to Female Jumper Wires
Need short jumper wires? $3.14 ea.

6-inch Female to Female Jumper Wires
Need long jumper wires? $3.38 ea.

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

CFAG12864U3-TFH-E1-1 Datasheet

Files

Hardware Design - CFAG12864U3-TFH-E1-1 3D Model

Arduino Demo Code Download on Github

Arduino Demo Code Repository on Github

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAG12864U3-TFH-E1-1

Compliance Documents

Video Demonstrations

128x64 Backlit Transflective LCD Module

128x64 Backlit + Transflective LCD Display module.

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots

128 x 64

Module Overall	width	height	depth
millimeters	58.2	44.7	10
inches	2.291	1.760	0.394

Diagonal Dimension

2.2"

Viewing Area	width	height
millimeters	52	33.5
inches	2.047	1.319

Active Area	width	height
millimeters	47.76	30.29
inches	1.880	1.193

Dot Pitch	width	height
millimeters	0.42	0.37
inches	0.017	0.015

Optional Connectors

CS050Z18GA0

Weight	19.5g
Pin Count	16

Optical Characteristics

Glass Type/Glass Color	FSTN/Gray
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	White
Backlight Type	LED
Foreground Color	Dark
Background Color	Light Gray

Electrical Specifications

Supply Voltage for Logic Minimum	3V
Supply Voltage for Logic Maximum	3.3V

Supply Current Minimum	1mA
Supply Current Maximum	2mA

Backlight Electrical Specifications

Forward Voltage Typical	3.5V
Forward Current Minimum	36mA

Forward Current Maximum	60mA
Forward Current Typical	48mA

Environmental

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Electronics

Controller Documents	Sitronix ST7565P ST7565P 65 x 132 Dot Matrix LCD Controller/Driver Sitronix ST7565P ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
Interface	8-bit Parallel, SPI

Additional Options
Compatible Products

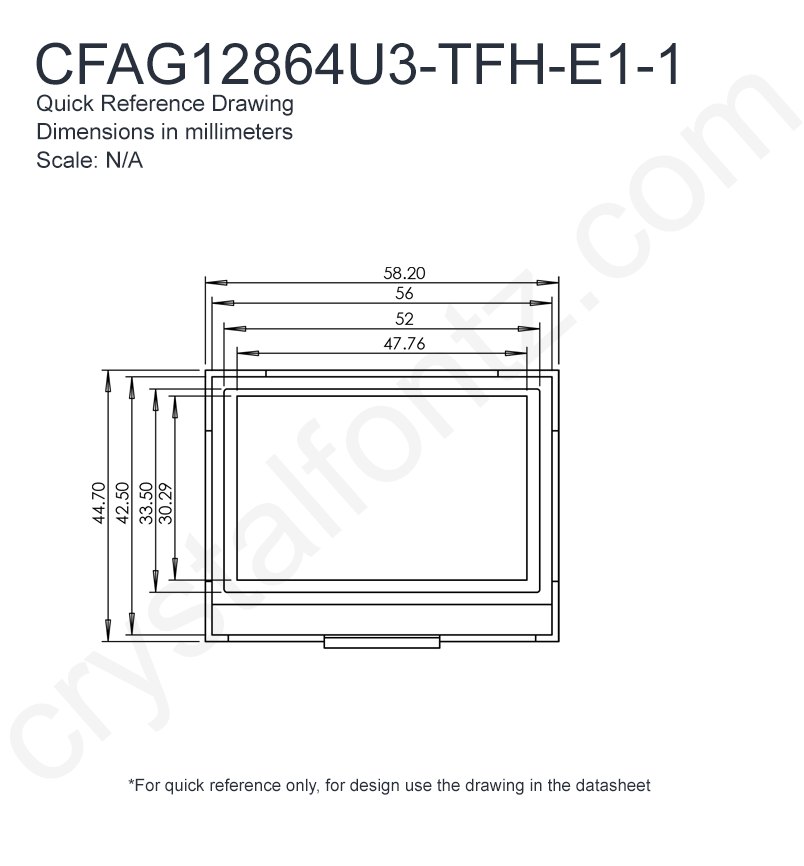

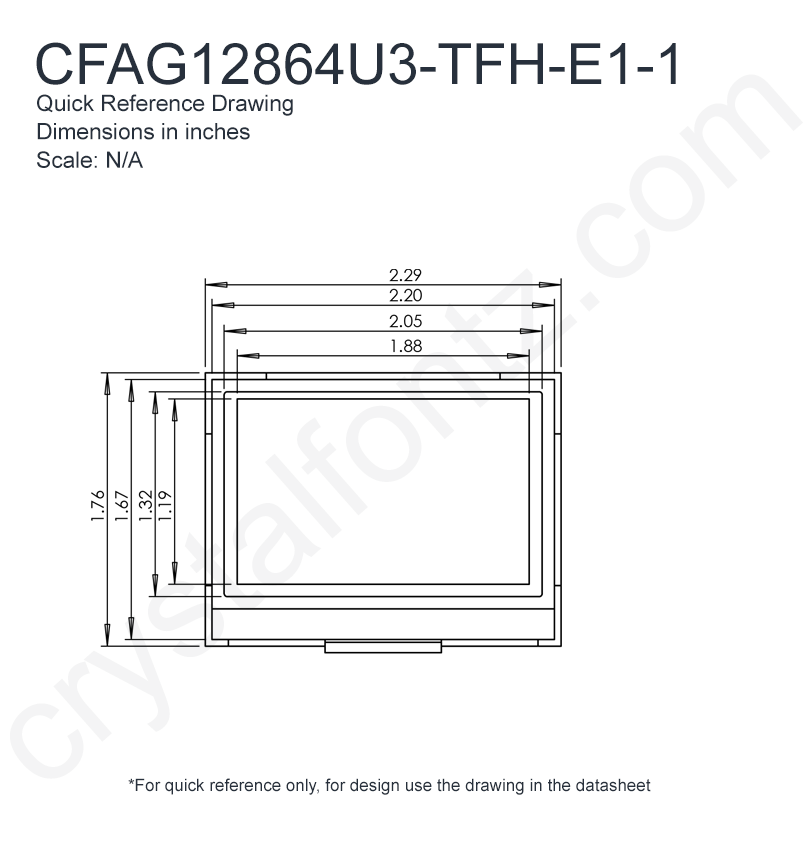

Dimensions

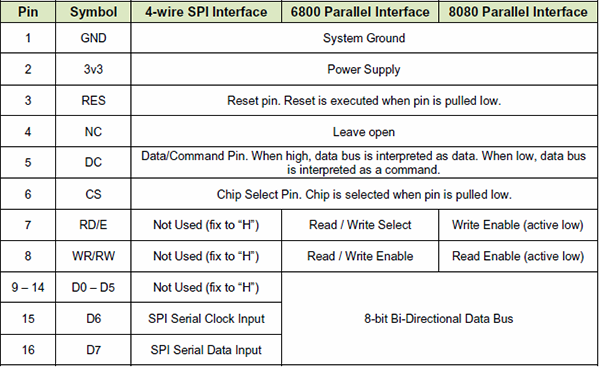

Pin Table
Blog Posts

Additional Options

Need a microcontroller? Purchase the complete development kit and receive everything you need all wired up and running.

128x64 Transflective Backlit LCD Development Kit
Part Number: CFAG12864U3-TFH-E1-2

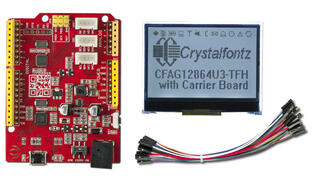

This LCD development kit includes a 128x64 backlit low power LCD mounted to a custom adapter board. We'll wire it up to a Seeeduino 4.2 and load a demonstration sketch so when the kit arrives it simply needs to be plugged in to begin a demonstration.

The display is a graphic monochrome LCD with an external backlight frame. The LCD is extremely low power and only requires the backlight when viewed in the dark. The adapter board breaks the display's ZIF tail out to a 0.1" header which means no soldering is required to wire up with display.

Use this kit to evaluate the CFAG12864U3-TFH and/or the CFAG12864U3-TFH-E1-1 for your product, or provides a great jumping off point for creating a project with this display.

Kit Contents:
