128x64 Transflective Backlit LCD Development Kit

Part Number: CFAG12864U3-TFH-E1-2

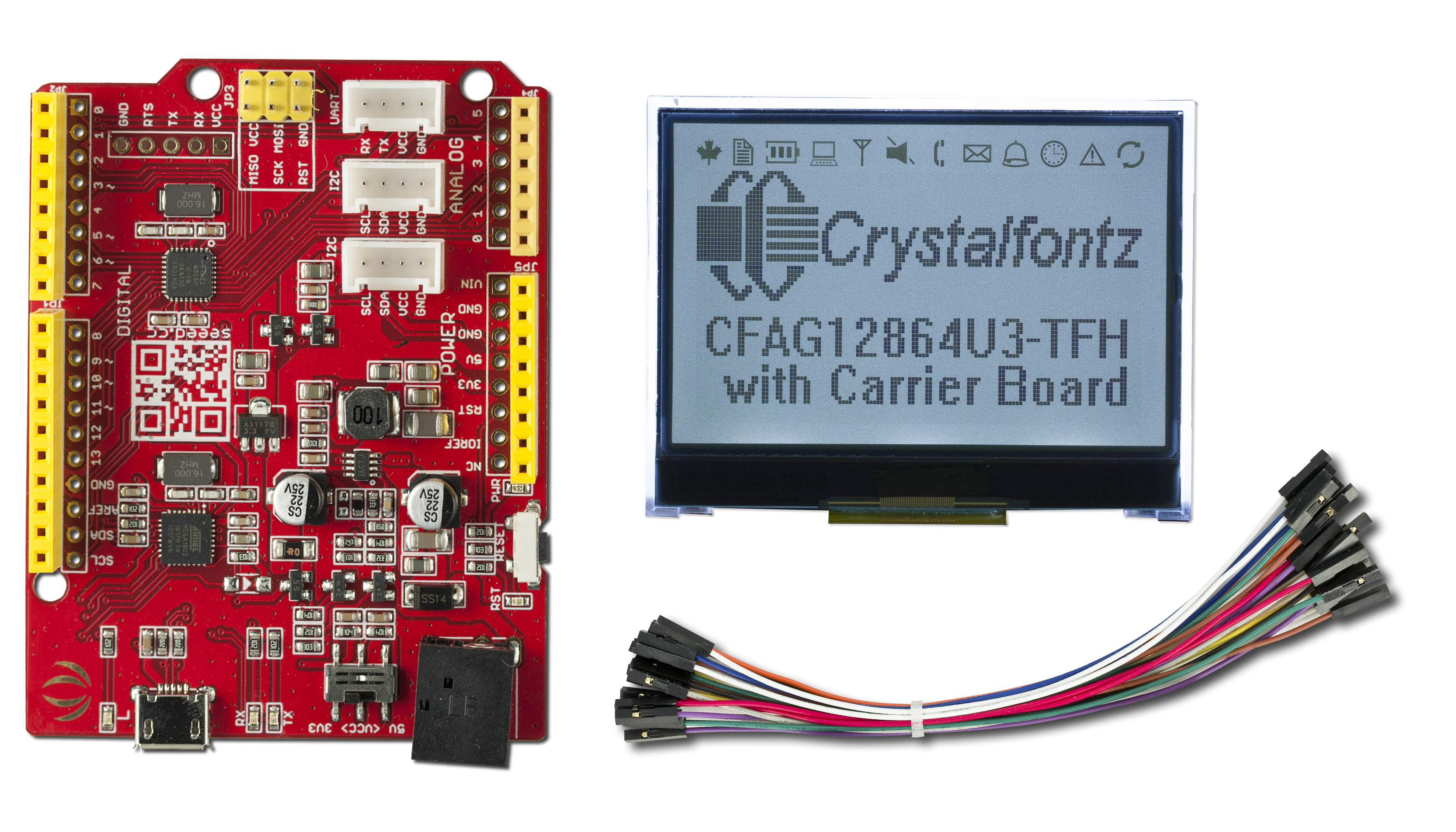

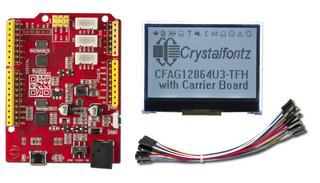

This LCD development kit includes a 128x64 backlit low power LCD mounted to a custom adapter board. We'll wire it up to a Seeeduino 4.2 and load a demonstration sketch so when the kit arrives it simply needs to be plugged in to begin a demonstration.

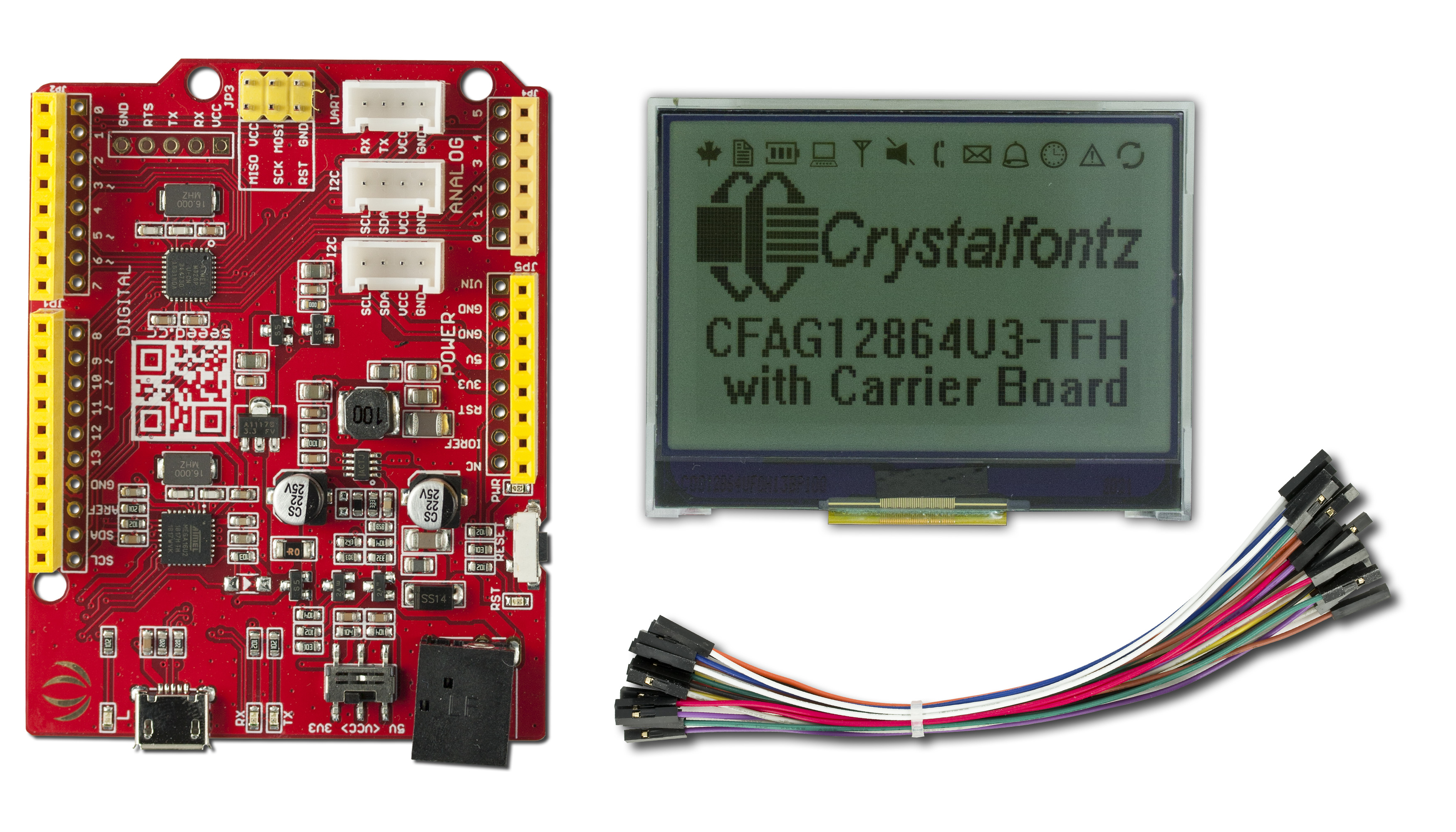

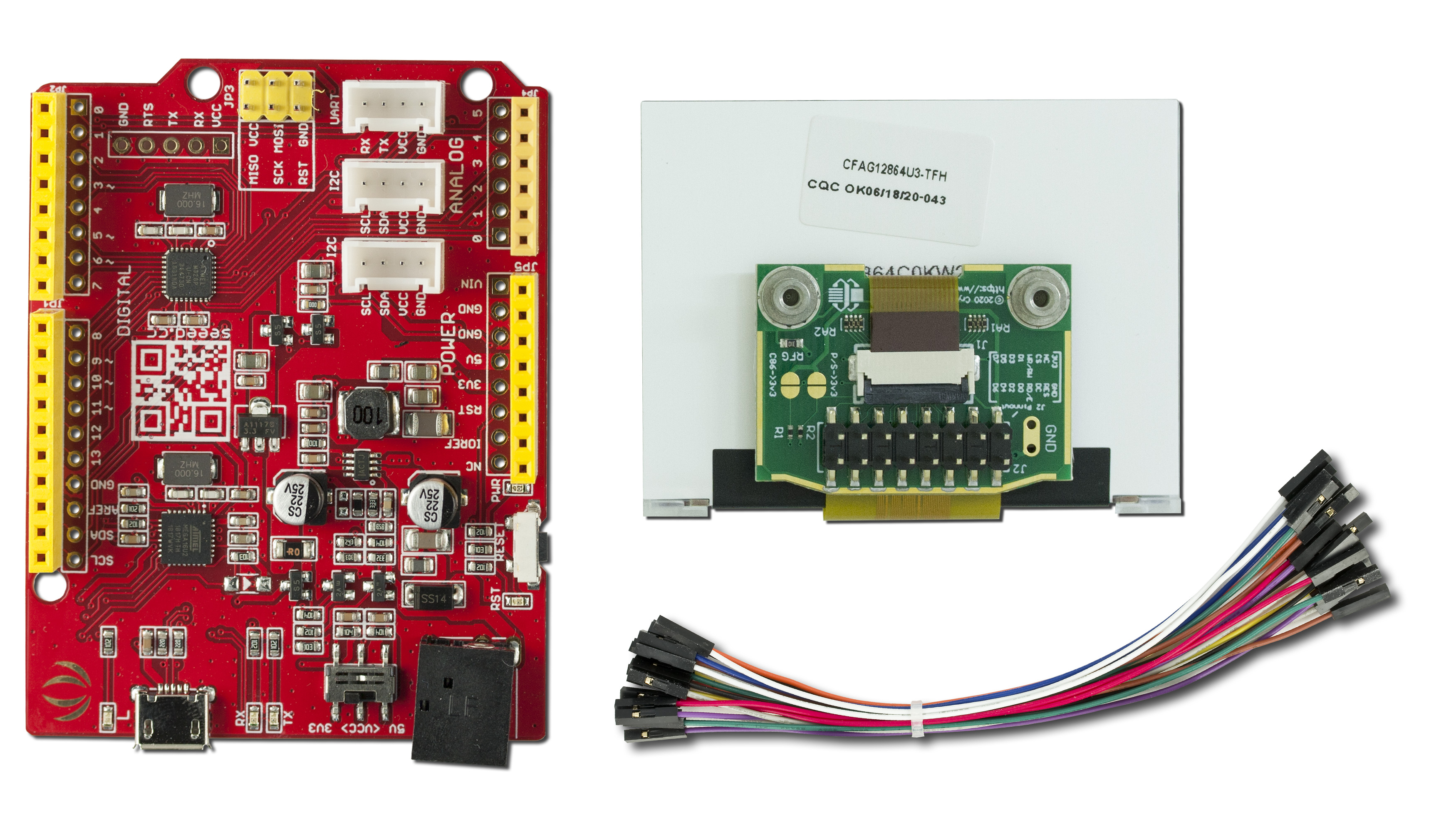

The display is a graphic monochrome LCD with an external backlight frame. The LCD is extremely low power and only requires the backlight when viewed in the dark. The adapter board breaks the display's ZIF tail out to a 0.1" header which means no soldering is required to wire up with display.

Use this kit to evaluate the CFAG12864U3-TFH and/or the CFAG12864U3-TFH-E1-1 for your product, or provides a great jumping off point for creating a project with this display.

Kit Contents: Check out our blog post for help getting started with this small graphic LCD.

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 128 x 64
    Module Overall width height depth
    millimeters 58.2 44.7 10
    inches 2.29 1.76 0.39
    Diagonal Dimension 2.2"
    Viewing Area Width Height
    millimeters 52 33.5
    inches 2.05 1.32
    Active Area Width Height
    millimeters 47.76 30.29
    inches 1.88 1.19
    Dot Pitch Width Height
    millimeters 0.42 0.37
    inches 0.017 0.015
    Optional Connectors CS050Z18GA0
    Weight 102.2g
    Pin Count 16
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color FSTN/Gray
    Polarizer Transflective
    View Direction 6 o'clock
    Sunlight Readable Yes
    Backlight Color White
    Backlight Type LED
    Foreground Color Dark
    Background Color Light Gray
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 3V
    Supply Voltage for Logic Maximum 3.3V
    Supply Current Minimum 1mA
    Supply Current Maximum 2mA
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Typical 3.5V
    Forward Current Minimum 36mA
    Forward Current Maximum 60mA
    Forward Current Typical 48mA
  • nature Environmental

    Environmental

    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
  • cable Electronics

    Electronics

    Controller Documents Sitronix ST7565P
    ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
    Interface 8-bit Parallel, SPI
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity:
Price:
Quantity Unit Price
1 * $49.08
0 Units In-Stock & Ready To Ship
Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering
4665 Assorted Imperial Screws
Add mounting screws? $3.08 ea.
1872 3-inch Female to Female Jumper Wires
Add short jumper wires? $3.14 ea.
1871 6-inch Female to Female Jumper Wires
Add short jumper wires? $3.38 ea.

Additional Resources

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAG12864U3-TFH-E1-2 or RSS RSS feed for changes to CFAG12864U3-TFH-E1-2
  • text_snippet
    Part Change Notice #11197: New Seeeduino Version 4.3 Now Shipping
    Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
    Date Issued: May 15, 2023
    Summary: New Seeeduino Version 4.3 Now Shipping
    Description: We are now releasing products as stated in PCN11190.
    https://www.crystalfontz.com/news/pcn.php?id=11190
  • text_snippet
    Part Change Notice #11190: Part Change - Seeeduino 4.2 ->4.3
    Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
    Date Issued: April 13, 2023
    Summary: Part Change - Seeeduino 4.2 ->4.3
    Last revision: 4.2
    Description: Seeed Studios has updated the Seeeduino from v4.2 to v4.3. This change switches from the ATMEGA328P-MU to the ATMEGA328P-AU, and replaces the serial chip. This causes the Seeeduino to identify differently when connected to a computer.
    Reason: Supplier has changed their offering
    Impact: Kits using the Seeeduino will no longer be named "USB Serial Device"
    Availability: Immediate
