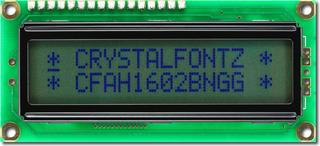

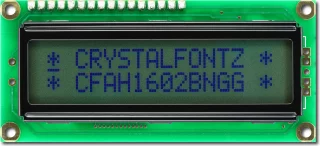

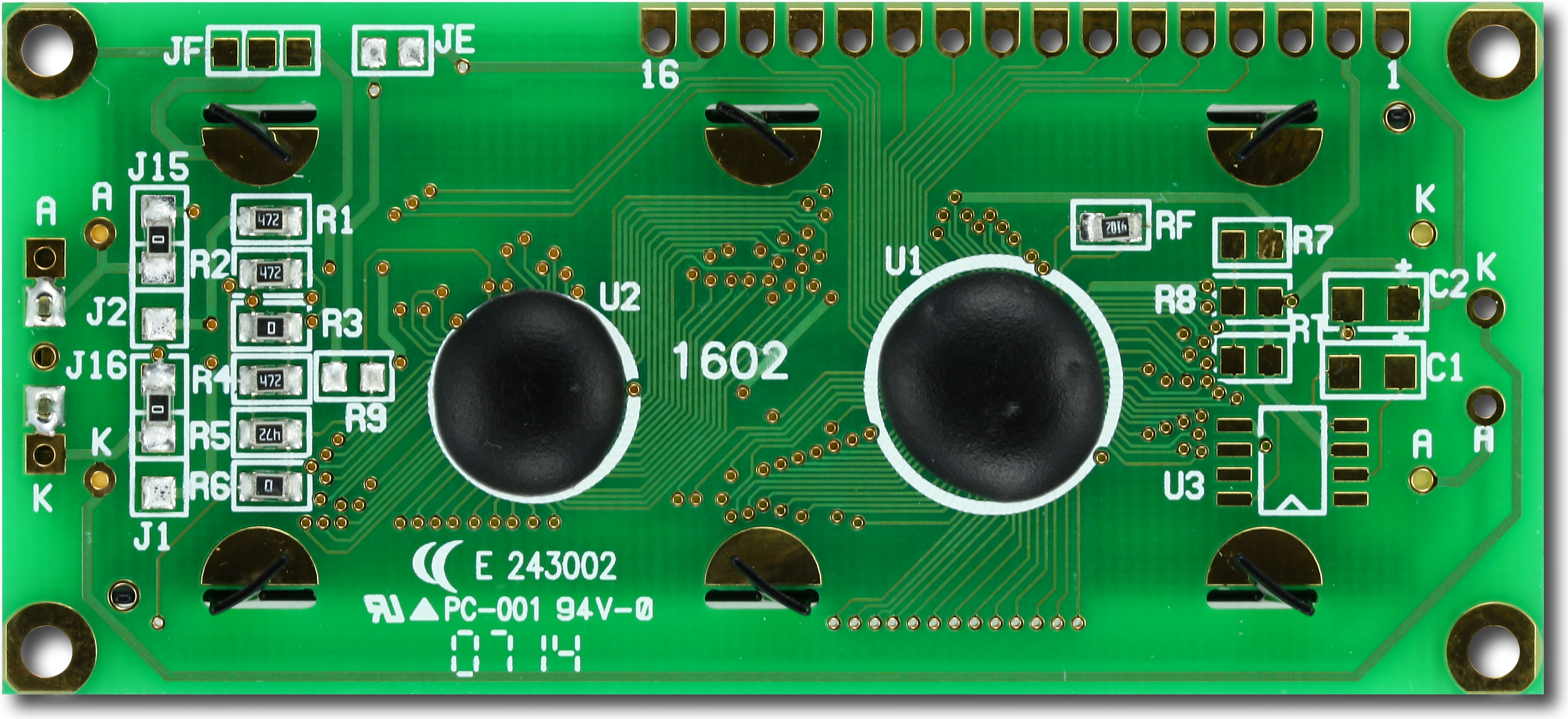

16x2 Sunlight Readable Character LCD

Part Number: CFAH1602B-NGG-JTV

Pricing

Quantity Price
1 * $5.43
10 * $4.72
20 * $4.55
50 * $4.39
100 * $4.32
200 * $4.25
500 * $4.03
1000 * $3.66
* Contact us about potential lead times.
Qty:


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet



Description

Low-power consumption, sunlight readable 16x2 character LCD without backlight.

  • Characters / Columns: 16x2
  • Optics: 6:00 viewing direction
  • Backlight: None
  • Glass: STN Positive, Reflective
  • Controller: Sitronix ST7066U (HD44780 compatible)
  • Operating Temp: -20°C to +70°C
  • Interfaces: 4 & 8 bit parallel
  • Compliance: REACH & RoHS Compliant

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 80 36 9.7
inches 3.150 1.417 0.382
PCB Outline width height depth
millimeters 80 36 9.7
inches 3.150 1.417 0.382
Viewing Area width height
millimeters 66 16
inches 2.598 0.630
Active Area width height
millimeters 56.2 11.5
inches 2.213 0.453
Character Size width height
millimeters 2.95 5.55
inches 0.116 0.219
Character Pitch width height
millimeters 3.55 5.95
inches 0.140 0.234
Dot Size width height
millimeters 0.55 0.65
inches 0.022 0.026
Dot Pitch width height
millimeters 0.6 0.7
inches 0.024 0.028
Weight 24g

Optical Characteristics

Glass Type/Glass Color STN/Gray
Polarizer Reflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Type None
Mode Positive
Foreground Color Dark
Background Color Green

Electrical Specifications

Module Connector Pitch 0.1mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Sitronix ST7066U
Interface 4-bit Parallel, 8-bit Parallel
