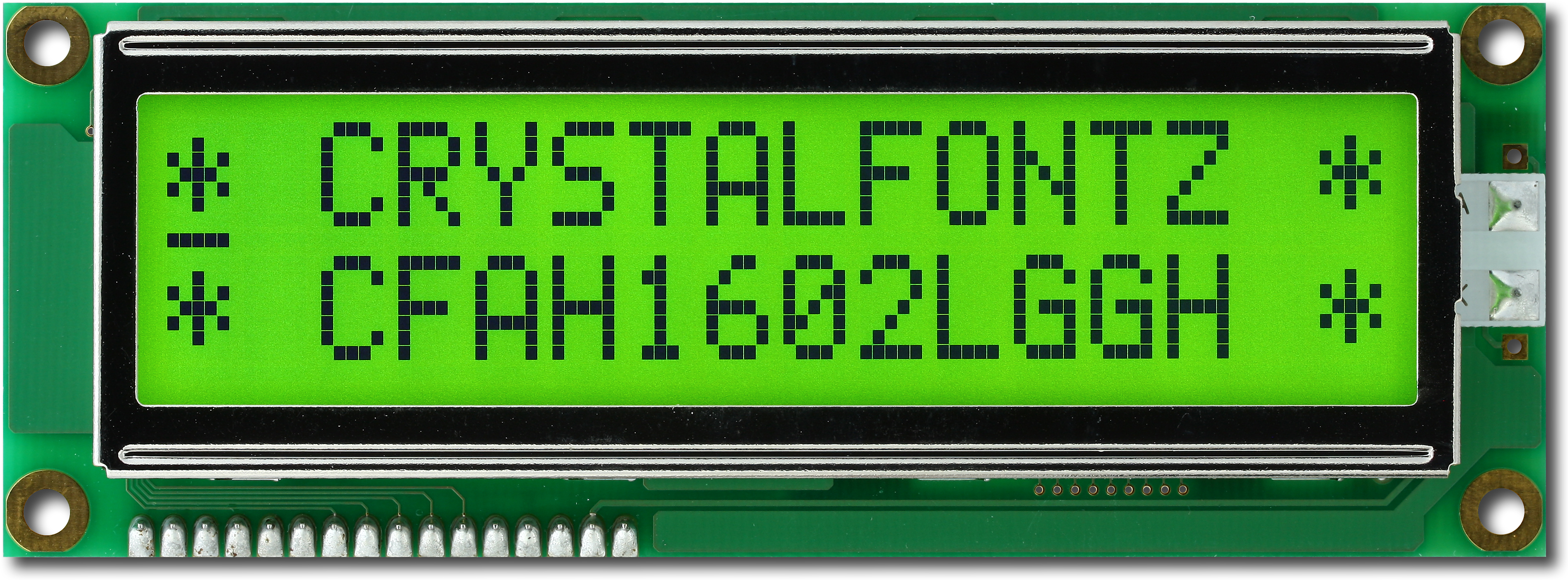

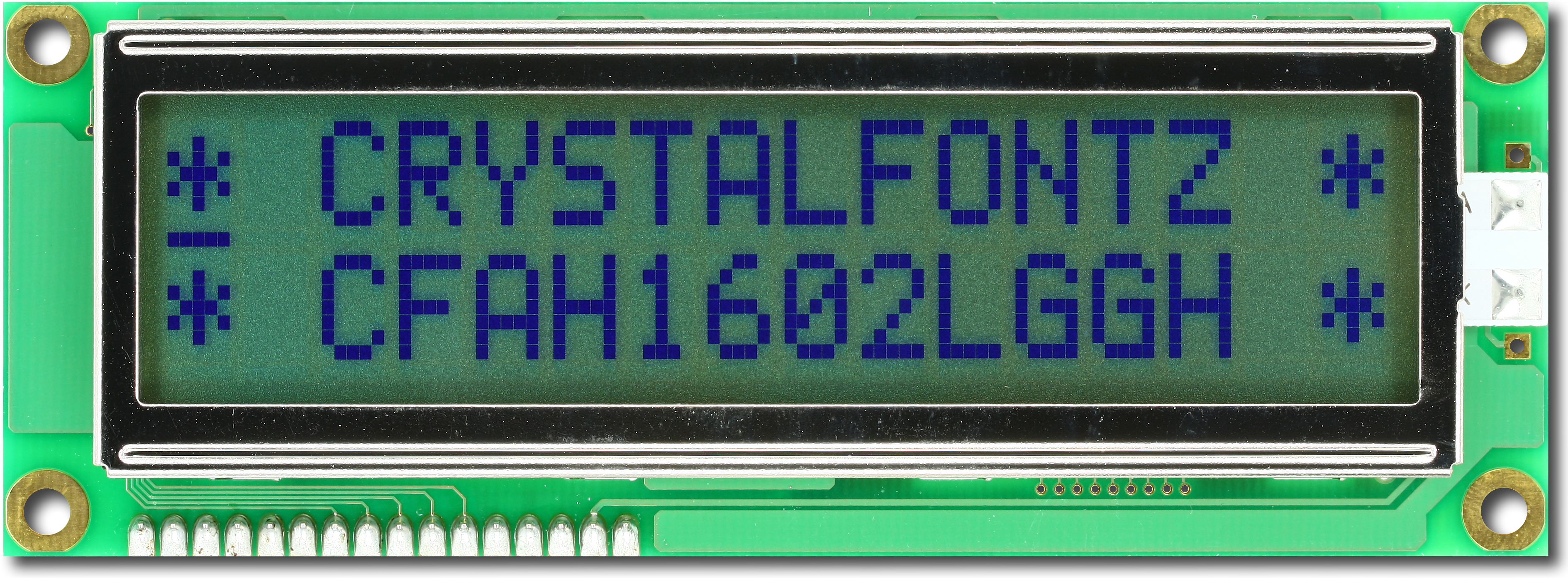

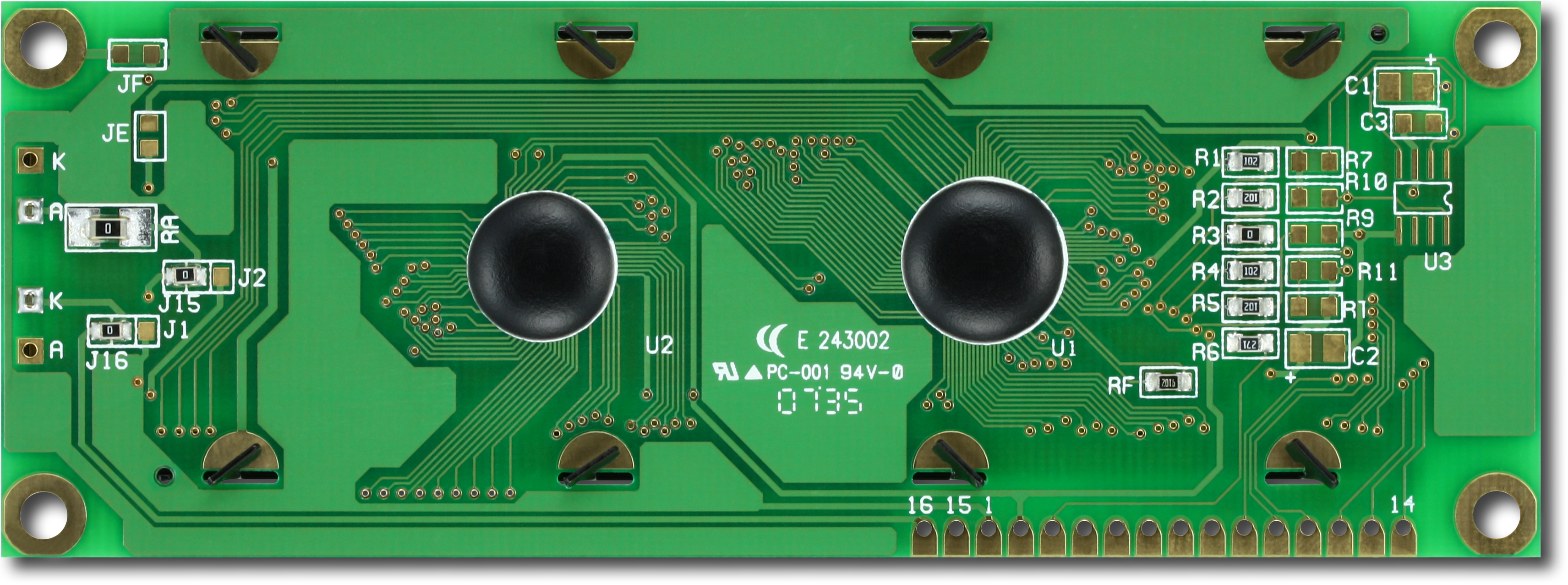

Green Transflective 16x2 Character LCDPart Number: CFAH1602L-GGH-JTSunlight readable 16x2 character LCD with backlight.
Characters / Columns: 16x2
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Reflective
Controller: Sitronix ST7066U (HD44780 compatible)
Operating Temp: -20°C to +70°C
Interfaces: 4 & 8 bit parallel
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightDark on Light Gray
White LED BacklightDark on Green
Green LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        122
        44
        13.6


        inches
        4.80
        1.73
        0.54



    PCB Outline        width
        height
        depth


        millimeters
        122
        44
        13.6


        inches
        4.80
        1.73
        0.54



        Diagonal Dimension
            3.82"


    Viewing Area        Width
        Height


        millimeters
        99
        24


        inches
        3.90
        0.95



    Active Area        Width
        Height


        millimeters
        94.84
        20


        inches
        3.73
        0.79



    Character Size        Width
        Height


        millimeters
        4.84
        8.06


        inches
        0.191
        0.317



    Character Pitch        Width
        Height


        millimeters
        6
        10.34


        inches
        0.236
        0.407



    Dot Size        Width
        Height


        millimeters
        0.92
        1.1


        inches
        0.036
        0.043



    Dot Pitch        Width
        Height


        millimeters
        0.98
        1.16


        inches
        0.039
        0.046



        Weight
            66g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH1602LGGHJT Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAH1602L 2D CAD
picture_as_pdf 1 to 1 Template - CFAH1602L 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $43.92

            50 *
            $41.83

            100 *
            $23.23

            300 *
            $11.83

            500 *
            $10.40

            1000 *
            $9.48

13 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						36-Pin 0.1" Header Pins
Add header pins? $0.33 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight Dark on Light Gray White LED Backlight Dark on Green Green LED Backlight

Module Overall	width	height	depth
millimeters	122	44	13.6
inches	4.80	1.73	0.54

PCB Outline	width	height	depth
millimeters	122	44	13.6
inches	4.80	1.73	0.54

Viewing Area	Width	Height
millimeters	99	24
inches	3.90	0.95

Active Area	Width	Height
millimeters	94.84	20
inches	3.73	0.79

Character Size	Width	Height
millimeters	4.84	8.06
inches	0.191	0.317

Character Pitch	Width	Height
millimeters	6	10.34
inches	0.236	0.407

Dot Size	Width	Height
millimeters	0.92	1.1
inches	0.036	0.043

Dot Pitch	Width	Height
millimeters	0.98	1.16
inches	0.039	0.046

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$43.92
50 *	$41.83
100 *	$23.23
300 *	$11.83
500 *	$10.40
1000 *	$9.48

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAH1602L-GGH-JT

Green Transflective 16x2 Character LCD

Part Number: CFAH1602L-GGH-JT

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Gray
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	Green
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Green

Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel

Weight	66g
Pin Count	16
