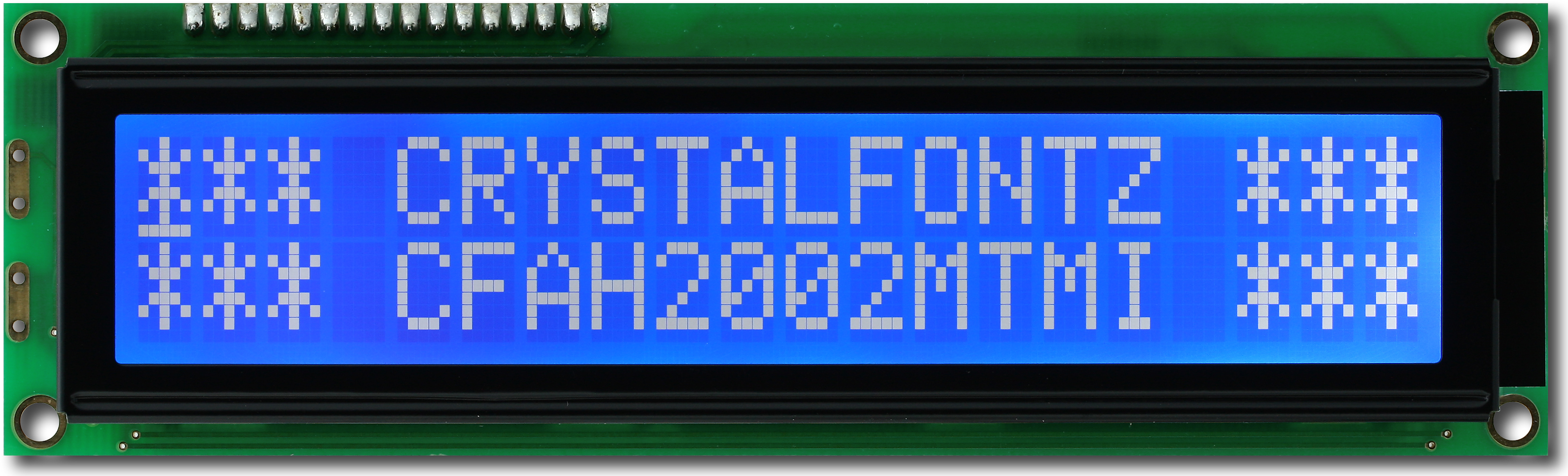

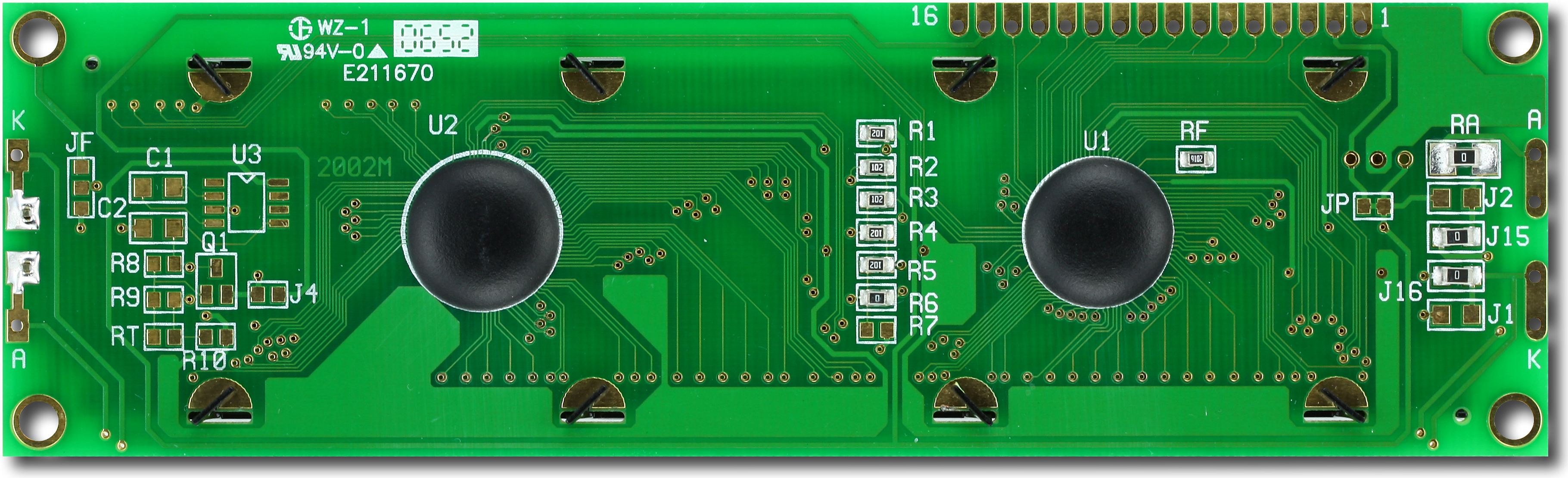

White on Blue 20x2 Character LCD Module

Part Number: CFAH2002M-TMI-ET

Parallel Character LCD 20x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00

  • Form compatible with the CFAG20232C Series of Graphic LCD modules. Give your product a midlife upgrade by replacing the CFAH2002M with a CFAG20232C.
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • Large Characters
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller

  • square_foot Physical Characteristics

    Physical Characteristics

    Characters x Lines 20 x 2
    Module Overall width height depth
    millimeters 146 43 13.7
    inches 5.75 1.69 0.54
    PCB Outline width height depth
    millimeters 146 43 13.7
    inches 5.75 1.69 0.54
    Diagonal Dimension 4.74"
    Viewing Area Width Height
    millimeters 123 23
    inches 4.84 0.91
    Active Area Width Height
    millimeters 118.84 18.97
    inches 4.68 0.75
    Character Size Width Height
    millimeters 4.84 9.22
    inches 0.191 0.363
    Character Pitch Width Height
    millimeters 6 9.75
    inches 0.236 0.384
    Dot Size Width Height
    millimeters 0.92 1.1
    inches 0.036 0.043
    Dot Pitch Width Height
    millimeters 0.98 1.16
    inches 0.039 0.046
    Weight 52g
    Pin Count 16
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type/Glass Color STN/Blue
    Polarizer Transmissive
    View Direction 6 o'clock
    Backlight Color White
    Backlight Type LED
    Mode Negative
    Foreground Color White
    Background Color Blue
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 4.5V
    Supply Voltage for Logic Maximum 5.5V
    Supply Voltage for Logic Typical 5V
    Supply Voltage for Driving Panel Typical 4.5V
    Supply Current Minimum 1mA
    Supply Current Maximum 1.5mA
    Supply Current Typical 1.2mA
    Module Connector Pitch 0.1mm
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 3.4V
    Forward Voltage Maximum 3.6V
    Forward Voltage Typical 3.5V
    Forward Current Minimum 15mA
    Forward Current Maximum 60mA
    Forward Current Typical 48mA
  • nature Enviromental


    Operating Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Storage Temperatures min max
    Celsius -30° 80°
    Fahrenheit -22° 176°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics


    Controller Documents Sitronix ST7066U
    Dot Matrix LCD Controller/Driver
    Sitronix ST7066U

    Sitronix ST7066U
    Dot Matrix LCD Controller/Driver
    Interface 4-bit Parallel, 8-bit Parallel
  • picture_as_pdf Datasheets
  • download Files and Downloads
  • assured_workload Compliance Documents

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Quantity Price
1 $28.77
10 * $27.95
20 * $24.05
50 * $21.41
100 * $18.98
200 * $17.27
500 * $15.21
1000 * $13.88
* Pricing is subject to change.
Contact us about potential lead times.
