Product

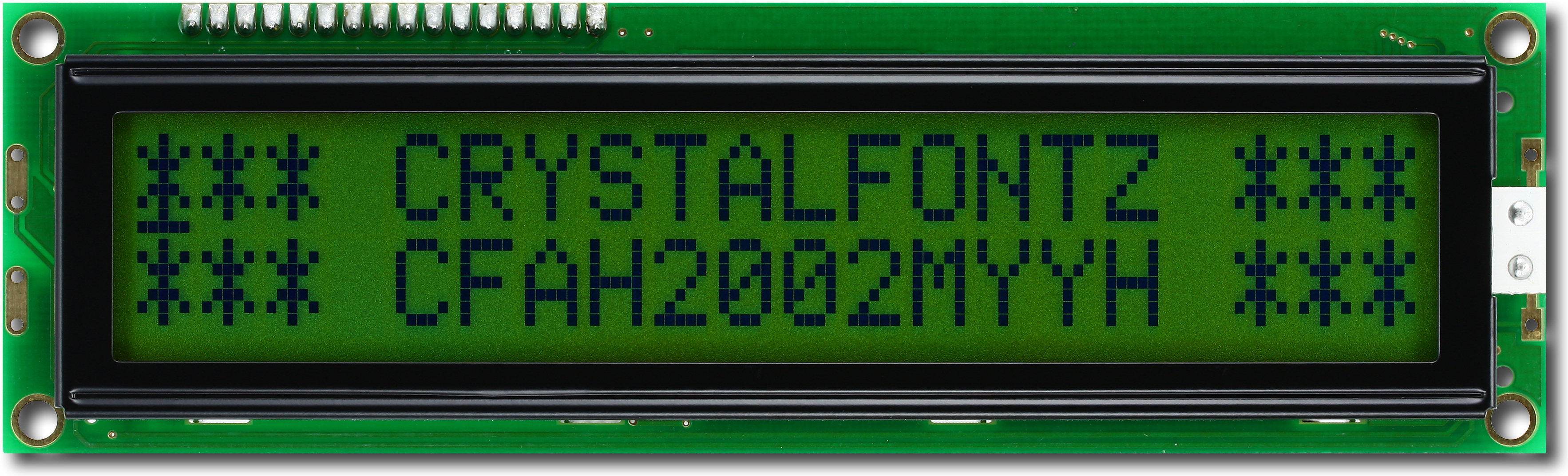

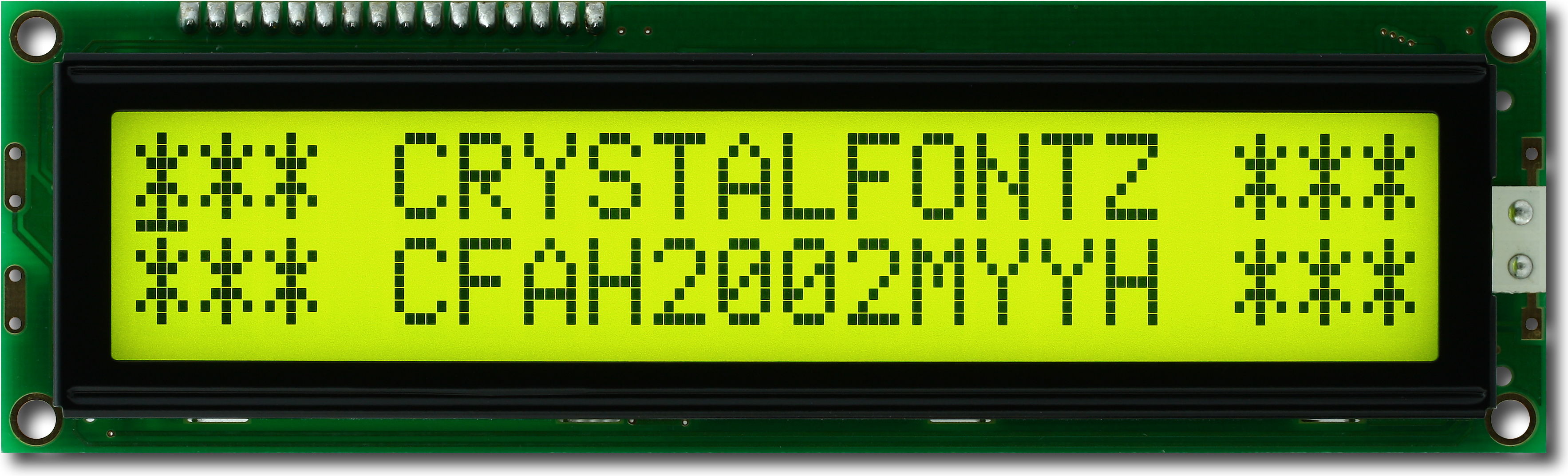

Dark on Yellow 20x2 Character LCD
Part Number: CFAH2002M-YYH-ET
Parallel 20x2 character LCD with a yellow-green LED backlight, STN positive, yellow-green glass, transflective polarizer and a -20°C to +70°C operating temperature range and 6 o'clock viewing direction.
Form compatible with the CFAG20232C Series of Graphic LCD modules. Give your product a midlife upgrade by replacing the CFAH2002M with a CFAG20232C.
Available in several variations of backlight and polarizer (minimum order may be required)
Large Characters
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible controller

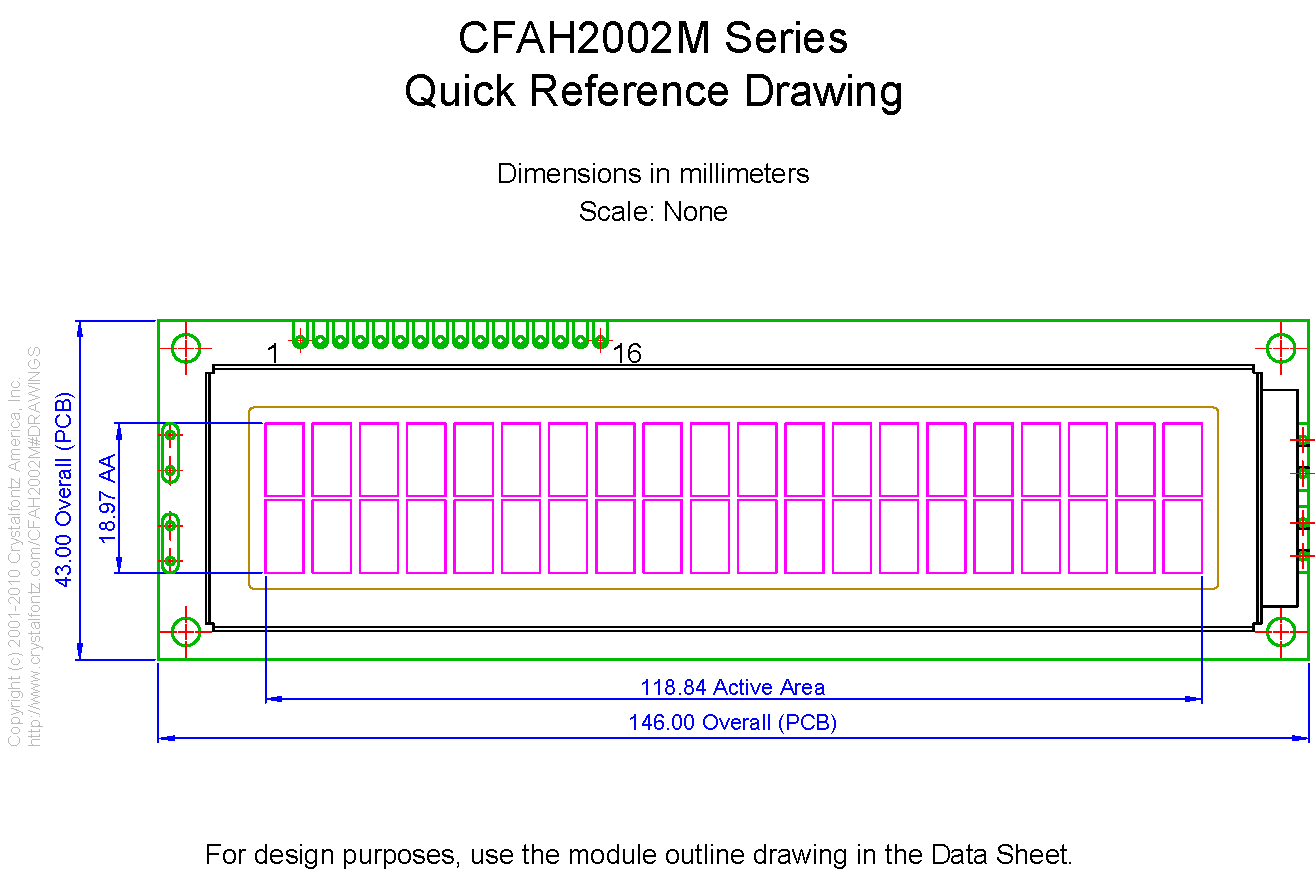

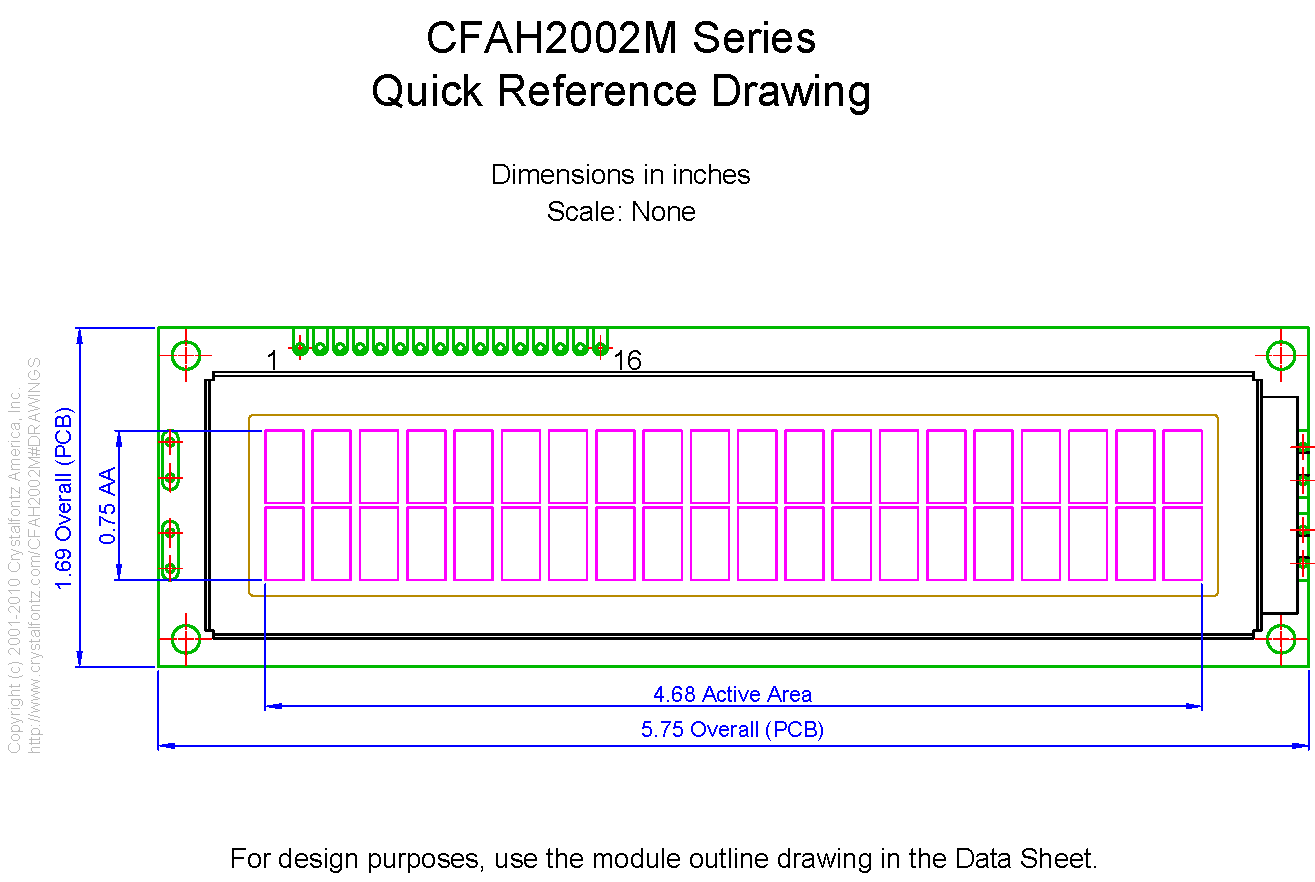

Module Metric Imperial
Overall Width
146.00 mm
5.748 in
Overall Height
43.00 mm
1.693 in
Overall Depth
13.70 mm
0.539 in
Diagonal Dimension
4.74 in
Weight
52 g
Shape
rectangle

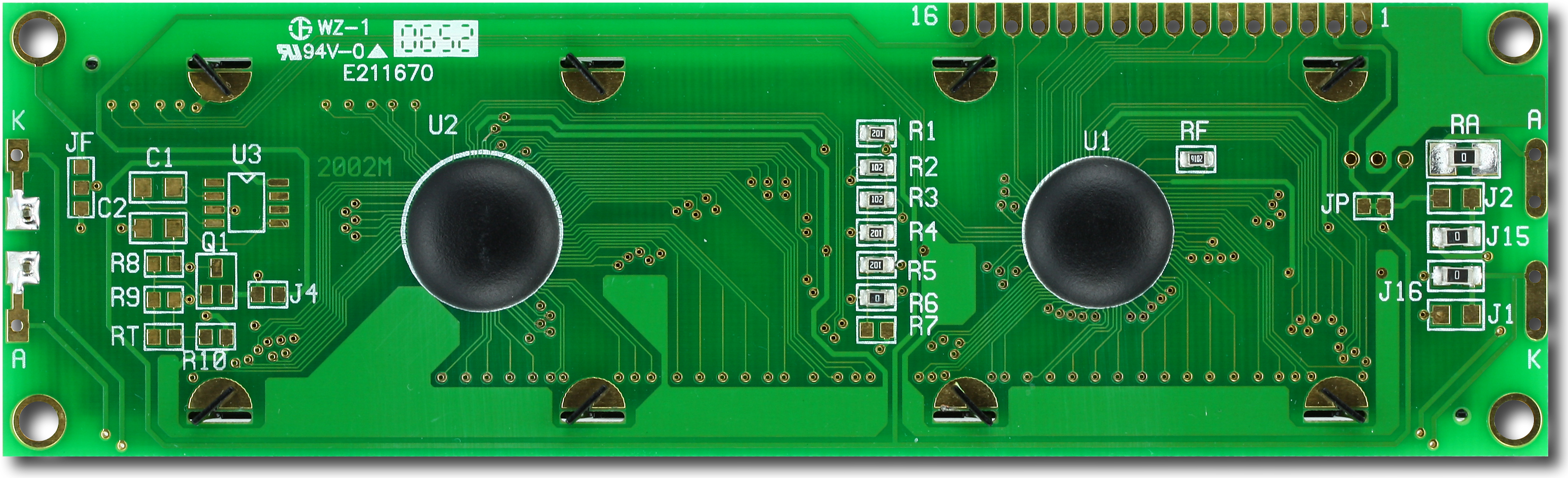

PCB Metric Imperial
PCB Width
146.00 mm
5.748 in
PCB Height
43.00 mm
1.693 in
PCB Depth
13.70 mm
0.539 in
Display Area Metric Imperial
Active Area Width
118.84 mm
4.679 in
Active Area Height
18.97 mm
0.747 in
Viewing Width
123.00 mm
4.843 in
Viewing Height
23.00 mm
0.906 in
Character Geometry Metric Imperial
Character Width
4.84 mm
0.191 in
Character Height
9.22 mm
0.363 in
Character Pitch Width
6.00 mm
0.236 in
Character Pitch Height
9.75 mm
0.384 in
Dot Geometry Metric Imperial
Dot Pitch Width
0.98 mm
0.039 in
Dot Pitch Height
1.16 mm
0.046 in
Dot Size Width
0.92 mm
0.036 in
Dot Size Height
1.10 mm
0.043 in
Connectors
Module Connector Type
Header
Module Connector Pitch
0.10 mm (0.00 in)
Pin Count
16
Technology
Display Technology
LCD
Display Addressing
Passive
Glass Type
STN
Mode
Transflective
Polarizer
Positive
Viewing
View Direction
6:00 o'clock
Brightness Rating
Sunlight
Display Colors
Foreground Color
Dark
Background Color
Yellow-Green
Glass Color
Yellow-Green
Backlight
Backlight Type
LED
Backlight Color
Yellow-Green
Display Min Typ Max Unit
Supply Voltage - Logic
Supply Voltage for Logic
4.5
5
5.5
V
Supply Voltage - Panel
Supply Voltage for Driving Panel
—
4.5
—
V
Supply Current
1
1.2
1.5
mA
Backlight Min Typ Max Unit
Voltage
Forward Voltage
3.9
4.2
4.5
V
Current
Forward Current
240
300
360
mA
Available Interfaces
Standard Interface(s)
8-bit Parallel, 4-bit Parallel
Temperature
Min (°C) Max (°C) Min (°F) Max (°F)
Operating Temperature
-20°C
70°C
-4°F
158°F
Storage Temperature
-30°C
80°C
-22°F
176°F
Humidity
Relative Humidity 0% to 90% RH (non-condensing)
