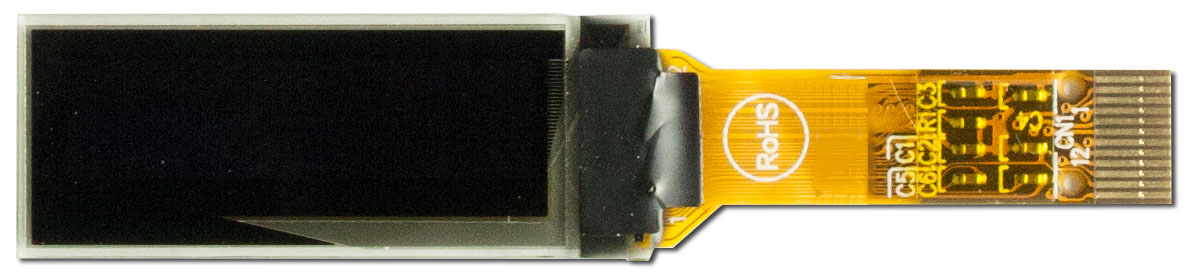

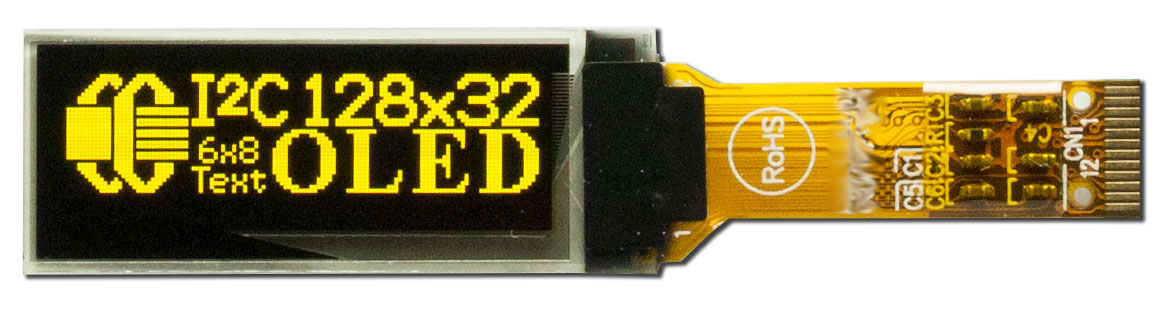

Small 128x32 Graphic OLED Display
Part Number: CFAL12832C0-091B-Y
This yellow-on-black

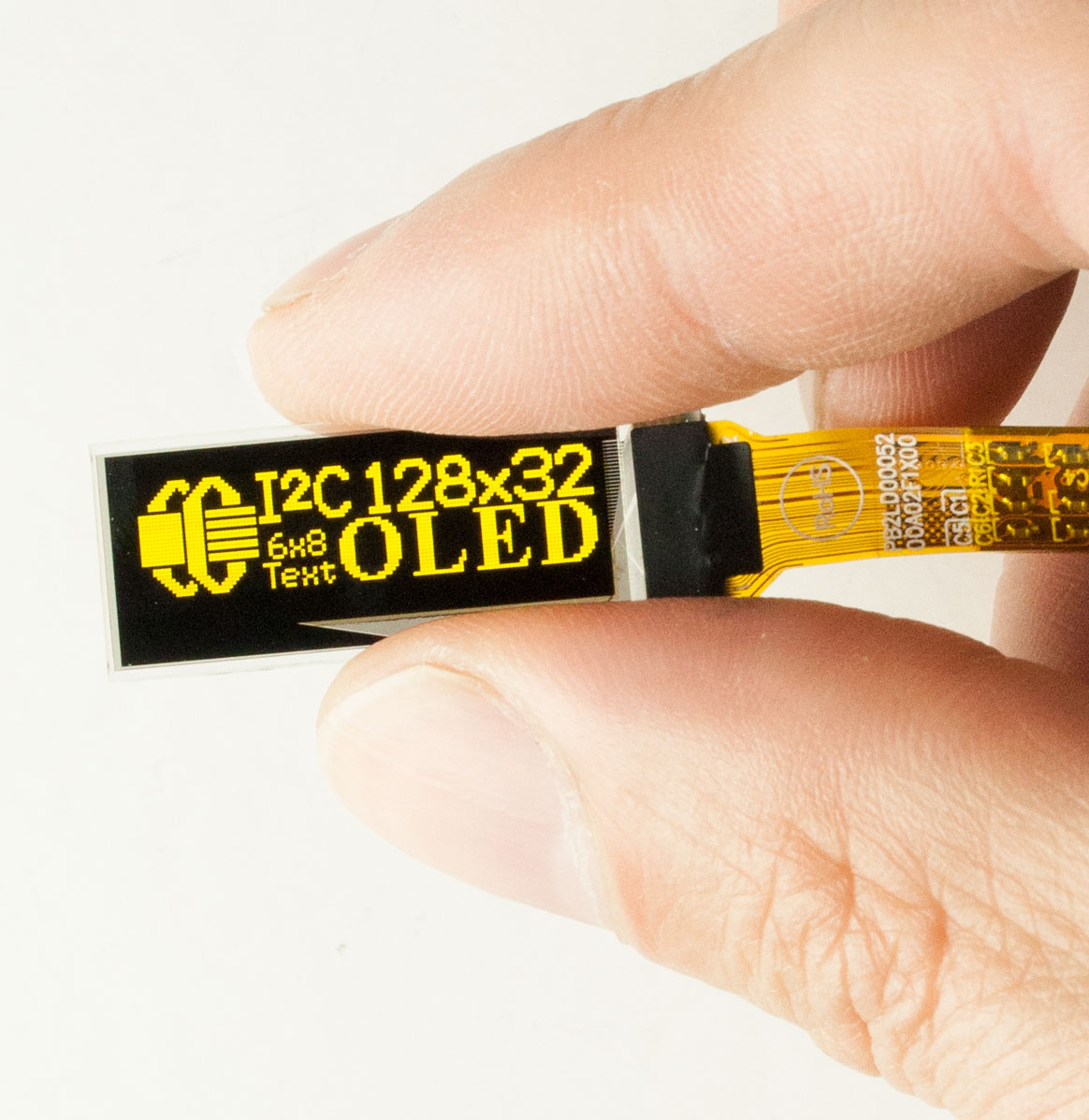

OLED is perfect for display panels that have little space and need a high resolution 128x32 graphic display. With a 24.38mm x 7.58mm viewing area, this is one of the smallest OLEDs available.
Thin form factor! 1.26mm
Solomon Systech SSD1306 or compatible controller communicates with I2C , 3-wire SPI , or 4-wire SPI
Only 3.3v

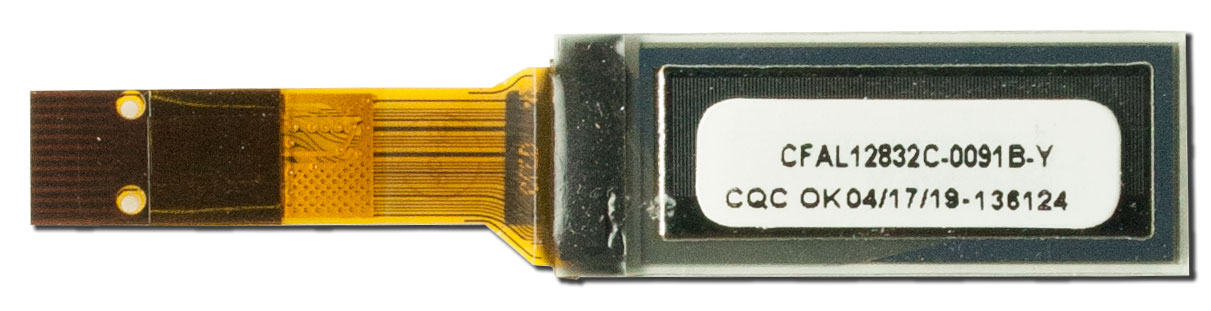

Easy ZIF connection. The FPC mates with a 12-pin ZIF connector, which can be processed through your normal SMT reflow.
The Solomon Systech SSD1306 controller needs only a single 3.3v supply for power and logic levels for communication, making it a top choice in low power or battery-powered applications. The 3 wire / 4 wire SPI or I2C serial interfaces require only 12 lines. Coupled with a ZIF connection (0.50mm pitch), connecting this module to your host device is a simple task.

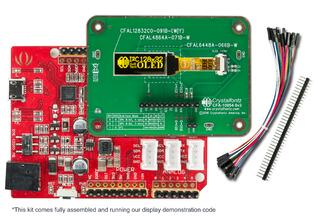

Do you need a carrier board to speed up your development? We have the
CFA10054 OLED carrier board for this display.
This small yellow OLED has the same connector as these other tiny OLED displays:
64x48 Small Graphic OLED and
Small 48x64 .71inch OLED Display .
Pixel Grid
Column Dots
128 px
Row Dots
32 px
Color

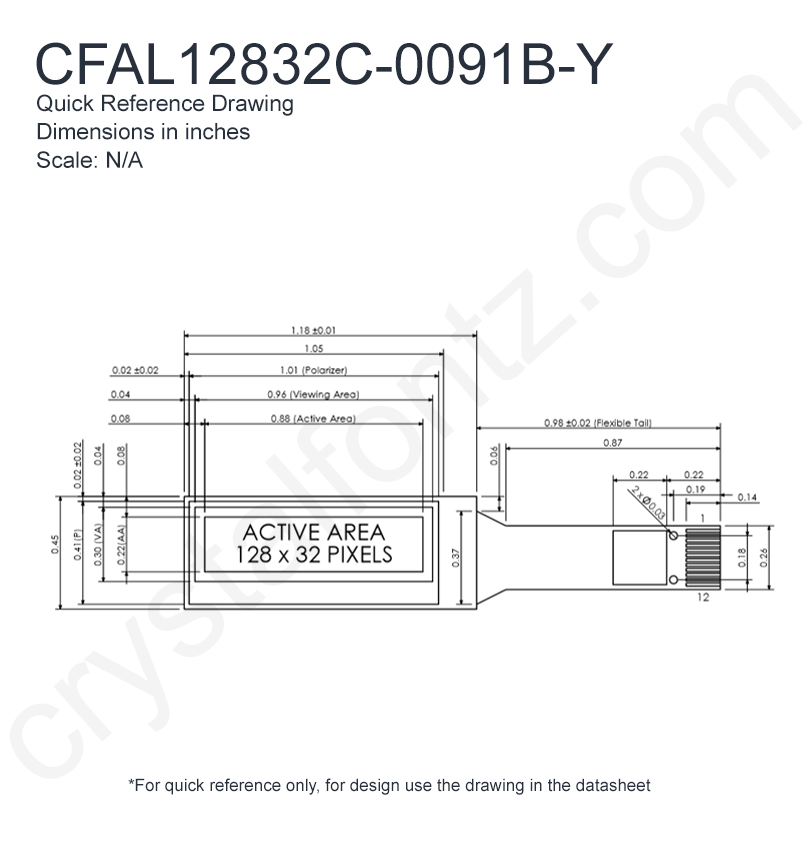

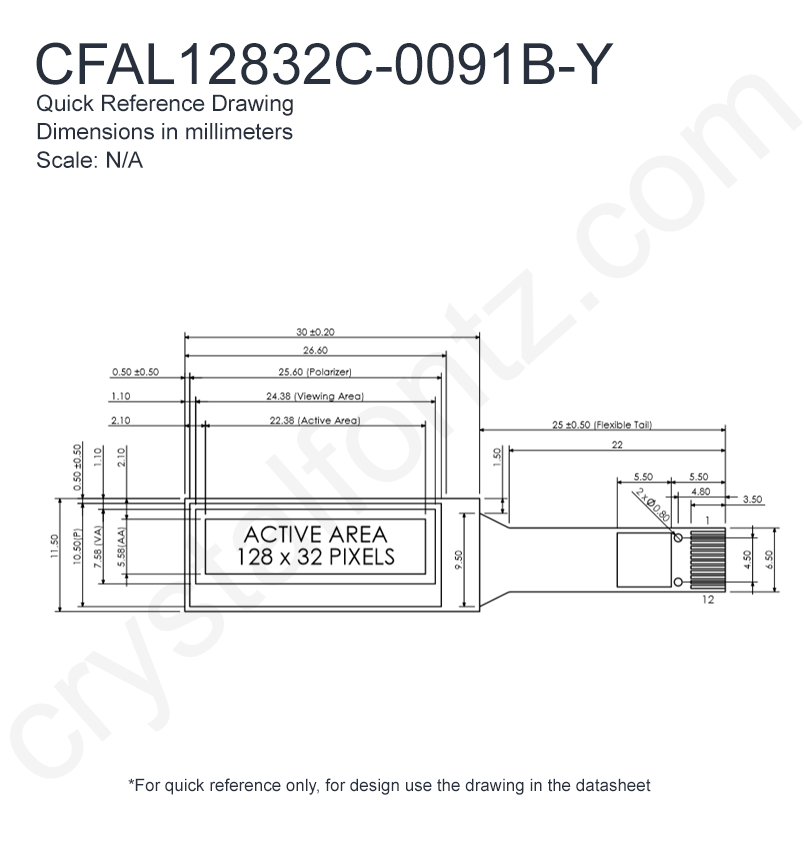

Module Metric Imperial
Overall Width
30.00 mm
1.181 in
Overall Height
11.50 mm
0.453 in
Overall Depth
1.26 mm
0.050 in
Diagonal Dimension
0.91 in
Weight
1 g
Shape
Rectangle
Display Area Metric Imperial
Active Area Width
22.38 mm
0.881 in
Active Area Height
5.58 mm
0.220 in
Viewing Width
24.38 mm
0.960 in
Viewing Height
7.58 mm
0.298 in
Character Geometry Metric Imperial
Character Width
0.15 mm
0.006 in
Character Height
0.15 mm
0.006 in
Dot Geometry Metric Imperial
Dot Pitch Width
0.18 mm
0.007 in
Dot Pitch Height
0.18 mm
0.007 in
Dot Size Width
0.15 mm
0.006 in
Dot Size Height
0.15 mm
0.006 in
Connectors
Module Connector Type
ZIF
Pin Count
0.5
Optional Connectors
CS050Z12GA0
Foldable Tab
Yes
Cable
Cable/FPC Length
22.00 mm (0.87 in)
Technology
Display Technology
OLED
Glass Type
OLED
Viewing
Display Colors
Foreground Color
Yellow
Background Color
Black
Glass Color
Black
Display Min Typ Max Unit
Supply Voltage - Logic
Supply Voltage for Logic
2.8
3.3
3.3
V
Supply Voltage - Panel
Supply Voltage for Driving Panel
—
3.3
—
V
Supply Current
—
13
16
mA
Available Interfaces
Standard Interface(s)
SPI, I2C
Temperature
Min (°C) Max (°C) Min (°F) Max (°F)
Operating Temperature
-40°C
80°C
-40°F
176°F
Storage Temperature
-40°C
80°C
-40°F
176°F
Datasheets Documents & Files
Additional Options
Purchase this display in a development kit to speed up your development time.
Product Affected:
CFAL12832C0-091B-Y
Date Issued:
April 4, 2025
Summary:
Parts Now Shipping per PCN 11331
Description:
Parts are now shipping per PCN 11331.
Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com .
Contact support@crystalfontz.com for any technical questions.
Products Affected:
CFAL12832C0-091B-Y, CFAL12832C0-091B-W, CFAL12832B-0091P-W, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2
Date Issued:
March 4, 2025
Summary:
OLED Panel Changing
Description:
The OLED panels used on these displays are changing to a different manufacturing process.
Reason:
The original OLED panels used on these displays have gone EOL.
Impact:
Materials remain the same
Dimensions remain the same
The black border which is not dimensioned is a little thinner
Availability:
Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
