64x48 Graphic OLED Development KitPart Number: CFAL6448A-066BW-E1-2

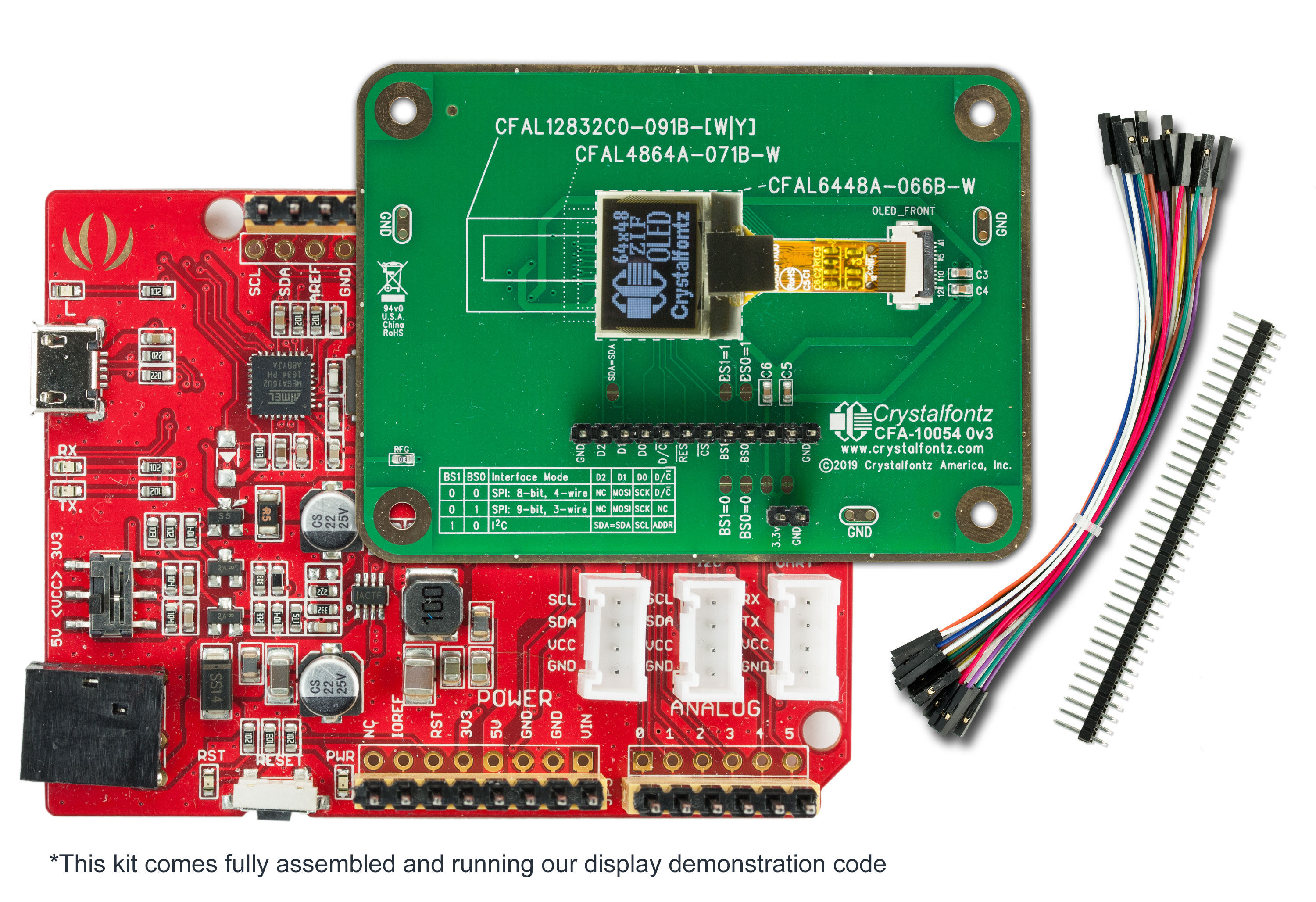

         The development kit is perfect for getting started with the white SPI/I2COLED display. The kit includes the display connected the CFA10054 breakout board, all wired up to a Seeeduino running demo code. Just supply power via a USB cable to see the display in action.

This kit contains:
White OLED display (CFAL6448A-066BW)
OLED breakout board (CFA10054)
Seeeduino
Jumper wires (as needed)
Headers (as needed)
Demo Code pre loaded

OLED Breakout Board Features
PCB jumpers allow quick configuration for 3-wire SPI, 4-wire SPI, or I2C interface
Two 12 pin 0.10" ZIF connectors enable mounting a display on the front or back.
Four 3.2mm diameter mounting holes
Headers for easy connection

OLED Display Features:
Small form factor (0.66" diagonal)
Solomon Systech SSD1306 or compatible controller
Only 3.3v
Easy ZIF tail
Product Variations

 square_foot Physical Characteristics
Physical Characteristics

        Weight
            52.4g

 picture_as_pdf Datasheets
picture_as_pdfCFA10054 Datasheet

picture_as_pdfCFAL6448A-066BW Datasheet

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $34.13

54 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

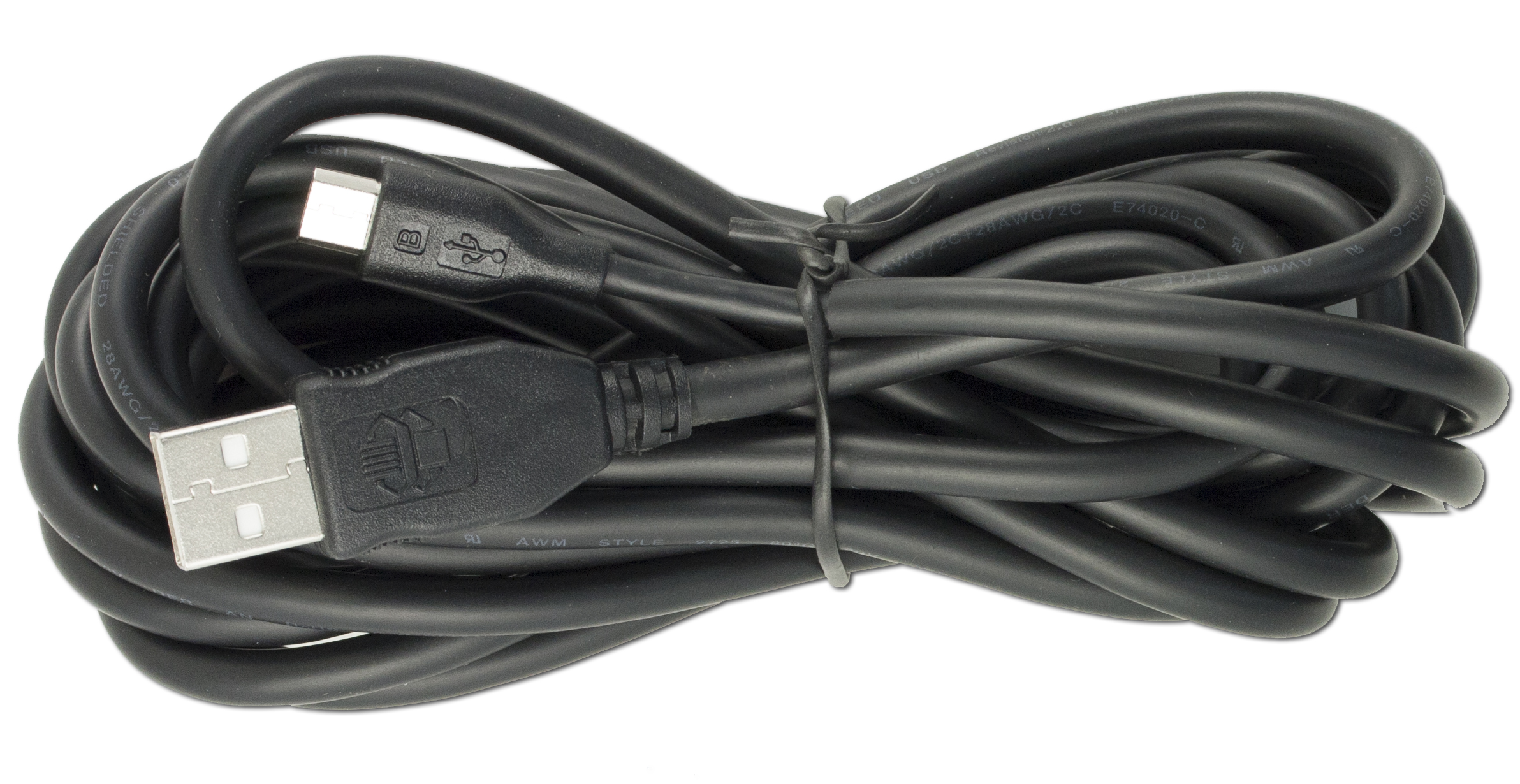

						10 Foot USB Cable
Need a long USB Cable? (10ft) $6.90 ea.

						USB-A to Micro-B Cable
Need a USB Cable? $5.75 ea.

Quantity	Unit Price
1	$34.13

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11298: Traces on Glass Modification

Products Affected:	CFAL6448A-066BW, CFAL6448A-066BW-E1-2
Date Issued:	October 15, 2024
Summary:	Traces on Glass Modification
Description:	The traces on the glass are being modified. All dimensions noted in the datasheet remain the same.
Reason:	The traces are being modified to improve reliability and quality.
Impact:	No known impact
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11197: New Seeeduino Version 4.3 Now Shipping

Products Affected:	CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued:	May 15, 2023
Summary:	New Seeeduino Version 4.3 Now Shipping
Description:	We are now releasing products as stated in PCN11190. https://www.crystalfontz.com/news/pcn.php?id=11190

Part Change Notice #11190: Part Change - Seeeduino 4.2 ->4.3

Products Affected:	CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued:	April 13, 2023
Summary:	Part Change - Seeeduino 4.2 ->4.3
Last revision:	4.2
Description:	Seeed Studios has updated the Seeeduino from v4.2 to v4.3. This change switches from the ATMEGA328P-MU to the ATMEGA328P-AU, and replaces the serial chip. This causes the Seeeduino to identify differently when connected to a computer.
Reason:	Supplier has changed their offering
Impact:	Kits using the Seeeduino will no longer be named "USB Serial Device"
Availability:	Immediate

Part Change Notice #11140: 64x48 Graphic OLED Development Kit is now available!

New Product:	CFAL6448A-066BW-E1-2
Date Issued:	July 7, 2022
Summary:	64x48 Graphic OLED Development Kit is now available!
Description:	CFAL6448A-066BW-E1-2 has been released on our website (https://www.crystalfontz.com/product/cfal6448a066bwe12-64x48-graphic-oled-dev-kit) and is now available for sale. Orders can be placed directly from the website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
