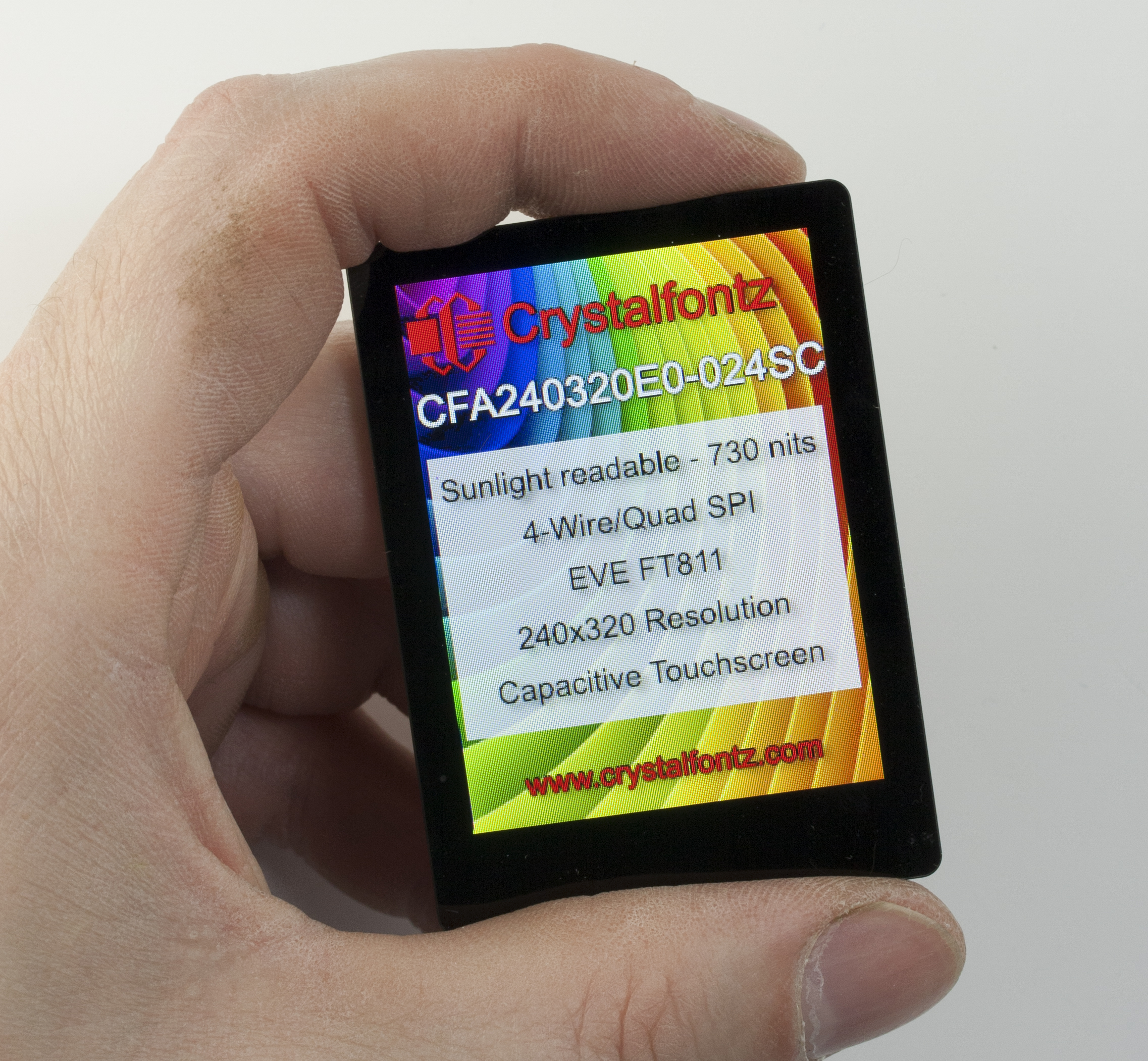

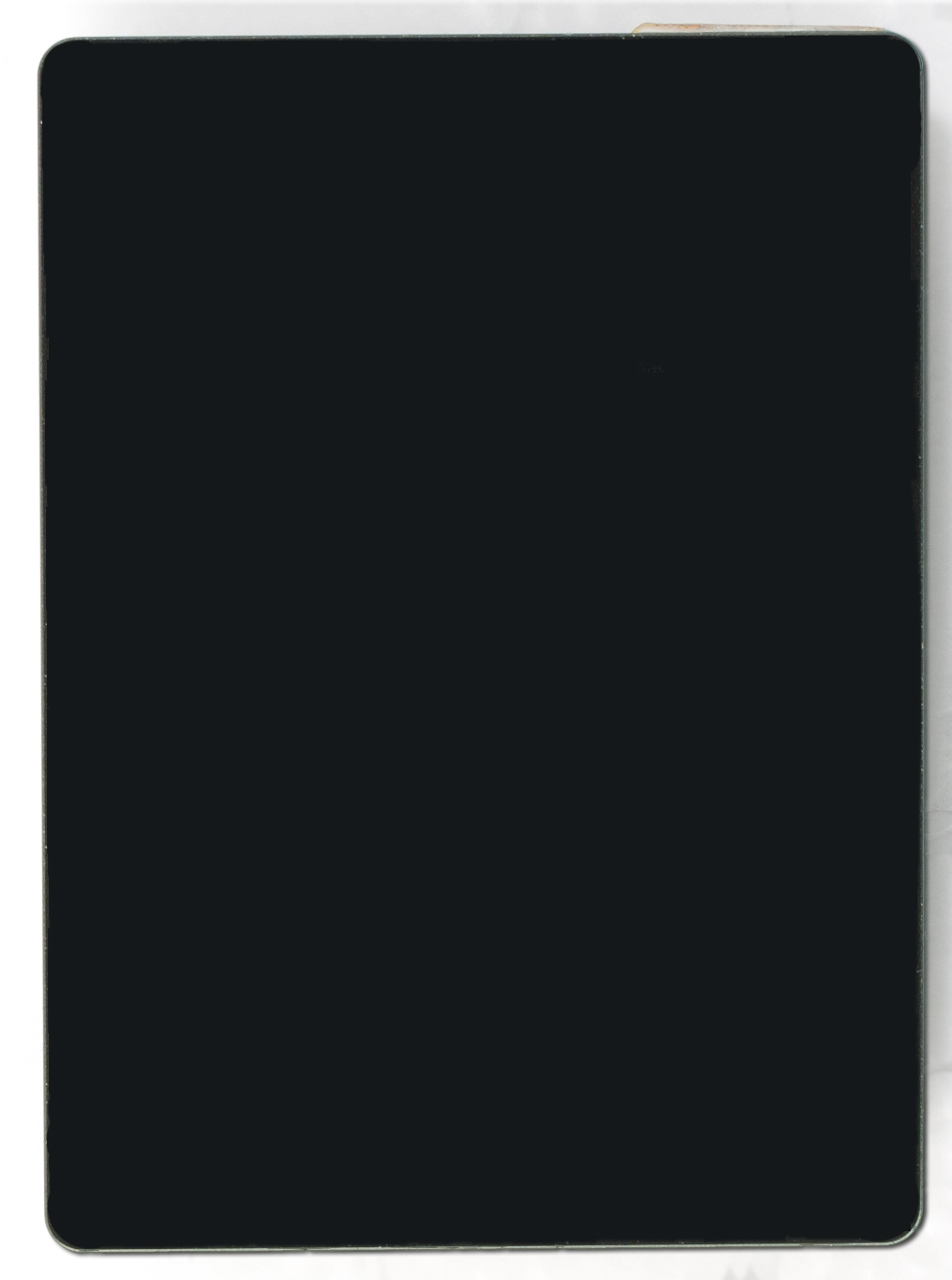

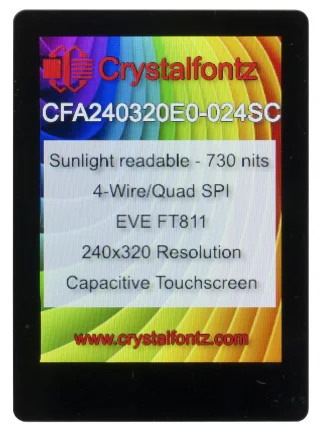

240x320 EVE 2.4" Capacitive Touchscreen LCD Display

Part Number: CFA240320E0-024SC

Are you looking for a small touch display to act as a human-machine interface for your product? This display module has it all!

The embedded EVE graphics accelerator chip simultaneously handles the display, touch, and audio functionality, lowering the development burden. The capacitive touchscreen overhangs the LCM making this display look fresh and clean when integrated into a product. The small TFT screen packs a punch. It's sunlight-readable, has a high pixel density, and displays vibrant colors.

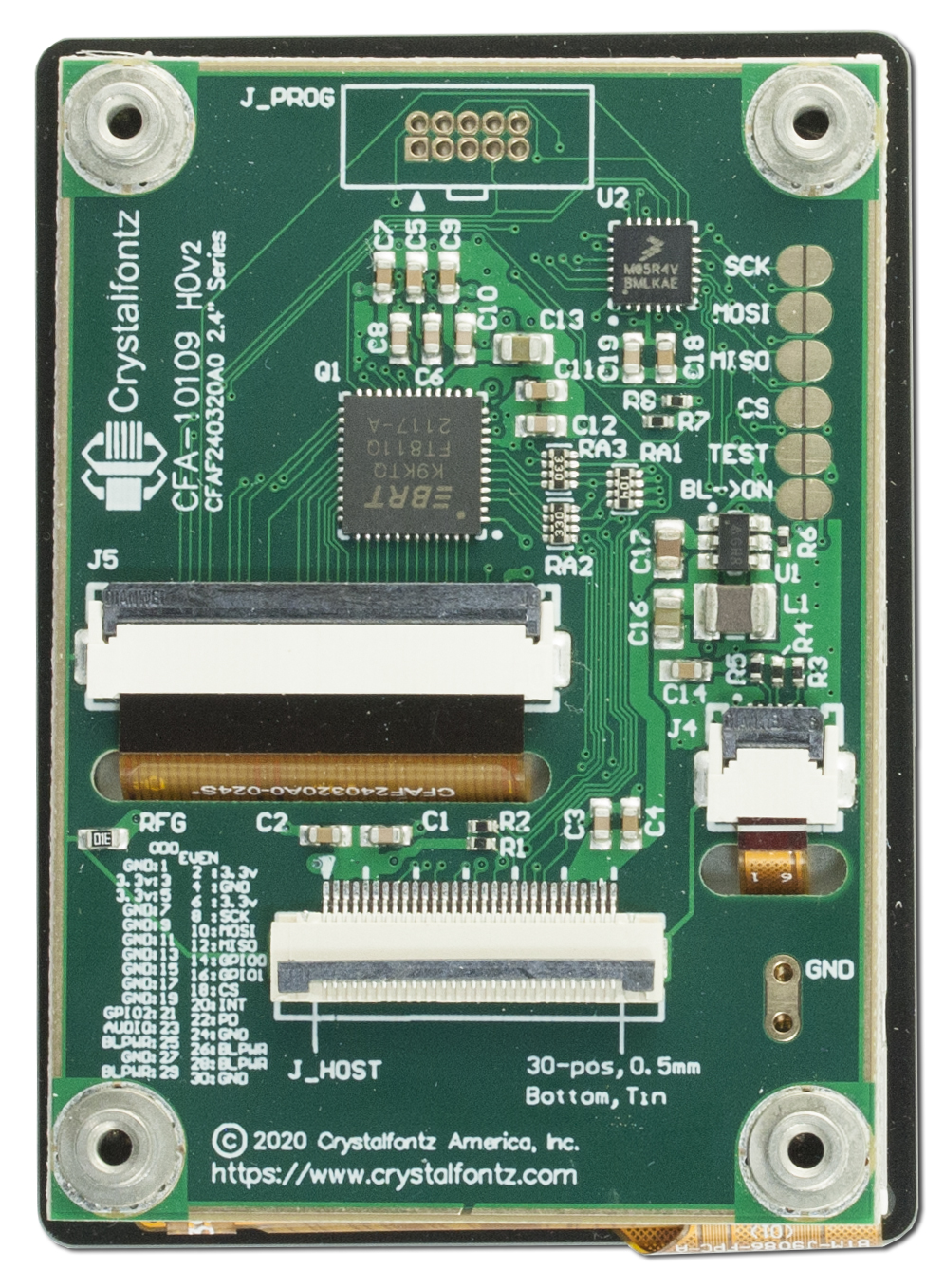

This module comprises our 2.4" Full-Color Capacitive Touchscreen TFT attached to an EVE accelerated board. Connect with this module using a simple 30-pin FFC ZIF connection.

Key Features:
  • Graphics accelerating FT811 chip for easy graphics control
  • Capacitive Touch (5 points)
  • Sunlight Readable
  • SPI interface
  • IPS
  • Full color TFT
  • 4 x 2-56 Threaded mounting standoffs for simple mechanical design
  • 30-pin FFC ZIF Connection
EVE Graphics Accelerator Features:
  • Support multiple widgets for simplified design implementation
  • Recognize touch tags and track touch movement
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects for higher-quality graphics
  • Graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
  • Programmable interrupt controller provides interrupts to host MCU
  • Support playback of motion-JPEG encoded AVI videos
  • Mono audio channel output with wave playback and built-in sound synthesizer
  • PWM output for display backlight dimming control
For more detailed information on EVE, see the FTDI FT81x Datasheet. Further information including programming examples, interface design software, and more can be found on Bridgetek's website here: https://brtchip.com/ic-module/product/ft811/

This part is a direct replacement for the CFAF240320A0-024SC-A1-1. See Part Change Notice #11100.

View all of our EVE Display modules.

Currently Shipping: HW Version 0v2, Firmware Version: 0v1

Part Number:
CFA - Crystalfontz (no 4th letter indicates a display with value added)
240320 - Pixel Resolution
E - EVE
0 - Revision
024 - 2.4" Diagonal
S - Sunlight Readable
C - Capacitive Touch
Qty:
Quantity Price
1 $73.67
5 $61.51
10 $59.89
20 $57.87
50 $55.84
100 $55.04
200 $54.64
300 $54.22
500 * $53.82
1000 * $53.42
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Add 5 ZIF Connectors $0.61 ea.
4606 6-inch 30-pin FFC Cable
Need a FFC Cable? $2.30 ea.
4665 Assorted Imperial Screws
Add mounting screws? $3.08 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA240320E0-024SC or RSS RSS feed for changes to CFA240320E0-024SC for CFA240320E0-024SC

TECHNICAL SPECS

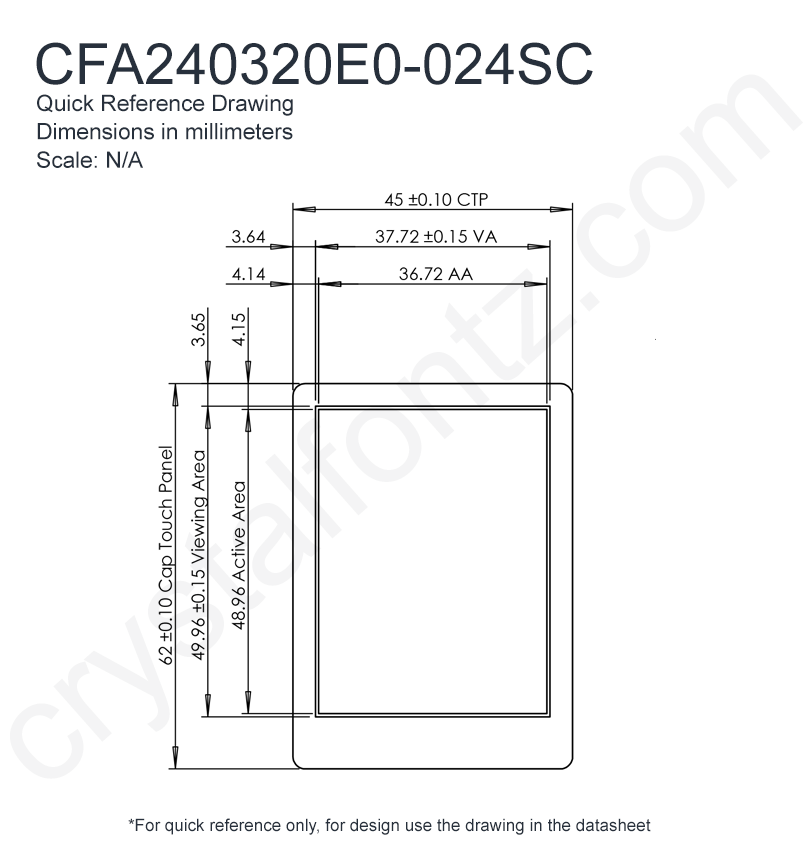

Physical Characteristics

Column Dots x Row Dots 240 x 320
Module Overall width height depth
millimeters 45 62 7.56
inches 1.772 2.441 0.298
Diagonal Dimension 2.4"
Viewing Area width height
millimeters 37.72 49.96
inches 1.485 1.967
Active Area width height
millimeters 36.72 48.96
inches 1.446 1.928
Dot Pitch width height
millimeters 0.153 0.153
inches 0.0060 0.0060
Weight 28g
Pin Count 30

Optical Characteristics

Glass Type TFT
Polarizer Transmissive
View Angle 80°
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.97V
Supply Voltage for Logic Maximum 3.63V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3.3V
Supply Current Maximum 70mA
Supply Current Typical 54mA
Module Connector Pitch 0.5mm

Backlight Electrical Specifications

Forward Voltage Minimum 2.7V
Forward Voltage Maximum 5.5V
Forward Voltage Typical 3.3V
Forward Current Maximum 166mA
Forward Current Typical 106mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface SPI

Miscellaneous

Nits 730
Touch Screen Capacitive

Additional Options

Purchase with a microcontroller for a complete development kit.

The WRFFCY50 used in this build will be on backorder until the end of July, 2023. A longer (300mm) cable, WRFFCY51, can be used in it's place. Contact sales@crystalfontz.com to replace the WRFFCY50 cable with the readily available WRFFCY51.

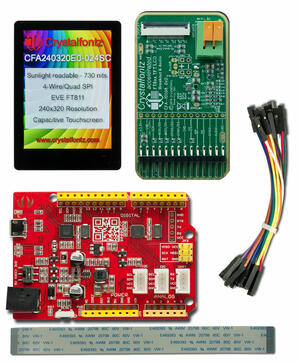

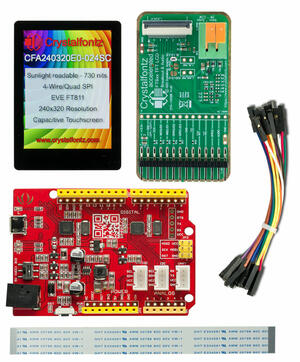

240x320 2.4" Touchscreen EVE Development Kit
Part Number: CFA240320E0-024SC-KIT

This is the full development kit for our 2.4" EVE display. This kit includes the 2.4" EVE module, connected to a Seeeduino (via our EVE breakout board) and running demonstration code.

This kit is perfect for demonstrating either the 2.4" EVE module or the 2.4" standalone display. It includes everything needed to demo the displays: plugging the Seeeduino to power and supplying 3.3V to the 10098 will start to show a demonstration on the display.

Some special features:

  • Graphics accelerating FT811 chip for easy graphics control
  • Capacitive Touchscreen
  • Sunlight Readable
  • SPI interface
  • IPS
  • Full-color TFT
  • Seeeduino demo kit running a demonstration program
  • EVE chip that supports the display, touch, and audio functionality
Included in this kit:
This part is a direct replacement for the CFAF240320A0-024SN-A1-1. See Part Change Notice #11100.

View all of our EVE Accelerated TFT Modules.

Details
Quantity 1
Price $107.41
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA240320E0-024SC or RSS RSS feed for changes to CFA240320E0-024SC

Product Update #11126: This 240x320 EVE Capacitive Touchscreen Display is Available to Order!

New Product: CFA240320E0-024SC
Date Issued: June 2, 2022
Summary: This 240x320 EVE Capacitive Touchscreen Display is Available to Order!
Description: CFA240320E0-024SC has been released on our website and is now available for sale. Orders can be placed directly from the website (https://www.crystalfontz.com/product/cfa240320e0024sc-240x320-eve-touchscreen-display) or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
