240x320 2.4" Touchscreen EVE Development Kit

Part Number: CFA240320E0-024SC-KIT

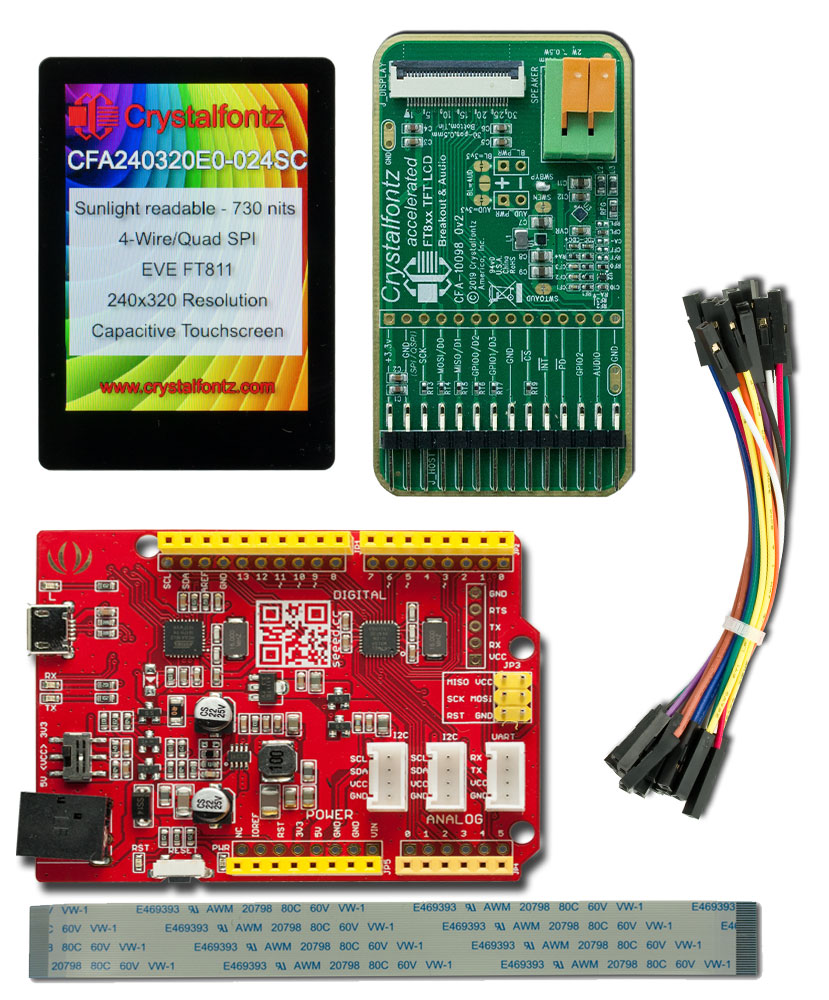

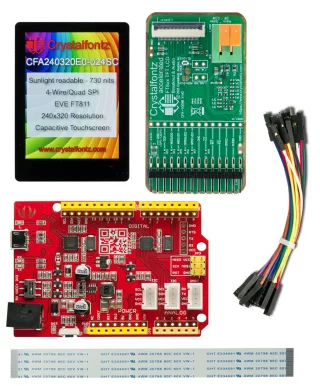

This is the full development kit for our 2.4" EVE display. This kit includes the 2.4" EVE module, connected to a Seeeduino (via our EVE breakout board) and running demonstration code.

This kit is perfect for demonstrating either the 2.4" EVE module or the 2.4" standalone display. It includes everything needed to demo the displays: plugging the Seeeduino to power and supplying 3.3V to the 10098 will start to show a demonstration on the display.

Some special features:
  • Graphics accelerating FT811 chip for easy graphics control
  • Capacitive Touchscreen
  • Sunlight Readable
  • SPI interface
  • IPS
  • Full-color TFT
  • Seeeduino demo kit running a demonstration program
  • EVE chip that supports the display, touch, and audio functionality
Included in this kit:
This part is a direct replacement for the CFAF240320A0-024SN-A1-1. See Part Change Notice #11100.

View all of our EVE Accelerated TFT Modules.

Qty:
Quantity Price
1 $107.41
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Components worth considering
4665 Assorted Imperial Screws
Add mounting screws (assortment) $3.08 ea.

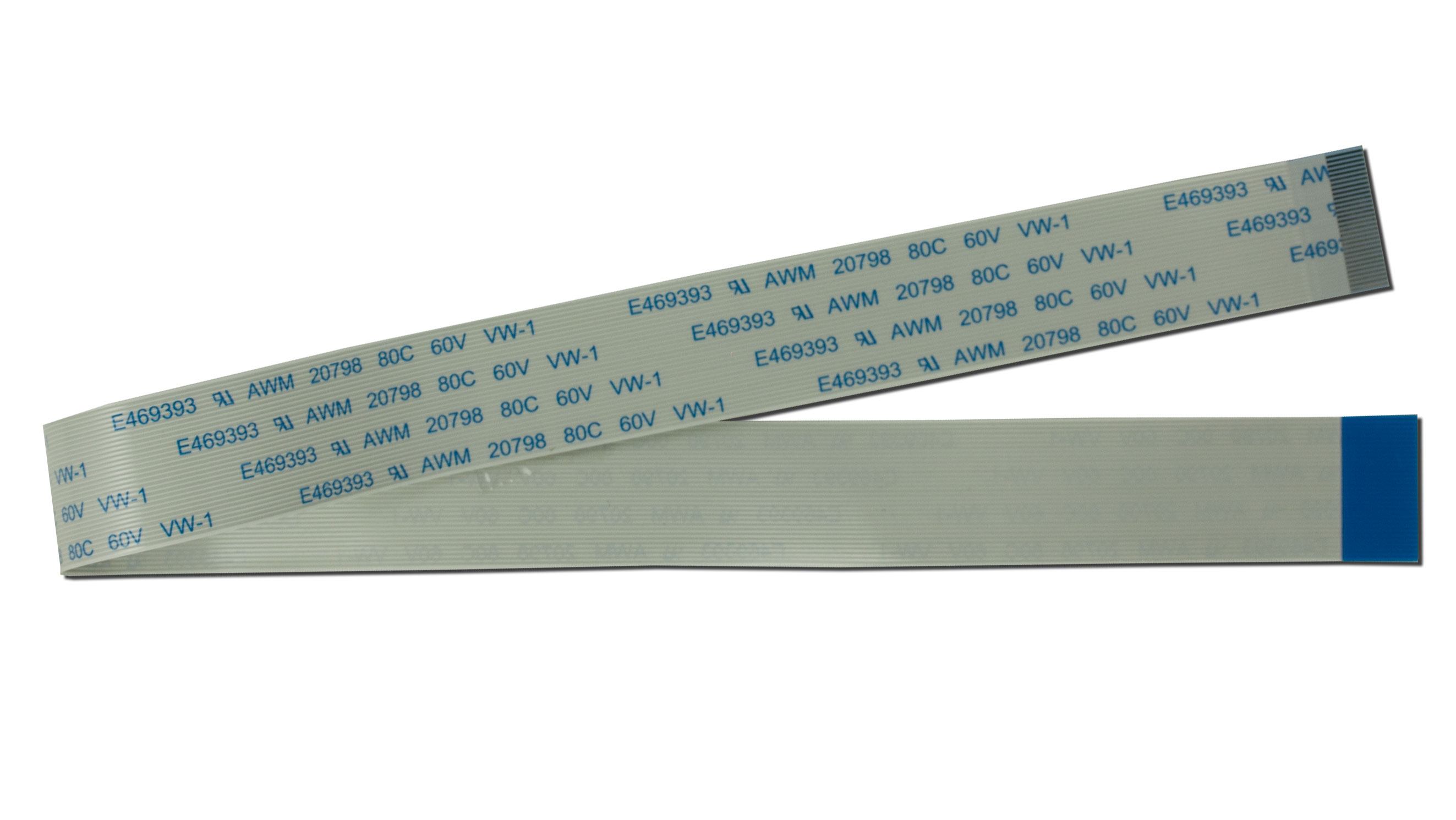

4607 12-inch 30-pin FFC
Need an additional ribbon cable? $2.30 ea.

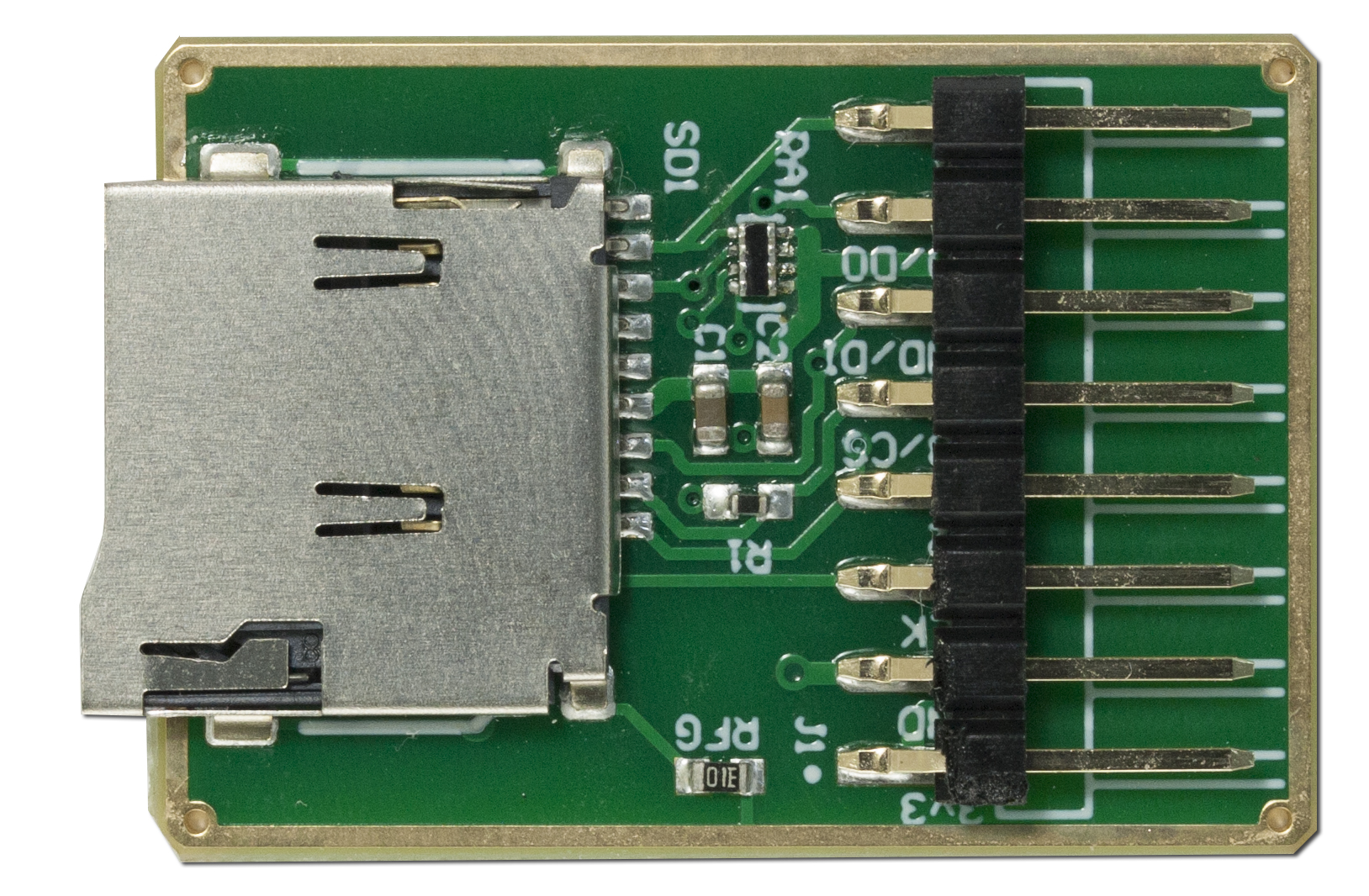

4701 MicroSD Card Reader
Want a SDCard Reader? $9.89 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA240320E0-024SC-KIT or RSS RSS feed for changes to CFA240320E0-024SC-KIT for CFA240320E0-024SC-KIT

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 240 x 320
Diagonal Dimension 2.4"
Weight 64.3g
Pin Count 30

Optical Characteristics

Polarizer IPS
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA240320E0-024SC-KIT or RSS RSS feed for changes to CFA240320E0-024SC-KIT

Product Update #11220: Changing Manufacturing Facility

Products Affected: WR-FFC-Y50, CFAF320240F-035T-TS-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480-E3050SR-KIT, CFA800480E3-050SW-KIT
Date Issued: August 7, 2023
Summary: Changing Manufacturing Facility
Description: The WR-FFC-Y50 will be manufactured at a different facility. There are no changes to the functionality of the Flat Flex Cable.
Reason: Continuous improvement
Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11202: Audio Power Supply Removed

Products Affected: CFA10098, CFAF240400C0-030SC-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480-E3050SR-KIT, CFA800480E3-050SW-KIT
Date Issued: May 25, 2023
Summary: Audio Power Supply Removed
Description: The audio power supply has been removed from the board. Audio power will now only be able to be supplied externally.

Hardware Version Changes: h0v2 to h1v0
Reason: The audio power supply chip is no longer available and it was determined that it would be better for external power supplies to be used to demonstrate the EVE's audio capabilities.
Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11197: New Seeeduino Version 4.3 Now Shipping

Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued: May 15, 2023
Summary: New Seeeduino Version 4.3 Now Shipping
Description: We are now releasing products as stated in PCN11190.
https://www.crystalfontz.com/news/pcn.php?id=11190

Part Change Notice #11190: Part Change - Seeeduino 4.2 ->4.3

Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued: April 13, 2023
Summary: Part Change - Seeeduino 4.2 ->4.3
Last revision: 4.2
Description: Seeed Studios has updated the Seeeduino from v4.2 to v4.3. This change switches from the ATMEGA328P-MU to the ATMEGA328P-AU, and replaces the serial chip. This causes the Seeeduino to identify differently when connected to a computer.
Reason: Supplier has changed their offering
Impact: Kits using the Seeeduino will no longer be named "USB Serial Device"
Availability: Immediate

Product Update #11128: CFA240320E0-024SC-KIT now available.

Product Affected: CFA240320E0-024SC-KIT
Date Issued: June 9, 2022
Summary: CFA240320E0-024SC-KIT now available.
Description: CFA240320E0-024SC-KIT has been released on our website (https://www.crystalfontz.com/product/cfa240320e0024sckit-240x320-eve-touchscreen-dev-kit) and is now available for sale. Orders can be placed directly from the website or by submitting a purchase order to sales@crystalfontz.com. Contact support for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
