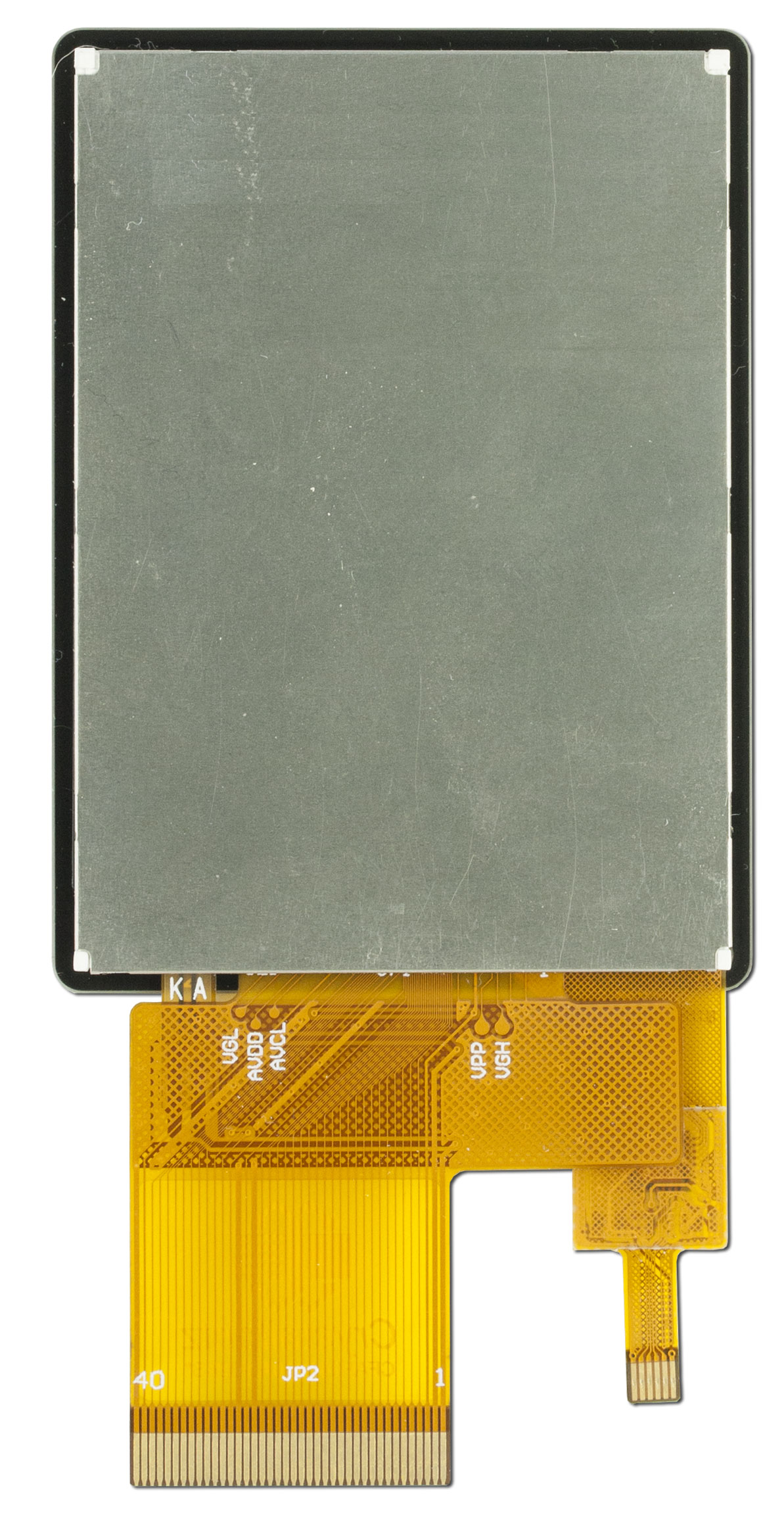

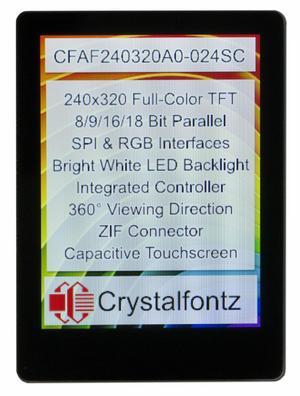

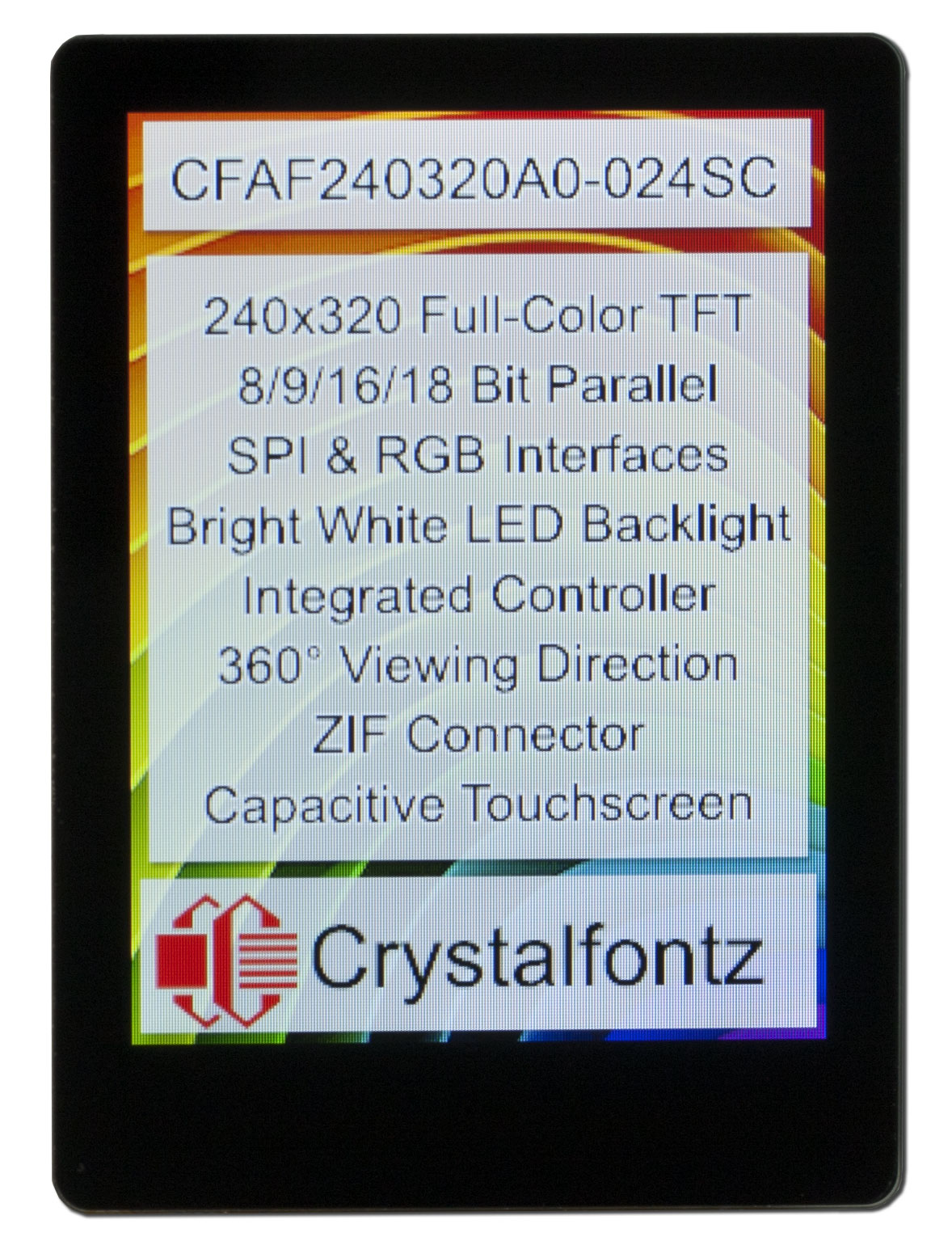

2.4" Full-Color Capacitive Touchscreen TFT

Part Number: CFAF240320A0-024SC

This beautiful, bright, full-color display supports up to five distinct touches at a time! This touchscreen technology is referred to as a "One Glass Solution" since the touchscreen functionality is built into the glass rather than adding an additional touchscreen over the top, like traditional touchscreens. This means there is one less layer light needs to get through before hitting your eye; providing for a crisper looking display with less diffusion.

It’s sunlight-readable with 730 nits and extremely affordable, making it a great choice for any project. At 2.4" diagonal, this display is fairly compact but still has the space and resolution for just about anything you’d want to display.

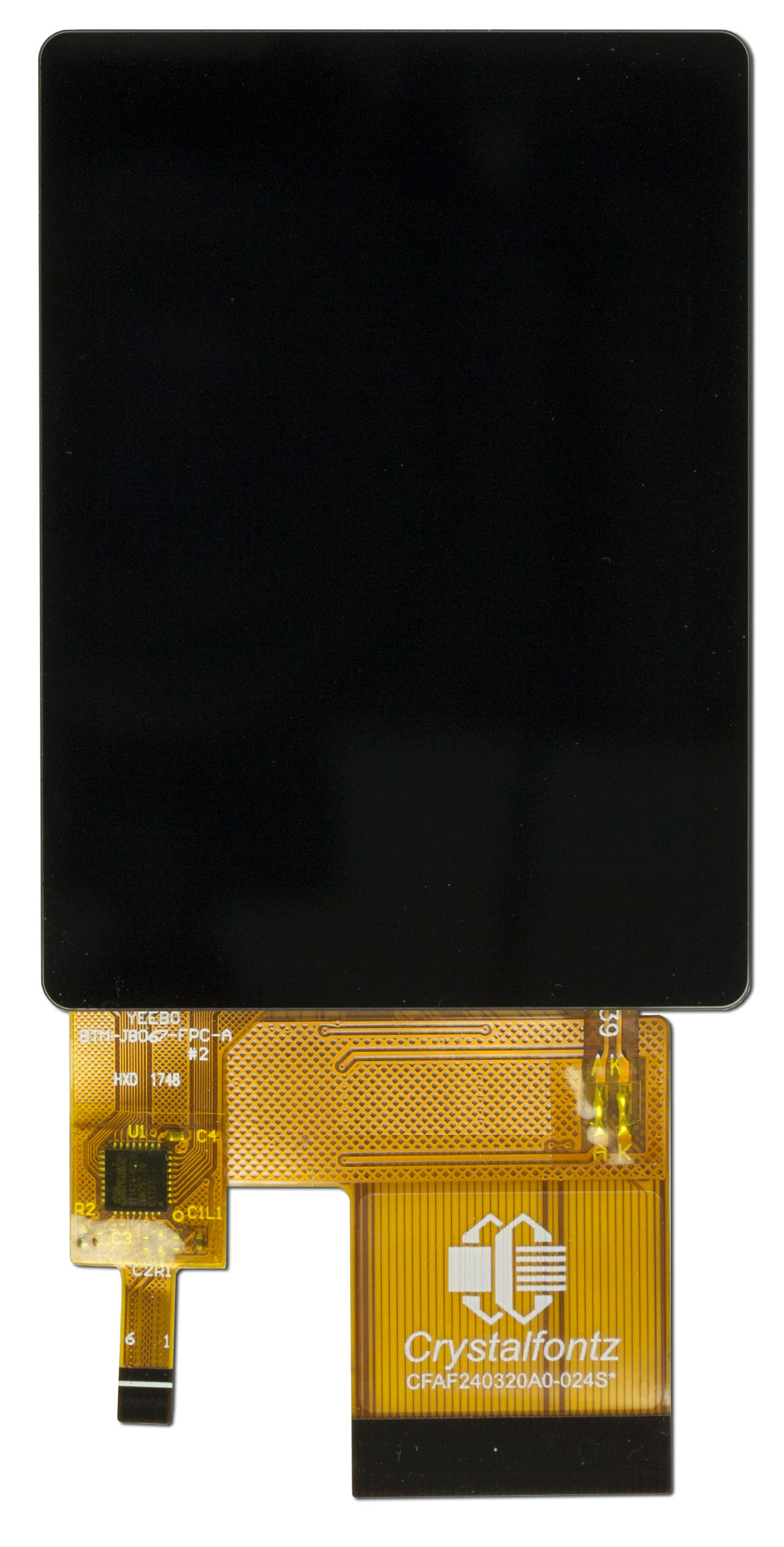

The capacitive touch glass overhangs the display for easy mounting. This will make it simple for you to have a polished final product with less work. The capacitive touchscreen communicates to the controller via I2C and has an interrupt pin to notify the host of a touch. Check out our demo code for a jumping-off point for using a touchscreen in your product or project.

The display is capable of communication via 8080 parallel (8/9/16/18 bit), RGB and SPI (3- or 4-wire).

Here you can download the touchscreen controller datasheet

Product Variants


16-bit Parallel / 18-bit Parallel / 8-bit Parallel / 9-bit Parallel / DOT-CLK interface / Generic RGB / SPI

CFAF240320A0-024SN240x320 2.4 Inch Full-Color TFT
CFAF240320A0-024SC2.4" Full-Color Capacitive Touchscreen TFT
CFAF240320A0-024SR240x320 2.4" Resistive Touchscreen TFT Display
2.4" Full-Color Capacitive Touchscreen TFT (CFAF240320A0-024SC)
Qty:
Quantity Price
1 $20.22
10 $17.58
20 $17.01
50 $16.42
100 $16.18
200 $15.95
300 $15.82
500 $15.71
1000 * $15.59
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4637 40 Position, 0.50mm Pitch, Gold, FCC FPC ZIF connector
Add 5 ZIF Connectors $1.45 ea.
4672 6 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Need a ZIF for the touchscreen? $0.40 ea.
4740 240x320 EVE 2.4" Capacitive Touchscreen LCD Display
Integrate with an EVE $73.67 ea.
4741 240x320 2.4" Touchscreen EVE Development Kit
Buy a complete EVE dev kit $107.41 ea.
4828 6-Position ZIF Breakout Board
Add a 6-position breakout board? $6.08 ea.
4832 40-Position ZIF Breakout Board
Add a 40-pin ZIF Breakout Board? $6.43 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF240320A0-024SC or RSS RSS feed for changes to CFAF240320A0-024SC for CFAF240320A0-024SC

Compliance Documents

Video Demonstrations

This is a Capacitive Touch 2.4" IPS TFT designed for embedded systems. This wide viewing angle IPS display can be used in any orientation--landscape or portrait. The backlight is 730 nits (cd/m2) so it can be used in most lighting conditions.

TECHNICAL SPECS

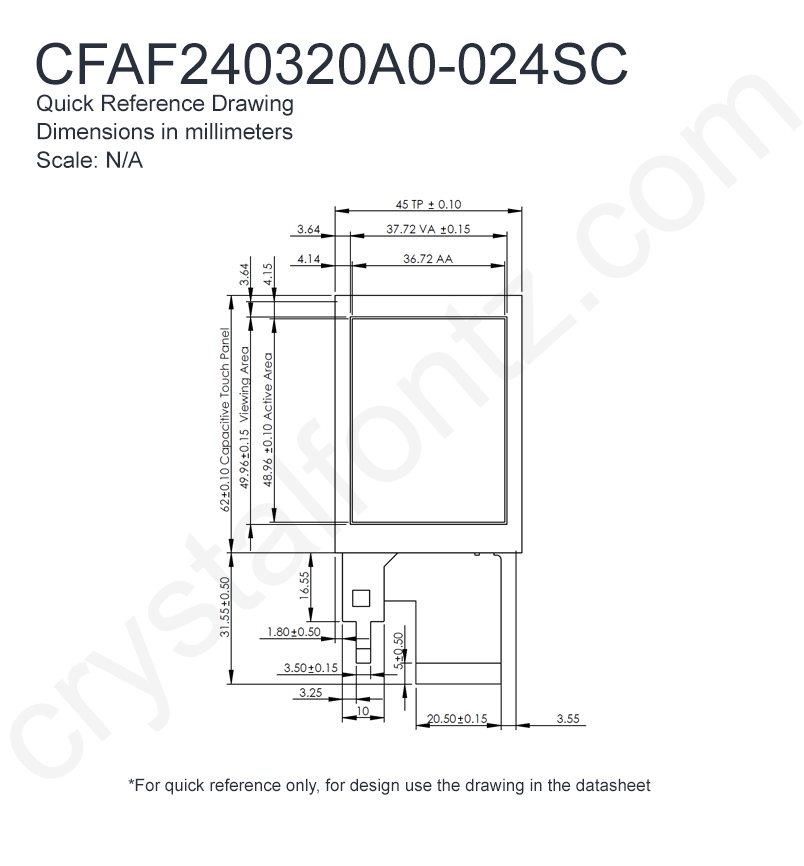

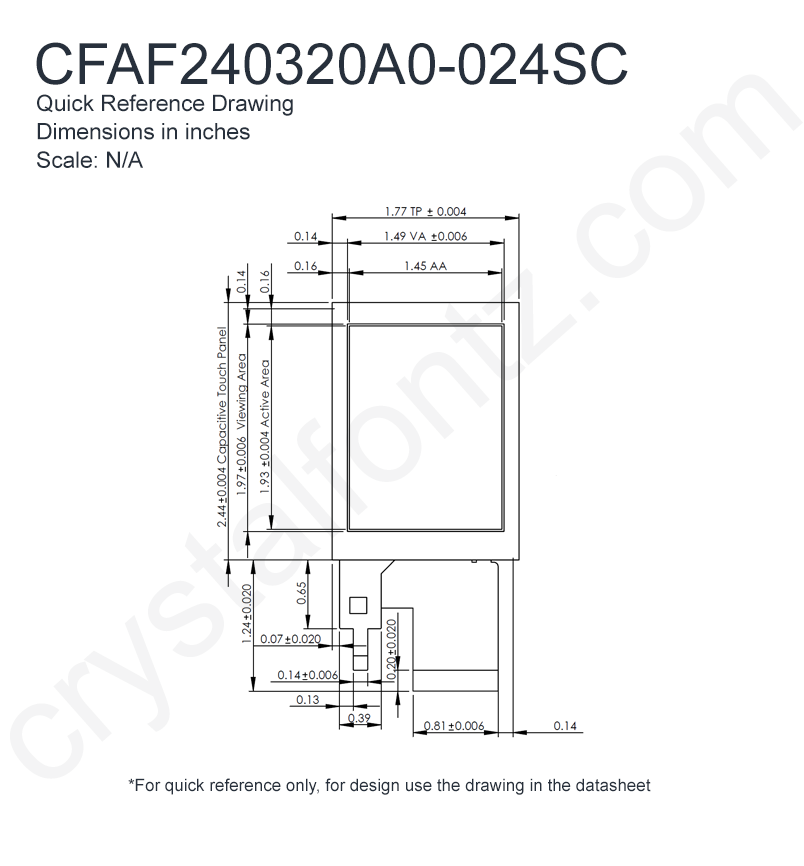

Physical Characteristics

Column Dots x Row Dots 240 x 320
Module Overall width height depth
millimeters 45 62 2.97
inches 1.772 2.441 0.117
*width / height does not include Foldable Tab
Diagonal Dimension 2.41"
Active Area width height
millimeters 36.72 48.96
inches 1.446 1.928
Dot Pitch width height
millimeters 0.153 0.153
inches 0.0060 0.0060
Optional Connectors CS050Z40GB0
Flexible Cable (FFC/FPC) length
millimeters 31.55
inches 1.242
Weight 16.4g
Pin Count 40

Optical Characteristics

Polarizer Transmissive
View Direction All o'clock
View Angle 160°
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 2.6V
Supply Voltage for Logic Maximum 3.3V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3.3V

Backlight Electrical Specifications

Forward Voltage Minimum 8.1V
Forward Voltage Maximum 9.9V
Forward Voltage Typical 9V
Forward Current Typical 40mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Sitronix ST7789V
Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver

Interface 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

Miscellaneous

Foldable Tab Yes
Touch Screen Capacitive Multi-touch

Additional Options

Add an EVE capable PCB to this display to speed up your development time.

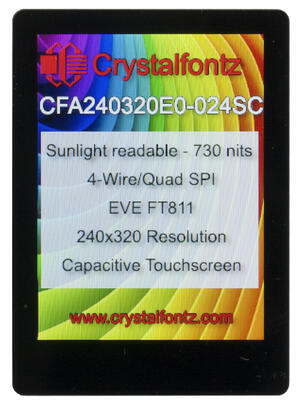

240x320 EVE 2.4" Capacitive Touchscreen LCD Display
Part Number: CFA240320E0-024SC

Are you looking for a small touch display to act as a human-machine interface for your product? This display module has it all!

The embedded EVE graphics accelerator chip simultaneously handles the display, touch, and audio functionality, lowering the development burden. The capacitive touchscreen overhangs the LCM making this display look fresh and clean when integrated into a product. The small TFT screen packs a punch. It's sunlight-readable, has a high pixel density, and displays vibrant colors.

This module comprises our 2.4" Full-Color Capacitive Touchscreen TFT attached to an EVE accelerated board. Connect with this module using a simple 30-pin FFC ZIF connection.

Key Features:

  • Graphics accelerating FT811 chip for easy graphics control
  • Capacitive Touch (5 points)
  • Sunlight Readable
  • SPI interface
  • IPS
  • Full color TFT
  • 4 x 2-56 Threaded mounting standoffs for simple mechanical design
  • 30-pin FFC ZIF Connection
EVE Graphics Accelerator Features:
  • Support multiple widgets for simplified design implementation
  • Recognize touch tags and track touch movement
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects for higher-quality graphics
  • Graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
  • Programmable interrupt controller provides interrupts to host MCU
  • Support playback of motion-JPEG encoded AVI videos
  • Mono audio channel output with wave playback and built-in sound synthesizer
  • PWM output for display backlight dimming control
For more detailed information on EVE, see the FTDI FT81x Datasheet. Further information including programming examples, interface design software, and more can be found on Bridgetek's website here: https://brtchip.com/ic-module/product/ft811/

This part is a direct replacement for the CFAF240320A0-024SC-A1-1. See Part Change Notice #11100.

View all of our EVE Display modules.

Currently Shipping: HW Version 0v2, Firmware Version: 0v1

Part Number:
CFA - Crystalfontz (no 4th letter indicates a display with value added)
240320 - Pixel Resolution
E - EVE
0 - Revision
024 - 2.4" Diagonal
S - Sunlight Readable
C - Capacitive Touch

Details
Quantity 1 5 10 20 50 100 200 300 500 * 1000 *
Price $73.67 $61.51 $59.89 $57.87 $55.84 $55.04 $54.64 $54.22 $53.82 $53.42
Quantity:
240x320 2.4" Touchscreen EVE Development Kit
Part Number: CFA240320E0-024SC-KIT

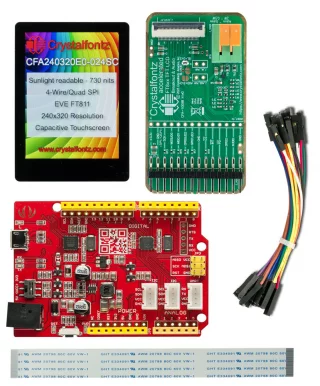

This is the full development kit for our 2.4" EVE display. This kit includes the 2.4" EVE module, connected to a Seeeduino (via our EVE breakout board) and running demonstration code.

This kit is perfect for demonstrating either the 2.4" EVE module or the 2.4" standalone display. It includes everything needed to demo the displays: plugging the Seeeduino to power and supplying 3.3V to the 10098 will start to show a demonstration on the display.

Some special features:

  • Graphics accelerating FT811 chip for easy graphics control
  • Capacitive Touchscreen
  • Sunlight Readable
  • SPI interface
  • IPS
  • Full-color TFT
  • Seeeduino demo kit running a demonstration program
  • EVE chip that supports the display, touch, and audio functionality
Included in this kit:
This part is a direct replacement for the CFAF240320A0-024SN-A1-1. See Part Change Notice #11100.

View all of our EVE Accelerated TFT Modules.

Details
Quantity 1
Price $107.41
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240320A0-024SC or RSS RSS feed for changes to CFAF240320A0-024SC

Part Change Notice #11088: Touchscreen Voltage Change

Products Affected: CFAF240320A0-024SC, CFAF240320A0-024SC-A1-1, CFAF240320A0-024SC-A1-2
Date Issued: May 26, 2021
Summary: Touchscreen Voltage Change
Description: This change is to move the resistor on the capacitive touch tail from R2 to R1 so that the typical voltage for the capacitive touch screen is 3.3V as specified in the datasheet instead of 1.8V.
Reason: The capacitive touch screen had a resistor placement that made the typical logic voltage 1.8V instead of 3.3V as specified in the datasheet.
Availability: The display will be shipping with the changes on 2021-05-28.
For reference only. For design purposes, please use the specifications in the datasheet.
