Home » Products » Accessories » Dev Kits » FTDI EVE Development Kits

480x128 Wide-Format EVE TFT Development Kit

Part Number: CFA480128E0-039TC-KIT

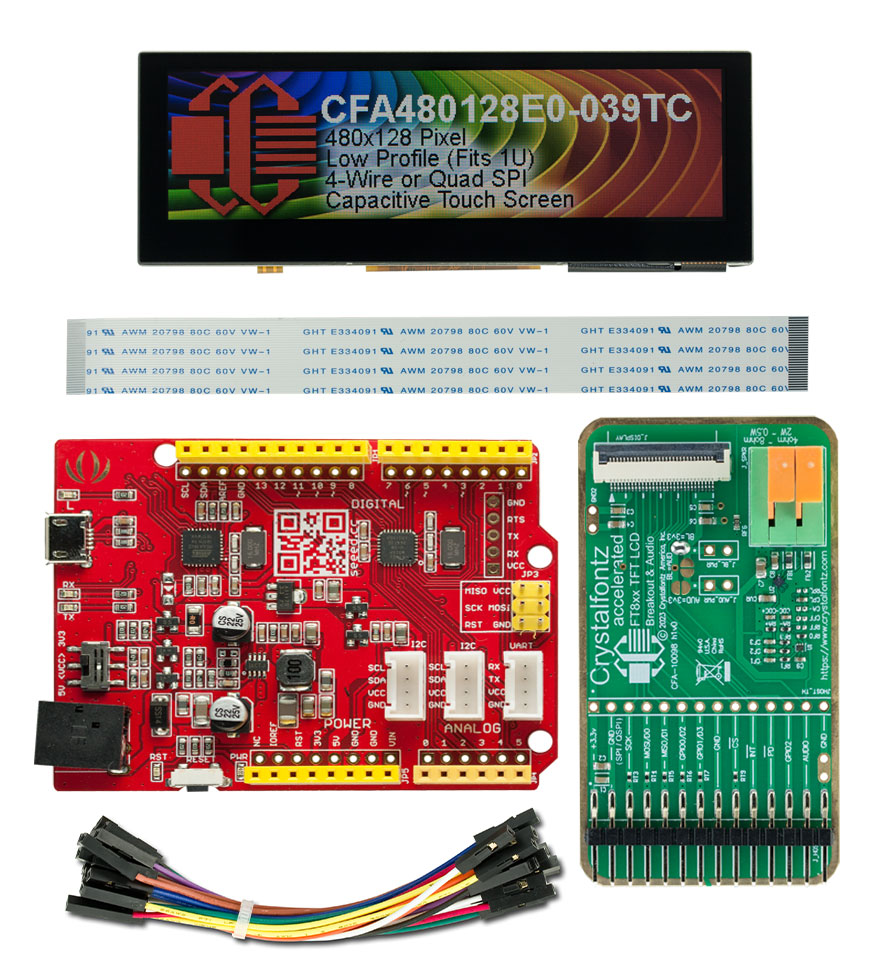

This bar-type EVE TFT development kit includes everything to get started prototyping and building with the 480x128 accelerated display module. This development kit includes the bar-type display module with the accelerator board connected to an EVE Breakout Board connected to a Seeeduino loaded with demo code. Once you receive the development kit, all you need to do to get the demo kit running is check the connections and plug in the included USB cable.

Features:
  • Great for 1U rack-mount applications
  • Slim design with rear-facing 2-56 mounting stand-offs for easy fastening to an enclosure
  • EVE2 accelerator
  • Capacitive touchscreen
  • Adapter board has an audio output jack to connect a speaker

Product Variants

CFAF480128A0-039TN-A1-2480x128 3.9" Bar-Type EVE Dev Kit
CFA480128E0-039TC-KIT480x128 Wide-Format EVE TFT Development Kit

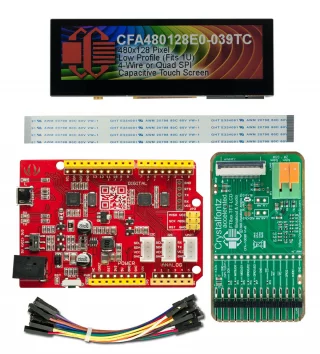

480x128 Wide-Format EVE TFT Development Kit (CFA480128E0-039TC-KIT)
Qty:
Quantity Price
1 $132.30
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4607 12-inch 30-pin FFC
Additional Ribbon Cable? $2.30 ea.
4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
ZIF Connectors? $0.61 ea.
4665 Assorted Imperial Screws
Mounting screws? $3.08 ea.
4751 EVE Wide-Format TFT Display
Additional EVE Display Module? $107.89 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA480128E0-039TC-KIT or RSS RSS feed for changes to CFA480128E0-039TC-KIT for CFA480128E0-039TC-KIT

Video Demonstrations

Watch a video demonstration of this display.

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 480 x 128
Diagonal Dimension 3.9"
Weight 155.9g
Pin Count 30

Optical Characteristics

Polarizer Transmissive
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electronics

Interface SPI

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA480128E0-039TC-KIT or RSS RSS feed for changes to CFA480128E0-039TC-KIT

Product Update #11220: Changing Manufacturing Facility

Products Affected: WR-FFC-Y50, CFAF320240F-035T-TS-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480-E3050SR-KIT, CFA800480E3-050SW-KIT
Date Issued: August 7, 2023
Summary: Changing Manufacturing Facility
Description: The WR-FFC-Y50 will be manufactured at a different facility. There are no changes to the functionality of the Flat Flex Cable.
Reason: Continuous improvement
Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11202: Audio Power Supply Removed

Products Affected: CFA10098, CFAF240400C0-030SC-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480-E3050SR-KIT, CFA800480E3-050SW-KIT
Date Issued: May 25, 2023
Summary: Audio Power Supply Removed
Description: The audio power supply has been removed from the board. Audio power will now only be able to be supplied externally.

Hardware Version Changes: h0v2 to h1v0
Reason: The audio power supply chip is no longer available and it was determined that it would be better for external power supplies to be used to demonstrate the EVE's audio capabilities.
Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11197: New Seeeduino Version 4.3 Now Shipping

Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued: May 15, 2023
Summary: New Seeeduino Version 4.3 Now Shipping
Description: We are now releasing products as stated in PCN11190.
https://www.crystalfontz.com/news/pcn.php?id=11190

Part Change Notice #11190: Part Change - Seeeduino 4.2 ->4.3

Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued: April 13, 2023
Summary: Part Change - Seeeduino 4.2 ->4.3
Last revision: 4.2
Description: Seeed Studios has updated the Seeeduino from v4.2 to v4.3. This change switches from the ATMEGA328P-MU to the ATMEGA328P-AU, and replaces the serial chip. This causes the Seeeduino to identify differently when connected to a computer.
Reason: Supplier has changed their offering
Impact: Kits using the Seeeduino will no longer be named "USB Serial Device"
Availability: Immediate

Part Change Notice #11142: 480x128 Wide-Format EVE TFT Development Kit, Now Available!

New Product: CFA480128E0-039TC-KIT
Date Issued: July 15, 2022
Summary: 480x128 Wide-Format EVE TFT Development Kit, Now Available!
Description: CFA480128E0-039TC-KIT has been released on our website (https://www.crystalfontz.com/product/cfa480128e0039tckit-480x128-bar-type-tft-dev-kit) and is now available for sale. Orders can be placed directly from the website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
