2.4" Sunlight Readable EVE TFT Display

Part Number: CFAF240320A0-024SN-A1-1

This TFT EVE module simplifies development with this 2.4" Full-Color TFT Display. The EVE FT811 chip controls the display using a display list to easily display complex graphics. The display is sunlight readable, full color, and has a wide viewing angle, so it's a great choice for inside or outside.

The PCB handles the TFT display backlight voltage, making this display module perfect for hand-held applications. Read more about how the EVE chip can help your product development on our blog.

Key Features:

• Graphics accelerating FT811 chip for easy graphics control
• Sunlight Readable (850 nits)
• SPI interface
• IPS
• Full color TFT (262k colors)
• 2.4" diagonal active area
• 4x 2-56 threaded mounting stand offs

EVE Features:

• Supports multiple widgets for simplified design implementation
• Recognize touch tags and track touch movement
• Enhanced sketch processing
• Anti-aliasing of primitive displayed objects for higher-quality graphics
• Graphical effects such as alpha-blending, shadows, transitions, wipes, etc.
• Programmable interrupt controller provides interrupts to host MCU
• Support playback of motion-JPEG encoded AVI videos
• Mono audio channel output with wave playback and built-in sound synthesizer
• PWM output for display backlight dimming control

For more detailed information on EVE, see the FTDI FT81x Datasheet. Further information including programming examples, interface design software, and more can be found on FTDI’s website here:https://www.ftdichip.com/Support/Utilities.htm.

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  240 x 320

  Module Overall	width	height	depth
  millimeters	42	59	6.69
  inches	1.654	2.323	0.263

  Diagonal Dimension

  2.41"

  Active Area	Width	Height
  millimeters	36.72	48.96
  inches	1.446	1.928

  Dot Pitch	Width	Height
  millimeters	0.152	0.153
  inches	0.0060	0.0060

  Weight	22.3g

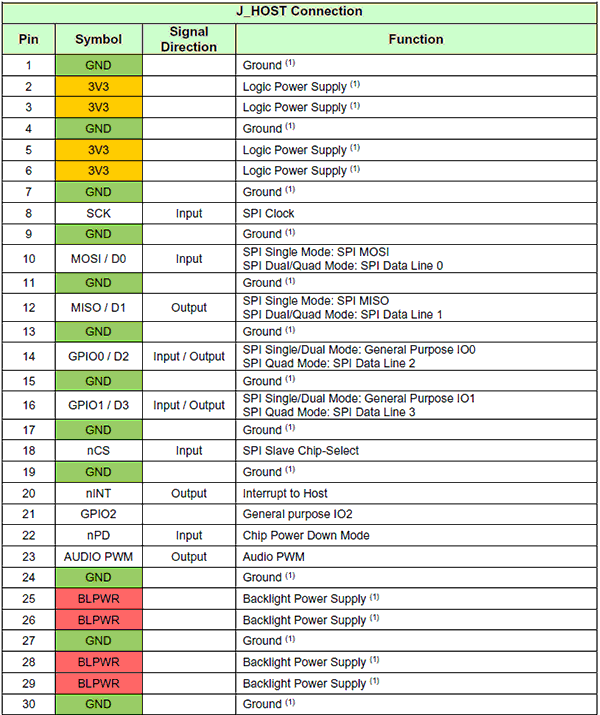

  Pin Count	30

• visibility Optical Characteristics

  Optical Characteristics

  Glass Type	TFT
  Polarizer	IPS
  View Angle	80°
  Sunlight Readable	Yes

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Dark

• electric_bolt Electrical Specification

  Electrical Specifications

  Supply Voltage for Logic Minimum	2.97V
  Supply Voltage for Logic Maximum	3.63V
  Supply Voltage for Logic Typical	3.3V
  Supply Voltage for Driving Panel Typical	3.3V

  Supply Current Minimum	2.7mA
  Supply Current Maximum	70mA
  Supply Current Typical	54mA

• electric_bolt Backlight Specification

  Backlight Electrical Specifications

  Forward Voltage Minimum	2.7V
  Forward Voltage Maximum	5.5V
  Forward Voltage Typical	3.3V

  Forward Current Maximum	166mA
  Forward Current Typical	106mA

• nature Enviromental

  Environmental

  Operating Temperatures	min	max
  Celsius	-20°	70°
  Fahrenheit	-4°	158°

  Storage Temperatures	min	max
  Celsius	-30°	80°
  Fahrenheit	-22°	176°

• cable Electronics

  Electronics

  Interface

  SPI

• picture_as_pdf Datasheets
  picture_as_pdf

  CFAF240320A0-024SN-A1-1 Datasheet


• download Files and Downloads
  folder_zip Hardware Design - 3D Model


  link Arduino Demo Code on Github


  link Demo Code Repository on Github
