2.2" Transparent LCD Development KitPart Number: CFAG12864U4-NFI-KIT

                        This development kit includes everything needed to get started with the 2.2" transparent LCD. Simply plug the included Seeeduino into a power source to immediately see the display working. The demonstration code is open source (linked in the resources below), so modifying the code is easy.

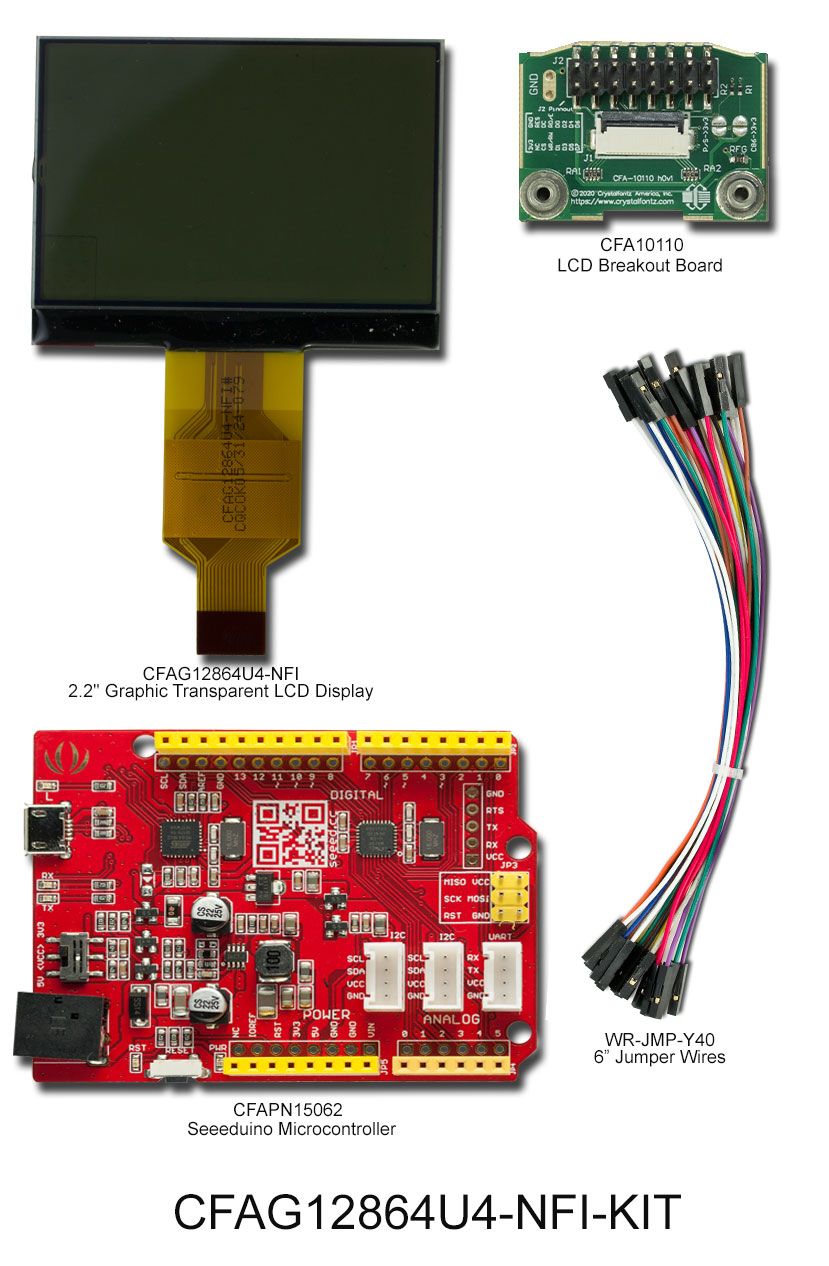

This kit includes:
2.2" Transparent LCD
Seeeduino Microcontroller

LCD breakout board
Connectors, Jumper wires
Code pre-loaded on the Seeeduino

Part Number:
CFA - Crystalfontz America
G - Graphic LCD
12864 - 128x64 pixel resolution
U4 - Display family and revision
N - No backlight
F - FSTN Positive Display
I - Transmissive Polarizer, 6:00 viewing angle
KIT - Full Seeeduino development kit

Product VariationsColorsDark on Transparent
No BacklightDark on Light Gray
White LED BacklightDark on Light Gray
No Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        56
        42.5
        1.9

        inches
        2.21
        1.67
        0.08

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.2"

    Viewing Area        Width
        Height

        millimeters
        52
        33.5

        inches
        2.05
        1.32

    Active Area        Width
        Height

        millimeters
        47.76
        30.29

        inches
        1.88
        1.19

    Dot Pitch        Width
        Height

        millimeters
        0.42
        0.37

        inches
        0.017
        0.015

        Weight
            52.6g
Pin Count
            18

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            LCD
View Direction
            6 o'clock

        Backlight Type
            None
Foreground Color
            Dark
Background Color
            Transparent

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.3V

        Supply Current Maximum
            2mA
Supply Current Typical
            1mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7565P
ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
Interface
            8-bit Parallel, SPI

picture_as_pdf Datasheets
picture_as_pdfCFAG12864U4-NFI Datasheet

download Files and Downloads
link Demo Code Download on Github
link Demo Code Repository on Github

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $38.50

61 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth
                    considering

						1.1" Graphic Transparent LCD Display
Add another LCD? $7.69 ea.

						LCD Breakout Board
Want another breakout board? $7.00 ea.

						3-inch Female to Female Jumper Wires
Need more jumper wires? $2.51 ea.
