2.4" EVE Development Kit

Part Number: CFA240320E0-024SN-KIT

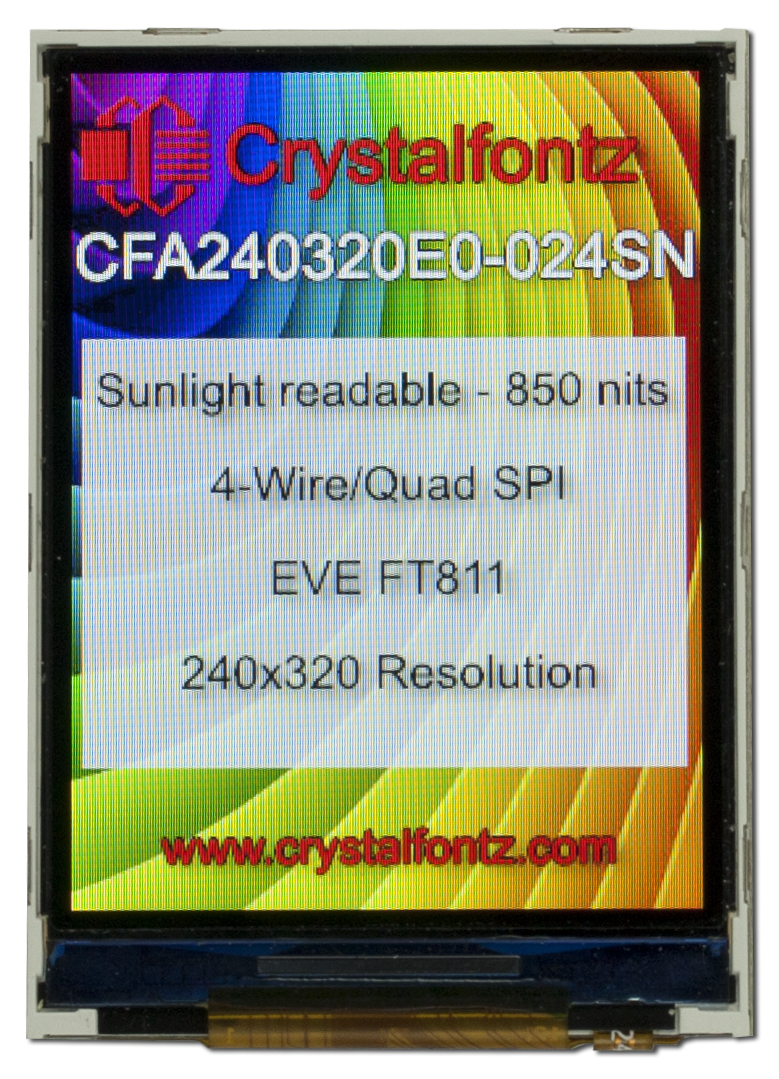

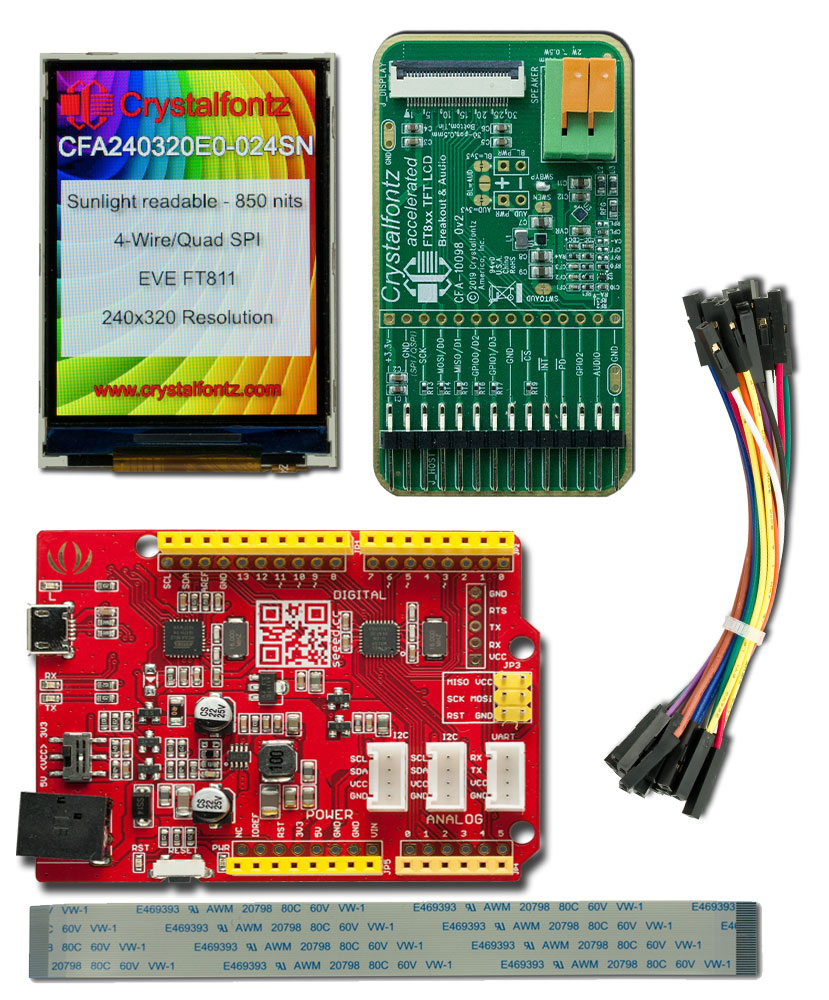

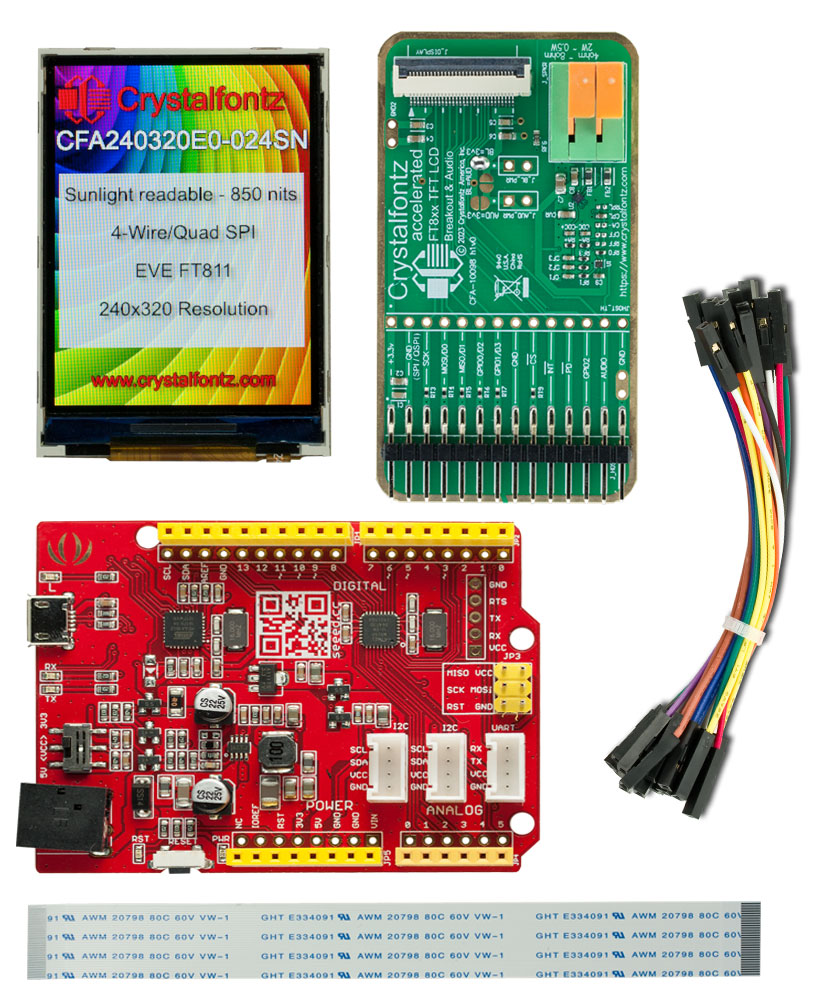

This full 2.4" EVE development kit includes everything needed to demonstrate either the 2.4" EVE module or the 2.4" standalone display. Simply plug the Seeeduino to power and supply 3.3V to the EVE Breakout Board to initiate a demonstration on the display.

Some special features:
  • Graphics accelerating FT811 chip for easy graphics control
  • Sunlight Readable (850 nits)
  • SPI interface
  • IPS (can be viewed from any direction)
  • Full-color TFT Display
  • Seeeduino demo kit running a demonstration program
  • EVE chip that supports the display and audio functionality
This part is a direct replacement for the CFAF240320A0-024SN-A1-2. See Part Change Notice #11100.

Part Number:
CFA - Crystalfontz (no 4th letter indicates a display with value added)
240320 - Pixel Resolution
E - EVE
0 - Revision
024 - 2.4" Diagonal
S - Sunlight Readable
N - No Touch
KIT - Development Kit

Product Variants

CFA240320E0-024SC-KIT240x320 2.4" Touchscreen EVE Development Kit
CFA240320E0-024SN-KIT2.4" EVE Development Kit
2.4" EVE Development Kit (CFA240320E0-024SN-KIT)
Qty:
Quantity Price
1 $77.05
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Need ZIF Connectors? $0.61 ea.
4665 Assorted Imperial Screws
Mounting screws? $3.08 ea.
4607 12-inch 30-pin FFC
Add a ribbon cable? $2.30 ea.
4748 240x320 2.4" EVE TFT Display
Need an additional display module? $36.71 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA240320E0-024SN-KIT or RSS RSS feed for changes to CFA240320E0-024SN-KIT for CFA240320E0-024SN-KIT

TECHNICAL SPECS

Physical Characteristics

Weight 21.4g

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA240320E0-024SN-KIT or RSS RSS feed for changes to CFA240320E0-024SN-KIT

Product Update #11220: Changing Manufacturing Facility

Products Affected: WR-FFC-Y50, CFAF320240F-035T-TS-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480-E3050SR-KIT, CFA800480E3-050SW-KIT
Date Issued: August 7, 2023
Summary: Changing Manufacturing Facility

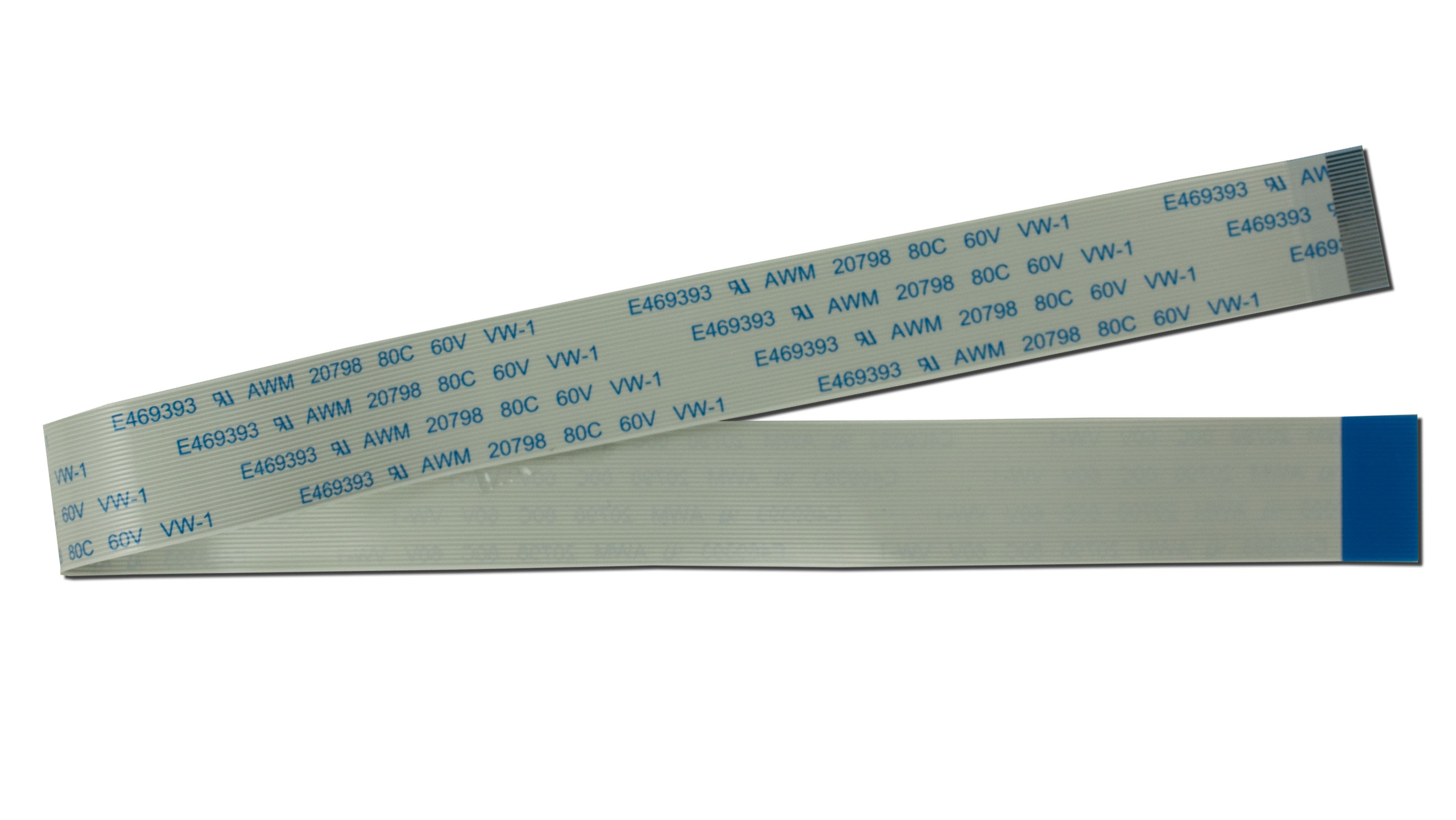

Description: The WR-FFC-Y50 will be manufactured at a different facility. There are no changes to the functionality of the Flat Flex Cable.
Reason: Continuous improvement
Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11202: Audio Power Supply Removed

Products Affected: CFA10098, CFAF240400C0-030SC-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480-E3050SR-KIT, CFA800480E3-050SW-KIT
Date Issued: May 25, 2023
Summary: Audio Power Supply Removed
Description: The audio power supply has been removed from the board. Audio power will now only be able to be supplied externally.

Hardware Version Changes: h0v2 to h1v0
Reason: The audio power supply chip is no longer available and it was determined that it would be better for external power supplies to be used to demonstrate the EVE's audio capabilities.
Availability: Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11197: New Seeeduino Version 4.3 Now Shipping

Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued: May 15, 2023
Summary: New Seeeduino Version 4.3 Now Shipping
Description: We are now releasing products as stated in PCN11190.
https://www.crystalfontz.com/news/pcn.php?id=11190

Part Change Notice #11190: Part Change - Seeeduino 4.2 ->4.3

Products Affected: CFAG4265A0-TFK-E1-2, CFAF240320X0-020T-E1-2, CFAP128296C0-E2-2, CFAP152152C0-E2-2, CFAP600448A0-E2-2, CFAP640384A0-E2-2, CFAF240400A0-E1-2, CFAL9664BFB1-E1-2, CFAL9664BFB2-E1-2, CFAPN15062, CFAF320240F-035T-TS-A1-2, CFAL12864D-0154M-W-E1-2, CFAL12856A0-0151-B-E1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAG12864T3-NFH-E1-2, CFAG12864T3-TFH-E1-2, CFAG12864U3-NFH-E1-2, CFAG12864U3-TFH-E1-2, CFAL12864D1-0154MY-E1-2, CFAP400300B1-E2-2, CFAP122250A2-E2-2, CFAL32128A0-0171WC-E1-2, CFAL64128B0-0096WC-E1-2, CFAF1024600B0-070SC-A1-2, CFAG12864Q1-TFH-E1-2, CFAG12864Q1-TMI-E1-2, CFAF240240A3-013TN-E1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFAL12832C0-091BW-E1-2, CFAL12832C0-091BY-E1-2, CFAL4864A-071BW-E1-2, CFAL6448A-066BW-E1-2, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFAG240128U0-TFH-E1-2, CFAG240128U0-NFH-E1-2, CFAP200200A5-E2-2
Date Issued: April 13, 2023
Summary: Part Change - Seeeduino 4.2 ->4.3
Last revision: 4.2
Description: Seeed Studios has updated the Seeeduino from v4.2 to v4.3. This change switches from the ATMEGA328P-MU to the ATMEGA328P-AU, and replaces the serial chip. This causes the Seeeduino to identify differently when connected to a computer.
Reason: Supplier has changed their offering
Impact: Kits using the Seeeduino will no longer be named "USB Serial Device"
Availability: Immediate

Part Change Notice #11131: CFA240320E0-024SN-KIT is now available!

New Product: CFA240320E0-024SN-KIT
Date Issued: June 14, 2022
Summary: CFA240320E0-024SN-KIT is now available!
Description: CFA240320E0-024SN-KIT has been released on our website (https://www.crystalfontz.com/product/cfa240320e0024snkit-240x320-eve-dev-kit) and is now available for sale. Orders can be placed directly from the website or by submitting a purchase order to sales@crystalfontz.com. Contact support for any technical questions.
