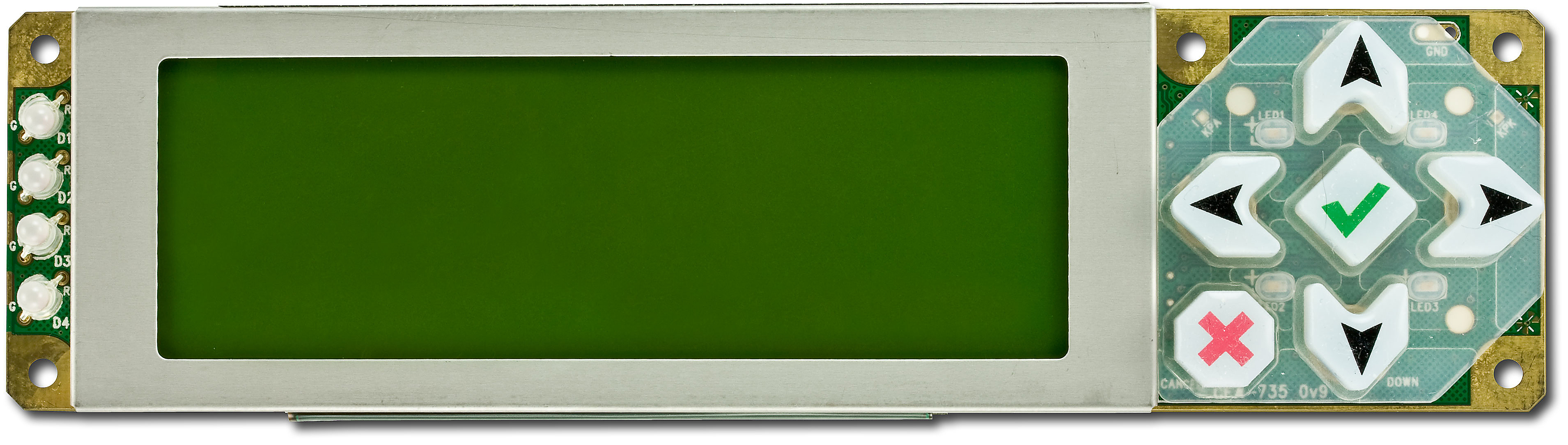

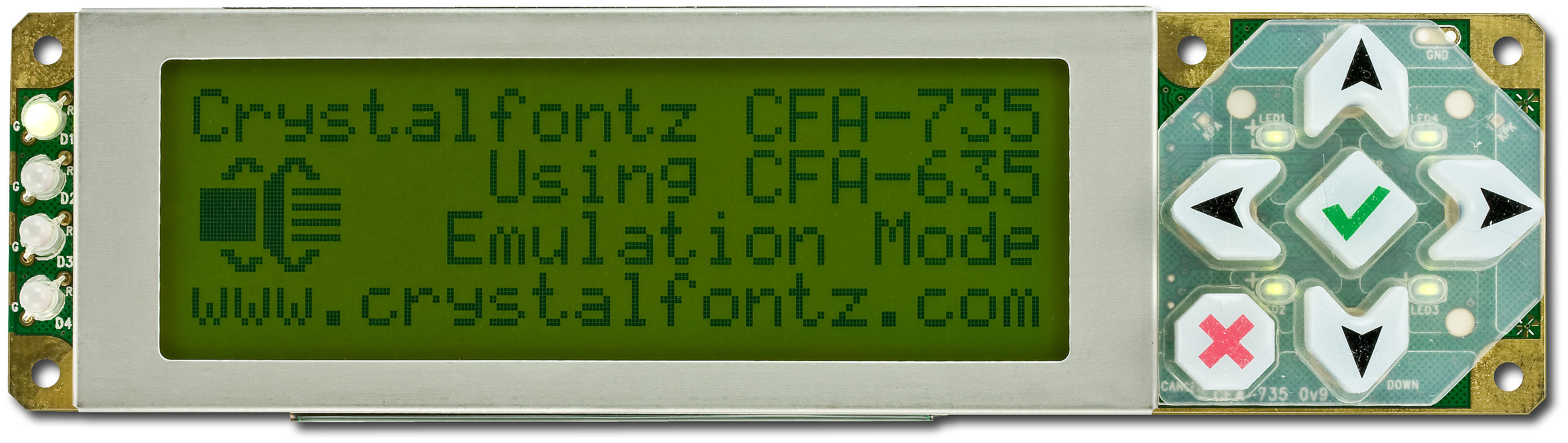

20x4 Character RS232 LCD Module

Part Number: CFA735-YYK-KT

USB + Full Swing RS-232 20x4 character LCD module with Keypad, Yellow-Green Edge LED Backlight, STN Positive, Yellow-Green, Transflective, -20°C to +70°C, 12:00. Includes CFARS-232 daughter board for Full-Swing serial communications.

LED backlit 20x4 LCD.
Integrated LED backlit 6-button translucent silicon keypad with screened legend.
Four bicolor (red + green) LEDs. The LEDs’ brightness can controlled by the host software, which allows mixing the LEDs to produce other colors (yellow and orange.)
Fully decoded keypad: any key combination is valid and unique.
LCD characters are contiguous in both X and Y directions to allow the host software to display "gapless" bar graphs in horizontal or vertical directions.
Robust packet based communications protocol with 16-bit CRC.
Compact size: fits in a 1U rack mount case (37.5mm overall height.)
ATX power supply control functionality allows the buttons on the CFA735 to replace the "power" and "reset" buttons on your system, simplifying your front panel design (requires additional cables or hardware).
Built-in microcontroller with field-upgradeable firmware.
Non-volatile memory capability ("EEPROM"):
- Customize the "power-on" display and LED settings.
- 16-byte "scratch" register for storing IP, netmask, system serial number
Run STM32 embedded applications on the CFA735 hardware.
Open source firmware for CFA735 displays allows you to customize and write/run your own user code.

Did you know?

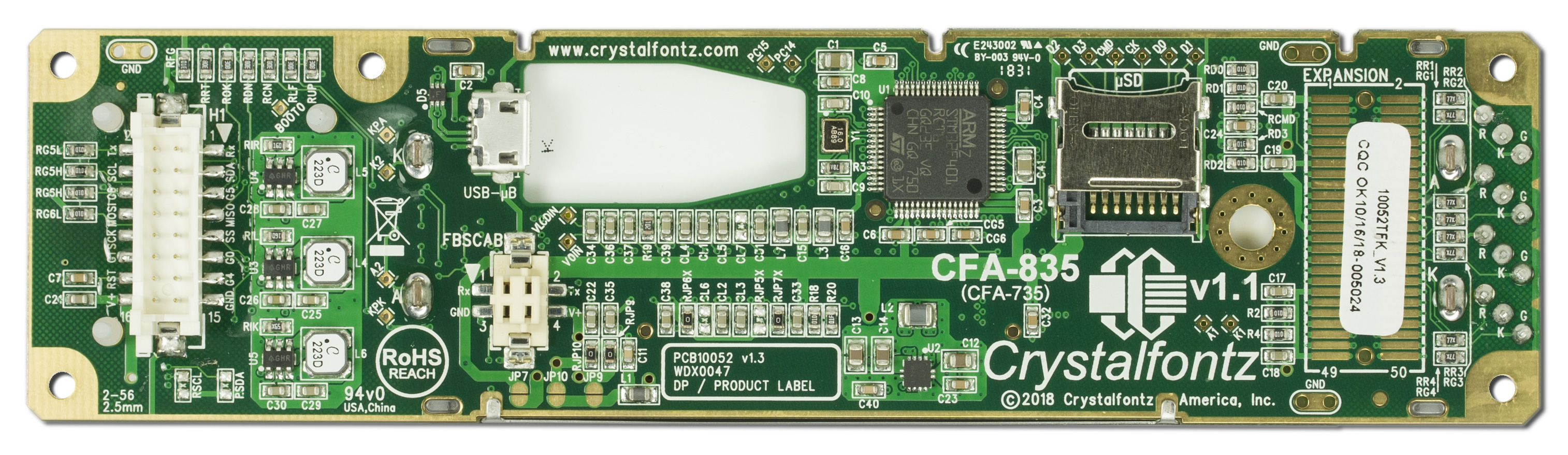

Our CFA835-YYK is the exact same hardware, with graphic capabilities and direct access to the SD Card at the same low price.

Not sure which character USB display to choose? Compare all of our intelligent display modules.

Currently Shipping: HW Version 1v0, FW Version 0vB

Order soon! We've only got 513 left!

Product Variants

Logic Level Serial/USB

20x4 Character Serial LCD Display

20x4 Character USB Display Module

20x4 Character USB Display

RS232/USB

20x4 Character RS232 Display Module

20x4 Character RS232 Display

20x4 Character RS232 LCD Module

Prices without customizations:
Quantity	Price
1	$80.98

Components worth considering

USB-C to MicroUSB
Need a USB-C to MicroUSB Cable? $5.25 ea.

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

CFA735-YYK-KT Datasheet
(Hardware 1v0, Firmware 0vB)

Previous Versions of Datasheets

CFA735-xxx-KT Data Sheet Release Date 2012-02-03.pdf
(Datasheet V 2012-02-03)

CFA735-xxx-KT Data Sheet Release Date 2012-10-12.pdf
(Datasheet V 2012-10-12, Hardware 1v0, Firmware 0vB)

CFA735-xxx-KT Data Sheet 0v9 Preliminary.pdf
(Datasheet V 0v9 Preliminary, Hardware 0v9, Firmware 0v9)

CFA735-xxx-KT Data Sheet Release Date 2012-02-13.pdf

Files

Software Source - Linux - List USB Device Path Script

Software Binary - WHQL CFA735/835 USB Driver

Hardware Design - 3D Model - CFA735/835

1 to 1 Template - CFA735 Family 1:1 Outline Drawing

Other Document - BRKT635 5.25" Half-Height LCD Drive Bay Mounting Bracket

Other Document - Copyrights Acknowledgment for CFA635 Emulation Code

Other Document - Intelligent LCD Comparison

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFA735-YYK-KT

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Characters x Lines

20 x 4

Module Overall	width	height	depth
millimeters	142	38	34.6
inches	5.591	1.496	1.362
*depth doesn't include Keypad

Diagonal Dimension

3.19"

Viewing Area	width	height
millimeters	83.1	27.54
inches	3.272	1.084

Active Area	width	height
millimeters	77.97	22.38
inches	3.070	0.881

Character Size	width	height
millimeters	3.23	4.88
inches	0.127	0.192

Character Pitch	width	height
millimeters	3.9	5.6
inches	0.154	0.220

Dot Size	width	height
millimeters	0.3	0.33
inches	0.012	0.013

Dot Pitch	width	height
millimeters	0.33	0.35
inches	0.013	0.014

Weight

57g

Keystroke Travel	2.4mm
Keypad Depth	12:00mm

Optical Characteristics

Glass Type/Glass Color	STN/Yellow-Green
Polarizer	Transflective
View Direction	12 o'clock
Sunlight Readable	Yes

Backlight Color	Yellow-Green
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Yellow-Green

Electrical Specifications

Supply Voltage for Logic Maximum

5.5V

Module Connector Pitch

2.54mm

Environmental

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Electronics

Interface

RS232, USB

Compatible Products

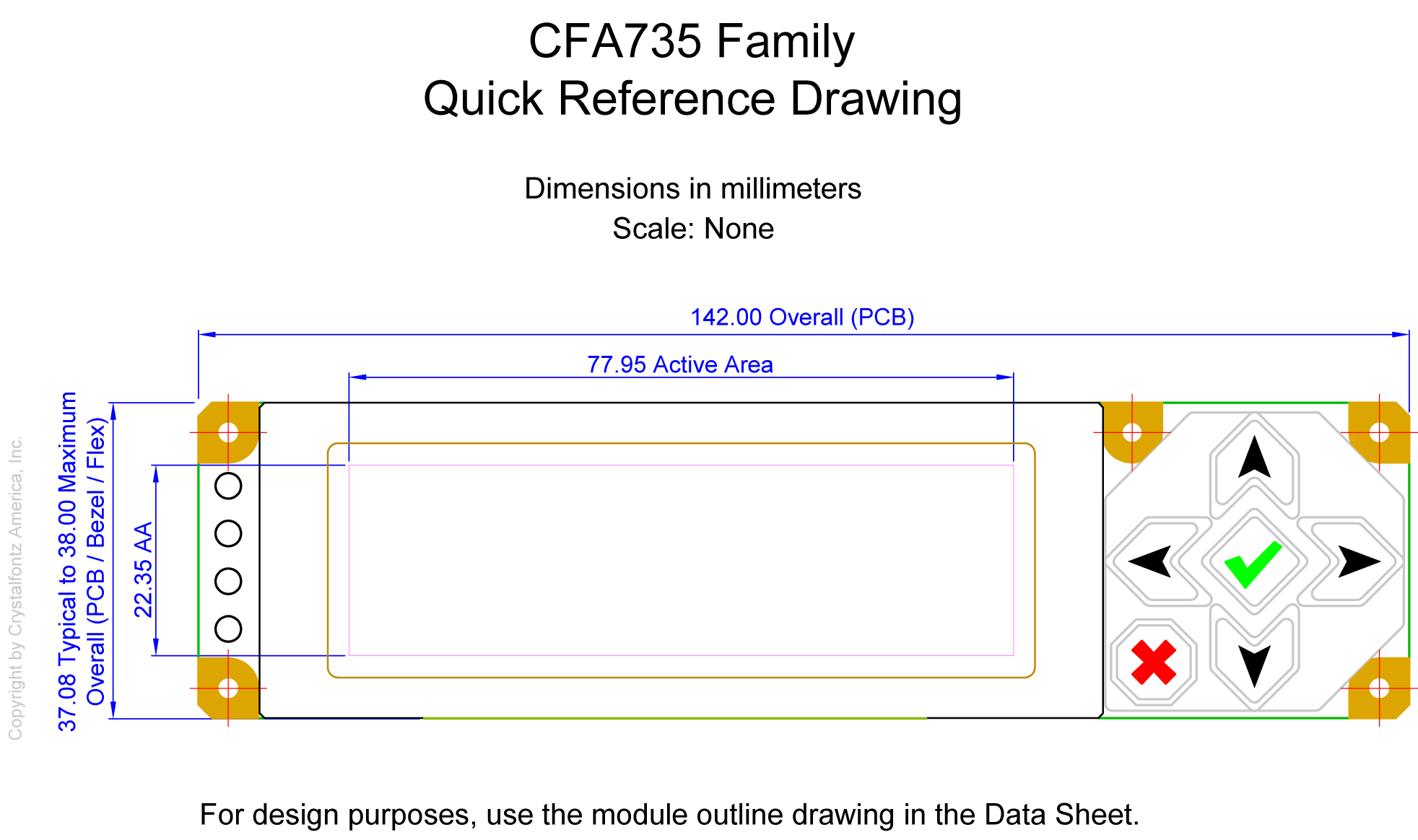

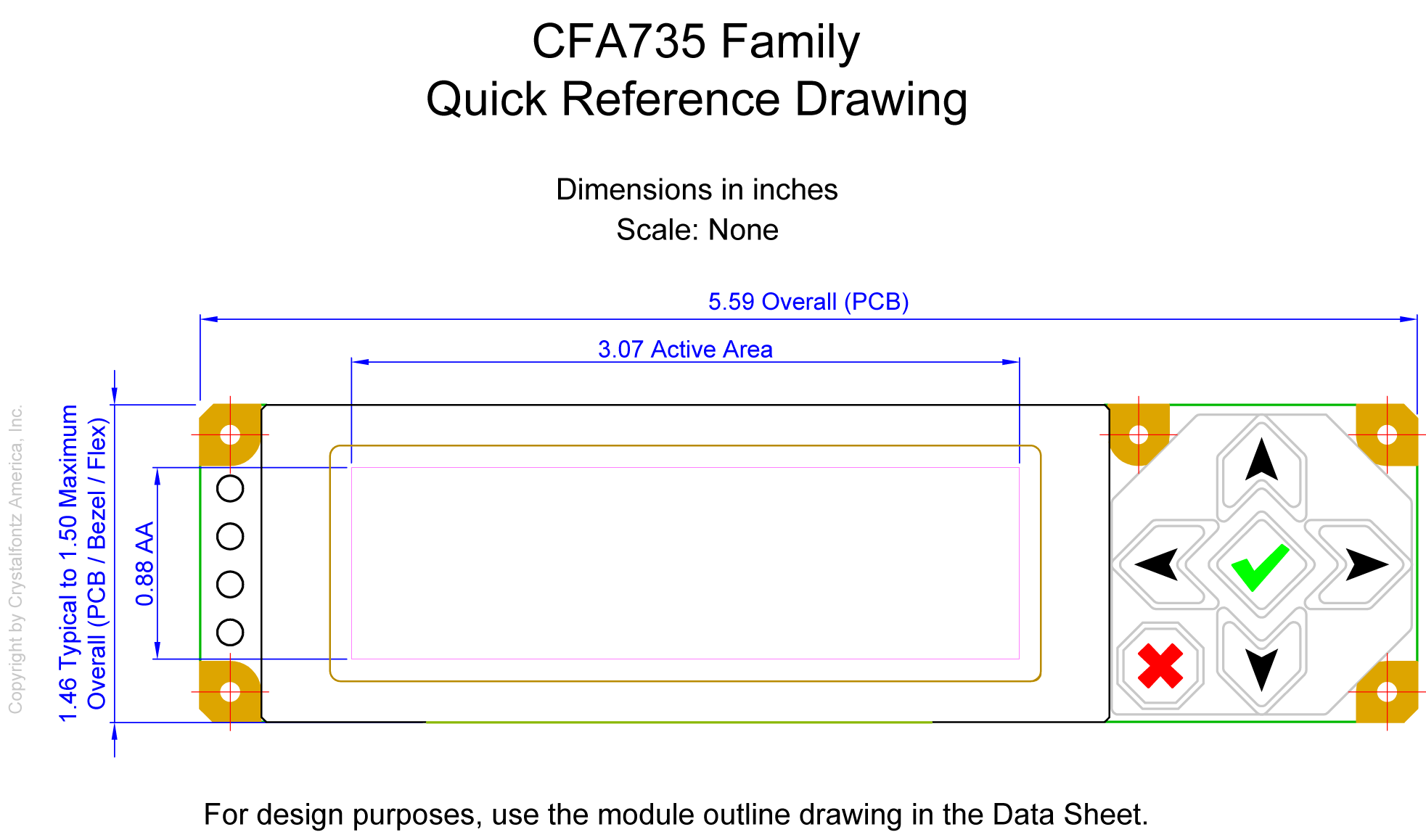

Dimensions
Product Notices

Part Change Notice

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11224: EOL Notification

Products Affected:	CFA735-YYK-KR, CFA735-YYK-KT, CFA835-YYK
Date Issued:	August 30, 2023
Summary:	EOL Notification
Description:	These products are going EOL and will no longer be available once stock runs out.
Reason:	These products are outdated and are being phased out.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
Price Change:	These will be sold at a reduced price until the stock is depleted.

Part Change Notice #10959: As part of our continuous improvement program, the CFA735 and CFA835 series displays are being revised.
