Light Blue 16x2 Character USB Display Module from Crystalfontz

Product

Home » Products » USB LCD Displays » Character

Light Blue 16x2 Character USB Display ModulePart Number: CFA533-TFH-KUThe CFA-533 is an intelligent 16x2 character USB LCD with a keypad. The USB interface allows you to easily connect the CFA-533 LCD to your host device using a USB cable. You can change the text displayed on the LCD, and read the keypad through the USB. The USB interface is implemented using a genuine FTDI FT232RL USB UART with rock-solid WHQL signed Windows drivers and is fully supported under Linux. The LCD's USB interface is exposed as a COM port, new software is easy to write and legacy applications are easy to support.

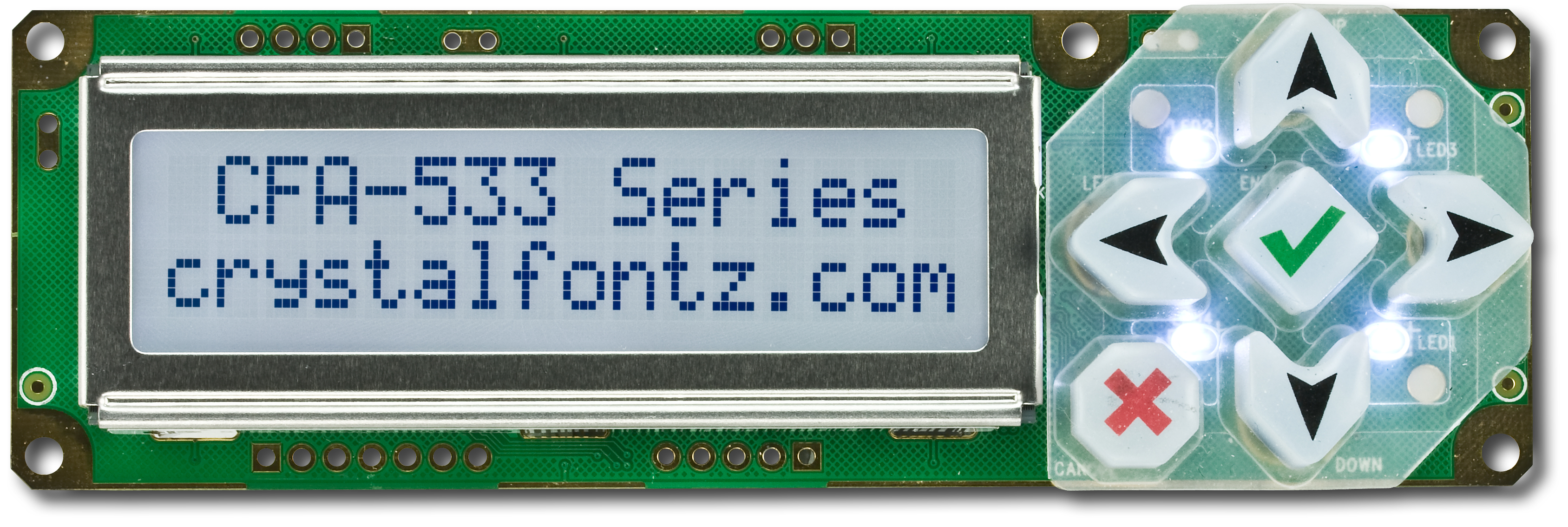

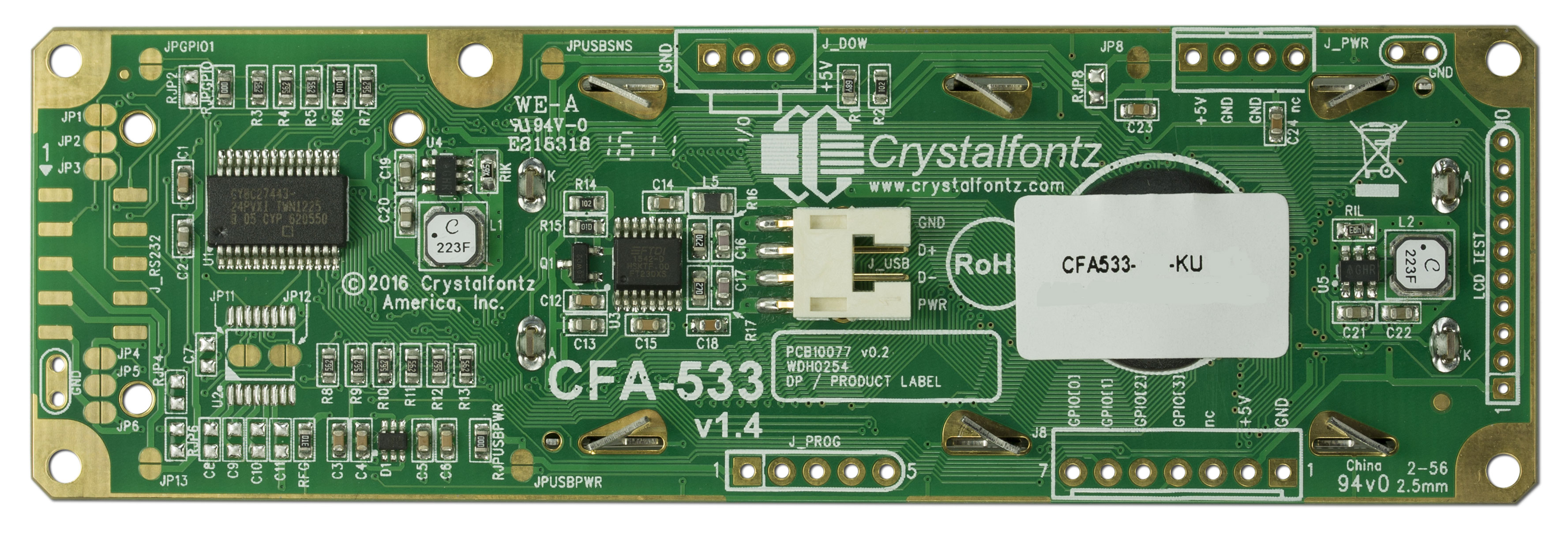

This CFA533-TFH variant features crisp, dark letters against a white, backlit background. The keypad has a matching white LED backlight. Since the LCD is a backlit positive FSTN, the CFA533-TFH USB LCD is readable in direct sunlight, as well as complete darkness.
The CFA-533 solves your entire front panel requirements in one simple, proven device. The 2x16 LCD display allows showing critical error or status messages, and the keypad can be used to interact with the user, all over the single USB connection. The CFA-533 USB display fits easily in the front panel of a 1U appliance.
The CFA-533 USB LCD can also reset your system as well as power it on and off using its ATX power supply control functionality. This way the CFA-533 can replace the ubiquitous power and reset switches while cleaning up the front panel design and simplifying your BOM and assembly.
With the CFA-533 USB LCD, you also get the great (and free) support that Crystalfontz is known for.
USB host interface controls the LCD and reads the keypad
Compact size: fits in a 1U rack mount case (35mm overall height).
Integrated 16x2 LED backlit character LCD.
Integrated LED backlit 6-button translucent silicon keypad with screened legend.
Advanced digital GPIO control with PWM output.
Robust packet based communications protocol with CRC.
Non-volatile memory (EEPROM): Set the "power-on" display screen, plus 16-bytes for storing IP, netmask, or system serial number.
ATX power supply control functionality
Temperature monitoring: up to 32 channels at up to 0.5 deg C absolute accuracy using WRDOWY17 DS18B20 temperature sensors.
Available in a 5.25" half-height LCD drive bay kit when adding to cart.
Sample applications and source code readily available: cfTest, CrystalControl2, and Linux Example Code.

Unsure which character USB display module to choose? Compare all of our intelligent display modules.

Currently Shipping: HW Version 1.4, Firmware Version: U1v2

Product VariationsInterfacesI2CLogic Level SerialRS232USB
ColorsDark on Light Gray
White LED BacklightWhite on Blue
White LED BacklightDark on Yellow-Green
Yellow-Green LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            16 x 2


    Module Overall        width
        height
        depth


        millimeters
        110.5
        35
        16.6


        inches
        4.35
        1.38
        0.65

*depth doesn't include Keypad


    PCB Outline        width
        height


        millimeters
        110.5
        35


        inches
        4.35
        1.38



        Diagonal Dimension
            2.26"


    Viewing Area        Width
        Height


        millimeters
        61
        15.8


        inches
        2.40
        0.62



    Active Area        Width
        Height


        millimeters
        56.2
        11.5


        inches
        2.21
        0.45



    Character Size        Width
        Height


        millimeters
        2.95
        5.55


        inches
        0.116
        0.219



    Character Pitch        Width
        Height


        millimeters
        3.55
        5.95


        inches
        0.140
        0.234



    Dot Size        Width
        Height


        millimeters
        0.55
        0.65


        inches
        0.022
        0.026



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.7


        inches
        0.024
        0.028



        Weight
            41g


        Keystroke Travel
            2.4mm

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            White
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Light Gray

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Interface
            USB

 picture_as_pdf Datasheets
picture_as_pdfCFA533TFHKU Datasheet
(Hardware 1.4, Firmware u1v2)
Previous Versions of Datasheetpicture_as_pdfCFA533-TFH-KU Data Sheet v3.0.pdf
(Hardware 1.1, Firmware 1u1)
 download Files and Downloads
folder_zip Software Source - Linux - List  USB Device Path Script
folder_zip CAD Export - CFA533 KU - 3D CAD Reference Files
settings_application CAD Export - CFA533 KU - 3D E-Drawing Viewer File
settings_application CAD Export - CFA533 Family HW v1.1 2D CAD.dwg
settings_application CAD Export - CFA533 Family HW v1.1 2D CAD.dxf
picture_as_pdf 1 to 1 Template
picture_as_pdf Other Document - Intelligent LCD Comparison
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Add to cart without customizations
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:


        Prices without customizations:


            Quantity
            Unit Price


            1
            $71.25

            10
            $69.18

            20
            $64.63

            50
            $60.13

            100
            $55.59

            200
            $51.04

            500
            $46.54

            1000 *
            $41.96

926 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						USB-C to 4 pin 2mm header
Add a USB-C Cable? $5.30 ea.





Interfaces	I2C Logic Level Serial RS232 USB

Colors	Dark on Light Gray White LED Backlight White on Blue White LED Backlight Dark on Yellow-Green Yellow-Green LED Backlight

Module Overall	width	height	depth
millimeters	110.5	35	16.6
inches	4.35	1.38	0.65
*depth doesn't include Keypad

PCB Outline	width	height
millimeters	110.5	35
inches	4.35	1.38

Viewing Area	Width	Height
millimeters	61	15.8
inches	2.40	0.62

Active Area	Width	Height
millimeters	56.2	11.5
inches	2.21	0.45

Character Size	Width	Height
millimeters	2.95	5.55
inches	0.116	0.219

Character Pitch	Width	Height
millimeters	3.55	5.95
inches	0.140	0.234

Dot Size	Width	Height
millimeters	0.55	0.65
inches	0.022	0.026

Dot Pitch	Width	Height
millimeters	0.6	0.7
inches	0.024	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Prices without customizations:
Quantity	Unit Price
1	$71.25
10	$69.18
20	$64.63
50	$60.13
100	$55.59
200	$51.04
500	$46.54
1000 *	$41.96
