CFA533-TMI-KC

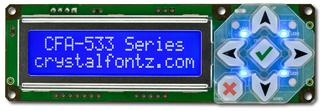

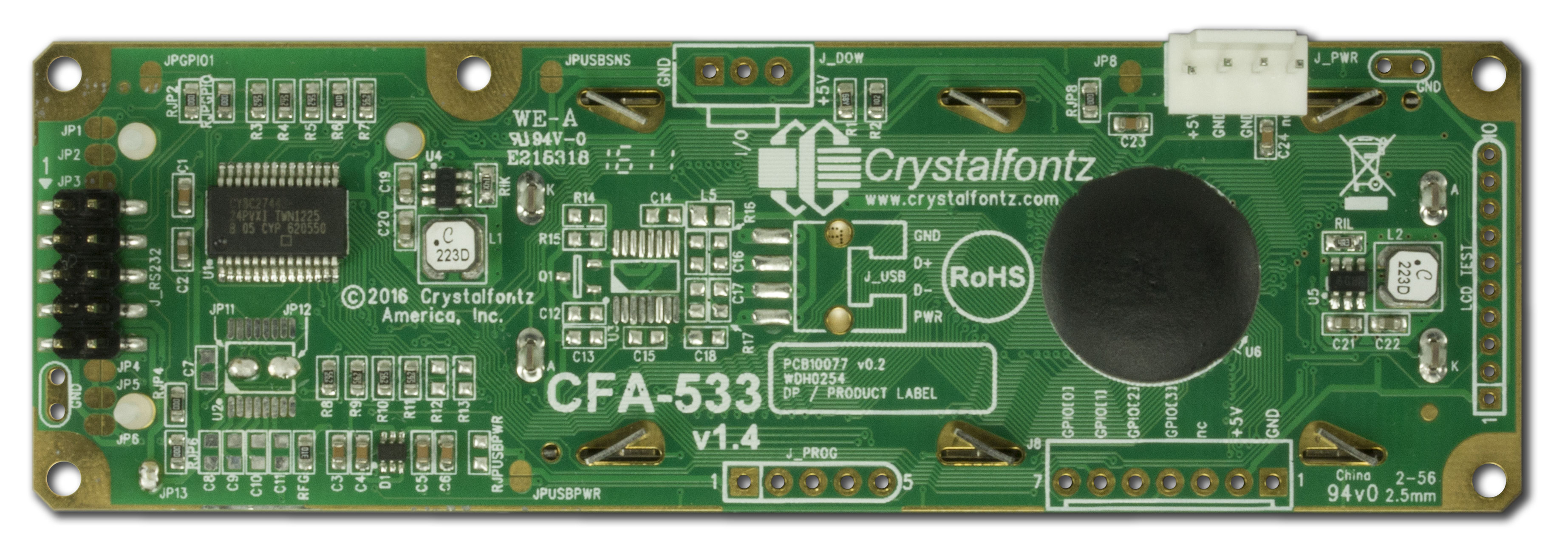

CFA533-TMI-KC photo

I2C LCD With Keypad – White On Blue

The CFA533-xxx-KC series is a 16x2 I2C LCD with keypad. The I2C interface allows you to use just two lines (SDA & SCL) to have bi-directional communication with the I2C LCD. Other devices can also share those two I2C control lines with the LCD. Only 4 wires are needed to connect this I2C LCD: power, ground, SDA (I2C Serial DAta) and SCL (I2C Serial CLock).

The CFA533 can run on 3.3v to 5.0v directly, with no changes needed, so you do not need to do any level translation between your embedded processor and the I2C LCD. Simply power the CFA533 from the same supply as your processor and the I2C signal levels will match up.

Using only one address on your I2C bus, you can add all the elements that you need for your front panel. The CFA533 I2C LCD can also read up to 32 DS18B20 digital temperature sensors, giving you an easy way to integrate temperature sensing over the I2C bus. No additional firmware or pins are needed on the host system.

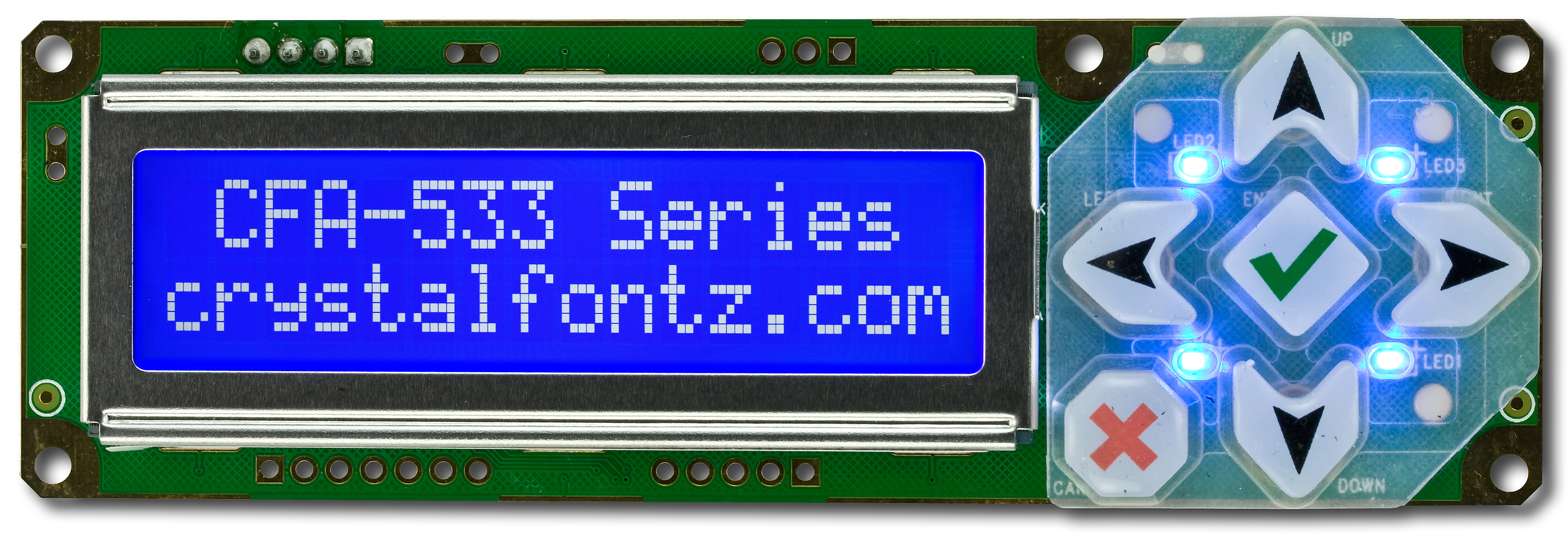

The CFA533-TMI display style has sharp white characters against a deep blue background. The keypad is backlit in a complementary blue. This I2C LCD is a backlit negative STN. The CFA533-TMI I2C LCD is viewable in any lighting condition from darkness to normal, bright office light. The CFA533-TMI negative STN is not recommended for use in full sunlight conditions. The CFA533 I2C LCD series is also available in dark-blue-on-white CFA533-TFH-KC and dark-on-yellow-green CFA533-YYH-KC color variants.

Key Features

  • I2C host interface controls the LCD and reads the keypad.
  • Compact size: fits in a 1U rack mount case (35mm overall height).
  • Integrated 16x2 LED backlit character LCD.
  • Integrated LED backlit 6-button translucent silicon keypad with screened legend with the popular arrows, enter and cancel layout.
  • Advanced digital GPIO control with PWM output.
  • Robust packet based communications protocol with CRC.
  • Non-volatile memory (EEPROM): Set the "power-on" display screen, plus 16-bytes for storing IP, netmask, or system serial number.
  • ATX power supply control functionality.
  • Temperature monitoring: up to 32 channels at up to 0.5 deg C absolute accuracy using WR-DOW-Y17 DS18B20 temperature sensors.
  • Easy to use with Arduino.
  • Available in a 5.25" half-height LCD drive bay kit.
  • Sample applications and source code readily available: Arduino I2C LCD, CFTest, CrystalControl2, and Linux Examples.
  • The CFA533 is also available in USB: CFA533-TMI-KU, RS232: CFA533-TMI-KS and logic-level UART: CFA533-TMI-KL interfaces.
Quantity 1 10 20 * 50 * 100 * 200 * 500 * 1000 *
Price $50.84 $49.36 $46.12 $42.90 $39.66 $36.42 $33.20 $29.94
Quantity Price
1 $50.84
10 $49.36
20 * $46.12
50 * $42.90
100 * $39.66
200 * $36.42
500 * $33.20
1000 * $29.94
Quantity:
* May require 90 days lead time.


TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 110.500 35.000 25.600
inches 4.35 1.37 1.00
*depth doesn't include Keypad
PCB Outline width height
millimeters 110.500 35.000
inches 4.35 1.37
Viewing Area width height
millimeters 61.000 15.800
inches 2.40 0.62
Active Area width height
millimeters 56.200 11.500
inches 2.21 0.45
Character Size width height
millimeters 2.950 5.550
inches 0.11 0.21
Character Pitch width height
millimeters 3.550 5.950
inches 0.13 0.23
Dot Size width height
millimeters 0.550 0.650
inches 0.02 0.02
Dot Pitch width height
millimeters 0.600 0.700
Weight 41g
Keystroke Travel 2.4mm

Optical Characteristics

Glass Type/Glass Color STN/Blue
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color White
Background Color Blue

Environmental

Operating Temperatures min max
Celsius -20° 70°
Farenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Farenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Interface I2C


Part Change Notices

Subscribe to Part Change Notices by email Email subscription for changes to CFA533-TMI-KC or RSS RSS feed for changes to CFA533-TMI-KC

Part Change Notice #10658

Products Affected: CFA631-RMF-KU1, CFA631-RMF-KU2, CFA631-RMF-KU, CFA631-TMF-KU1, DB631-AL, DB631-ALRMF-KU1, DB631-ALRMF-KU2, DB631-ALRMF-KU3, DB631-ALTMF-KU1, DB631-ALTMF-KU2, DB631-ALTMF-KU3, DB631-BG, DB631-BGRMF-KU1, DB631-BGRMF-KU2, DB631-BGRMF-KU3, DB631-BGTMF-KU1, DB631-BGTMF-KU2, DB631-BGTMF-KU3, DB631-BK, DB631-BKRMF-KU2, DB631-BKRMF-KU3, DB631-BKRMF-KU1, DB631-BKTMF-KU2, DB631-BKTMF-KU3, DB632-AL, DB632-ALNFG-KS1, DB632-ALNFG-KS2, DB632-ALNFG-KU1, DB632-ALNFG-KU2, DB632-ALYFH-KS1, DB632-ALYFH-KS2, DB632-ALYFH-KU1, DB632-ALYFH-KU2, DB632-ALYDI-KS1, DB632-ALYDI-KS2, DB632-ALYDI-KU1, DB632-ALYDI-KU2, DB632-BG, DB632-BK, DB632-BGNFG-KS1, DB632-BGNFG-KS2, DB632-BGNFG-KU1, DB632-BGNFG-KU2, DB632-BGYFH-KS1, DB632-BGYFH-KS2, DB632-BGYFH-KU1, DB632-BGYFH-KU2, DB632-BGYDI-KS1, DB632-BGYDI-KS2, DB632-BGYDI-KU1, DB632-BGYDI-KU2, DB632-BKNFG-KS1, DB632-BKNFG-KS2, DB632-BKNFG-KU1, DB632-BKNFG-KU2, DB632-BKYFH-KS1, DB632-BKYFH-KS2, DB632-BKYFH-KU1, DB632-BKYFH-KU2, DB632-BKYDI-KS1, DB632-BKYDI-KS2, DB632-BKYDI-KU1, DB632-BKYDI-KU2, CFA633-YYB-KS, CFA633-TMC-KS, CFA633-RMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, DB633-ALTMI-KS5, DB633-ALTMI-KU3, DB633-ALYYH-KS5, DB633-ALYYH-KU3, DB633-BGTMI-KS5, DB633-BGTMI-KU3, DB633-BGYYH-KS5, DB633-BGYYH-KU3, DB633-BKTMI-KS5, DB633-BKTMI-KU3, DB633-BKYYH-KS5, DB633-BKYYH-KU3, DB633-ALRDI-KS5, DB633-ALRDI-KU3, DB633-BGRDI-KS5, DB633-BGRDI-KU3, DB633-BKRDI-KS5, DB633-BKRDI-KU3, DB633-AL, DB633-ALTMI-KS3, DB633-ALTMI-KS4, DB633-ALTMI-KU1, DB633-ALTMI-KU2, DB633-ALYYH-KS3, DB633-ALYYH-KS4, DB633-ALYYH-KU1, DB633-ALYYH-KU2, DB633-BG, DB633-BGTMI-KS3, DB633-BGTMI-KS4, DB633-BGTMI-KU1, DB633-BGTMI-KU2, DB633-BGYYH-KS3, DB633-BGYYH-KS4, DB633-BGYYH-KU1, DB633-BGYYH-KU2, DB633-BK, DB633-BKTMI-KS3, DB633-BKTMI-KS4, DB633-BKTMI-KU1, DB633-BKTMI-KU2, DB633-BKYYH-KS3, DB633-BKYYH-KS4, DB633-BKYYH-KU1, DB633-BKYYH-KU2, DB633-ALRDI-KS3, DB633-ALRDI-KS4, DB633-ALRDI-KU1, DB633-ALRDI-KU2, DB633-BGRDI-KS3, DB633-BGRDI-KS4, DB633-BGRDI-KU1, DB633-BGRDI-KU2, DB633-BKRDI-KS3, DB633-BKRDI-KS4, DB633-BKRDI-KU1, DB633-BKRDI-KU2, DB634-AL, DB634-ALNFA-KS1, DB634-ALYDI-KS2, DB634-ALNFA-KS2, DB634-ALNFA-KU1, DB634-ALNFA-KU2, DB634-ALTFH-KS1, DB634-ALTFH-KS2, DB634-ALTFH-KU1, DB634-ALTFH-KU2, DB634-ALTMI-KS1, DB634-ALTMI-KS2, DB634-ALTMI-KU1, DB634-ALTMI-KU2, DB634-ALYFH-KS1, DB634-ALYFH-KS2, DB634-ALYFH-KU1, DB634-ALYFH-KU2, DB634-ALYDI-KS1, DB634-ALYDI-KU1, DB634-ALYDI-KU2, DB634-BG, DB634-BGNFA-KS1, DB634-BGYDI-KS2, DB634-BGNFA-KS2, DB634-BGNFA-KU1, DB634-BGNFA-KU2, DB634-BGTFH-KS1, DB634-BGTFH-KS2, DB634-BGTFH-KU1, DB634-BGTFH-KU2, DB634-BGTMI-KS1, DB634-BGTMI-KS2, DB634-BGTMI-KU1, DB634-BGTMI-KU2, DB634-BGYFH-KS1, DB634-BGYFH-KS2, DB634-BGYFH-KU1, DB634-BGYFH-KU2, DB634-BGYDI-KS1, DB634-BGYDI-KU1, DB634-BGYDI-KU2, DB634-BK, DB634-BKNFA-KS1, DB634-BKNFA-KS2, DB634-BKNFA-KU1, DB634-BKNFA-KU2, DB634-BKTFH-KS1, DB634-BKTFH-KS2, DB634-BKTFH-KU1, DB634-BKTFH-KU2, DB634-BKTMI-KS1, DB634-BKTMI-KS2, DB634-BKTMI-KU1, DB634-BKTMI-KU2, DB634-BKYFH-KS1, DB634-BKYFH-KS2, DB634-BKYFH-KU1, DB634-BKYFH-KU2, DB634-BKYDI-KS1, DB634-BKYDI-KS2, DB634-BKYDI-KU1, DB634-BKYDI-KU2, CFA635-TMF-KU1, CFA635-TMF-KU2, CFA635-TFE-KU1, CFA635-TFE-KU2, CFA635-YYE-KU1, CFA635-YYE-KU2, CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, DB635-AL, DB635-ALTMF-KU1, DB635-ALTMF-KU2, DB635-ALTMF-KU3, DB635-ALYYE-KU1, DB635-ALYYE-KU2, DB635-ALYYE-KU3, DB635-BG, DB635-BGTMF-KU1, DB635-BGTMF-KU2, DB635-BGTMF-KU3, DB635-BGYYE-KU1, DB635-BGYYE-KU2, DB635-BGYYE-KU3, DB635-BK, DB635-BKTMF-KU1, DB635-BKTMF-KU2, DB635-BKTMF-KU3, DB635-BKYYE-KU1, DB635-BKYYE-KU2, DB635-BKYYE-KU3, DB635-AK, DB635-AKTMF-KU1, DB635-AKTMF-KU2, DB635-AKTMF-KU3, DB635-AKYYE-KU1, DB635-AKYYE-KU2, DB635-AKYYE-KU3, CFA631-TMF-KU2, CFA631-TMF-KU, DB631-BKTMF-KU1, DB635-AKTFE-KU1, DB635-AKTFE-KU2, DB635-AKTFE-KU3, CFA635-TFE-KU, CFA635-YYE-KL, DB635-ALTFE-KU1, DB635-ALTFE-KU2, DB635-ALTFE-KU3, DB635-BGTFE-KU1, DB635-BGTFE-KU2, DB635-BGTFE-KU3, DB635-BKTFE-KU1, DB635-BKTFE-KU2, DB635-BKTFE-KU3, CFA635-TMF-KU, CFA635-YYE-KU, DS635-AL, DS635-ALTMF-KU1, DS635-ALTMF-KU2, DS635-ALTMF-KU3, DS635-ALYYE-KU1, DS635-ALYYE-KU2, DS635-ALYYE-KU3, DS635-BG, DS635-BGTMF-KU1, DS635-BGTMF-KU2, DS635-BGTMF-KU3, DS635-BGYYE-KU1, DS635-BGYYE-KU2, DS635-BGYYE-KU3, DS635-BK, DS635-BKTMF-KU1, DS635-BKTMF-KU2, DS635-BKTMF-KU3, DS635-BKYYE-KU1, DS635-BKYYE-KU2, DS635-BKYYE-KU3, DS635-AK, DS635-AKTMF-KU1, DS635-AKTMF-KU2, DS635-AKTMF-KU3, DS635-AKYYE-KU1, DS635-AKYYE-KU2, DS635-AKYYE-KU3, DS635-AKTFE-KU1, DS635-AKTFE-KU2, DS635-AKTFE-KU3, DS635-ALTFE-KU1, DS635-ALTFE-KU2, DS635-ALTFE-KU3, DS635-BGTFE-KU1, DS635-BGTFE-KU2, DS635-BGTFE-KU3, DS635-BKTFE-KU1, DS635-BKTFE-KU2, DS635-BKTFE-KU3, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, DB631-AK, DB631-AKRMF-KU1, DB631-AKRMF-KU2, DB631-AKRMF-KU3, DB631-AKTMF-KU1, DB631-AKTMF-KU2, DB631-AKTMF-KU3, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-TMI-KI, CFA533-YYH-KI, DB533-ALTMI-KU1, DB533-ALTMI-KU2, DB533-BGTMI-KU1, DB533-BGTMI-KU2, DB533-BKTMI-KU1, DB533-BKTMI-KU2, DB533-ALYYH-KU1, DB533-ALYYH-KU2, DB533-BGYYH-KU1, DB533-BGYYH-KU2, DB533-BKYYH-KU1, DB533-BKYYH-KU2, CFA633-YYH-KS, CFA633-TMI-KS, CFA633-YYH-KU, CFA633-TMI-KU, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-YFH-KU, CFA632-YDI-KU, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-TFH-KU, CFA634-TMI-KU, CFA634-YFH-KU, CFA634-YDI-KU, CFA633-RDI-KU, CFA633-RDI-KS, CFA533-TFH-KU, CFA533-TFH-KS, CFA633-TFH-KU, CFA633-TFH-KS, CFA533-TFH-KL, CFA533-TFH-KC, DB633-ALTFH-KS5, DB633-ALTFH-KU3, DB633-BGTFH-KS5, DB633-BGTFH-KU3, DB633-BKTFH-KS5, DB633-BKTFH-KU3, DB633-ALTFH-KS3, DB633-ALTFH-KS4, DB633-ALTFH-KU1, DB633-ALTFH-KU2, DB633-BGTFH-KS3, DB633-BGTFH-KS4, DB633-BGTFH-KU1, DB633-BGTFH-KU2, DB633-BKTFH-KS3, DB633-BKTFH-KS4, DB633-BKTFH-KU1, DB633-BKTFH-KU2, DS735-AK, DS735-AL, DS735-BG, CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TFK-KT1, CFA735-TFK-KR1, CFA735-TFK-KR2, CFA735-TML-KR, CFA735-TML-KR1, CFA735-TML-KR2, CFA735-TML-KT, CFA735-TML-KT1, CFA735-YYK-KR, CFA735-YYK-KR1, CFA735-YYK-KR2, CFA735-YYK-KT, CFA735-YYK-KT1, DB735-AK, DB735-AL, DB735-BG, DB735-BK, DB735-AKTFK-KR1, DB735-AKTML-KR1, DB735-AKYYK-KR1, DB735-ALTFK-KR1, DB735-ALTML-KR1, DB735-ALYYK-KR1, DB735-BGTFK-KR1, DB735-BGTML-KR1, DB735-BGYYK-KR1, DB735-BKTFK-KR1, DB735-BKTML-KR1, DB735-BKYYK-KR1, DB735-AKTFK-KR2, DB735-AKTML-KR2, DB735-AKYYK-KR2, DB735-ALTFK-KR2, DB735-ALTML-KR2, DB735-ALYYK-KR2, DB735-BGTFK-KR2, DB735-BGTML-KR2, DB735-BGYYK-KR2, DB735-BKTFK-KR2, DB735-BKTML-KR2, DB735-BKYYK-KR2, DB735-AKTFK-KR3, DB735-AKTML-KR3, DB735-AKYYK-KR3, DB735-ALTFK-KR3, DB735-ALTML-KR3, DB735-ALYYK-KR3, DB735-BGTFK-KR3, DB735-BGTML-KR3, DB735-BGYYK-KR3, DB735-BKTFK-KR3, DB735-BKTML-KR3, DB735-BKYYK-KR3, DS735-AKTFK-KR1, DS735-AKTML-KR1, DS735-AKYYK-KR1, DS735-ALTFK-KR1, DS735-ALTML-KR1, DS735-ALYYK-KR1, DS735-BGTFK-KR1, DS735-BGTML-KR1, DS735-BGYYK-KR1, DS735-BKTFK-KR1, DS735-BKTML-KR1, DS735-BKYYK-KR1, DS735-AKTFK-KR2, DS735-AKTML-KR2, DS735-AKYYK-KR2, DS735-ALTFK-KR2, DS735-ALTML-KR2, DS735-ALYYK-KR2, DS735-BGTFK-KR2, DS735-BGTML-KR2, DS735-BGYYK-KR2, DS735-BKTFK-KR2, DS735-BKTML-KR2, DS735-BKYYK-KR2, DS735-AKTFK-KR3, DS735-AKTML-KR3, DS735-AKYYK-KR3, DS735-ALTFK-KR3, DS735-ALTML-KR3, DS735-ALYYK-KR3, DS735-BGTFK-KR3, DS735-BGTML-KR3, DS735-BGYYK-KR3, DS735-BKTFK-KR3, DS735-BKTML-KR3, DS735-BKYYK-KR3, DB735-AKTFK-KT1, DB735-AKTML-KT1, DB735-AKYYK-KT1, DB735-ALTFK-KT1, DB735-ALTML-KT1, DB735-ALYYK-KT1, DB735-BGTFK-KT1, DB735-BGTML-KT1, DB735-BGYYK-KT1, DB735-BKTFK-KT1, DB735-BKTML-KT1, DB735-BKYYK-KT1, DB735-AKTFK-KT3, DB735-AKTML-KT3, DB735-AKYYK-KT3, DB735-ALTFK-KT3, DB735-ALTML-KT3, DB735-ALYYK-KT3, DB735-BGTFK-KT3, DB735-BGTML-KT3, DB735-BGYYK-KT3, DB735-BKTFK-KT3, DB735-BKTML-KT3, DB735-BKYYK-KT3, DS735-AKTFK-KT1, DS735-AKTML-KT1, DS735-AKYYK-KT1, DS735-ALTFK-KT1, DS735-ALTML-KT1, DS735-ALYYK-KT1, DS735-BGTFK-KT1, DS735-BGTML-KT1, DS735-BGYYK-KT1, DS735-BKTFK-KT1, DS735-BKTML-KT1, DS735-BKYYK-KT1, DS735-AKTFK-KT3, DS735-AKTML-KT3, DS735-AKYYK-KT3, DS735-ALTFK-KT3, DS735-ALTML-KT3, DS735-ALYYK-KT3, DS735-BGTFK-KT3, DS735-BGTML-KT3, DS735-BGYYK-KT3, DS735-BKTFK-KT3, DS735-BKTML-KT3, DS735-BKYYK-KT3, DB533-BKTFH-KU1, DB533-BKTFH-KU2, DB533-BGTFH-KU2, DB533-BGTFH-KU1, DB533-ALTFH-KU1, DB533-ALTFH-KU2, CFA533-TFH-KC8, CFA533-TMI-KC8, CFA533-YYH-KC8, CFA533-TFH-KL8, CFA533-TFH-KL16, CFA533-TFH-KL24, CFA533-TFH-KL48, CFA533-TFH-KL56, CFA533-TMI-KL8, CFA533-TMI-KL16, CFA533TMIKL24, CFA533-TMI-KL48, CFA533-TMI-KL56, CFA533-YYH-KL8, CFA533-YYH-KL16, CFA533-YYH-KL24, CFA533-YYH-KL48, CFA533-YYH-KL56, CFA533-TFH-KS8, CFA533-TFH-KS16, CFA533-TFH-KS24, CFA533-TFH-KS48, CFA533-TFH-KS56, CFA533-TMI-KS8, CFA533-TMI-KS16, CFA533-TMI-KS24, CFA533-TMI-KS48, CFA533-TMI-KS56, CFA533-YYH-KS8, CFA533-YYH-KS16, CFA533-YYH-KS24, CFA533-YYH-KS48, CFA533-YYH-KS56, CFA533-TFH-KU8, CFA533-TFH-KU16, CFA533-TFH-KU24, CFA533-TFH-KU48, CFA533-TFH-KU56, CFA533-TMI-KU8, CFA533-TMI-KU16, CFA533-TMI-KU24, CFA533-TMI-KU48, CFA533-TMI-KU56, CFA533-YYH-KU8, CFA533-YYH-KU16, CFA533-YYH-KU24, CFA533-YYH-KU48, CFA533-YYH-KU56, CFA631-RMF-KU32, CFA631-RMF-KU128, CFA631-RMF-KU160, CFA631-TMF-KU32, CFA631-TMF-KU128, CFA631-TMF-KU160, CFA632-YDI-KS4, CFA632-YFH-KS4, CFA633-RDI-KS8, CFA633-RDI-KS16, CFA633-RDI-KS24, CFA633-RDI-KS48, CFA633-RDI-KS56, CFA633-TFH-KS8, CFA633TFHKS16, CFA633TFHKS24, CFA633-TFH-KS48, CFA633-TFH-KS56, CFA633-TMI-KS8, CFA633-TMI-KS16, CFA633-TMI-KS24, CFA633-TMI-KS48, CFA633-TMI-KS56, CFA633-YYH-KS8, CFA633-YYH-KS16, CFA633-YYH-KS24, CFA633-YYH-KS48, CFA633-YYH-KS56, CFA633RDIKU8, CFA633-RDI-KU16, CFA633-RDI-KU24, CFA633-RDI-KU48, CFA633-RDI-KU56, CFA633-TFH-KU8, CFA633-TFH-KU16, CFA633-TFH-KU24, CFA633-TFH-KU48, CFA633-TFH-KU56, CFA633-TMI-KU8, CFA633-TMI-KU16, CFA633-TMI-KU24, CFA633-TMI-KU48, CFA633-TMI-KU56, CFA633-YYH-KU8, CFA633-YYH-KU16, CFA633-YYH-KU24, CFA633-YYH-KU48, CFA633-YYH-KU56, CFA634-TFH-KS4, CFA634-TMI-KS4, CFA634-YDI-KS4, CFA634-YFH-KS4, CFA635-TFE-KS32, CFA635-TMF-KS32, CFA635-YYE-KS32, CFA635-TFE-KU32, CFA635-TFE-KU128, CFA635-TFE-KU160, CFA635-TFE-KU256, CFA635-TFE-KU288, CFA635-TMF-KU32, CFA635-TMF-KU128, CFA635-TMF-KU160, CFA635-TMF-KU256, CFA635-TMF-KU288, CFA635-YYE-KU32, CFA635-YYE-KU128, CFA635-YYE-KU160, CFA635-YYE-KU256, CFA635-YYE-KU288, CFA735-TFK-KR32, CFA735-TFK-KR128, CFA735-TFK-KR160, CFA735-TML-KR32, CFA735-TML-KR128, CFA735-TML-KR160, CFA735-YYK-KR32, CFA735-YYK-KR128, CFA735-YYK-KR160, CFA735-TFK-KT32, CFA735-TFK-KT128, CFA735-TFK-KT160, CFA735-TML-KT32, CFA735-TML-KT128, CFA735-TML-KT160, CFA735-YYK-KT32, CFA735-YYK-KT128, CFA735-YYK-KT160, CFA631-RMF-KU33, CFA631-RMF-KU34, CFA631-TMF-KU33, CFA631-TMF-KU34, CFA631-RMF-KU129, CFA631-TMF-KU129, CFA631-RMF-KU130, CFA631-TMF-KU130, CFA631-RMF-KU161, CFA631-TMF-KU161, CFA631RMF-KU-162, CFA631-TMF-KU162, CFA635-TFE-KS5, CFA635-TFE-KS6, CFA635-TFE-KS37, CFA635-TFE-KS38, CFA635-TMF-KS5, CFA635-TMF-KS6, CFA635-TMF-KS37, CFA635-TMF-KS38, CFA635-YYE-KS5, CFA635-YYE-KS6, CFA635-YYE-KS37, CFA635-YYE-KS38, CFA635-TFE-KU33, CFA635-TFE-KU34, CFA635-TFE-KU129, CFA635-TFE-KU130, CFA635-TFE-KU161, CFA635-TFE-KU162, CFA635-TFE-KU257, CFA635-TFE-KU258, CFA635-TFE-KU289, CFA635-TFE-KU290, CFA635-TMF-KU33, CFA635-TMF-KU34, CFA635-TMF-KU129, CFA635-TMF-KU130, CFA635-TMF-KU161, CFA635-TMF-KU162, CFA635-TMF-KU257, CFA635-TMF-KU258, CFA635-TMF-KU289, CFA635-TMF-KU290, CFA635-YYE-KU33, CFA635-YYE-KU34, CFA635-YYE-KU129, CFA635-YYE-KU130, CFA635-YYE-KU161, CFA635-YYE-KU162, CFA635-YYE-KU257, CFA635-YYE-KU258, CFA635-YYE-KU289, CFA635-YYE-KU290, CFA735-TFK-KR33, CFA735-TFK-KR34, CFA735-TFK-KR129, CFA735-TFK-KR130, CFA735-TFK-KR161, CFA735-TFK-KR162, CFA735-TML-KR33, CFA735-TML-KR34, CFA735-TML-KR129, CFA735-TML-KR130, CFA735-TML-KR161, CFA735-TML-KR162, CFA735-YYK-KR33, CFA735-YYK-KR34, CFA735-YYK-KR129, CFA735-YYK-KR130, CFA735-YYK-KR161, CFA735-YYK-KR162, CFA735-TFK-KT5, CFA735-TFK-KT6, CFA735-TFK-KT37, CFA735-TFK-KT38, CFA735-TFK-KT133, CFA735-TFK-KT134, CFA735-TFK-KT165, CFA735-TFK-KT166, CFA735-TML-KT5, CFA735-TML-KT6, CFA735-TML-KT133, CFA735-TML-KT134, CFA735-TML-KT166, CFA735-TML-KT165, CFA735-TML-KT37, CFA735-TML-KT38, CFA735-YYK-KT5, CFA735-YYK-KT6, CFA735-YYK-KT38, CFA735-YYK-KT37, CFA735-YYK-KT133, CFA735-YYK-KT134, CFA735-YYK-KT165, CFA735-YYK-KT166, CFA635-TFE-KS1, CFA635-TMF-KS1, CFA635-YYE-KS1, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP, CFA632-YFH-KC4, CFA632-YFH-KL16, CFA632-YFH-KN16, CFA632-YFH-KP16, CFA632-YDI-KC4, CFA632-YDI-KL16, CFA632-YDI-KN16, CFA632-YDI-KP16, CFA634-YDI-KC, CFA634-TMI-KC, CFA634-YFH-KC, CFA634-TFH-KC, CFA634-YFH-KL, CFA634-TFH-KL, CFA634-TMI-KL, CFA634-YDI-KL, CFA634-TFH-KP, CFA634-YFH-KP, CFA634-TMI-KP, CFA634-YDI-KP, CFA634-TFH-KN, CFA634-YFH-KN, CFA634-TMI-KN, CFA634-YDI-KN, CFA533-TMI-KU113, CFA634-TFH-KC4, CFA634-TMI-KC4, CFA634-YDI-KC4, CFA634-YFH-KC4, CFA634-TFH-KL16, CFA634-TMI-KL16, CFA634-YDI-KL16, CFA634-YFH-KL16, CFA634-TFH-KN16, CFA634-TMI-KN16, CFA634-YDI-KN16, CFA634-YFH-KN16, CFA634-TFH-KP16, CFA634-TMI-KP16, CFA634-YDI-KP16, CFA634-YFH-KP16, CFA634-TFH-KS16, CFA634-TMI-KS16, CFA634-YDI-KS16, CFA634-YFH-KS16, CFA631P-TMF-KU
Date Issued: July 1, 2015
Summary: Depreciation of ‘Drive Bay Kit Configurator’ / New part numbers for drive bay kits.
Description: Starting August 1, 2015 the ‘Drive Bay Kit Configurator’ located at https://www.crystalfontz.com/products/select_kit.html will no longer be functional for ordering one of our Serial or USB displays (CFA533, CFA631, CFA632, CFA633, CFA634, CFA635, and CFA735) in a bracket or SLED. This functionality is being moved to the Customize and Add to Cart process when checking out. This will allow for further customization by our customers to better fit their needs.

This change will eliminate the current “kits”, but will add options not previously available such as preconfigured ATX functionality, and ALL the currently available interfaces will be orderable in a drive bay bracket or SLED.
The new part numbers will have the bracket / SLED and overlay type as a PREFIX to the configured part number. The choice for bracket / SLED to a display order will be via the cart options. Our CFA835 displays were introduced with these configuration options.
To see how the new options will look, and what the new part numbers will look like, please see one of our CFA835 parts:
https://www.crystalfontz.com/cart/addtocart.php?product_id=2277&qty=1
NOTE: The SLED is only available for the CFA635, CFA735, and CFA835 products.
Reason: As part of our continuous improvement process, we are integrating the ordering of displays in drive bay and SLED kits as part of the display ordering process.
Impact: Drive bay kits in their current configuration will no longer be available.
Recommendation: Place orders prior to 2015-08-01 for upcoming production needs via our website or by contacting our logistics department via email – sales@crystalfontz.com, or by calling 1-888-206-9720 (International call +1-509-892-1200).
After the 2015-08-01, please contact our engineering department via support@crystalfontz.com to assist you with ordering your bracket / SLED kits.
Availability: Starting 2015-08-01, the bracket and SLED options for our serial and USB display will be part of the ordering process for the displays
Price Change: Pricing bracket / SLED configurations will reflect manufacturing costs.

Part Change Notice #10351

Products Affected: CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-TMI-KI, CFA533-YYH-KI, DB533-ALTMI-KU1, DB533-ALTMI-KU2, DB533-BGTMI-KU1, DB533-BGTMI-KU2, DB533-BKTMI-KU1, DB533-BKTMI-KU2, DB533-ALYYH-KU1, DB533-ALYYH-KU2, DB533-BGYYH-KU1, DB533-BGYYH-KU2, DB533-BKYYH-KU1, DB533-BKYYH-KU2, CFA533-TFH-KU, CFA533-TFH-KS, CFA533-TFH-KL, CFA533-TFH-KC
Date Issued: August 2, 2011
Summary: CFA533 family hardware revision v1.1
Last revision: v1.0
Description: The CFA533 v1.1 hardware changes are as follows:

  1. New inductor package for backlight control circuit. This is being done to improve the manufacturabilty of the CFA533.

  2. Addition of JPGPIO1. This jumper will be closed by default and bypasses a 5KΩ pull-up resistor that is in line with GPIO[1] to the micro-controller.

  3. Improved Yellow-green backlight for the YYH variants. The backlight now has a total of 10 yellow-green LEDs instead of 6. This improves the visual quality and appearance of the LCD backlight. Typical weight will increase to 43g, from 41g for the CFA533 YYH variants.

Reason: As part of our continuous improvement process, the CFA533 family is being revised to hardware v1.1. This was done based on customer feedback to improve the functionality and appearance of the CFA533 family.
Impact: Hardware v1.1 should be a drop in replacement for most applications. No form or fit changes have been implemented.

The exception may be with the YYH variants. Due to the increased number of yellow-green LEDs in the LCD backlight, the current profile of these variants has increased.
Recommendation: Participate in discounted pricing for first run CFA533 v1.1 hardware based modules through September 30, 2011.
Availability:

  1. First run CFA533 v1.1 hardware based modules and datasheet will be available for customer qualification / in-house approval on August 8, 2011 through September 30, 2011 for a maximum quantity of three at the currently published 50 piece price.

  2. Volume shipment end of Q3 2011

  3. Shipments of v1.0 hardware will continue until inventory levels exhausted.

  4. Full transition to v1.1 hardware expected by end of Q4 2011.


Price Change: No price change is scheduled at this time. Pricing will be reviewed Q1 2012.
Attachment: CFA533_1-1_HW_PCN.pdf (828KB)

Part Change Notice #10291

Products Affected: CFA633-YYB-KS, CFA633-TMC-KS, CFA633-RMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-TMI-KI, CFA533-YYH-KI, CFA633-YYH-KS, CFA633-TMI-KS, CFA633-YYH-KU, CFA633-TMI-KU, CFA633-RDI-KU, CFA633-RDI-KS
Date Issued: November 10, 2010
Summary: Technical Bulletin TB01: Comparison of CFA533 and CFA633 Modules by Version Number
Description: The attached PDF file describes differences between our CFA633 v1.5x and CFA633 v2.0 intelligent display module series. We also list the CFA533 series as a comparison for customers who do not require the fan control available in the CFA633 series. Hardware version numbers are silkscreened on the back of the PCBs.

Additional information can be found in supporting documents for PCN:

http://www.crystalfontz.com/products/document/2371/CFA633_v1-5a_to_v1-5c_changes.pdf

http://www.crystalfontz.com/products/pcnfile/10286/PCN_CFA633_2-0.pdf
Reason: Clarify the differences between the different modules.
Impact: None.
Attachment: TB01_Comparison_of_CFA533_and_CFA633_Modules.pdf (86KB)

Part Change Notice #10282

Products Affected: CFA633-YYB-KS, CFA633-TMC-KS, CFA633-RMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, CFA635-TMF-KU1, CFA635-TMF-KU2, CFA635-TFE-KU1, CFA635-TFE-KU2, CFA635-YYE-KU1, CFA635-YYE-KU2, CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA635-TFE-KU, CFA635-YYE-KL, CFA635-TMF-KU, CFA635-YYE-KU, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-TMI-KI, CFA533-YYH-KI
Date Issued: June 6, 2010
Summary: Keypad height change
Description: Over the next 6 months or so, we will be transitioning to a keypad that is 1.5mm taller than the keypad currently shipping on these modules.
Reason: We have found that in all cases that we are aware of, the keypad being 1.5mm taller will alleviate some customer difficulties.
Recommendation: If you need the keypad to remain the same height for your application, please email support@crystalfontz.com so that we can set aside some of the shorter keypads for your company's application.
Availability: ~0-6 months.
Price Change: None.

Part Change Notice #10015

Products Affected: CFA533-YYH-KC, CFA533-TMI-KC, CFA533-TMI-KI, CFA533-YYH-KI
Date Issued: August 4, 2009
Summary: Change in CFA-533 I2C part number.
Last revision: v0.1
Description: CFA533-TMI-KI changed to CFA533-TMI-KC
CFA533-YYH-KI changed to CFA533-YYH-KC
Reason: KI as a suffix indicating I2C was sometimes confused with KL. We will now use KC as a suffix to indicate I2C
Impact: Part number change only.
Recommendation: Please update your part numbers for I2C parts as follows:
CFA533-TMI-KI is now CFA533-TMI-KC
CFA533-YYH-KI is now CFA533-YYH-KC
Availability: No change to availability.
Price Change: No change to price.
