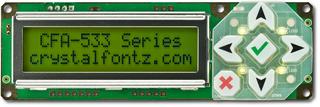

Green 16x2 Character I2C LCD Display

Part Number: CFA533-YYH-KC

I2C LCD With Keypad – Dark On Yellow-Green

The CFA533-***-KC series is a 16x2 I2C LCD with keypad. The I2C interface allows you to use just two lines (SDA & SCL) to have bi-directional communication with the I2C LCD. Other devices can also share those two I2C control lines with the LCD. Only 4 wires are needed to connect this I2C LCD: power, ground, SDA (I2C Serial DAta) and SCL (I2C Serial CLock).

The CFA533 can run on 3.3v to 5.0v directly, with no changes needed, so you do not need to do any level translation between your embedded processor and the I2C LCD. Simply power the CFA533 from the same supply as your processor and the I2C signal levels will match up.

Using only one address on your I2C bus, you can add all the elements that you need for your front panel. The CFA533 I2C LCD can also read up to 32 DS18B20 digital temperature sensors, giving you an easy way to integrate temperature sensing over the I2C bus. No additional firmware or pins are needed on the host system.

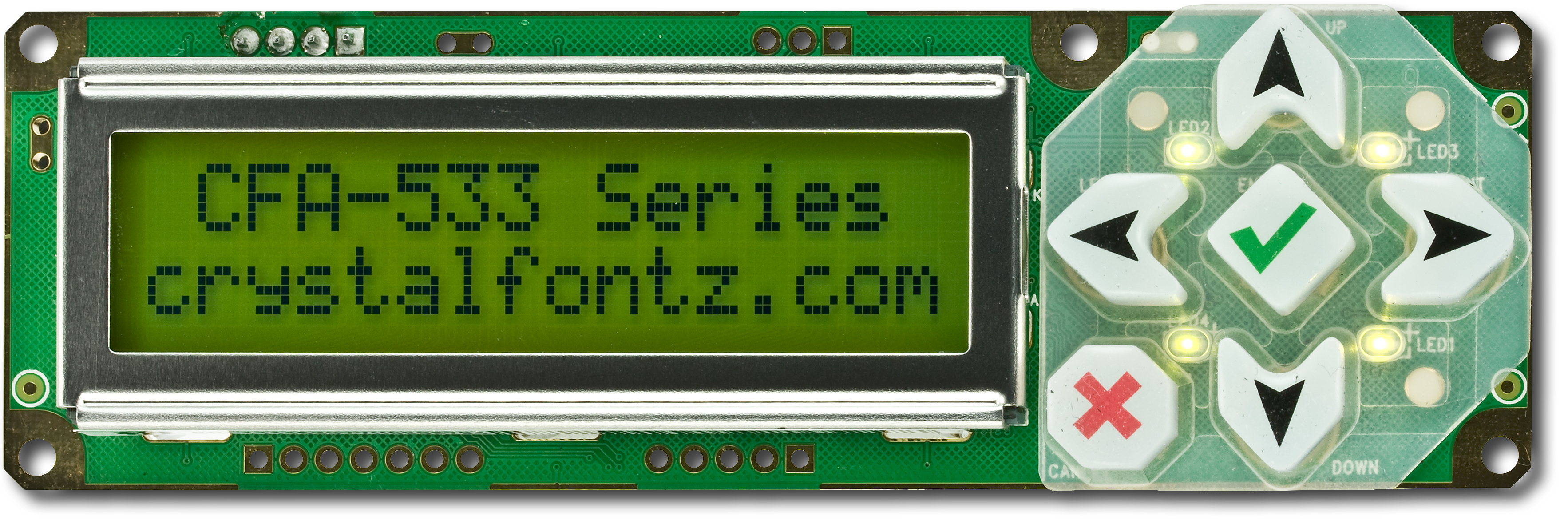

This CFA533-YYH variant shows crisp, dark letters against a yellow-green backlit background. The keypad is backlight in a matching yellow-green. Since the LCD is a backlit positive STN, the CFA533-YYH I2C LCD is easily viewable in all lighting conditions, from direct sunlight to a completely dark room.

Key Features

  • I2C host interface controls the LCD and reads the keypad.
  • Compact size: fits in a 1U rack mount case (35mm overall height).
  • Integrated 16x2 LED backlit character LCD.
  • Integrated LED backlit 6-button translucent silicon keypad with screened legend with the popular arrows, enter and cancel layout.
  • Advanced digital GPIO control with PWM output.
  • Robust packet based communications protocol with CRC.
  • Non-volatile memory (EEPROM): Set the "power-on" display screen, plus 16-bytes for storing IP, netmask, or system serial number.
  • ATX power supply control functionality.
  • Temperature monitoring: up to 32 channels at up to 0.5 deg C absolute accuracy using WR-DOW-Y17 DS18B20 temperature sensors.
  • Available in a 5.25" half-height LCD drive bay kit when adding to cart.
  • Easy to use with Arduino.
  • Sample applications and source code readily available: 533 I2C WinTest, Connect Arduino Uno to I2C LCD, and CrystalControl2.
Not sure which I2C display module to choose? Compare all of our intelligent display modules.

Currently Shipping: HW Version 1.4, Firmware Version: C1v2

Product Variants


RS232

CFA533-YYH-KS16x2 RS232 Character LCD, Yellow-Green
CFA533-TMI-KSWhite on Blue 16x2 Character LCD RS232
CFA533-TFH-KS16x2 RS232 Character LCD

Logic Level Serial

CFA533-YYH-KLYellow-Green Serial 16x2 Character LCD
CFA533-TMI-KLBlue Serial 16x2 Character LCD
CFA533-TFH-KLLight Blue Serial 16x2 Character LCD

I2C

CFA533-YYH-KCGreen 16x2 Character I2C LCD Display
CFA533-TMI-KCWhite on Blue 16x2 Character LCD I2C
CFA533-TFH-KCBlue 16x2 Character I2C LCD Module

USB

CFA533-YYH-KU16x2 Character LCD Module
CFA533-TMI-KUWhite on Blue 16x2 Character USB LCD
CFA533-TFH-KULight Blue 16x2 Character USB Display Module
Green 16x2 Character I2C LCD Display (CFA533-YYH-KC)
Add to cart without customizations
Qty:
Prices without customizations:
Quantity Price
1 $67.42
10 $65.47
20 $61.08
50 $56.72
100 $52.34
200 $47.96
500 $43.60
1000 * $39.22
* Pricing is subject to change. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

CFA533KC Series
(Hardware 1.4, Firmware c1v2)
Previous Versions of Datasheets
CFA533-KC Series
(Hardware 1.1, Firmware c1v1)
CFA533-YYH-KC v2.0.pdf
(Datasheet V 2.0, Hardware 1.0, Firmware c1.0)
CFA533-YYH-KC v1.0.pdf
(Datasheet V 1.0, Hardware 0.1, Firmware i0.2)

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA533-YYH-KC or RSS RSS feed for changes to CFA533-YYH-KC for CFA533-YYH-KC

Compliance Documents

TECHNICAL SPECS

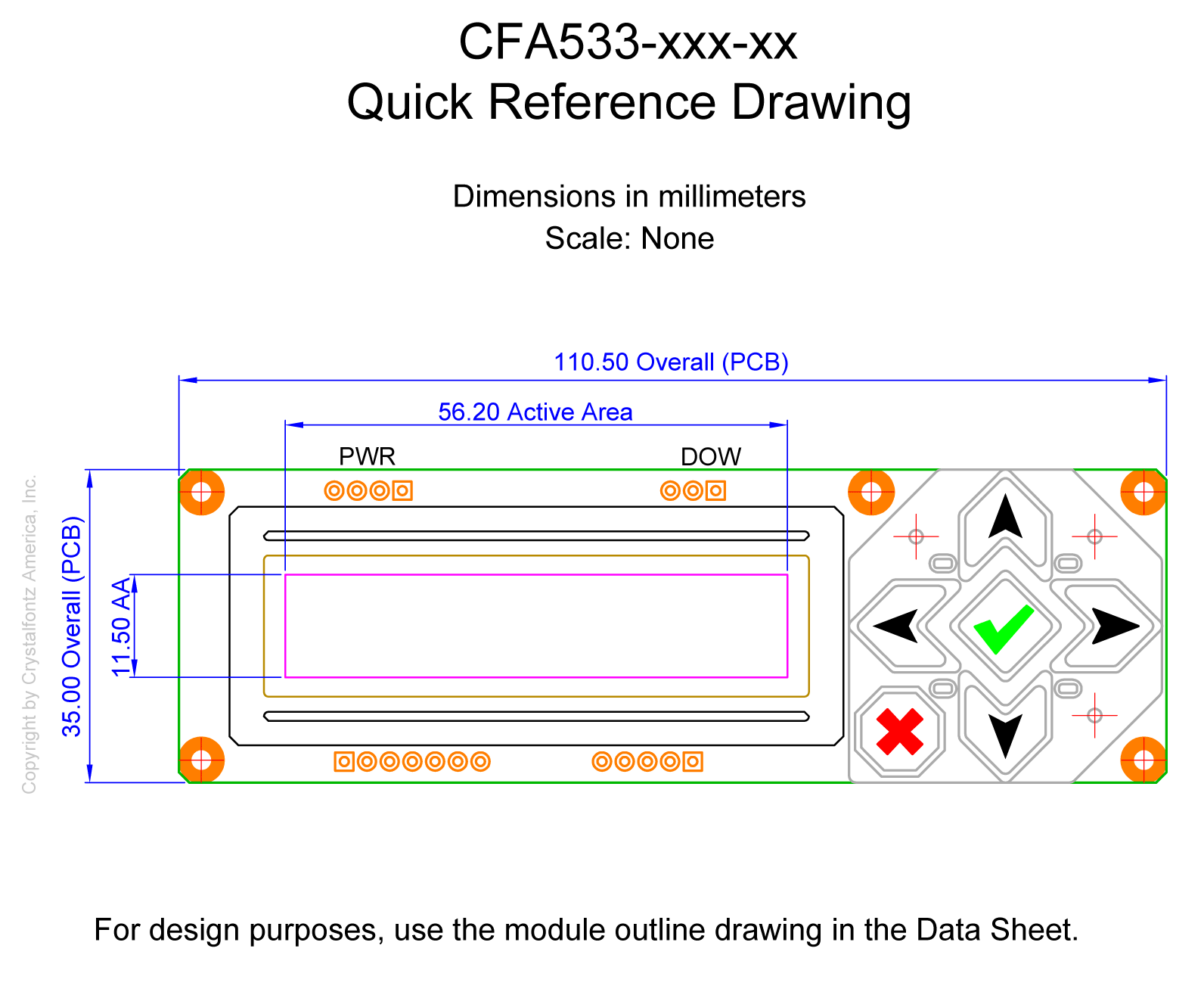

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 110.5 35 25.6
inches 4.350 1.378 1.008
*depth doesn't include Keypad
PCB Outline width height
millimeters 110.5 35
inches 4.350 1.378
Diagonal Dimension 2.26"
Viewing Area width height
millimeters 61 15.8
inches 2.402 0.622
Active Area width height
millimeters 56.2 11.5
inches 2.213 0.453
Character Size width height
millimeters 2.95 5.55
inches 0.116 0.219
Character Pitch width height
millimeters 3.55 5.95
inches 0.140 0.234
Dot Size width height
millimeters 0.55 0.65
inches 0.022 0.026
Dot Pitch width height
millimeters 0.6 0.7
inches 0.024 0.028
Weight 41g
Keystroke Travel 2.4mm

Optical Characteristics

Glass Type/Glass Color STN/Yellow-Green
Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Color Yellow-Green
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color Yellow-Green

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Interface I2C

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFA533-YYH-KC or RSS RSS feed for changes to CFA533-YYH-KC

Part Change Notice #10731: CFA533 KC series Firmware revision 1.1 to 1.2

Products Affected: CFA533-YYH-KC, CFA533-TMI-KC, CFA533-TFH-KC
Date Issued: October 5, 2016
Summary: CFA533 KC series Firmware revision 1.1 to 1.2
Last revision: 1.1
Description: The CFA533 KC series of advanced display modules will be changing from the current firmware v1.1 to v1.2. Design changes were made for backwards compatibility.
Reason: As part of our continuous improvement, firmware has been updated for use with updated hardware for the CFA533 series of advanced display modules.
Impact: Change:
Command 1 (0x01): Get Hardware & Firmware Version
This command will now report the following string = "CFA533:h1.4,c1v2"

New Command:
23 (0x17): Enable Key Ready Flag
Due to the nature of the I2C protocol, we have included an out-of-band method of checking for key presses and releases. This command allows GPIO[0] (J8's Pin 7) to act as a key ready flag. If enabled, it sets GPIO[0] high until read by the host using 24 (0x18): Read Keypad, Polled Mode (Pg. 46).

type: 0x17 = 2310 data_length: 1
data[0] = 0 => GPIO 0 is normal
data[0] = 1 => GPIO 0 driven high if a key is ready driven low if no keys are ready

The return packet will be:
type: = 23
data_length: = 0
Recommendation: CFA533 firmware version 1.2 is considered a fit and form replacement. Testing of new firmware is recommended when the new hardware version 1.4 is available.
Availability: CFA533 hardware v1.4 should begin shipping Q4 2016.
Engineering samples for testing / validation will be available during this same time frame.
Price Change: No price change is currently scheduled.

Part Change Notice #10724: CFA533 series Hardware revision 1.1 to 1.4

Products Affected: CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-TFH-KU, CFA533-TFH-KS, CFA533-TFH-KL, CFA533-TFH-KC
Date Issued: July 8, 2016
Summary: CFA533 series Hardware revision 1.1 to 1.4
Last revision: 1.1

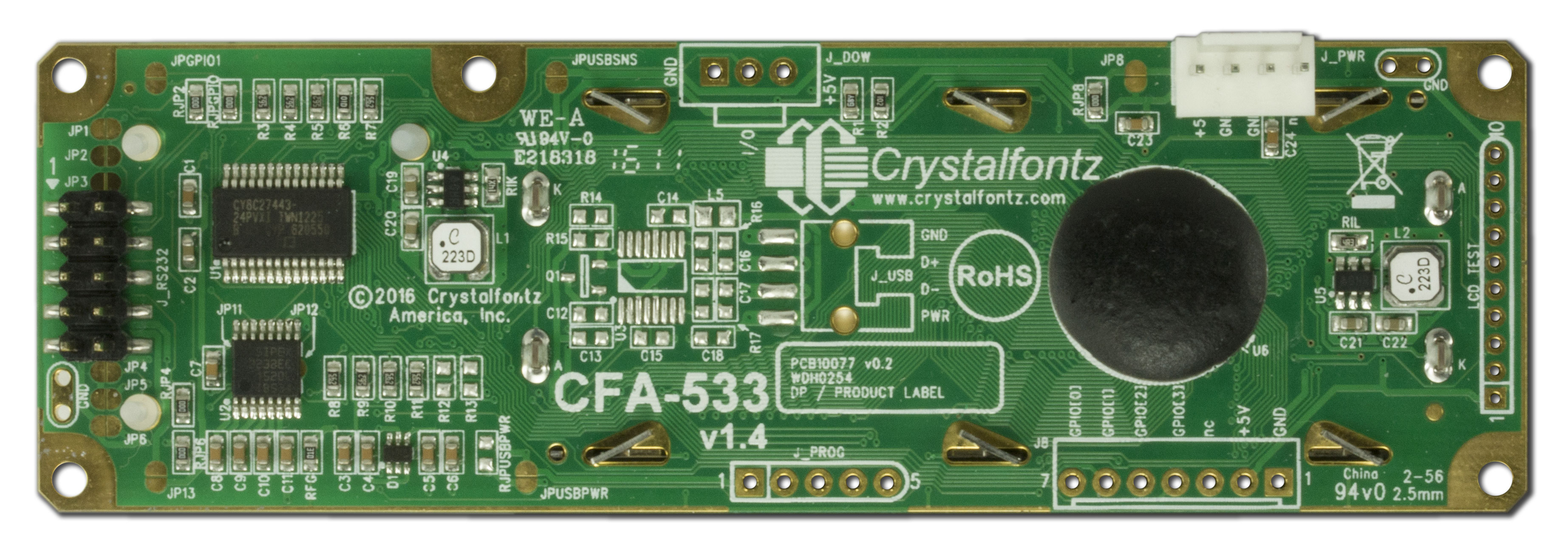

Description: The CFA533 series of advanced display modules will be changing from the current hardware version 1.1 to version 1.4. Design changes were made for backwards compatibility. Hardware version 1.4 requires firmware version 1.2 or newer.
Reason: As part of our continuous improvement, design changes have been made to the hardware of the CFA533 series of advanced display modules for improved manufacturability, improved quality, and a lower current profile.
Impact: Factory default configuration has no functional changes. Standard and custom configurations are not affected by the new hardware layout. CFA533 hardware version 1.4 should replace the previous version of the CFA533 with no physical changes and is considered a fit and form replacement.

Six 0 ohm resistors have been added as factory default for closing the following jumpers:
JPGPIO1 -> RJPGPIO1
JPUSBPWR -> RJPUSBPWR
JP2 -> RJP2
JP4 -> RJP4
JP6 -> RJP6
JP8 -> RJP8

Solder jumpers are still in place for configuration after jumper resistor removed. Jumpers will appear open. Configuration changes not performed by Crystalfontz America, Inc. will need to make note of this manufacturing change.
Recommendation: CFA533 hardware version 1.4 is considered a fit and form replacement. Testing of new hardware is recommended when available.
Availability: CFA533 hardware version 1.4 should begin shipping Q4 2016.
Engineering samples for testing / validation will be available during this same time frame.
Price Change: No price change is currently scheduled.

Part Change Notice #10673: CFA533 Firmware c1.1

Products Affected: CFA533-YYH-KC, CFA533-TMI-KC, CFA533-TFH-KC
Date Issued: September 14, 2015
Summary: CFA533 Firmware c1.1
Last revision: c1.0
Description: As part of our continuous improvement, we are releasing a new version of the CFA533 KC, or I2C firmware. This is a point release from c1.0 to c1.0.
Reason: Bug: Key press / release packets would be sent from display unless specifically turned off. This behavior is not consistent with a slave device on an I2C bus. The extra packets could cause output buffer overflow issues. Key press / release reporting is now turned off as core functionality of the CFA533 I2C firmware. Key press / release conditions are stored in the output buffer and are sent to host when polled.

Updates: Bring firmware into line with functionality of base CFA533 firmware.
Impact: Firmware update has been designed for low to no impact.

Customers with Defined Part (DP) numbers will continue to receive display modules with the version of firmware currently approved.
Availability: New firmware will begin shipping on 2015-10-01.
Price Change: There is no price change associated with this PCN.

Part Change Notice #10658: Deprecation of "Drive Bay Kit Configurator" / New part numbers for drive bay kits.

Products Affected: CFA631-RMF-KU, CFA633-YYB-KS, CFA633-TMC-KS, CFA633-RMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA631-TMF-KU, CFA635-TFE-KU, CFA635-YYE-KL, CFA635-TMF-KU, CFA635-YYE-KU, DS635-AL, DS635-BG, DS635-BK, DS635-AK, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI, CFA633-YYH-KS, CFA633-TMI-KS, CFA633-YYH-KU, CFA633-TMI-KU, CFA632-YFH-KS, CFA632-YDI-KS, CFA632-YFH-KU, CFA632-YDI-KU, CFA634-TFH-KS, CFA634-TMI-KS, CFA634-YFH-KS, CFA634-YDI-KS, CFA634-TFH-KU, CFA634-TMI-KU, CFA634-YFH-KU, CFA634-YDI-KU, CFA633-RDI-KU, CFA633-RDI-KS, CFA533-TFH-KU, CFA533-TFH-KS, CFA633-TFH-KU, CFA633-TFH-KS, CFA533-TFH-KL, CFA533-TFH-KC, CFA735-TFK-KR, CFA735-TFK-KT, CFA735-TML-KR, CFA735-TML-KT, CFA735-YYK-KR, CFA735-YYK-KT, CFA632-YDI-KL, CFA632-YDI-KN, CFA632-YDI-KC, CFA632-YDI-KP, CFA632-YFH-KL, CFA632-YFH-KN, CFA632-YFH-KC, CFA632-YFH-KP, CFA634-YDI-KC, CFA634-TMI-KC, CFA634-YFH-KC, CFA634-TFH-KC, CFA634-YFH-KL, CFA634-TFH-KL, CFA634-TMI-KL, CFA634-YDI-KL, CFA634-TFH-KP, CFA634-YFH-KP, CFA634-TMI-KP, CFA634-YDI-KP, CFA634-TFH-KN, CFA634-YFH-KN, CFA634-TMI-KN, CFA634-YDI-KN, CFA631P-TMF-KU
Date Issued: July 1, 2015
Summary: Deprecation of "Drive Bay Kit Configurator" / New part numbers for drive bay kits.
Description: Starting August 1, 2015 the "Drive Bay Kit Configurator" located at https://www.crystalfontz.com/products/select_kit.html will no longer be functional for ordering one of our Serial or USB displays (CFA533, CFA631, CFA632, CFA633, CFA634, CFA635, and CFA735) in a bracket or SLED. This functionality is being moved to the Customize and Add to Cart process when checking out. This will allow for further customization by our customers to better fit their needs.

This change will eliminate the current "kits", but will add options not previously available such as pre-configured ATX functionality, and ALL the currently available interfaces will be orderable in a drive bay bracket or SLED.
The new part numbers will have the bracket / SLED and overlay type as a PREFIX to the configured part number. The choice for bracket / SLED to a display order will be via the cart options. Our CFA835 displays were introduced with these configuration options.
To see how the new options will look, and what the new part numbers will look like, please see one of our CFA835 parts:
https://www.crystalfontz.com/cart/addtocart.php?product_id=2277&qty=1
NOTE: The SLED is only available for the CFA635, CFA735, and CFA835 products.
Reason: As part of our continuous improvement process, we are integrating the ordering of displays in drive bay and SLED kits as part of the display ordering process.
Impact: Drive bay kits in their current configuration will no longer be available.
Recommendation: Place orders prior to 2015-08-01 for upcoming production needs via our website or by contacting our logistics department via email: sales@crystalfontz.com, or by calling 1-888-206-9720 (International call +1-509-892-1200).
After the 2015-08-01, please contact our engineering department via support@crystalfontz.com to assist you with ordering your bracket / SLED kits.
Availability: Starting 2015-08-01, the bracket and SLED options for our serial and USB display will be part of the ordering process for the displays
Price Change: Pricing bracket / SLED configurations will reflect manufacturing costs.

Part Change Notice #10351: CFA533 family hardware revision v1.1

Products Affected: CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI, CFA533-TFH-KU, CFA533-TFH-KS, CFA533-TFH-KL, CFA533-TFH-KC
Date Issued: August 2, 2011
Summary: CFA533 family hardware revision v1.1
Last revision: v1.0
Description: The CFA533 v1.1 hardware changes are as follows:

  1. New inductor package for backlight control circuit. This is being done to improve the manufacturabilty of the CFA533.

  2. Addition of JPGPIO1. This jumper will be closed by default and bypasses a 5KΩ pull-up resistor that is in line with GPIO[1] to the micro-controller.

  3. Improved Yellow-green backlight for the YYH variants. The backlight now has a total of 10 yellow-green LEDs instead of 6. This improves the visual quality and appearance of the LCD backlight. Typical weight will increase to 43g, from 41g for the CFA533 YYH variants.

Reason: As part of our continuous improvement process, the CFA533 family is being revised to hardware v1.1. This was done based on customer feedback to improve the functionality and appearance of the CFA533 family.
Impact: Hardware v1.1 should be a drop in replacement for most applications. No form or fit changes have been implemented.

The exception may be with the YYH variants. Due to the increased number of yellow-green LEDs in the LCD backlight, the current profile of these variants has increased.
Recommendation: Participate in discounted pricing for first run CFA533 v1.1 hardware based modules through September 30, 2011.
Availability:

  1. First run CFA533 v1.1 hardware based modules and datasheet will be available for customer qualification / in-house approval on August 8, 2011 through September 30, 2011 for a maximum quantity of three at the currently published 50 piece price.

  2. Volume shipment end of Q3 2011

  3. Shipments of v1.0 hardware will continue until inventory levels exhausted.

  4. Full transition to v1.1 hardware expected by end of Q4 2011.


Price Change: No price change is scheduled at this time. Pricing will be reviewed Q1 2012.
Attachment: CFA533_1-1_HW_PCN.pdf (828KB)

Part Change Notice #10291: Technical Bulletin TB01: Comparison of CFA533 and CFA633 Modules by Version Number

Products Affected: CFA633-YYB-KS, CFA633-TMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI, CFA633-YYH-KS, CFA633-TMI-KS, CFA633-YYH-KU, CFA633-TMI-KU, CFA633-RDI-KU, CFA633-RDI-KS
Date Issued: November 10, 2010
Summary: Technical Bulletin TB01: Comparison of CFA533 and CFA633 Modules by Version Number
Description: The attached PDF file describes differences between our CFA633 v1.5x and CFA633 v2.0 intelligent display module series. We also list the CFA533 series as a comparison for customers who do not require the fan control available in the CFA633 series. Hardware version numbers are silk screened on the back of the PCBs.

Additional information can be found in supporting documents for PCN:

https://www.crystalfontz.com/products/document/2371/CFA633_v1-5a_to_v1-5c_changes.pdf

https://www.crystalfontz.com/products/pcnfile/10286/PCN_CFA633_2-0.pdf
Reason: Clarify the differences between the different modules.
Impact: None.
Attachment: TB01_Comparison_of_CFA533_and_CFA633_Modules.pdf (86KB)

Part Change Notice #10282: Keypad height change

Products Affected: CFA633-YYB-KS, CFA633-TMC-KS, CFA633-RMC-KS, CFA633-YYB-KU, CFA633-TMC-KU, CFA633-RMC-KU, CFA635-YYE-KS, CFA635-TMF-KS, CFA635-TFE-KS, CFA635-TMF-KL, CFA635-TFE-KL, CFA635-TFE-KU, CFA635-YYE-KL, CFA635-TMF-KU, CFA635-YYE-KU, CFA533-YYH-KS, CFA533-YYH-KU, CFA533-TMI-KS, CFA533-TMI-KU, CFA533-YYH-KL, CFA533-TMI-KL, CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI
Date Issued: June 6, 2010
Summary: Keypad height change
Description: Over the next 6 months or so, we will be transitioning to a keypad that is 1.5mm taller than the keypad currently shipping on these modules.
Reason: We have found that in all cases that we are aware of, the keypad being 1.5mm taller will alleviate some customer difficulties.
Recommendation: If you need the keypad to remain the same height for your application, please email support@crystalfontz.com so that we can set aside some of the shorter keypads for your company's application.
Availability: ~0-6 months.
Price Change: None.

Part Change Notice #10015: Change in CFA-533 I2C part number.

Products Affected: CFA533-YYH-KC, CFA533-TMI-KC, CFA533-YYH-KI
Date Issued: August 4, 2009
Summary: Change in CFA-533 I2C part number.
Last revision: v0.1
Description: CFA533-TMI-KI changed to CFA533-TMI-KC
CFA533-YYH-KI changed to CFA533-YYH-KC
Reason: KI as a suffix indicating I2C was sometimes confused with KL. We will now use KC as a suffix to indicate I2C
Impact: Part number change only.
Recommendation: Please update your part numbers for I2C parts as follows:
CFA533-TMI-KI is now CFA533-TMI-KC
CFA533-YYH-KI is now CFA533-YYH-KC
Availability: No change to availability.
Price Change: No change to price.
For reference only. For design purposes, please use the specifications in the datasheet.
Crystalfontz.com
Crystalfontz America, Inc.
12412 East Saltese Avenue, Spokane Valley, WA 99216-0357
Hours: Monday - Friday, 8:30am - 4:30pm Pacific
Tel: (509) 892-1200
Fax: (509) 892-1203
Toll Free: (888) 206-9720
sales@crystalfontz.com
© 1999- 2023 Crystalfontz . All rights reserved.
Sign In | Cart

Home | Products | Tech Support | News | About | Contact | Policies

Starfield Security Seal
Accepted Payment Types
ISO 9001:2015 Certified
