5" Capacitive Touchscreen EVE Development KitPart Number: CFA800480E3-050SC-KIT
         This kit demonstrates a 5" EVE display module with a capacitive touchscreen. The TFT module uses the BT817 EVE chip for accelerated graphics, touch interpretation, and audio control.

Simply check the connections and plug this kit in to see this display module working.

Key Features:
5" Diagonal Display Area
Sunlight readable at 800nits
IPS (in-plane switching) for wider viewing angles
TFT
Capacitive Touch Screen
Capable of 16 million colors
Bridgetek's BT817 EVE integrated
4-wire SPI / Quad SPI interface
Needs only an external 5V supply to function out of the box
This full demonstration EVE kit replaces the previous A2-2 version.

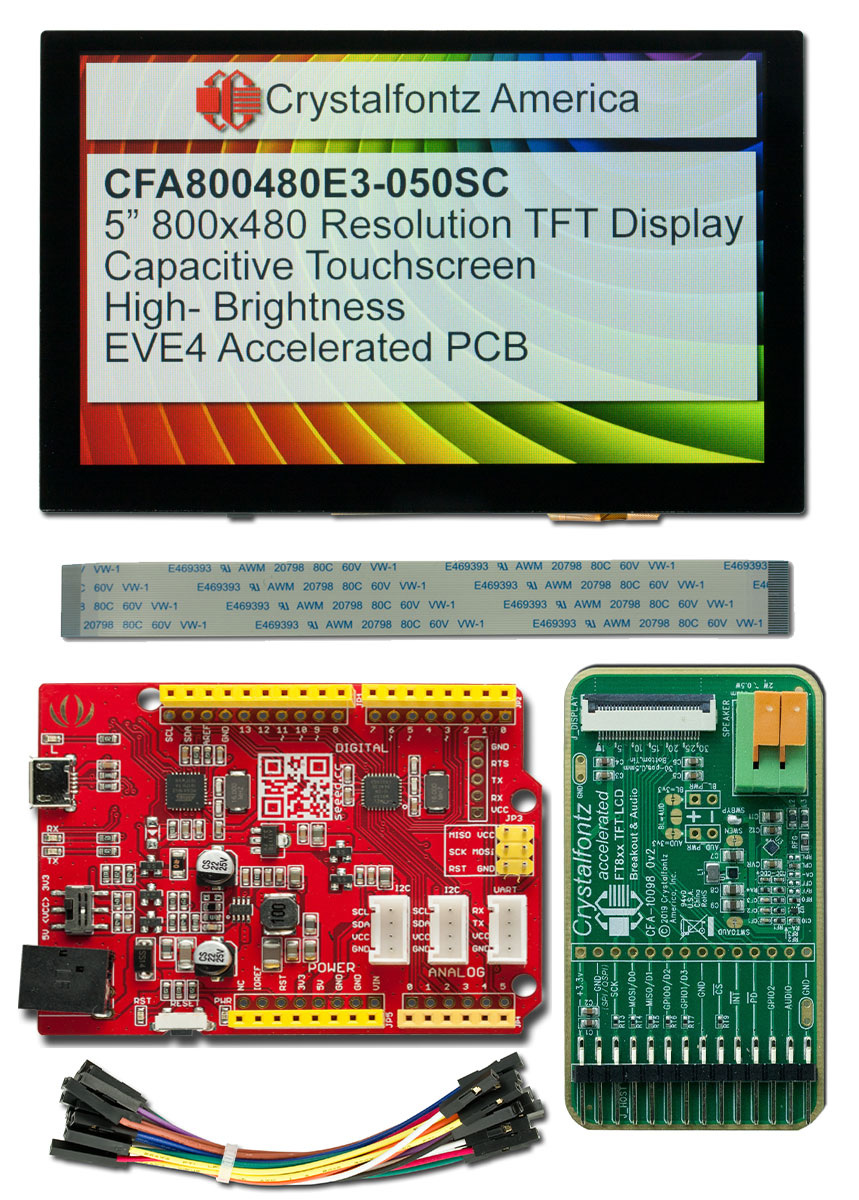

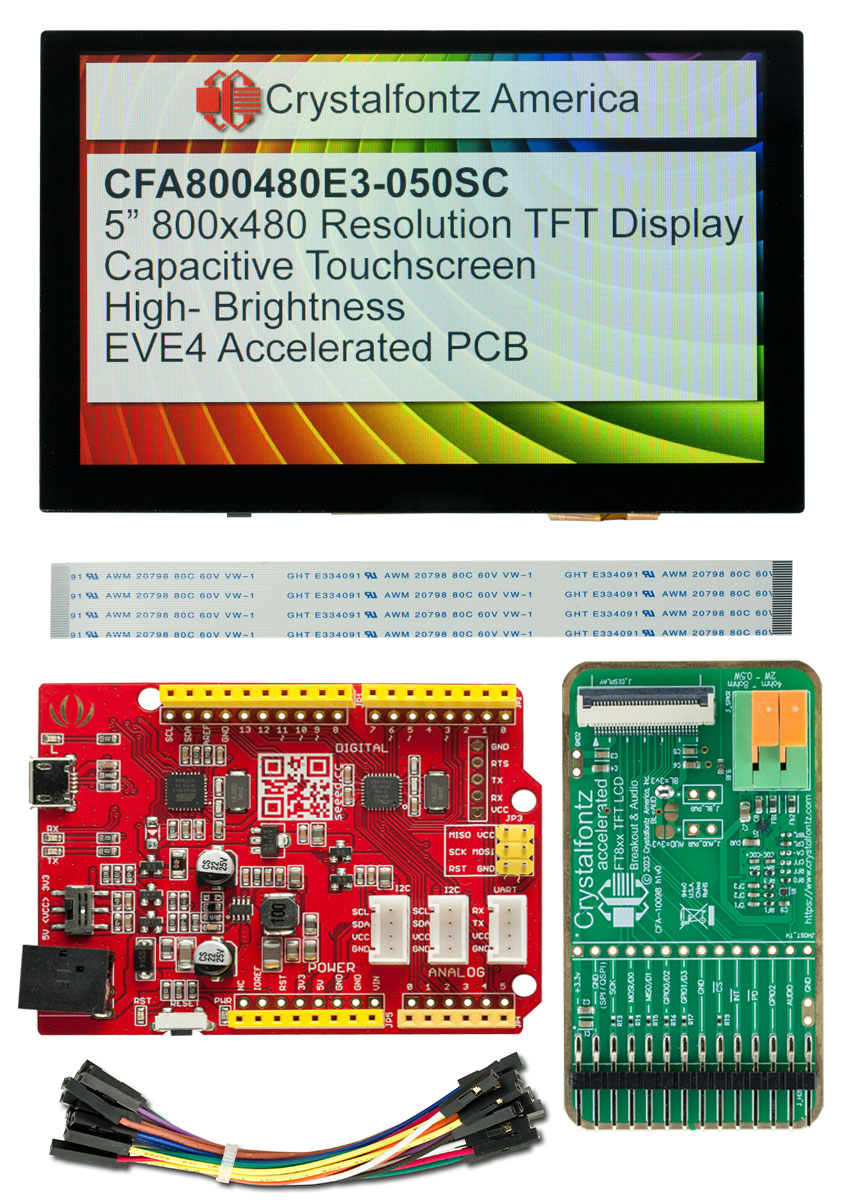

Included in this kit:
5" Cap touch display (CFA800480E3-050SC)
EVE breakout board
Seeeduino with demo code
All the necessary wires and cables.
Product VariationsTouchscreenCapacitive Extended GlassResistiveNoneCapacitive

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            800 x 480

    Module Overall        width
        height
        depth

        millimeters
        120.7
        76.3
        10.65

        inches
        4.75
        3.00
        0.42

        Diagonal Dimension
            5"

    Viewing Area        Width
        Height

        millimeters
        109
        65.8

        inches
        4.29
        2.59

    Active Area        Width
        Height

        millimeters
        108
        64.8

        inches
        4.25
        2.55

    Dot Pitch        Width
        Height

        millimeters
        0.135
        0.135

        inches
        0.0053
        0.0053

        Weight
            220.5g
Pin Count
            30

 visibility Optical Characteristics
Optical Characteristics

        Polarizer
            Transmissive
View Angle
            >160°
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V

        Supply Voltage for Driving Panel Typical
            5V
Supply Current Typical
            20mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            2.7V
Forward Voltage Maximum
            5.5V

        Forward Voltage Typical
            5.0V

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Bridgetek BT81x
BT817/8 Advanced

Embedded Video

Engine Datasheet
Interface
            SPI

 picture_as_pdf Datasheets
picture_as_pdfCFA800480E3-050Sx Series Datasheet

 download Files and Downloads
picture_as_pdf Other Document - ESP32 and XIAO App Note for CFA10100 boards
picture_as_pdf Other Document - Getting Started Guide
link Demo Code Repository on Github

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1 *
            $132.75

0 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						800x480 5-Inch EVE Capacitive Touchscreen TFT Display
Need another EVE Display? $89.59 ea.

						USB-A to Micro-B Cable
Add a USB Cable? $5.75 ea.

						MicroSD Card Reader
Need a MicroSD Card Reader? $8.14 ea.

Module Overall	width	height	depth
millimeters	120.7	76.3	10.65
inches	4.75	3.00	0.42

Viewing Area	Width	Height
millimeters	109	65.8
inches	4.29	2.59

Active Area	Width	Height
millimeters	108	64.8
inches	4.25	2.55

Dot Pitch	Width	Height
millimeters	0.135	0.135
inches	0.0053	0.0053

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1 *	$132.75

Additional Options
Notices

Additional Options

Purchase the EVE-powered display module separately.

800x480 5-Inch EVE Capacitive Touchscreen TFT Display
Part Number: CFA800480E3-050SC

Details

Quantity	1	10	20	50	100	200	300 *	500 *	1000 *
Unit Price	$89.59	$87.03	$84.47	$81.40	$80.38	$79.86	$78.84	$78.33	$77.82

Quantity:

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11319: Manufacturing Location Change

Products Affected:	CFA800480E3-050SC, CFA800480E3-050SC-KIT
Date Issued:	January 27, 2025
Summary:	Manufacturing Location Change
Description:	The manufacturing location is changing for the displays. The new materials used cause the metal bezel to appear slightly different and the TFT color tones to appear warmer.
Reason:	The manufacturing location is changing for the displays.
Impact:	Warmer tones when displaying images Metal Bezel slightly darker
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Product Update #11220: Changing Manufacturing Facility

Products Affected:	WR-FFC-Y50, CFAF320240F-035T-TS-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480E3-050SR-KIT, CFA800480E3-050SW-KIT
Date Issued:	August 7, 2023
Summary:	Changing Manufacturing Facility
Description:	The WR-FFC-Y50 will be manufactured at a different facility. There are no changes to the functionality of the Flat Flex Cable.
Reason:	Continuous improvement
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notice #11211: 5" Capacitive Touchscreen EVE Development Kit is now available

New Product:	CFA800480E3-050SC-KIT
Date Issued:	June 28, 2023
Summary:	5" Capacitive Touchscreen EVE Development Kit is now available
Description:	CFA800480E3-050SC-KIT has been released on our website (https://www.crystalfontz.com/product/cfa800480e3050sckit-5-inch-cap-touch-eve-dev-kit) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.

Part Change Notice #11202: Audio Power Supply Removed

Products Affected:	CFA10098, CFAF240400C0-030SC-A1-2, CFAF320240F-035T-A1-2, CFAF480128A0-039TN-A1-2, CFAF1024600B0-070SC-A1-2, CFA240320E0-024SC-KIT, CFA240320E0-024SN-KIT, CFA480128E0-039TC-KIT, CFA240400E1-030TC-KIT, CFA240400E1-030TN-KIT, CFA800480E3-050SC-KIT, CFA800480E3-050SN-KIT, CFA800480E3-050SR-KIT, CFA800480E3-050SW-KIT
Date Issued:	May 25, 2023
Summary:	Audio Power Supply Removed
Description:	The audio power supply has been removed from the board. Audio power will now only be able to be supplied externally. Hardware Version Changes: h0v2 to h1v0
Reason:	The audio power supply chip is no longer available and it was determined that it would be better for external power supplies to be used to demonstrate the EVE's audio capabilities.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
